Model Whirlpool 596.70129890 Room Air Conditioner (Kenmore 59670129890) – Common Parts & Diagrams

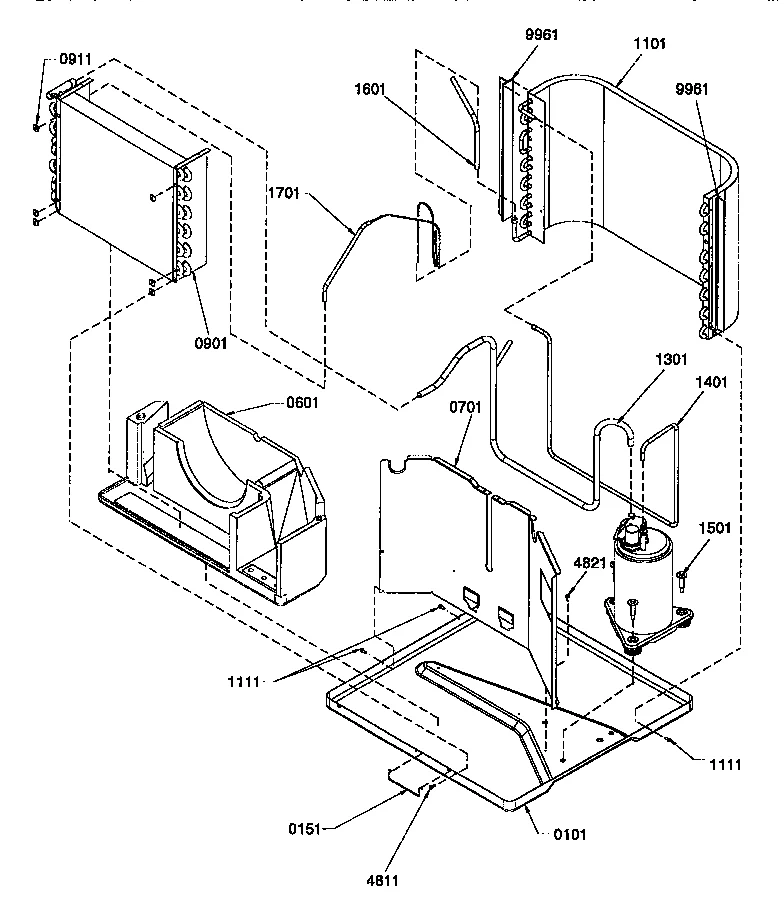

CHASSIS ASSEMBLY
All Parts
CHASSIS ASSEMBLY
FAN MOTOR/COMPRESSOR ASSEMBLY
CONTROL/OUTER CASE ASSEMBLY
Common parts from model Whirlpool 596.70129890 Room Air Conditioner (Kenmore 59670129890)
11
Front WPL 20051701 Contact Us For Availability
11
Bracket WPL 20053903 Contact Us For Availability
11
Control Housing WPL 20052901 Contact Us For Availability
12
Compressor WPL D9831803 Contact Us For Availability
21
Fan Motor WPL 20059704 Contact Us For Availability
21
Curtain WPL 20054902 Contact Us For Availability
21
Overlay WPL 20100201 Contact Us For Availability
22
Grommet WPL A3448601 Contact Us For Availability
22
Rail WPL 20055102 Contact Us For Availability
31
Board Pc Qz WPL 20082401 Contact Us For Availability
31
Retainer WPL 20052701 Contact Us For Availability
31
Shroud WPL 20063401 Contact Us For Availability
32
Overload WPL D6961631 Contact Us For Availability
41
Fan WPL 20046501 Contact Us For Availability
41
Control Box WPL 20063601 Contact Us For Availability
51
Wheel WPL 20061201 Contact Us For Availability
51
Insulation WPL 20080401 Contact Us For Availability
52
Gasket WPL B1434901 Contact Us For Availability
61
Power Cord WPL 20057501 Contact Us For Availability
72
Grommet WPL 20075701 Contact Us For Availability
81
Speed Clamp WPL M0103902 Contact Us For Availability
91
Capacitor WPL D6879848 Contact Us For Availability
92
Terminal Cover WPL C6470701 Contact Us For Availability
101
Pan WPL 20070801 Contact Us For Availability
101
Strap WPL C6300511 Contact Us For Availability
112
Nut WPL A9036601 Contact Us For Availability
121
Block WPL 20050701 Contact Us For Availability
131
Lever WPL 20050801 Contact Us For Availability
141
Screw WPL M0245104 Contact Us For Availability
151
Handle WPL 20088701 Contact Us For Availability
191
Clip WPL M0118702 Contact Us For Availability
201
Screw WPL M0227803 Contact Us For Availability
601
Scroll WPL 20062601 Contact Us For Availability
701
Panel WPL 20062501 Contact Us For Availability
901
Evaporator WPL 20082101 Contact Us For Availability
1101
Condenser WPL 20052501 Contact Us For Availability
1301
Suction WPL 20068902 Contact Us For Availability
1401
Discharge Tube WPL 20069102 Contact Us For Availability
1501
Screw WPL M0253610 Contact Us For Availability
1601
Strainer WPL B1394401 Contact Us For Availability
1701
Caillary WPL 20089202 Contact Us For Availability
2401
Spring WPL 20055502 Contact Us For Availability
2601
Door WPL 20051302 Contact Us For Availability
2701
Scroll WPL 20062701 Contact Us For Availability
2801
Actuator WPL 20064701 Contact Us For Availability
3301
Base WPL 20051502 Contact Us For Availability
3401
Louver-vert WPL 20050902 Contact Us For Availability
3501
Exhaust Lever WPL 20051402 Contact Us For Availability
3801
Clip WPL 20075601 Contact Us For Availability
3911
Strap WPL 20090301 Contact Us For Availability
3951
Panel WPL 20068701 Contact Us For Availability
4001
Gasket WPL 10839705 Contact Us For Availability
4101
Box WPL 20090601 Contact Us For Availability
4201
Insert WPL 20051801 Contact Us For Availability
4301
Filter WPL 20064301 Contact Us For Availability
4402
Outer Case WPL 20060201 Contact Us For Availability
4501
Frame WPL 10382613 Contact Us For Availability
4601
Frame WPL 10382614 Contact Us For Availability
4651
Screw WPL M0211314 Contact Us For Availability
4951
Base Pan Cli WPL 20065102 Contact Us For Availability
5051
Gasket WPL 10839701 Contact Us For Availability
5061
Gasket WPL 10839816 Contact Us For Availability
9911
Gasket WPL 10839706 Contact Us For Availability
9921
Horizontal Louver WPL 20052601 Contact Us For Availability
9933
Bracket WPL 10661401 Contact Us For Availability
9963
Screw WPL M0211020 Contact Us For Availability
9981
Gasket WPL 10839712 Contact Us For Availability
9983
Gasket WPL 10839702 Contact Us For Availability
9993
Gasket WPL 10839720 Contact Us For Availability
NI
Seal WPL 20065008 Contact Us For Availability
NI
Gasket WPL 10839703 Contact Us For Availability
NI
Gasket WPL 10839707 Contact Us For Availability
NI
Gasket WPL 10839818 Contact Us For Availability
NI
Adjustment Foot WPL 20054801 Contact Us For Availability
NI
Drain WPL 20064101 Contact Us For Availability
NI
Technical Sheet WPL 20100801 Contact Us For Availability
NI
Owner's Manual WPL 20101101 Contact Us For Availability
NI
Parts List WPL 20101401 Contact Us For Availability
NI
Screw WPL M0213032 Contact Us For Availability
× ![]()
