Model Whirlpool 596.57547790 25" Side-By-Side Refrigerator (Kenmore 59657547790) – Common Parts & Diagrams

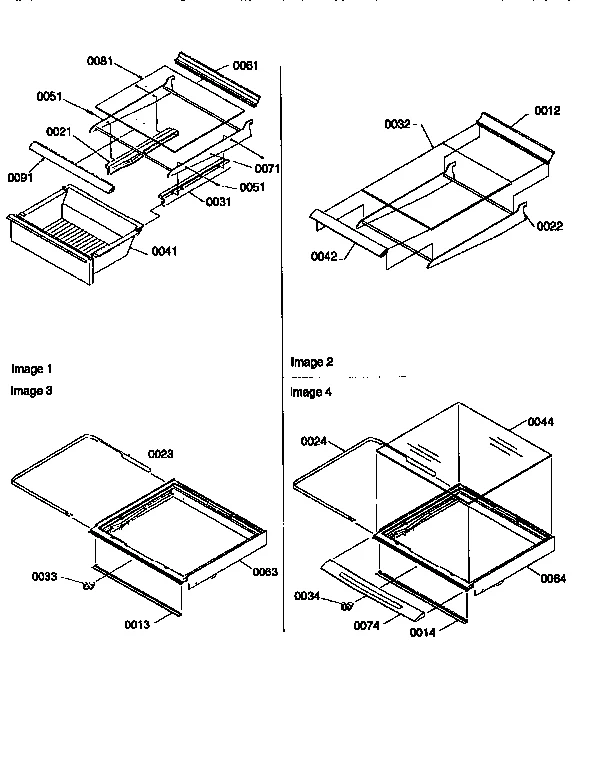

DELL, SHELF, AND CRISPER ASSEMBLIES

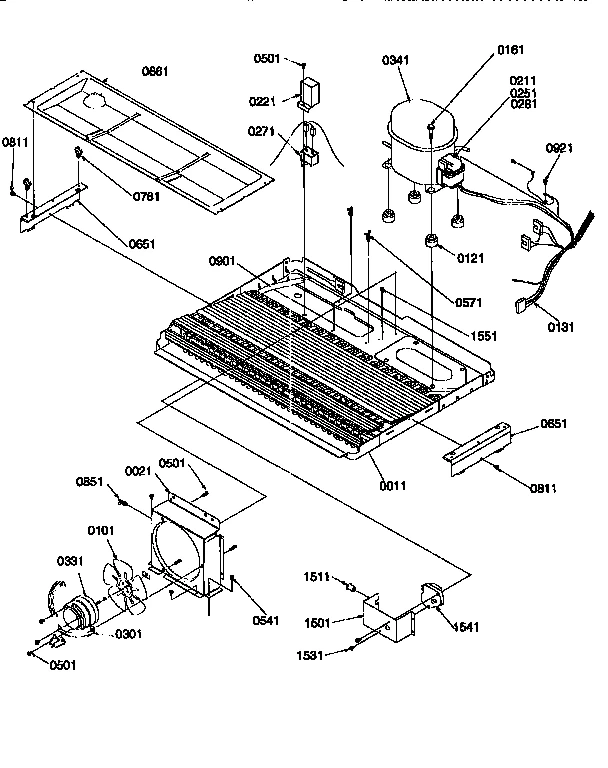

MACHINE COMPARTMENT

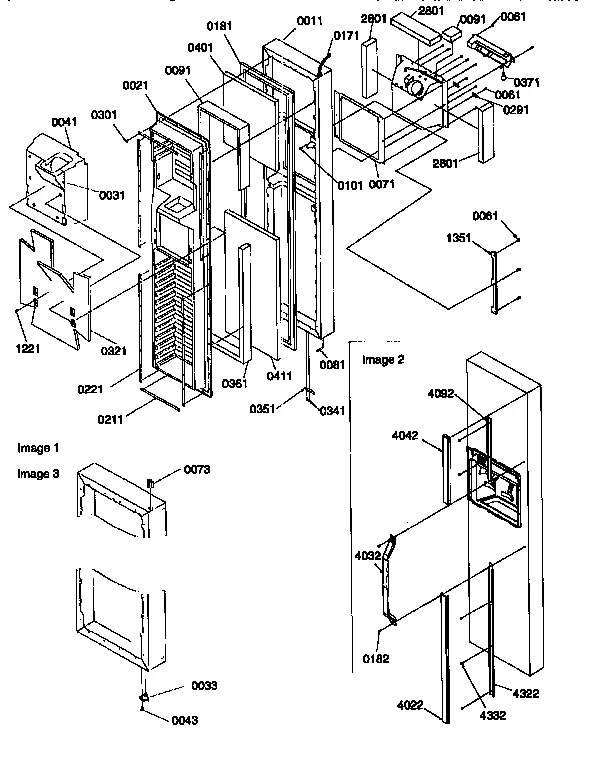

FREEZER DOOR

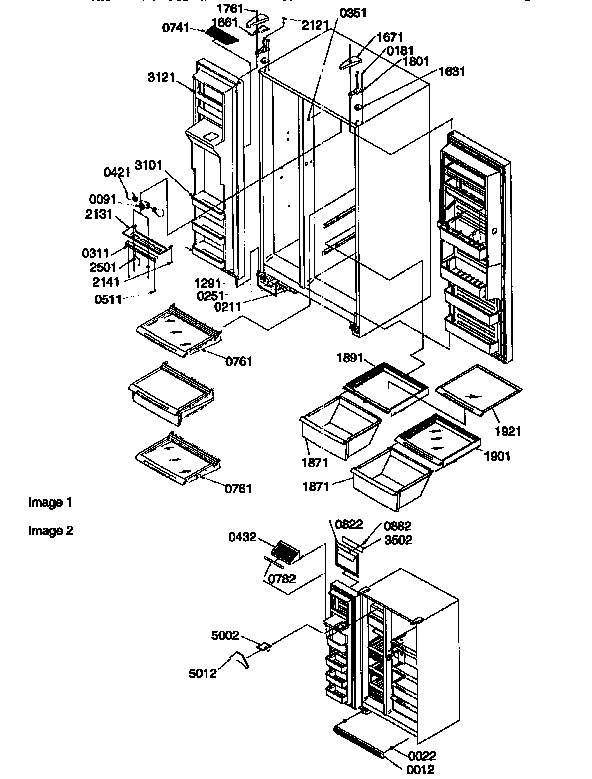

LIGHTS, HINGES, AND TOE GRILLE

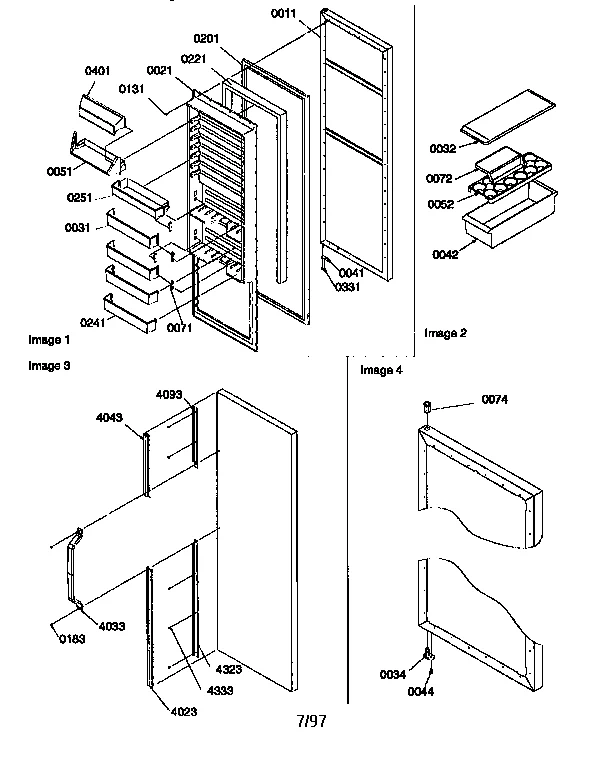

REFRIGERATOR DOOR AND ACCESSORIES

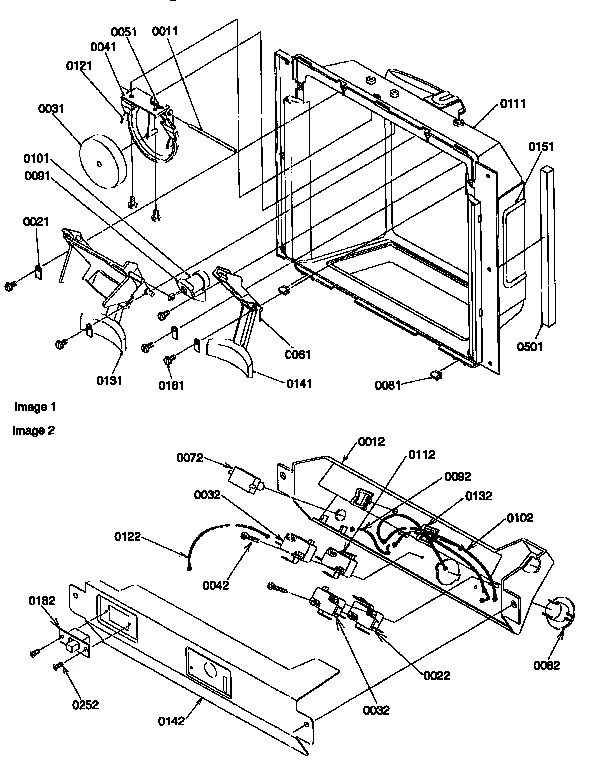

ICE AND WATER CAVITY

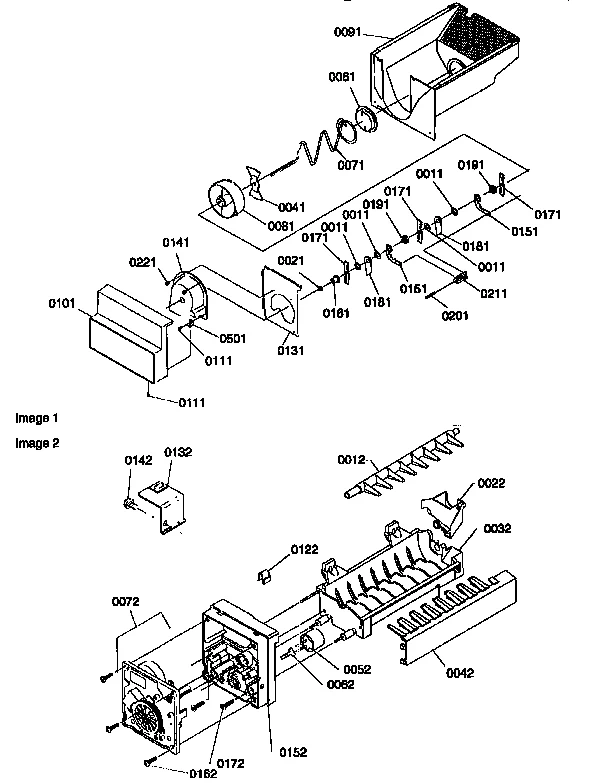

ICE BUCKET AUGER/ICE MAKER

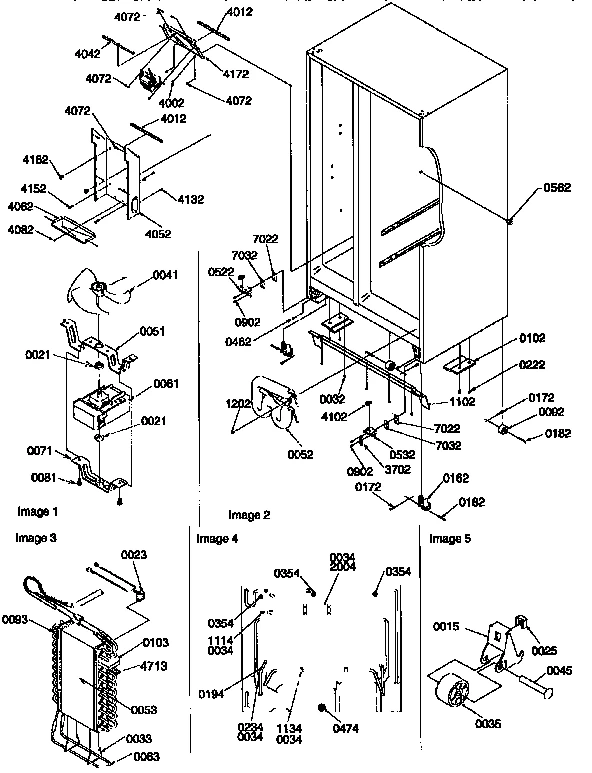

DRAIN SYSTEM, ROLLERS/EVAPORATOR ASSEMBLY

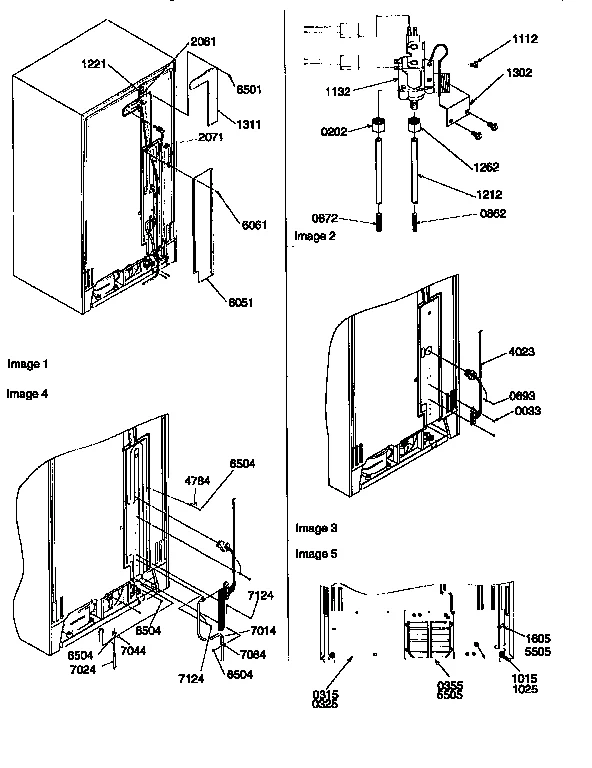

CABINET BACK

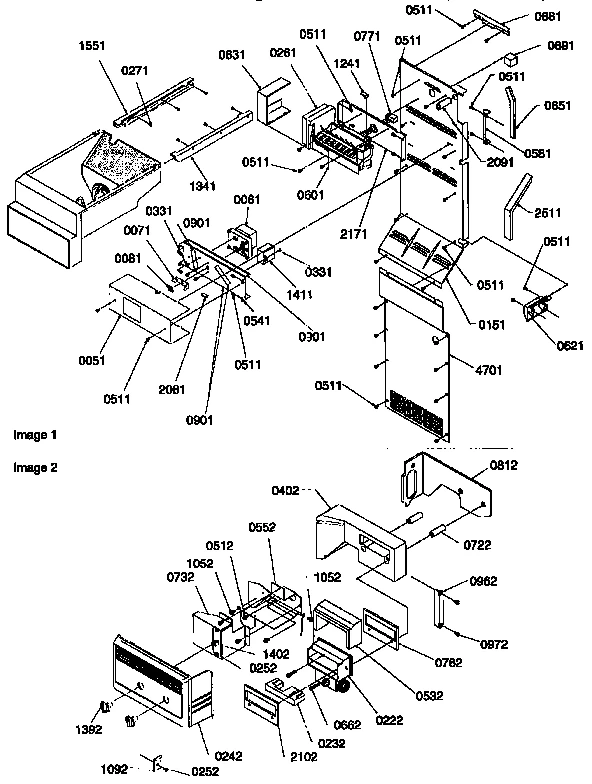

ICE MAKER/CONTROL ASSEMBLY
All Parts

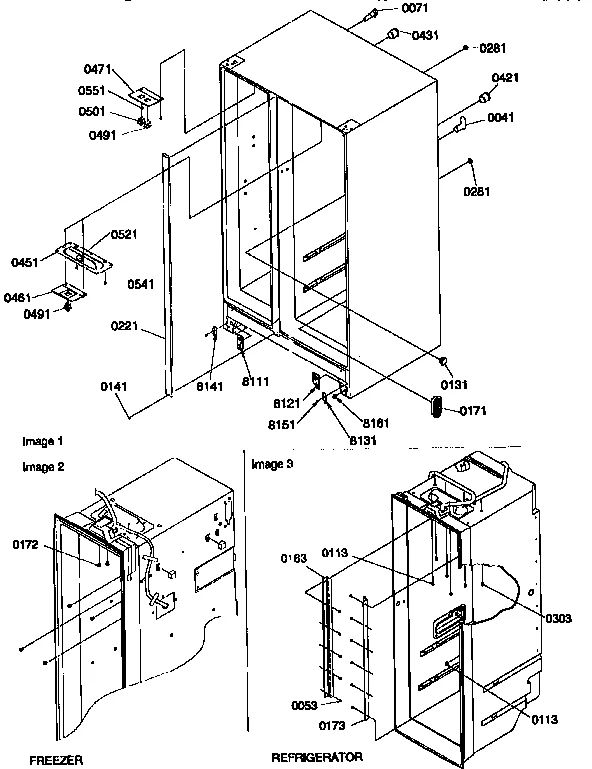

CABINET

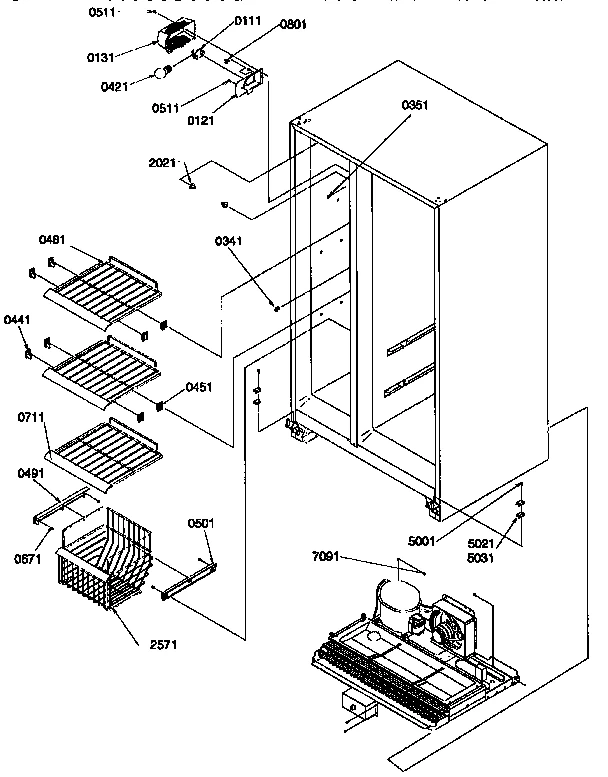

FREEZER SHELVES AND LIGHT
Common parts from model Whirlpool 596.57547790 25" Side-By-Side Refrigerator (Kenmore 59657547790)
11
Condenser Pan WPL 10544108 Contact Us For Availability
11
Foam Asm WPL 10881410L Contact Us For Availability
11
Foam Asm WPL 10881315L Contact Us For Availability
11
Pn-chte Door WPL A1061501 Contact Us For Availability
11
Washer WPL 10275101 Contact Us For Availability
12
Refrigerator Grille WPL 10810902 Contact Us For Availability
12
Refrigerator Bracket WPL 10323305 Contact Us For Availability
15
Refrigerator Roller Bracket WPL C8742401 Contact Us For Availability
21
Refrigerator Shroud WPL 10602404 Contact Us For Availability
21
Refrigerator Freezer Liner WPL 10860902 Contact Us For Availability
21
Refrigerator Panel WPL 10866101 Contact Us For Availability
21
Ice Retainer WPL A1061601 Contact Us For Availability
22
Clip-grill WPL WPM0117303 No Longer Available
22
Refrigerator Switch WPL 10533002 Contact Us For Availability
23
Refrigerator Bi-Metal WPL 12017823 Contact Us For Availability
31
Refrigerator Insulation WPL 10895501 Contact Us For Availability
31
Chili Shelf WPL 10520418 Contact Us For Availability
31
Insulation Chute WPL B8380701 Contact Us For Availability
32
Refrigerator Glass Shelf WPL 12216707 Contact Us For Availability
32
Lid-utilit WPL 10436404S Contact Us For Availability
33
Refrigerator Slide WPL 10852501 Contact Us For Availability
34
Closure WPL 12113204 Contact Us For Availability
41
Refrigerator Deli Pan WPL 10784201 Contact Us For Availability
41
Refrigerator Door Stop WPL C8972406 Contact Us For Availability
41
Refrigerator Chute Bracket WPL B8380801 Contact Us For Availability
41
Refrigerator Bar WPL 10113801 Contact Us For Availability
41
TUNNEL-HT EX WPL CB971902 Contact Us For Availability
42
Refrigerator Extrusion WPL 10459910 Contact Us For Availability
42
Bin-utilit WPL 10423128S Contact Us For Availability
42
Refrigerator Screw WPL M0237809 Contact Us For Availability
44
Refrigerator Glass Shelf WPL 10370066 Contact Us For Availability
45
Refrigerator Rivet WPL M1205302 Contact Us For Availability
51
Refrigerator Shelf WPL 12083301 Contact Us For Availability
51
Chute Spring WPL B8380901 Contact Us For Availability
51
Refrigerator Bracket WPL 10656102 Contact Us For Availability
51
Refrigerator Cover WPL D7788811 Contact Us For Availability
52
Egg Tray WPL 10436505S Contact Us For Availability
52
Refrigerator Tank WPL 10988502 Contact Us For Availability
53
Low Side As WPL R0170055 Contact Us For Availability
61
Refrigerator Spring WPL B8385401 Contact Us For Availability
61
Refrigerator Auger Motor WPL 10114804 Contact Us For Availability
63
Refrigerator Frame WPL 10782901 Contact Us For Availability
71
Agitator Ice WPL 10114401 Contact Us For Availability
71
Gas Cavity WPL D7791004 Contact Us For Availability
71
Refrigerator Clip WPL 10202001 Contact Us For Availability
71
Refrigerator Motor Bracket WPL 10909401 Contact Us For Availability
71
Refrigerator Fill Tube WPL 12023401 Contact Us For Availability
72
Tray-butte WPL 10310901S Contact Us For Availability
72
Refrigerator Switch WPL 10166101 Contact Us For Availability
74
Refrigerator Crisper Trim WPL 12113006 Contact Us For Availability
74
Refrigerator Door Bushing WPL 10961001 Contact Us For Availability
81
WHEEL-CRSH ICE WPL 110114702 Contact Us For Availability
82
Refrigerator Socket WPL 10131702 Contact Us For Availability
91
Refrigerator Socket WPL 12156201 Contact Us For Availability
91
Refrigerator Retainer WPL C8972501 Contact Us For Availability
91
Refrigerator Ice Bucket WPL 10111905 Contact Us For Availability
92
Refrigerator Wire Jumper WPL D77226590 Contact Us For Availability
93
Refrigerator Block WPL 10629601 Contact Us For Availability
101
Refrigerator Fan Blade WPL 10518702 Contact Us For Availability
101
Refrigerator Delay Door WPL C8973602 Contact Us For Availability
101
Refrigerator Bucket WPL 10870904 Contact Us For Availability
102
Refrigerator Wire WPL D7726597 Contact Us For Availability
102
Refrigerator Support WPL 10508001 Contact Us For Availability
103
Refrigerator Block WPL 10629001 Contact Us For Availability
111
Refrigerator Cavity WPL 10876002 Contact Us For Availability
111
Refrigerator Socket WPL D7714407 Contact Us For Availability
112
Refrigerator Switch WPL 10533001 Contact Us For Availability
121
Refrigerator Door Chute WPL 10246601 Contact Us For Availability
121
Refrigerator Socket Plate WPL D7753503 Contact Us For Availability
122
Refrigerator Wire WPL D7726592 Contact Us For Availability
131
Refrigerator Harness WPL 10967601 Contact Us For Availability
131
Screw WPL M0219730 Contact Us For Availability
131
Arm-w Ice WPL 12102201 Contact Us For Availability
131
Refrigerator Front WPL 10115001 Contact Us For Availability
131
Refrigerator Tunnel WPL 10923101 Contact Us For Availability
131
Refrigerator Light Shield WPL D7786602 Contact Us For Availability
132
Refrigerator Clip WPL B5667304 Contact Us For Availability
132
Refrigerator Bracket WPL B8391802 Contact Us For Availability
141
Arm-w Wate WPL 10164903 Contact Us For Availability
141
Refrigerator Cover WPL 10114002 Contact Us For Availability
141
SCREW-SM WPL M0320816 Contact Us For Availability
142
Refrigerator Cover WPL 10131802 Contact Us For Availability
151
Refrigerator Heater WPL 10882105 Contact Us For Availability
151
Refrigerator Blade WPL 10114601 Contact Us For Availability
151
Back-fz WPL D7821172 Contact Us For Availability
161
Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability
161
Refrigerator Screw WPL M0211116 Contact Us For Availability
161
Refrigerator Spacer Cover WPL 10113901 Contact Us For Availability
162
Refrigerator Screw WPL R0186041 Contact Us For Availability
162
Refrigerator Roller Bracket WPL C8956101 Contact Us For Availability
163
Cantilever WPL D7789808 Contact Us For Availability
171
Refrigerator Harness WPL 10952106 Contact Us For Availability
171
Refrigerator Blade WPL 10114501 Contact Us For Availability
171
Refrigerator Grille WPL D7785402 Contact Us For Availability
172
Refrigerator Screw WPL R0186040 Contact Us For Availability
172
Refrigerator Cotter Pin WPL M1200004 Contact Us For Availability
173
Refrigerator Ladder WPL D7789809 Contact Us For Availability
181
Refrigerator Door Gasket WPL 10359709 Contact Us For Availability
181
Ice Damper WPL 10275201 Contact Us For Availability
182
Refrigerator Switch WPL 10166002 Contact Us For Availability
182
Refrigerator Pin WPL M1200202 Contact Us For Availability
191
Washer WPL 10114301 Contact Us For Availability
194
Refrigerator Drain Tube WPL 10505101 Contact Us For Availability
201
Refrigerator Door Gasket WPL 10359708 Contact Us For Availability
201
Refrigerator Pin WPL M1200108 Contact Us For Availability
202
Refrigerator Nut WPL M0753003 Contact Us For Availability
211
Refrigerator Shield WPL 10266402 Contact Us For Availability
211
Refrigerator Door Retainer WPL C8982801 Contact Us For Availability
211
Blade Anchor WPL 10114101 Contact Us For Availability
221
Insulation WPL B0523563 Contact Us For Availability
221
Refrigerator Screw WPL M0231704 Contact Us For Availability
221
(SEE NOTE) VT MULL-PNT WPL N/P Contact Us For Availability
222
Control-da WPL D7547412 Contact Us For Availability
232
Refrigerator Insert Control WPL C8902601 Contact Us For Availability
234
Clamp WPL M0102303 Contact Us For Availability
241
INSUL-BATT (QTY AR) WPL B05233563 Contact Us For Availability
242
Refrigerator Control Cover WPL 10862707 Contact Us For Availability
251
Refrigerator Bucket WPL 12083407 Contact Us For Availability
271
Screw WPL M0213529 Contact Us For Availability
281
Refrigerator Terminal Cover WPL 10757301 Contact Us For Availability
281
Button Plug WPL A3080001 Contact Us For Availability
291
Refrigerator Clip WPL C8992901 Contact Us For Availability
301
Refrigerator Bracket WPL 10496501 Contact Us For Availability
303
Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability
311
Shield Lig WPL 10014716 Contact Us For Availability
315
Refrigerator Cover WPL 12041607 Contact Us For Availability
321
Refrigerator Insulation WPL 10941501 Contact Us For Availability
325
Refrigerator Screw WPL M0219704 Contact Us For Availability
341
Refrigerator Wire Tie WPL M0322202 Contact Us For Availability
351
Grommet WPL M0580007 Contact Us For Availability
355
Back-mach WPL 12039903 Contact Us For Availability
401
Refrigerator Insulation WPL 12016901 Contact Us For Availability
401
Refrigerator Dairy Door WPL 10527307 Contact Us For Availability
402
Refrigerator Air Duct WPL 10176602 Contact Us For Availability
411
Refrigerator Insulation WPL 12016902 Contact Us For Availability
421
Tunnel Wire WPL 10187501 Contact Us For Availability
431
Tunnel Wire WPL 10187601 Contact Us For Availability
432
Juice Rack WPL D7839703 Contact Us For Availability
441
Refrigerator Support WPL 12015002 Contact Us For Availability
451
Housing-re WPL D7716409 Contact Us For Availability
451
Support-rh WPL 10941102 Contact Us For Availability
461
Refrigerator Cover WPL D7297603 Contact Us For Availability
462
Refrigerator Screw Bolt WPL M0204339 Contact Us For Availability
471
Refrigerator Cover WPL D7749002 Contact Us For Availability
481
Refrigerator Shelf WPL 12333701 Contact Us For Availability
491
Rail-l.h WPL 12015102 Contact Us For Availability
501
Refrigerator Screw WPL M0223803 Contact Us For Availability
501
Refrigerator Gasket WPL A3030357 Contact Us For Availability
501
Refrigerator Cover Bracket WPL 10894901 Contact Us For Availability
501
Refrigerator Switch WPL C3680311 Contact Us For Availability
501
Rail R.h. WPL 10972802 Contact Us For Availability
522
Refrigerator Hinge WPL 10496104 Contact Us For Availability
532
Hinge-bk WPL 10496112 Contact Us For Availability
532
Refrigerator Insulation WPL D7788201 Contact Us For Availability
541
SCREW-SM (QTY 3) WPL M0326716 Contact Us For Availability
541
AUG MTR SUPP-PNT WPL D8849205 Contact Us For Availability
551
SCREW-SM (QTY 2) WPL M02338616 Contact Us For Availability
552
Refrigerator Control Box WPL D7822406 Contact Us For Availability
562
Refrigerator Deflector WPL 10033201 Contact Us For Availability
571
Refrigerator Wire Tie WPL M0585401 Contact Us For Availability
581
Refrigerator Cover WPL D7838302 Contact Us For Availability
601
Refrigerator Arm WPL D7877001 Contact Us For Availability
621
Cvr M.k. Air WPL D7786902 Contact Us For Availability
631
Cover I.m. WPL D7820401 Contact Us For Availability
651
Refrigerator Bracket WPL 10495702 Contact Us For Availability
651
Refrigerator Air Gasket WPL B8386602 Contact Us For Availability
661
Refrigerator Drain Pan WPL 10507901 Contact Us For Availability
662
Refrigerator Screw WPL M0216539 Contact Us For Availability
671
SCREW-WM (QTY AR) WPL M0311018 Contact Us For Availability
711
Refrigerator Handle WPL 10508504 Contact Us For Availability
722
Refrigerator Spacer Damper WPL A3044208 Contact Us For Availability
732
Refrigerator Top WPL D7868606 Contact Us For Availability
741
Grill-sump WPL D7750609 Contact Us For Availability
761
Refrigerator Glass Shelf WPL 10880705 Contact Us For Availability
771
Refrigerator Harness WPL D7824601 Contact Us For Availability
782
Refrigerator Insert WPL C8986123 Contact Us For Availability
782
Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability
801
Ground Clip WPL B5733302 Contact Us For Availability
811
Pop Rivet WPL A4539601 Contact Us For Availability
812
Refrigerator Gasket WPL 10177901 Contact Us For Availability
822
Refrigerator Facade WPL 12280005 Contact Us For Availability
851
Refrigerator Wire Tie WPL M0585403 Contact Us For Availability
862
Spring WPL A1055101 Contact Us For Availability
872
Spring, An WPL A1055105 Contact Us For Availability
881
Refrigerator Clamp WPL C8976201 Contact Us For Availability
882
Refrigerator Cap Switch WPL 12043807 Contact Us For Availability
891
Refrigerator Air Gasket WPL C8976102 Contact Us For Availability
901
Refrigerator Insulation WPL 10851302 Contact Us For Availability
901
Refrigerator Gasket WPL A3030305 Contact Us For Availability
962
Refrigerator Clamp WPL C8977301 Contact Us For Availability
1025
FOOT-OC (QTY 2) WPL CB960601 Contact Us For Availability
1092
Refrigerator Bracket WPL C8992302 Contact Us For Availability
1102
Refrigerator Baffle WPL 10508104 Contact Us For Availability
1114
Refrigerator Clip WPL M0585206 Contact Us For Availability
1221
Refrigerator Plug WPL M0311602 Contact Us For Availability
1241
Clip WPL B5720301 Contact Us For Availability
1302
Refrigerator Bracket WPL 10496302 Contact Us For Availability
1311
Refrigerator Wire Cover WPL 10178505 Contact Us For Availability
1341
Refrigerator Glide WPL D7849904 Contact Us For Availability
1351
Refrigerator Cavity WPL 12335601 Contact Us For Availability
1392
Refrigerator Knob WPL D7795829 Contact Us For Availability
1501
Refrigerator Enclosure WPL 10877004 Contact Us For Availability
1511
Refrigerator Bushing WPL A3293505 Contact Us For Availability
1531
Refrigerator Screw WPL M0218118 Contact Us For Availability
1605
Refrigerator Tube Clamp WPL M0108001 Contact Us For Availability
1631
Refrigerator Shim WPL 12223003 Contact Us For Availability
1661
Refrigerator Foil WPL 10126603 Contact Us For Availability
1671
Refrigerator Hinge WPL 10504011 Contact Us For Availability
1801
Hinge-e WPL 12077312 Contact Us For Availability
1871
Refrigerator Pan WPL 10783201 Contact Us For Availability
1891
Refrigerator Frame WPL 10882812 Contact Us For Availability
1901
Refrigerator Frame WPL 10882813 Contact Us For Availability
1921
Refrigerator Shelf WPL 10783115 Contact Us For Availability
2004
Refrigerator Bracket WPL 10876901 Contact Us For Availability
2021
Support WPL M0560005 Contact Us For Availability
2061
Refrigerator Gasket WPL A3189336 Contact Us For Availability
2081
Wire Tie WPL M0585203 Contact Us For Availability
2091
Refrigerator Extension WPL A3127414 Contact Us For Availability
2102
Refrigerator Gasket WPL 10383201 Contact Us For Availability
2131
Refrigerator Cover WPL 10493202 Contact Us For Availability
2141
Refrigerator Screw WPL M0238846 Contact Us For Availability
2171
Ice Maker Support WPL D7821003 Contact Us For Availability
2501
Washer WPL M0270508 Contact Us For Availability
2511
Refrigerator Gasket WPL A3189335 Contact Us For Availability
2571
Refrigerator Basket WPL 12012005 Contact Us For Availability
2801
Refrigerator Insulation WPL B0523596 Contact Us For Availability
3101
Refrigerator Freezer Shelf WPL 10521712 Contact Us For Availability
3121
Refrigerator Shelf WPL 10525516 Contact Us For Availability
3502
Refrigerator Insert WPL 10984637 Contact Us For Availability
3702
Refrigerator Bracket WPL 12146901 Contact Us For Availability
4012
Gasket (2) WPL B8386608 Contact Us For Availability
4023
Refrigerator Trim WPL 12273505 Contact Us For Availability
4023
Refrigerator Harness WPL 12072602 Contact Us For Availability
4032
Refrigerator Handle WPL 12272805 Contact Us For Availability
4033
Refrigerator Handle WPL 12272804 Contact Us For Availability
4042
Refrigerator Gasket WPL B8386607 Contact Us For Availability
4043
Refrigerator Trim WPL 12273502 Contact Us For Availability
4052
Evaporator Shield WPL 10893802 Contact Us For Availability
4062
Refrigerator Drip Tray WPL D7850202 Contact Us For Availability
4082
Rivot WPL 10098801 Contact Us For Availability
4093
Refrigerator Retainer WPL 12273801 Contact Us For Availability
4132
Refrigerator Grommet WPL M0580002 Contact Us For Availability
4152
Refrigerator Clip WPL 10527401 Contact Us For Availability
4162
Refrigerator Clip WPL 10623003 Contact Us For Availability
4172
Refrigerator Shroud WPL 10890202 Contact Us For Availability
4323
Refrigerator Retainer WPL 12273802 Contact Us For Availability
4333
Refrigerator Screw WPL M0216517 Contact Us For Availability
4701
Refrigerator Evaporator Cover WPL 10655902 Contact Us For Availability
4784
Clamp WPL B5794201 Contact Us For Availability
5001
SCREW-TC (QTY 2) WPL M022041B Contact Us For Availability
5002
Refrigerator Ice Chute WPL 10504101 Contact Us For Availability
5012
Refrigerator Gasket WPL 12044501 Contact Us For Availability
5021
Refrigerator Shim WPL B8387703 Contact Us For Availability
5505
Refrigerator Screw WPL M0227217 Contact Us For Availability
6051
Cover-oc WPL 10178405 Contact Us For Availability
7014
Refrigerator Power Cord WPL 10916505 Contact Us For Availability
7022
Refrigerator Shim WPL 12146701 Contact Us For Availability
7032
Refrigerator Shim WPL 12146702 Contact Us For Availability
7044
Refrigerator Clip WPL 10547001 Contact Us For Availability
7084
Speed Clamp WPL M0103904 Contact Us For Availability
7091
Refrigerator Screw WPL M0211357 Contact Us For Availability
8111
Strip-lh WPL 12146602 Contact Us For Availability
8121
Strip-rh WPL 12146601 Contact Us For Availability
8131
Shim-rh WPL 12146801 Contact Us For Availability
8141
SHIM-LH BOT HINGE WPL 21246801 Contact Us For Availability
8151
Refrigerator Rivet WPL A4539631 Contact Us For Availability
8161
Refrigerator Hinge Cam WPL 12147602 Contact Us For Availability
NI
Refrigerator Clamp WPL 10526701 Contact Us For Availability
NI
Icemaker Lab WPL 10834701 Contact Us For Availability
× ![]()
Login and Registration Form
