Model Whirlpool 58HA-2CXW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

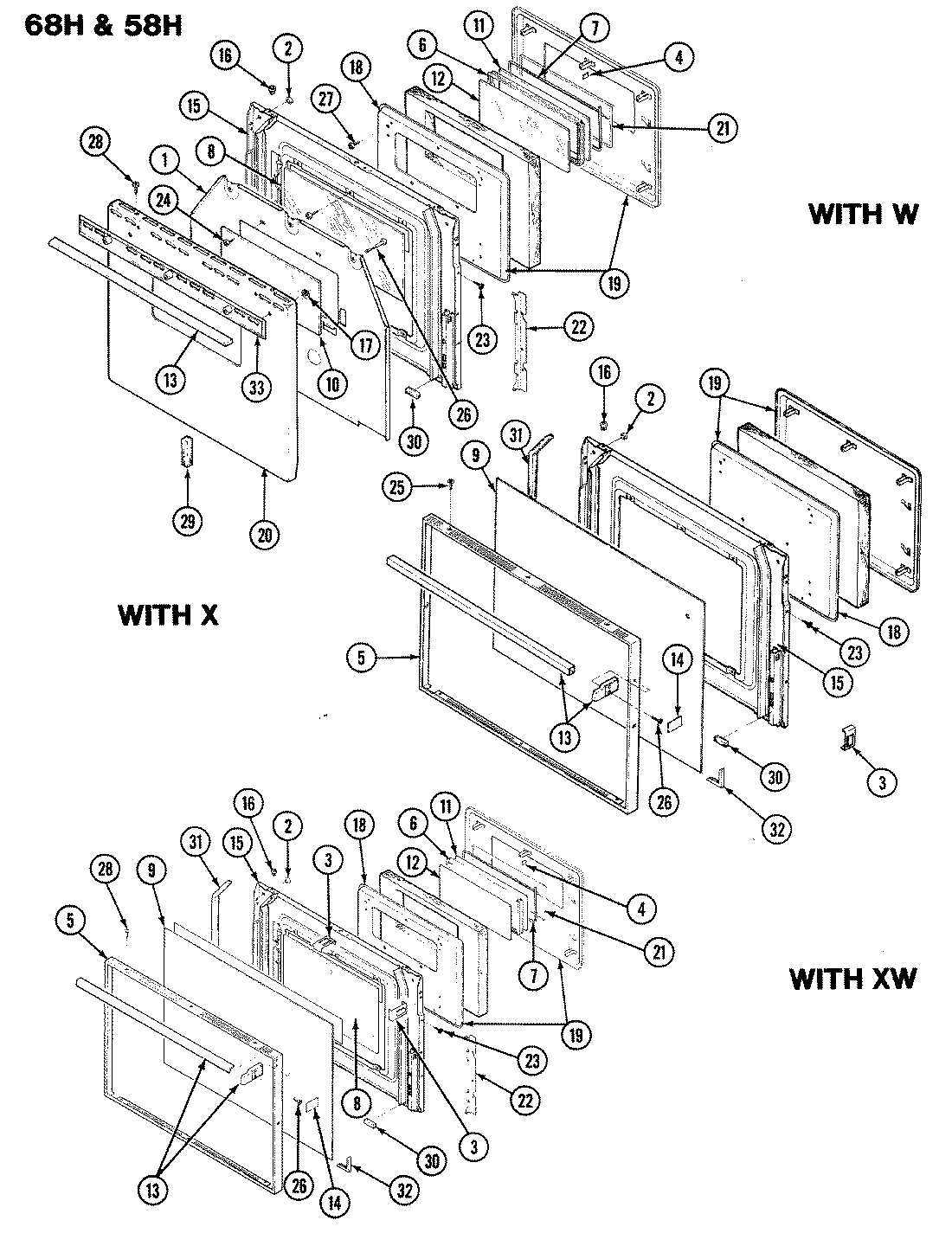

02 - DOOR

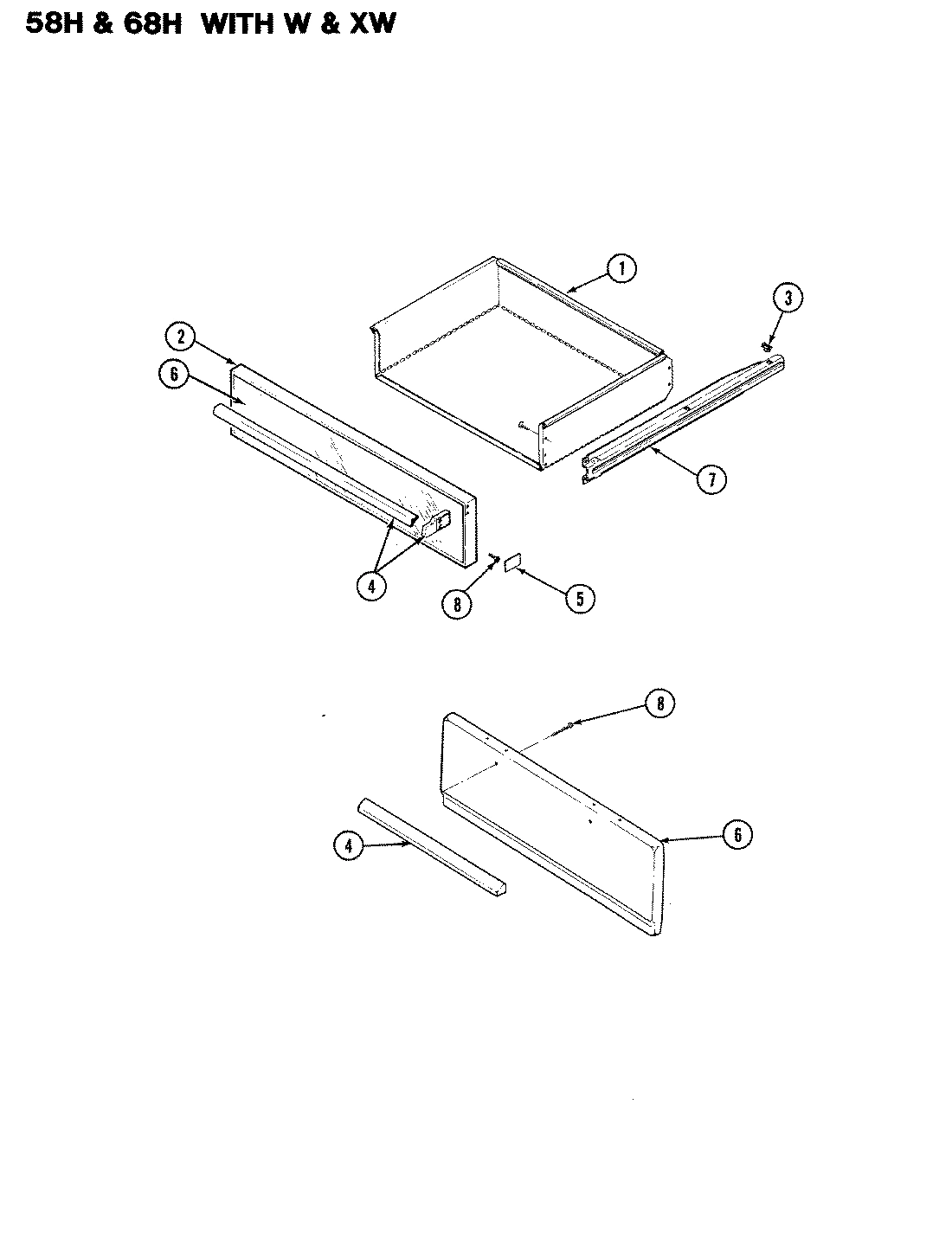

03 - DRAWER
Common parts from model Whirlpool 58HA-2CXW ELECTRIC RANGE
1
KIT, BACKGUARD WPL 1430276 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
BRACKET, DRAWER WPL 3801F11551 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
2
NOT REQUIRED PART OR SEE NOTE FRAME INCLUDED WPL W10124350 Contact Us For Availability
2
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
2
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
3
SPACER WPL 8010P00460 Contact Us For Availability
3
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
3
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
4
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15823 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
6
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
6
DRAWER, SERVICE WPL 5425A02170K Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
7
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
7
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
7
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
8
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
8
GLASS, INNER WPL 7902P09760 Contact Us For Availability
8
SCREW WPL 7101P12360 Contact Us For Availability
9
BRACKET, CABLE ROLLER WPL 3801F01734 Contact Us For Availability
9
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BRACKET, CLOCK MTG WPL 3801F20451 Contact Us For Availability
11
BRACKET WPL 3801F02451 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P34060 Contact Us For Availability
12
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
12
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
12
CHANNEL, WIRE REAR WPL 3818F02151 Contact Us For Availability
12
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
12
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
12
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
12
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
12
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
14
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
15
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
15
LINING WPL 2402W12815 Contact Us For Availability
15
LINING, OVEN DOOR WPL 2402W14915 Contact Us For Availability
15
LINING DOOR WPL 2402W16415 Contact Us For Availability
16
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
16
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
16
NUT, SNAP WPL 7103P11460 Contact Us For Availability
17
BEZEL, CLOCK-BLACK WPL 7720P12960 Contact Us For Availability
17
TRIM BEZEL BLACK WPL 7740P03060 Contact Us For Availability
18
COVER ACCESS WPL 4005F30251 Contact Us For Availability
18
PAD, INNER WPL 2410F01651 Contact Us For Availability
19
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
19
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
19
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
20
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
21
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
21
RETAINER WPL 3804F02245 Contact Us For Availability
22
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
22
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
23
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
24
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
24
SCREW WPL 7101P05760 Contact Us For Availability
25
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
25
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
25
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
26
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
26
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
27
ELEMENT (8``) WPL 7406P01560 Contact Us For Availability
28
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
29
KS-60 FILLER STRIP WPL 1430241K Contact Us For Availability
29
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
30
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
30
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
31
SEAL WPL 7208P00260 Contact Us For Availability
32
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
32
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
32
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
33
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
34
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
35
GLASS, CLOCK WPL 7902P30860 Contact Us For Availability
36
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
37
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
37
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
38
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
39
HI WPL 3418A02934 Contact Us For Availability
39
WPL 3418A03034 WPL 3418A03034 Contact Us For Availability
39
WPL 7106P02260 WPL 7106P02260 Contact Us For Availability
39
WPL 7106P02960 WPL 7106P02960 Contact Us For Availability
40
WPL 4001F02019 WPL 4001F02019 Contact Us For Availability
40
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
41
WPL 4001F05151 WPL 4001F05151 Contact Us For Availability
42
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
42
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
43
WPL 7711P12660 WPL 7711P12660 Contact Us For Availability
44
WPL 7735P01760 WPL 7735P01760 Contact Us For Availability
45
WPL 7739P01860 WPL 7739P01860 Contact Us For Availability
46
WPL 7737P01560 WPL 7737P01560 Contact Us For Availability
47
WPL 8002P02060 WPL 8002P02060 Contact Us For Availability
48
WPL 7730P00860 WPL 7730P00860 Contact Us For Availability
49
WPL 8009P01060 WPL 8009P01060 Contact Us For Availability
49
WPL 8009P01960 WPL 8009P01960 Contact Us For Availability
50
WPL 7407P08160 WPL 7407P08160 Contact Us For Availability
51
WPL 7407P02660 WPL 7407P02660 Contact Us For Availability
52
WPL 4009W03080 WPL 4009W03080 Contact Us For Availability
52
WPL 4009W06680 WPL 4009W06680 Contact Us For Availability
53
WPL 7807P00460 WPL 7807P00460 Contact Us For Availability
53
WPL 7807P01260 WPL 7807P01260 Contact Us For Availability
54
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
54
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
55
WPL 2618F02780 WPL 2618F02780 Contact Us For Availability
55
WPL 2618F02980 WPL 2618F02980 Contact Us For Availability
55
WPL 2618F07171 WPL 2618F07171 Contact Us For Availability
55
WPL 2618F07174 WPL 2618F07174 Contact Us For Availability
55
WPL 2618F07180 WPL 2618F07180 Contact Us For Availability
55
WPL 2618F07271 WPL 2618F07271 Contact Us For Availability
55
WPL 2618F07274 WPL 2618F07274 Contact Us For Availability
55
WPL 2618F07280 WPL 2618F07280 Contact Us For Availability
56
WPL 2614F01890 WPL 2614F01890 Contact Us For Availability
57
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
58
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
58
WPL 3605F15651 WPL 3605F15651 Contact Us For Availability
59
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
60
WPL 7408P00 WPL 7408P00 Contact Us For Availability
× ![]()
