Model Whirlpool 5892VRA ELECTRIC RANGE – Common Parts & Diagrams
04 - OVEN

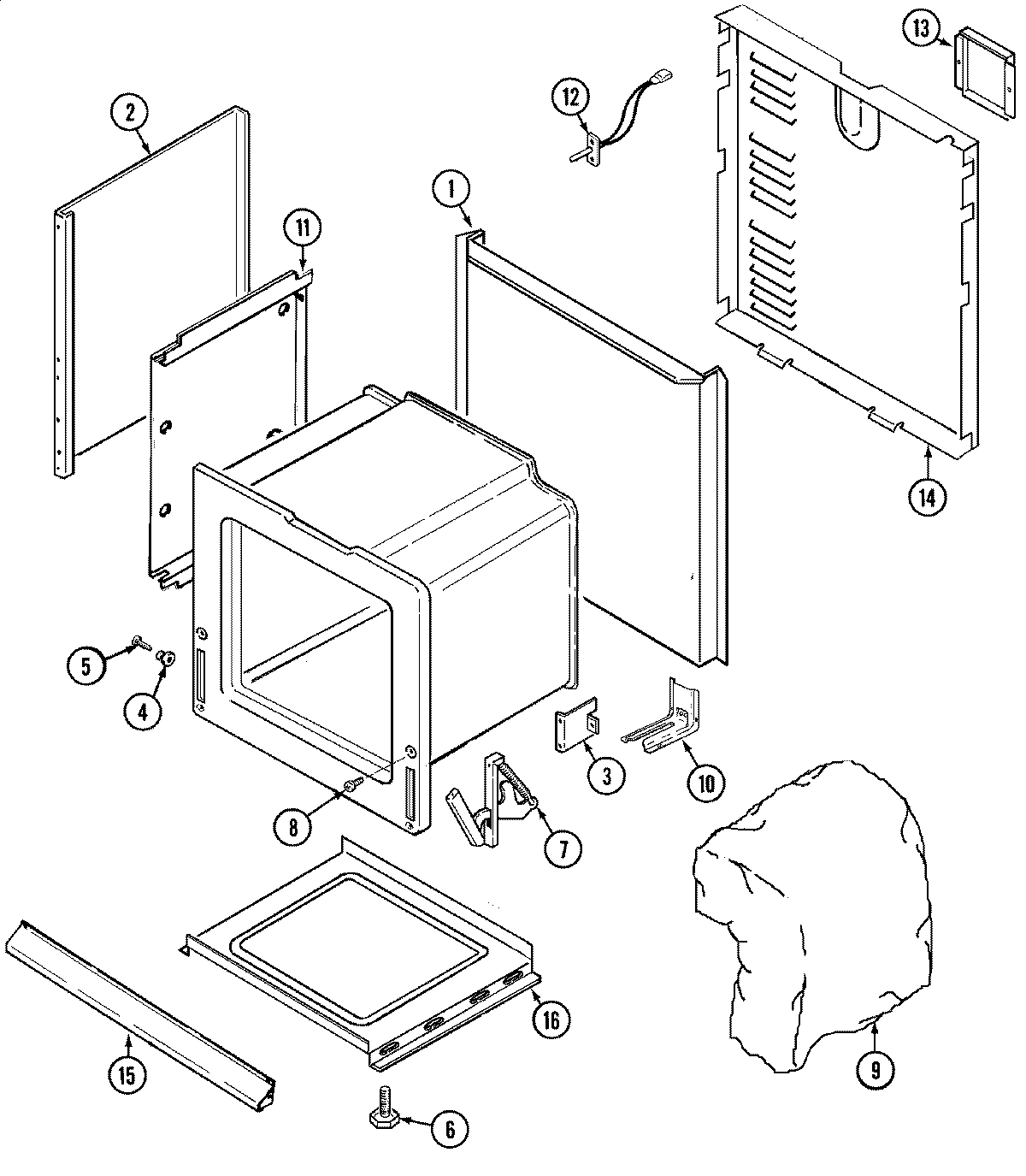

01 - BODY

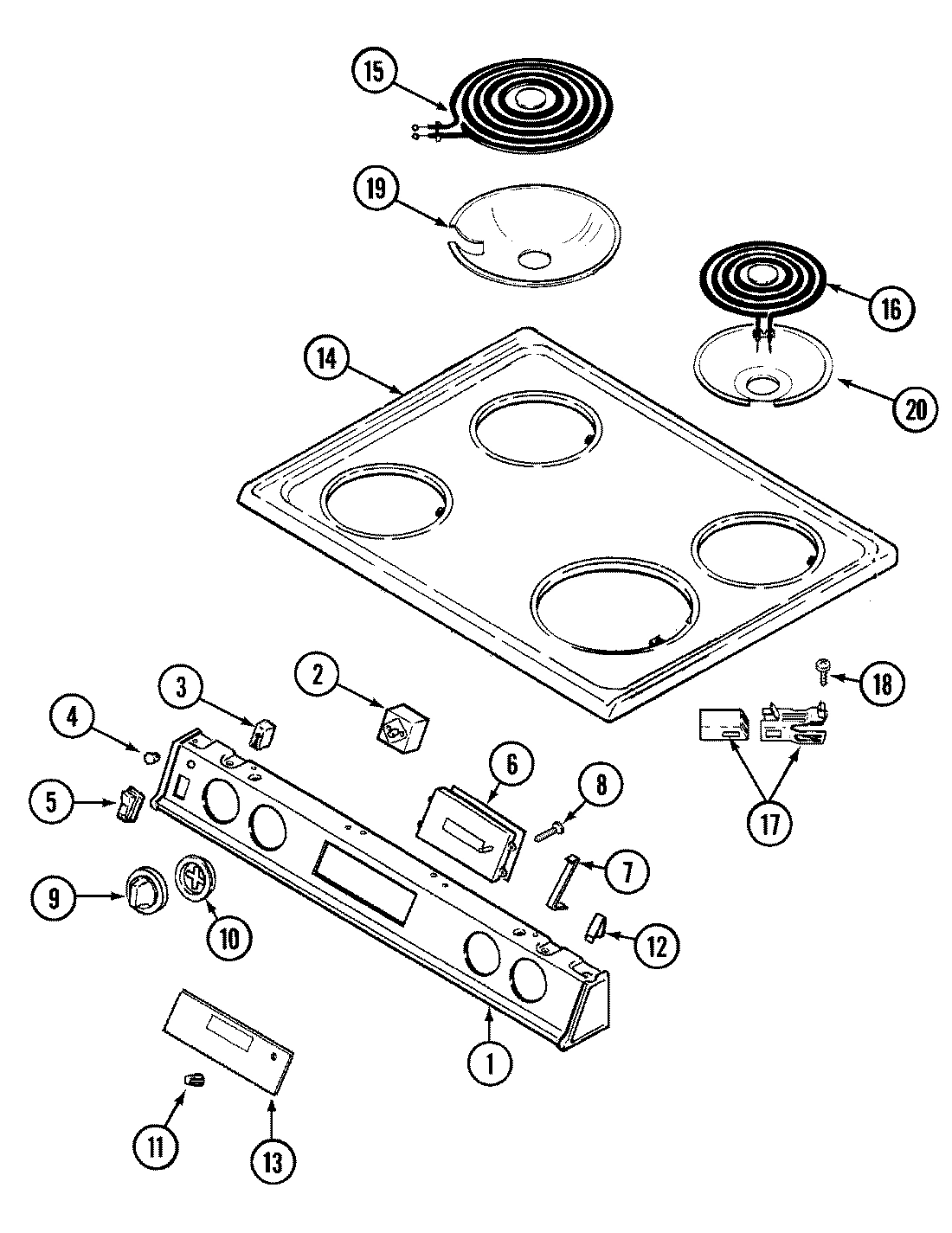

05 - TOP ASSEMBLY

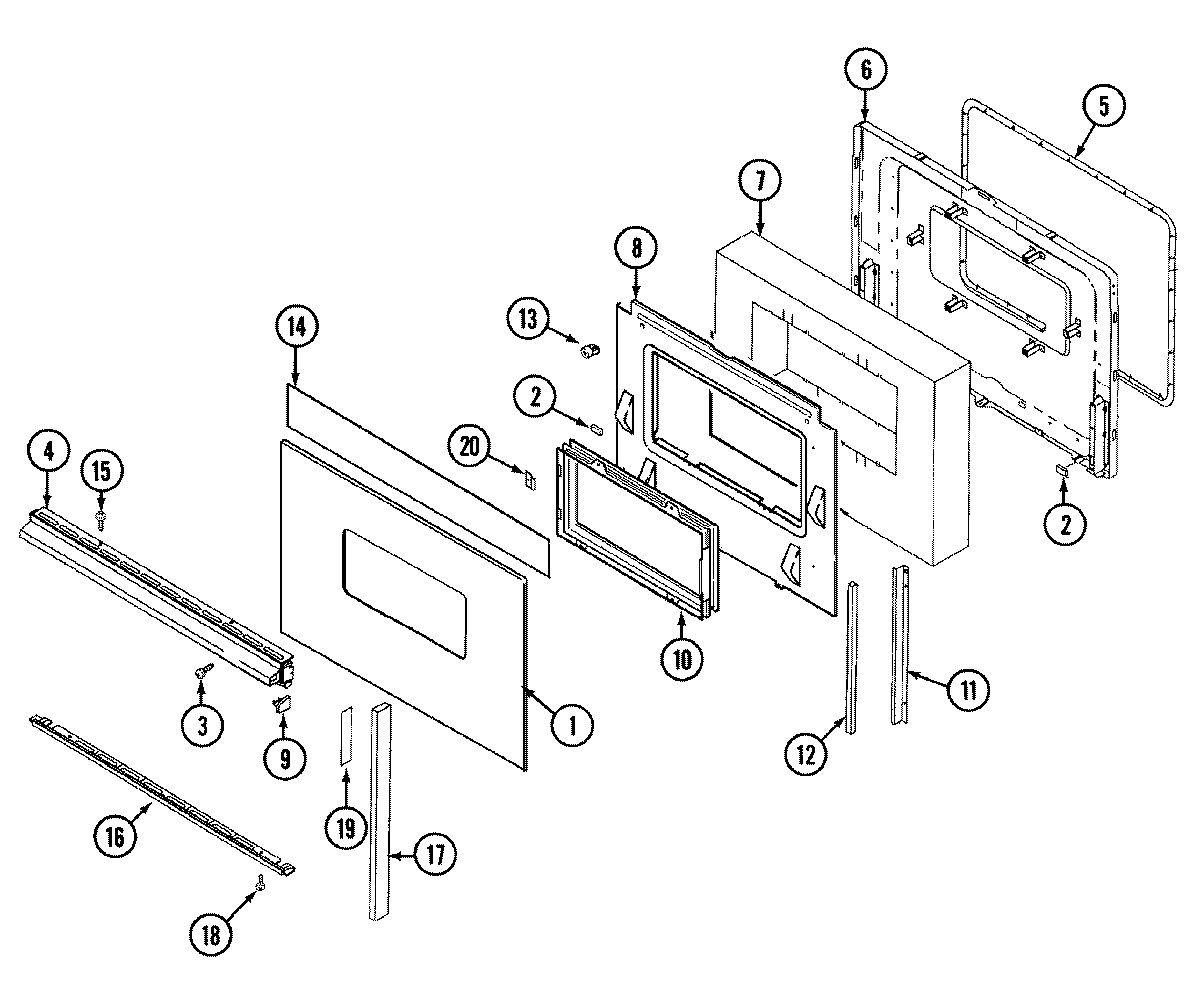

02 - DOOR

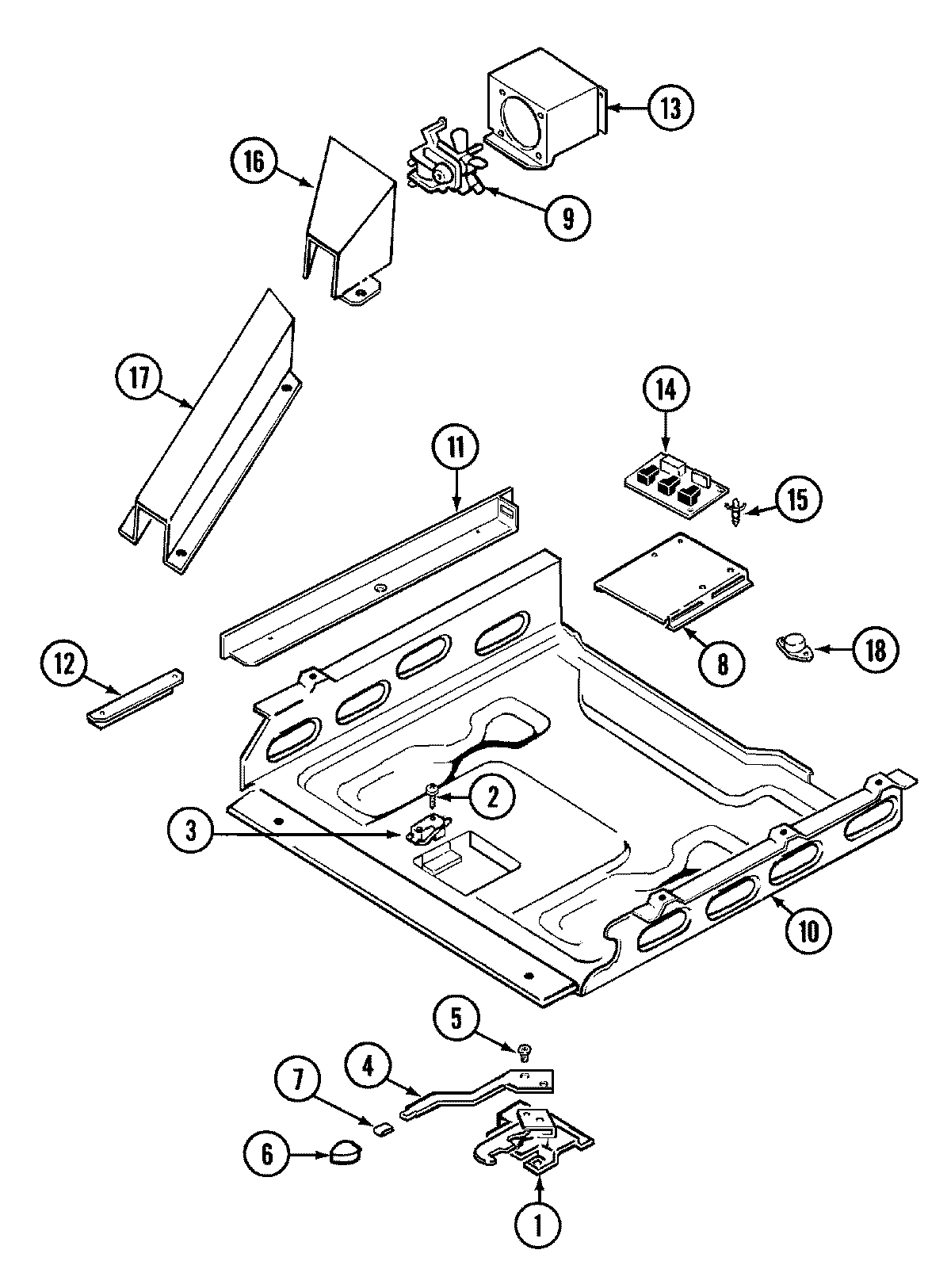

03 - INTERNAL CONTROLS
Common parts from model Whirlpool 5892VRA ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
BACK, MAIN WPL 4002F20580 Contact Us For Availability
1
PANEL, UPPER FRONT----NA WPL 7722P10860 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 7902P35860 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
PANEL, SIDE (LF) WPL 2618F08074 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08174 Contact Us For Availability
2
PANEL, SIDE (RT) (ALM) WPL 2618F09774 Contact Us For Availability
2
(LT) (ALM) WPL 2618F09874 Contact Us For Availability
2
SCREW WPL 7101P30960 Contact Us For Availability
2
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
2
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW WPL 7101P03160 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
3
LIGHT, INDICATOR WPL W10127320 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
4
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
4
HANDLE, DOOR (ALM) WPL 7701P11560 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
4
LEVER WPL 8009P01760 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
6
CLOCK WPL 7601P20760 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HINGE, DOOR WPL 7106P03360 Contact Us For Availability
7
BRACKET, CLOCK WPL 3801F22245 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
8
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
COVER, LOCK WPL 4005F40151 Contact Us For Availability
8
COVER, DOOR LOCK WPL 4005F46651 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
BOX, BURNER WPL 4011F22380 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10751 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
11
SCREW WPL 7101P29060 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F17351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F17451 Contact Us For Availability
12
GASKET, VENT WPL 7201P05560 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
12
CLIP, SPEED WPL 7112P10260 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
COVER, ACCESS WPL 4005F41351 Contact Us For Availability
13
SWITCH, MEMBRANE (BLK) WPL 7740P03760 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
14
COVER, WIRE WPL 4005F41151 Contact Us For Availability
14
TOP, MAIN WPL 2002W08484 Contact Us For Availability
14
EXTRUSION, FILLER WPL 7706P30160 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
RELAY BOARD WPL 7428P00960 Contact Us For Availability
15
SHIELD, LOWER VENT (BLK) WPL 3604W15570 Contact Us For Availability
15
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
15
ELEMENT (6``) WPL 7406P08160 Contact Us For Availability
15
SCREW (ALM) WPL 7101P30760 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
BOTTOM, MAIN WPL 4011F17651 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
16
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
16
ELEMENT (8``) WPL 7406P08060 Contact Us For Availability
16
TRIM, BOTTOM (ALM) WPL 7744P10460 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
END CAP, OVEN DOOR (ALM) WPL 7744P08560 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
18
SCREW WPL 7118P01360 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
19
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
19
SHIELD, WIRE WPL 3604F19951 Contact Us For Availability
20
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
20
CHANNEL, AIR WPL 3818F05551 Contact Us For Availability
20
SCREW WPL 7101P06160 Contact Us For Availability
21
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
21
HARNESS, SENSOR/LOCK WPL 5170P13860 Contact Us For Availability
21
HARNESS, CONTROL TO RELAY WPL 5170P14760 Contact Us For Availability
21
HARNESS WPL 5175D06760 Contact Us For Availability
21
HARNESS, BURNER BOX WPL 5195D10560 Contact Us For Availability
22
MANUAL, USE & CARE WPL 8113P00760 Contact Us For Availability
22
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
23
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
× ![]()
