Model Electrolux 587.14419400 Dishwasher (Kenmore 58714419400) – Common Parts & Diagrams
WRAPPER
WRAPPER

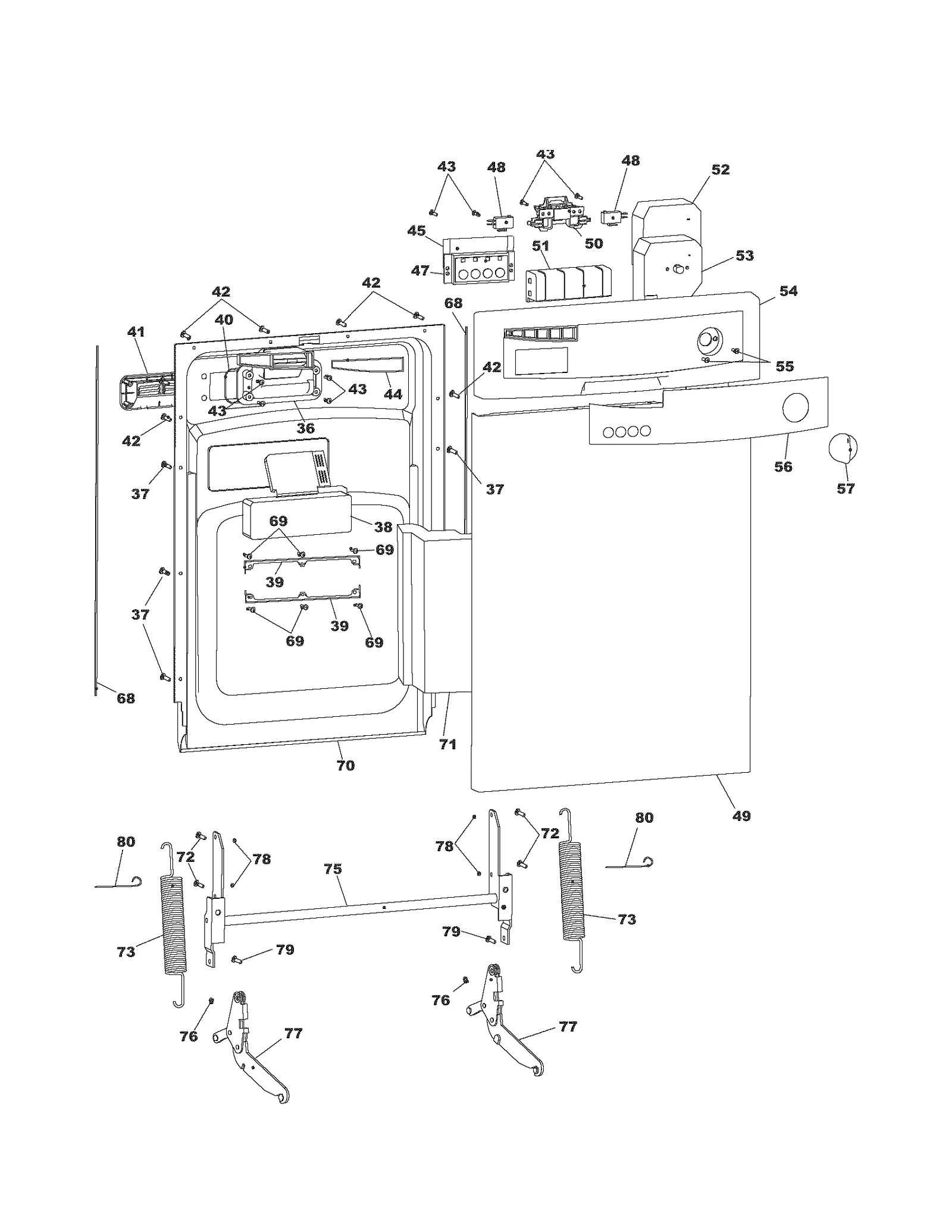

CONTROL PANEL/DOOR

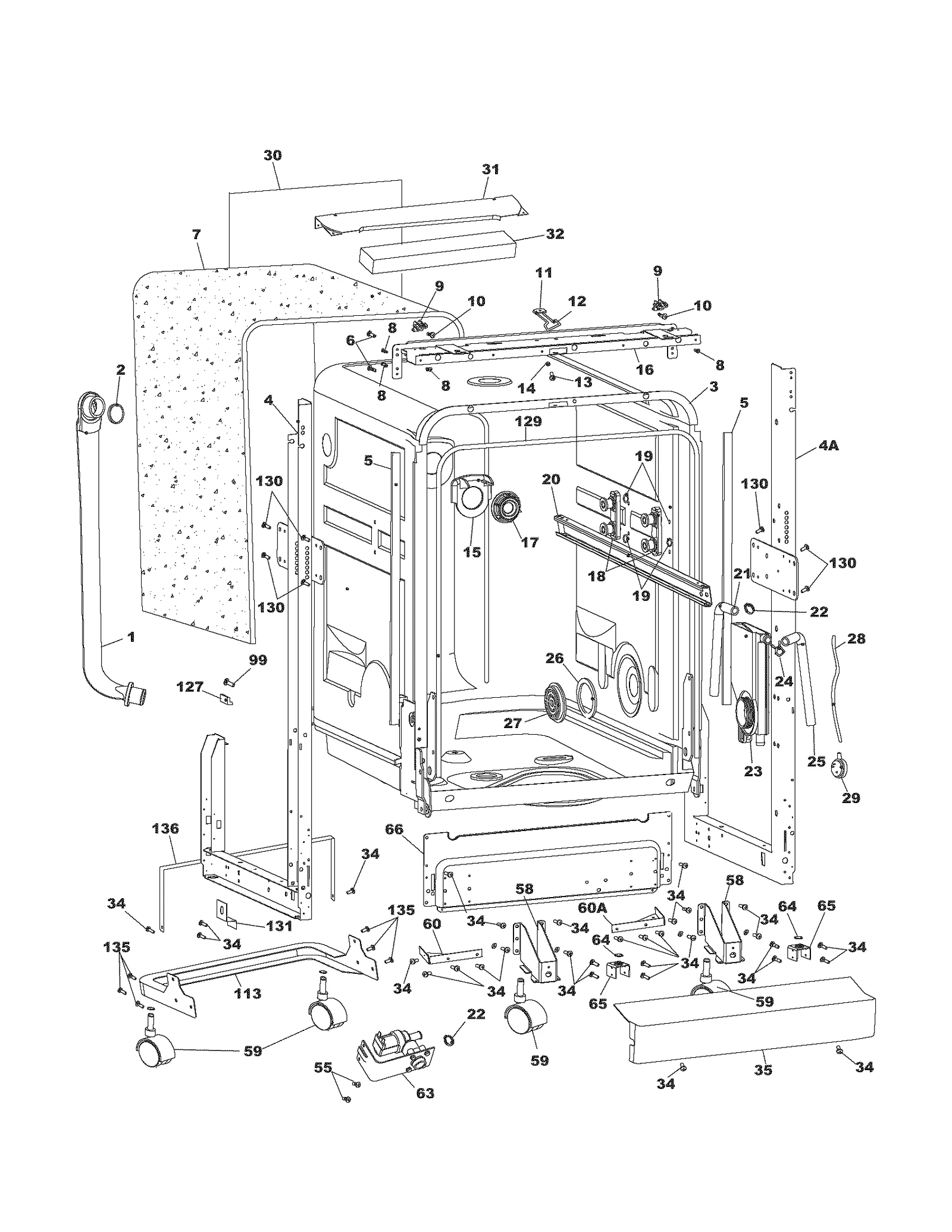

TUB

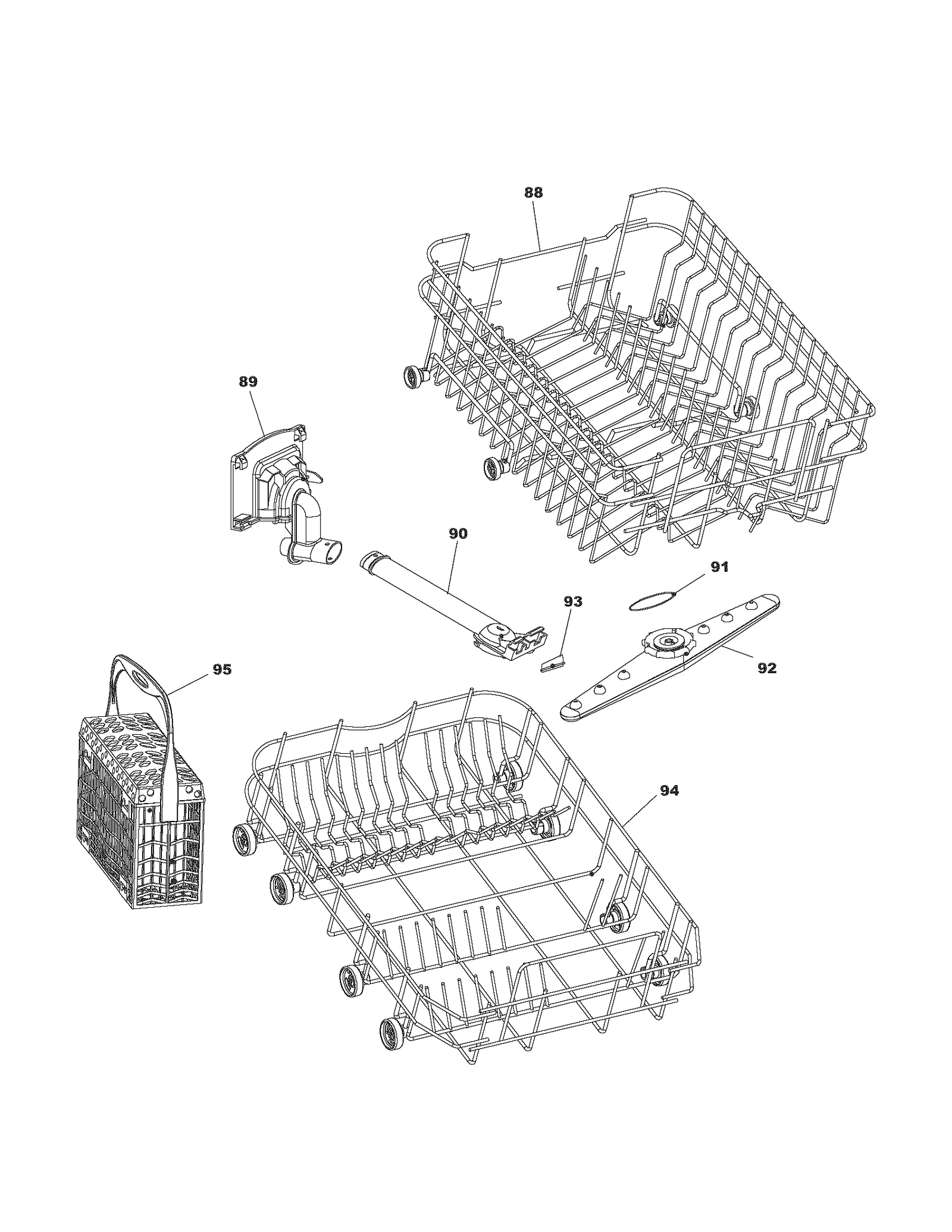

RACKS

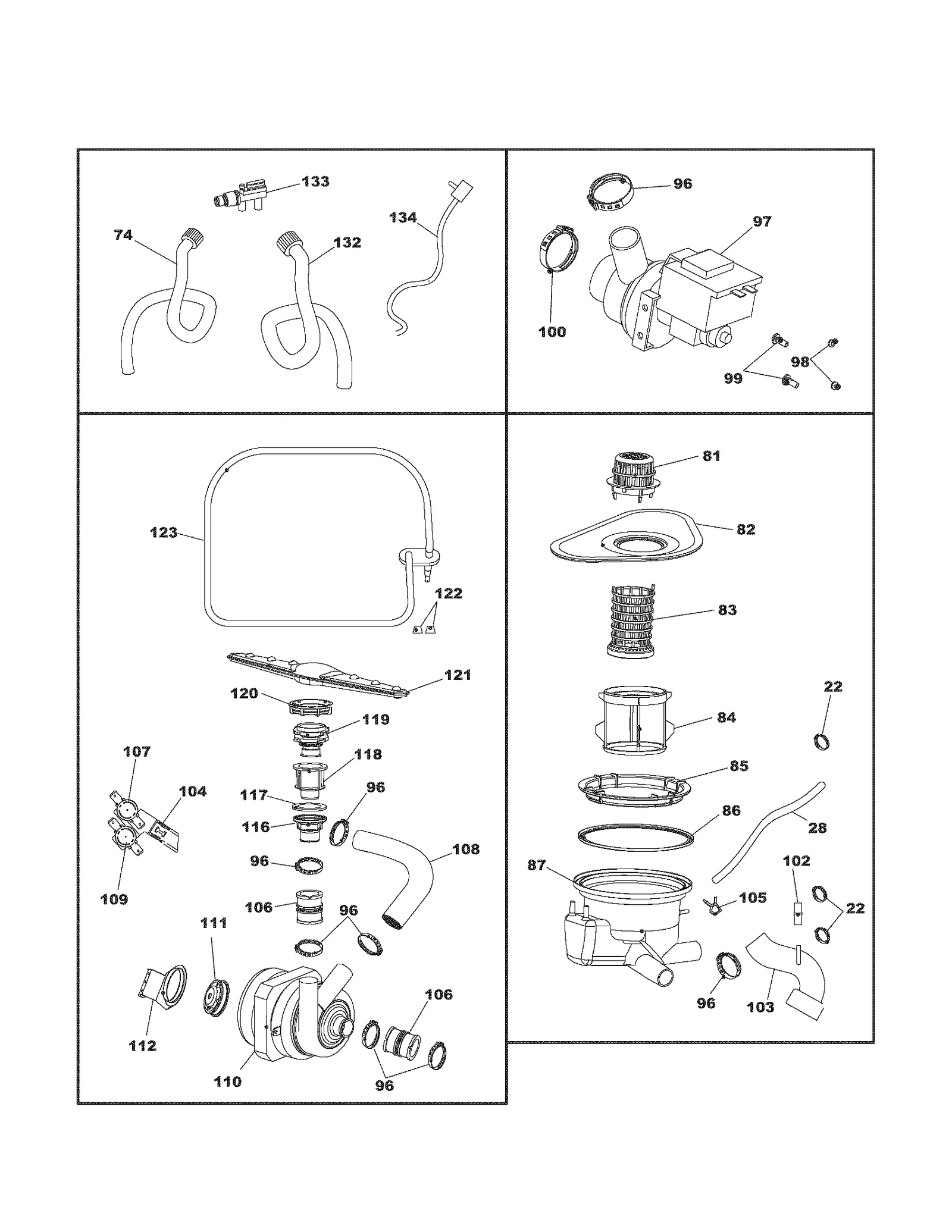

MOTOR 7 PUMP
Common parts from model Electrolux 587.14419400 Dishwasher (Kenmore 58714419400)
2
Dishwasher O-Ring WCI 5304460950 Contact Us For Availability
3
Dishwasher Tub WCI 5304460951 Contact Us For Availability
4
Frame WCI 5304461753 Contact Us For Availability
4A
Frame WCI 5304461754 Contact Us For Availability
5
Dishwasher Tub Seal WCI 5304460954 Contact Us For Availability
5
Guard WCI 5304461716 Contact Us For Availability
6
Screw WCI 5304460955 Contact Us For Availability
7
Dishwasher Insulation WCI 5304460956 Contact Us For Availability
8
Rivet WCI 5304460957 Contact Us For Availability
9
Block WCI 5304461755 Contact Us For Availability
10
Screw WCI 5304460959 Contact Us For Availability
11
Dishwasher Door Strike Bracket WCI 5304460960 Contact Us For Availability
12
Hook WCI 5304460961 Contact Us For Availability
13
Dishwasher Screw WCI 5304460962 Contact Us For Availability
14
Nut WCI 5304460963 Contact Us For Availability
15
Housing WCI 5304460964 Contact Us For Availability
16
Crosspiece WCI 5304461756 Contact Us For Availability
16
Crosspiece WCI 5304461757 Contact Us For Availability
17
Dishwasher Water Inlet Port Nut WCI 5304460965 Contact Us For Availability
18
Dishwasher Dishrack Track Roller Assembly WCI 5304460966 Contact Us For Availability
19
Dishwasher O-Ring WCI 5304460967 Contact Us For Availability
20
Dishwasher Dishrack Slide Rail WCI 5304460968 Contact Us For Availability
21
Hose WCI 5304460969 Contact Us For Availability
22
Dishwasher Hose Clamp WCI 5304460970 Contact Us For Availability
23
Trough WCI 5304460971 Contact Us For Availability
24
Clamp WCI 5304460972 Contact Us For Availability
25
Hose WCI 5304460973 Contact Us For Availability
26
Gasket WCI 5304460974 Contact Us For Availability
27
Nut WCI 5304460975 Contact Us For Availability
28
Dishwasher Water-Level Pressure Switch Hose WCI 5304460976 Contact Us For Availability
29
Dishwasher Water-Level Pressure Switch WCI 5304460977 Contact Us For Availability
30
Board WCI 5304461758 Contact Us For Availability
31
Crosspiece WCI 5304461759 Contact Us For Availability
32
Pad WCI 5304461760 Contact Us For Availability
33
Toe Grille WCI 5304461719 Contact Us For Availability
34
Screw WCI 5304461765 Contact Us For Availability
35
Kick Plate WCI 5304461766 Contact Us For Availability
35
Kick Plate WCI 5304461767 Contact Us For Availability
44
Gasket WCI 5304460917 Contact Us For Availability
45
Guard WCI 5304460918 Contact Us For Availability
47
Dishwasher Selector Switch WCI 5304460919 Contact Us For Availability
48
Dishwasher Door Switch WCI 5304460920 Contact Us For Availability
49
Dishwasher Panel WCI 5304460921 Contact Us For Availability
49
Dishwasher Panel WCI 5304460922 Contact Us For Availability
51
Cover WCI 5304460924 Contact Us For Availability
51
Cover WCI 5304460925 Contact Us For Availability
52
Guard WCI 5304460926 Contact Us For Availability
53
Dishwasher Timer WCI 5304460927 Contact Us For Availability
54
Dishwasher Control Panel (White) WCI 5304460929 Contact Us For Availability
54
Dishwasher Control Panel (White) WCI 5304461532 Contact Us For Availability
55
Screw WCI 5304460930 Contact Us For Availability
56
Dishwasher Control Panel Insert (Black) WCI 5304460932 Contact Us For Availability
56
Insert WCI 5304460933 Contact Us For Availability
57
Dishwasher Timer Knob (Black) WCI 5304460934 Contact Us For Availability
57
Dishwasher Timer Knob (White) WCI 5304460935 Contact Us For Availability
58
Bracket WCI 5304461769 Contact Us For Availability
59
Dishwasher Transport Wheel WCI 5304461770 Contact Us For Availability
60
Bracket WCI 5304461771 Contact Us For Availability
60A
Bracket WCI 5304461772 Contact Us For Availability
63
Dishwasher Water Inlet Valve WCI 5304460982 Contact Us For Availability
64
Ring WCI 5304461777 Contact Us For Availability
65
Bracket WCI 5304461778 Contact Us For Availability
66
Crosspiece WCI 5304461779 Contact Us For Availability
68
Guard WCI 5304460936 Contact Us For Availability
68
Guard WCI 5304460937 Contact Us For Availability
69
Screw WCI 5304460938 Contact Us For Availability
70
Liner WCI 5304460939 Contact Us For Availability
71
Dishwasher Insulation WCI 5304460940 Contact Us For Availability
72
Screw WCI 5304460941 Contact Us For Availability
73
Spring WCI 5304460942 Contact Us For Availability
74
Dishwasher Drain Hose WCI 5304461782 Contact Us For Availability
75
Hinge WCI 5304460943 Contact Us For Availability
76
Dishwasher Door Spring Retainer WCI 5304460944 Contact Us For Availability
77
Dishwasher Hinge WCI 5304460945 Contact Us For Availability
78
Dishwasher Nut, 5-mm WCI 5304460946 Contact Us For Availability
79
Pin WCI 5304460947 Contact Us For Availability
80
Screw WCI 5304460948 Contact Us For Availability
81
Dishwasher Filter, Upper WCI 5304460990 Contact Us For Availability
82
Dishwasher Filter WCI 5304460991 Contact Us For Availability
83
Dishwasher Lower Filter WCI 5304460992 Contact Us For Availability
84
Dishwasher Circulation Pump Micro Filter WCI 5304460993 Contact Us For Availability
85
Dishwasher Sump Retainer WCI 5304460994 Contact Us For Availability
86
Dishwasher Sump Gasket WCI 5304460995 Contact Us For Availability
87
Dishwasher Sump WCI 5304460996 Contact Us For Availability
88
Dishwasher Dishrack, Upper WCI 5304461016 Contact Us For Availability
89
Dishwasher Dishrack Spray Arm Mount WCI 5304461017 Contact Us For Availability
90
Dishwasher Spray Arm Manifold WCI 5304461018 Contact Us For Availability
92
Dishwasher Spray Arm, Upper WCI 5304461020 Contact Us For Availability
93
Block WCI 5304461021 Contact Us For Availability
94
Dishwasher Dishrack, Lower WCI 5304461022 Contact Us For Availability
96
Dishwasher Hose Clamp WCI 5304460997 Contact Us For Availability
97
Dishwasher Drain Pump WCI 5304461725 No Longer Available
98
Nut WCI 5304460998 Contact Us For Availability
99
Screw WCI 5304460984 Contact Us For Availability
100
Dishwasher Hose Clamp WCI 5304460999 Contact Us For Availability
102
Dishwasher Circulation Pump Inlet Connector WCI 5304461000 Contact Us For Availability
103
Dishwasher Sump-to-Drain-Pump Hose WCI 5304461001 Contact Us For Availability
104
Bracket WCI 5304461726 Contact Us For Availability
105
Clamp WCI 5304461002 Contact Us For Availability
107
Dishwasher Thermostat WCI 5304461727 Contact Us For Availability
108
Dishwasher Circulation Pump Drain Hose WCI 5304461004 Contact Us For Availability
109
Dishwasher High-Limit Thermostat, 90-degree WCI 5304461728 Contact Us For Availability
110
Dishwasher Circulation Pump WCI 5304461005 Contact Us For Availability
111
Dishwasher Pump Motor Vibration Pad WCI 5304461006 Contact Us For Availability
112
Bracket WCI 5304460985 Contact Us For Availability
113
Bracket WCI 5304461784 Contact Us For Availability
116
Support WCI 5304461007 Contact Us For Availability
117
Dishwasher Pump O-Ring WCI 5304461008 Contact Us For Availability
118
Connector WCI 5304461009 Contact Us For Availability
119
Connector WCI 5304461010 Contact Us For Availability
120
Nut WCI 5304461011 Contact Us For Availability
121
Dishwasher Spray Arm WCI 5304461012 Contact Us For Availability
122
Bracket WCI 5304461013 Contact Us For Availability
123
Dishwasher Heater WCI 5304461014 Contact Us For Availability
127
Dishwasher Tub Block Gasket WCI 5304460986 Contact Us For Availability
130
Screw WCI 5304460988 Contact Us For Availability
131
Bracket WCI 5304461793 Contact Us For Availability
132
Hose WCI 5304461794 Contact Us For Availability
134
Cord WCI 5304461796 Contact Us For Availability
135
Screw WCI 5304461797 Contact Us For Availability
136
Band WCI 5304461798 Contact Us For Availability
NI
Service Data Sheet WCI 5304461811 Contact Us For Availability
NI
Dishwasher Installation WCI 5304461812 Contact Us For Availability
NI
Energy Guide WCI 5304461814 Contact Us For Availability
NI
Dishwasher Repair Parts List WCI 5995491072 Contact Us For Availability
NI
Dishwasher Drain Hose Connector WCI 5304483533 Contact Us For Availability
NI
Dishwasher Wire Harness WCI 5304461792 Contact Us For Availability
× ![]()
