Electrolux 587.14001990 Dishwasher (Kenmore 58714001990) Parts List

1

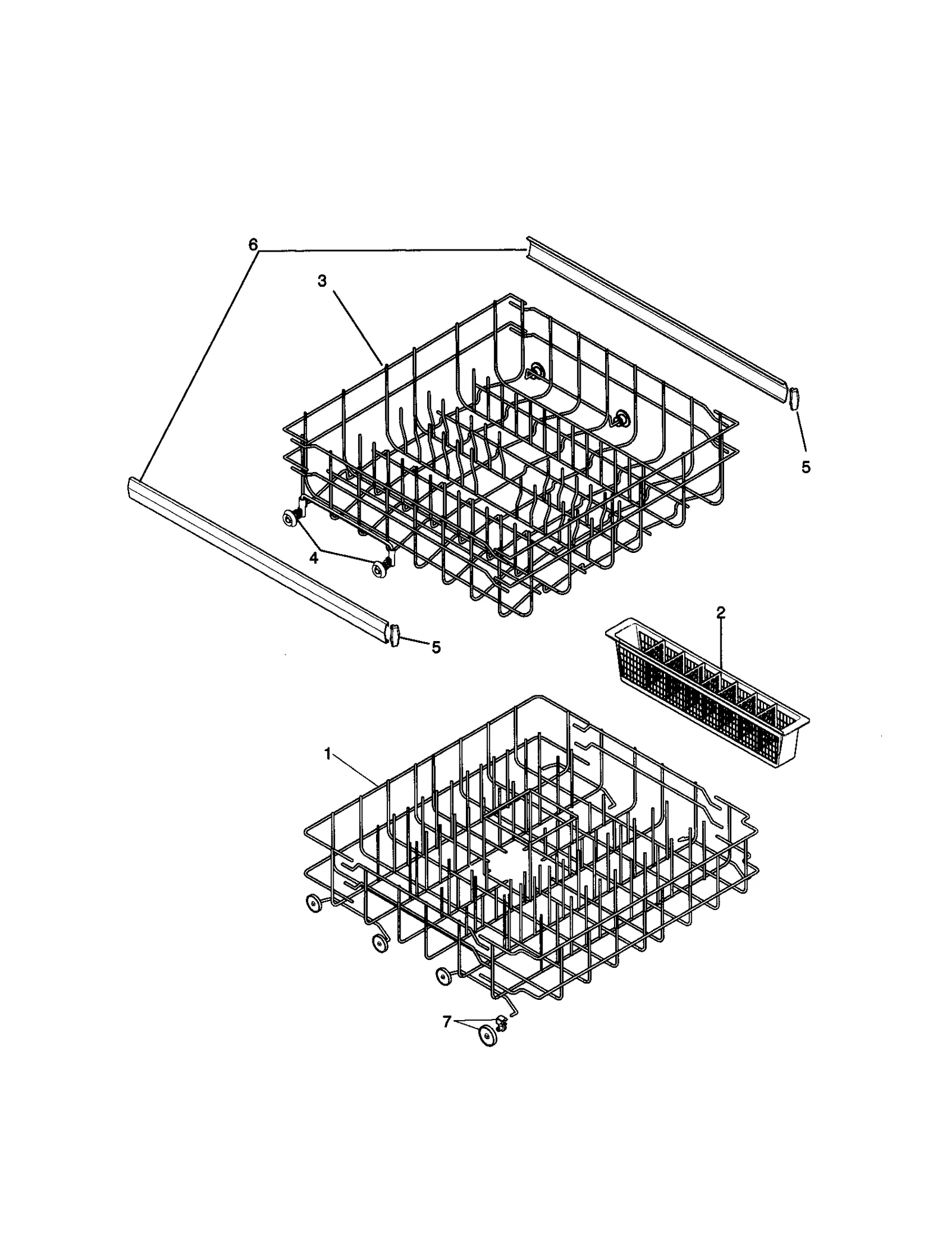

154331607 Frigidaire Dishrack Assembly Lower In Stock WCI 154331607 $109.04

View on Model

1

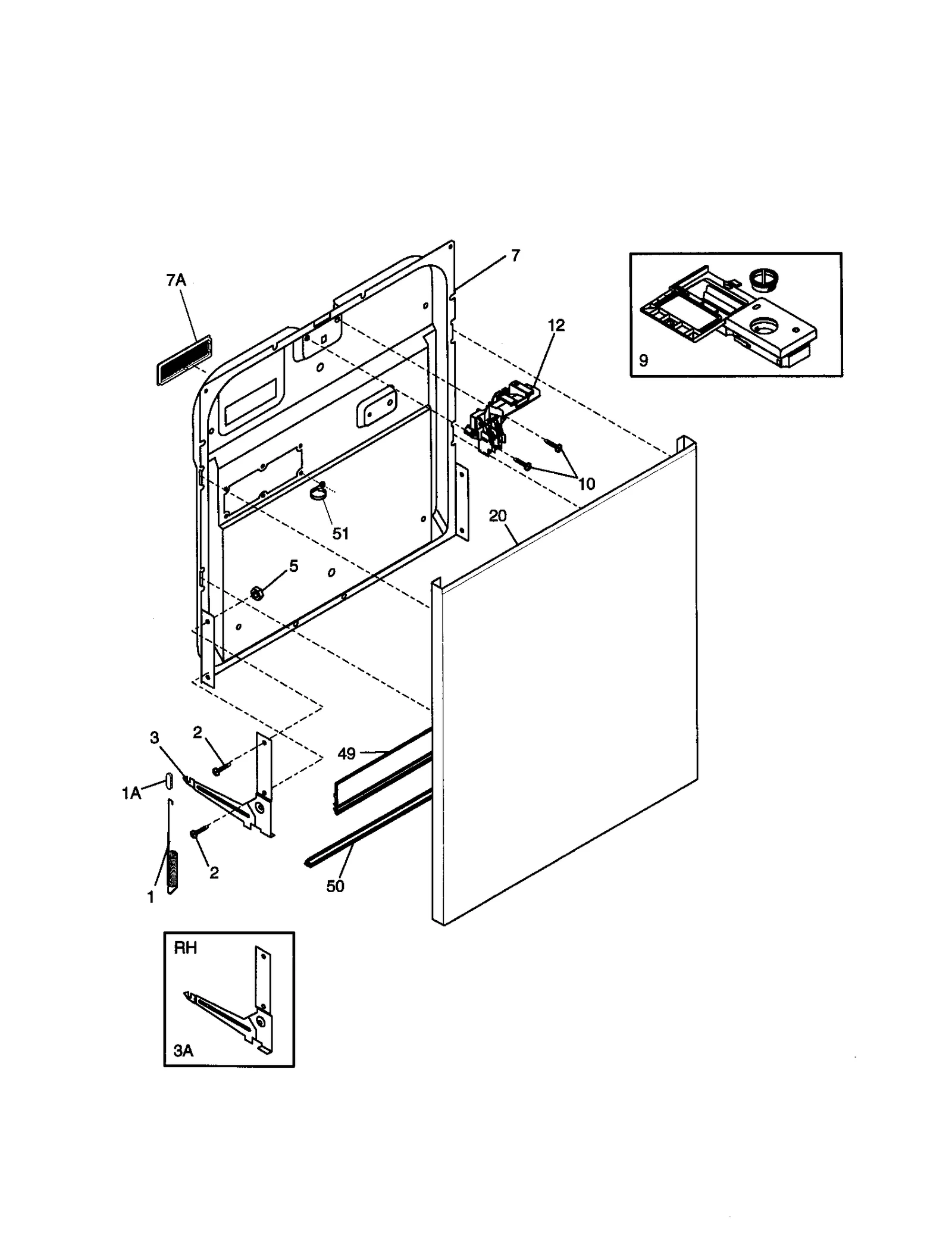

154430501 Frigidaire Dishwasher Door Spring In Stock WCI 154430501 $16.08

View on Model

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $13.78

View on Model

1B

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $5.76

View on Model

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.56

View on Model

3A

5304409912 Frigidaire Dishwasher Right Hinge In Stock WCI 5304409912 $44.09

View on Model

5

Backorder WCI 154079601 $0.30

View on Model

5

5300809927 Frigidaire End Cap Backorder WCI 5300809927 $2.72

View on Model

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $13.11

View on Model

7

Blade WCI 154245901 Contact Us For Availability

View on Model

7

Inner Liner WCI 154299002 Contact Us For Availability

View on Model

7A

Grate Liner WCI 154332701 Contact Us For Availability

View on Model

8

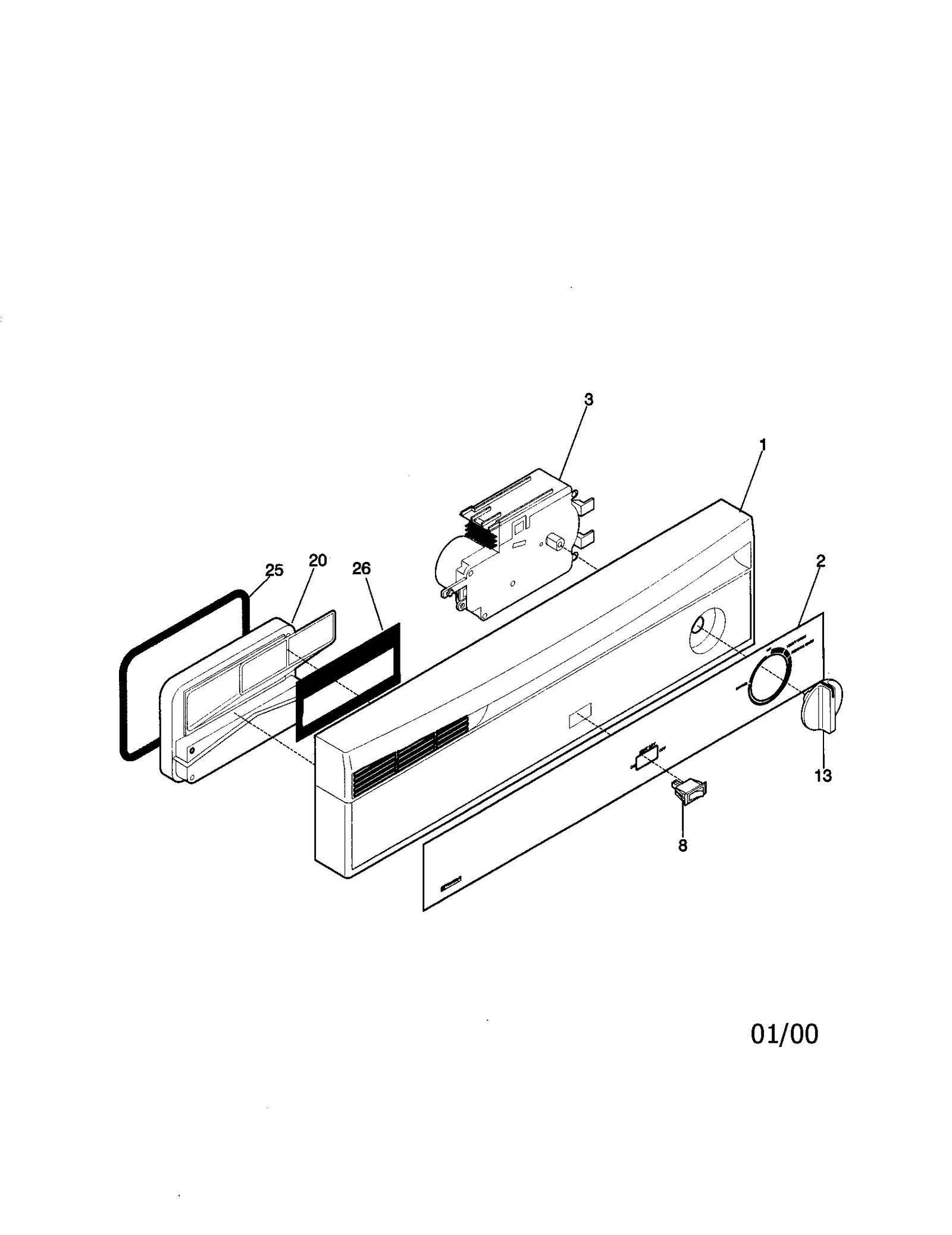

Select Switch WCI 154240401 Contact Us For Availability

View on Model

8A

154240403 Frigidaire Dishwasher Selector Swit Backorder WCI 154240403 $56.16

View on Model

9

154574401 Frigidaire Dishwasher Dispenser In Stock WCI 154574401 $76.11

View on Model

9A

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $6.81

View on Model

10

Dishwasher Circulation Pump Volute WCI 154335301 Contact Us For Availability

View on Model

10

Dishwasher Screw WCI 154304301 Contact Us For Availability

View on Model

12

5304442175 Frigidaire Black Door Latch Assemb In Stock WCI 5304442175 $85.74

View on Model

12

Dishwasher Pump Impeller WCI 154245801 Contact Us For Availability

View on Model

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $36.76

View on Model

13

Dishwasher Timer Knob WCI 154338301 Contact Us For Availability

View on Model

13A

154338303 Frigidaire Dishwasher Knob Backorder WCI 154338303 $38.84

View on Model

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $29.91

View on Model

20

Dishwasher Door Outer Panel WCI 154359105 Contact Us For Availability

View on Model

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $1.68

View on Model

24

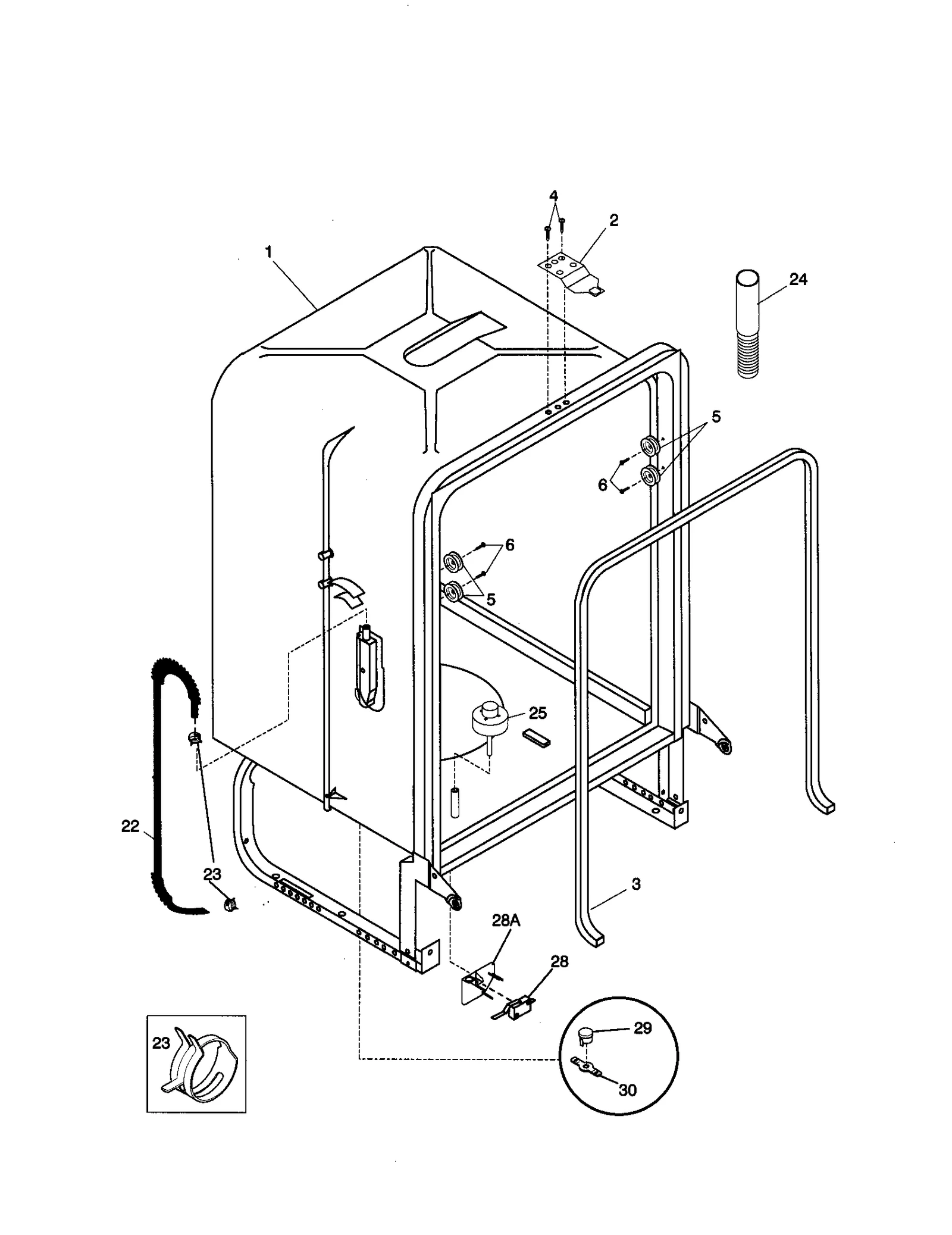

154225602 Frigidaire Dishwasher Long Drain Ho In Stock WCI 154225602 $30.96

View on Model

24A

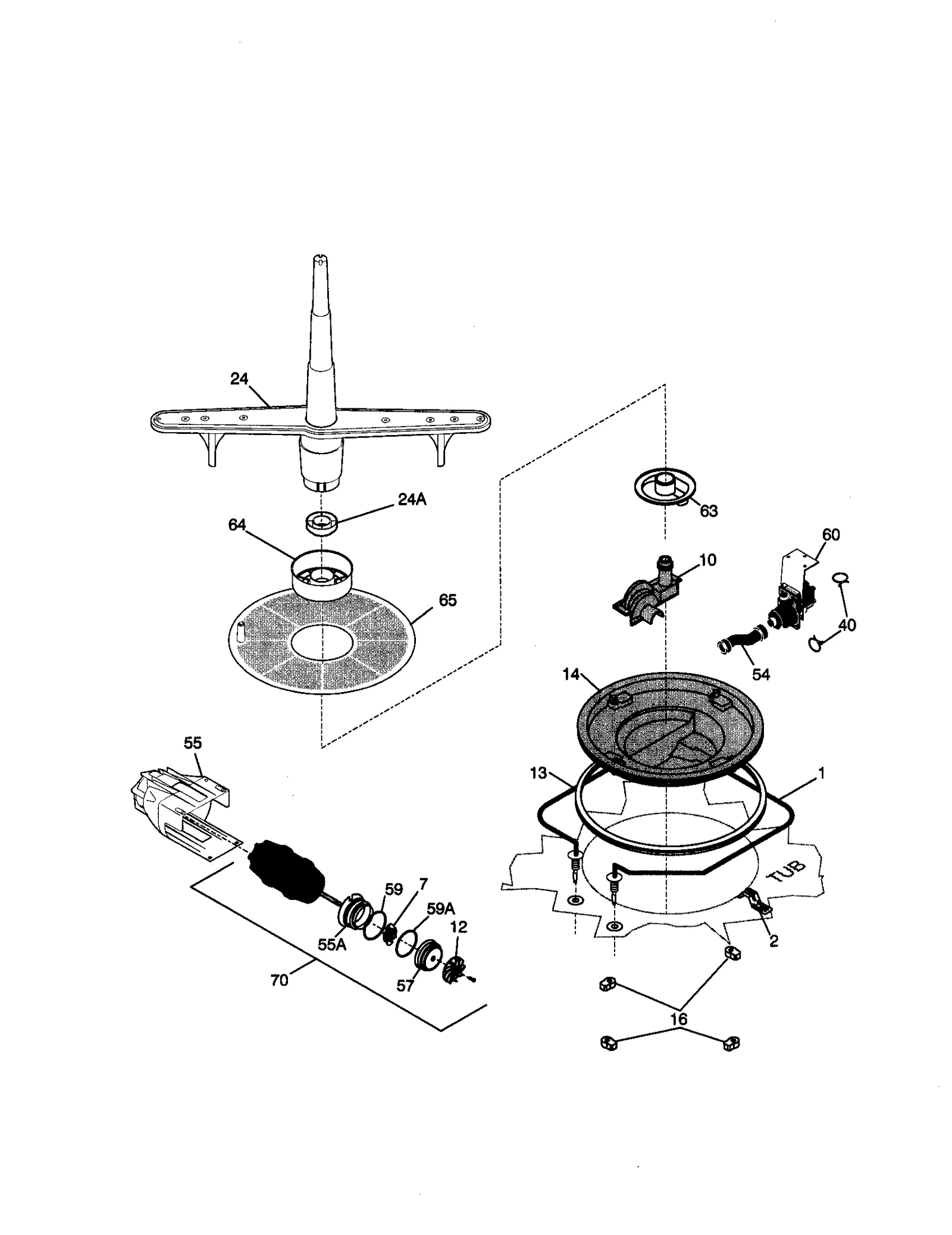

154335201 Frigidaire Dishwasher Lower Spray A In Stock WCI 154335201 $37.23

View on Model

25

Dishwasher Control Panel Vent Seal WCI 154229201 Contact Us For Availability

View on Model

28

Dishwasher Float Switch WCI 154225501 Contact Us For Availability

View on Model

29

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 $47.76

View on Model

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.61

View on Model

30A

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $9.96

View on Model

40A

Clamp WCI 154348501 Contact Us For Availability

View on Model

40B

154611101 Frigidaire Dishwasher Clamp Backorder WCI 154611101 $8.91

View on Model

49

809006501 Frigidaire Bottom Seal/Gasket Door In Stock WCI 809006501 $19.99

View on Model

50

Dishwasher Door Hinge Support Bracket WCI 154211401 Contact Us For Availability

View on Model

51

Dishwasher Wire Clamp WCI 154320301 Contact Us For Availability

View on Model

54

154234401 Frigidaire Dishwasher Hose P-1 Backorder WCI 154234401 $49.86

View on Model

55

Bracket WCI 154325701 Contact Us For Availability

View on Model

55A

Mounting Motor WCI 154246201 Contact Us For Availability

View on Model

57

Dishwasher Pump Drum, Front WCI 154246001 Contact Us For Availability

View on Model

57A

Drum WCI 154246101 Contact Us For Availability

View on Model

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $48.81

View on Model

60

Drain Pump WCI 154247502 Contact Us For Availability

View on Model

60A

Motor Bracket WCI 154234501 Contact Us For Availability

View on Model

63

5304532205 Frigidaire Base Assembly In Stock WCI 5304532205 $9.94

View on Model

65

140281806020 Frigidaire Filter,Assembly,Black In Stock WCI 140281806020 $6.95

View on Model

70

Motor WCI 154291504 Contact Us For Availability

View on Model

NI

154641601 Frigidaire Dishwasher Insulation Backorder WCI 154641601 $4.53

View on Model

NI

5300807373 Frigidaire Dishwasher Backorder WCI 5300807373 $4.71

View on Model

NI

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.61

View on Model

NI

Dishwasher Screw WCI 154200601 Contact Us For Availability

View on Model

NI

Screw WCI 5303316032 Contact Us For Availability

View on Model

NI

Dishwasher Screw WCI 154200602 Contact Us For Availability

View on Model

NI

Pin WCI 154211501 Contact Us For Availability

View on Model

NI

Clamp WCI 154338601 Contact Us For Availability

View on Model

NI

Electronic Harness WCI 154347902 Contact Us For Availability

View on Model

NI

Service Data Sheet WCI 154368701 Contact Us For Availability

View on Model

NI

Owner's Manual WCI 154368901 Contact Us For Availability

View on Model

NI

Instructions WCI 154369001 Contact Us For Availability

View on Model

NI

Parts List WCI 5995328902 Contact Us For Availability

View on Model
