Model LG 580.79074890 – Common Parts & Diagrams
Diagram 0

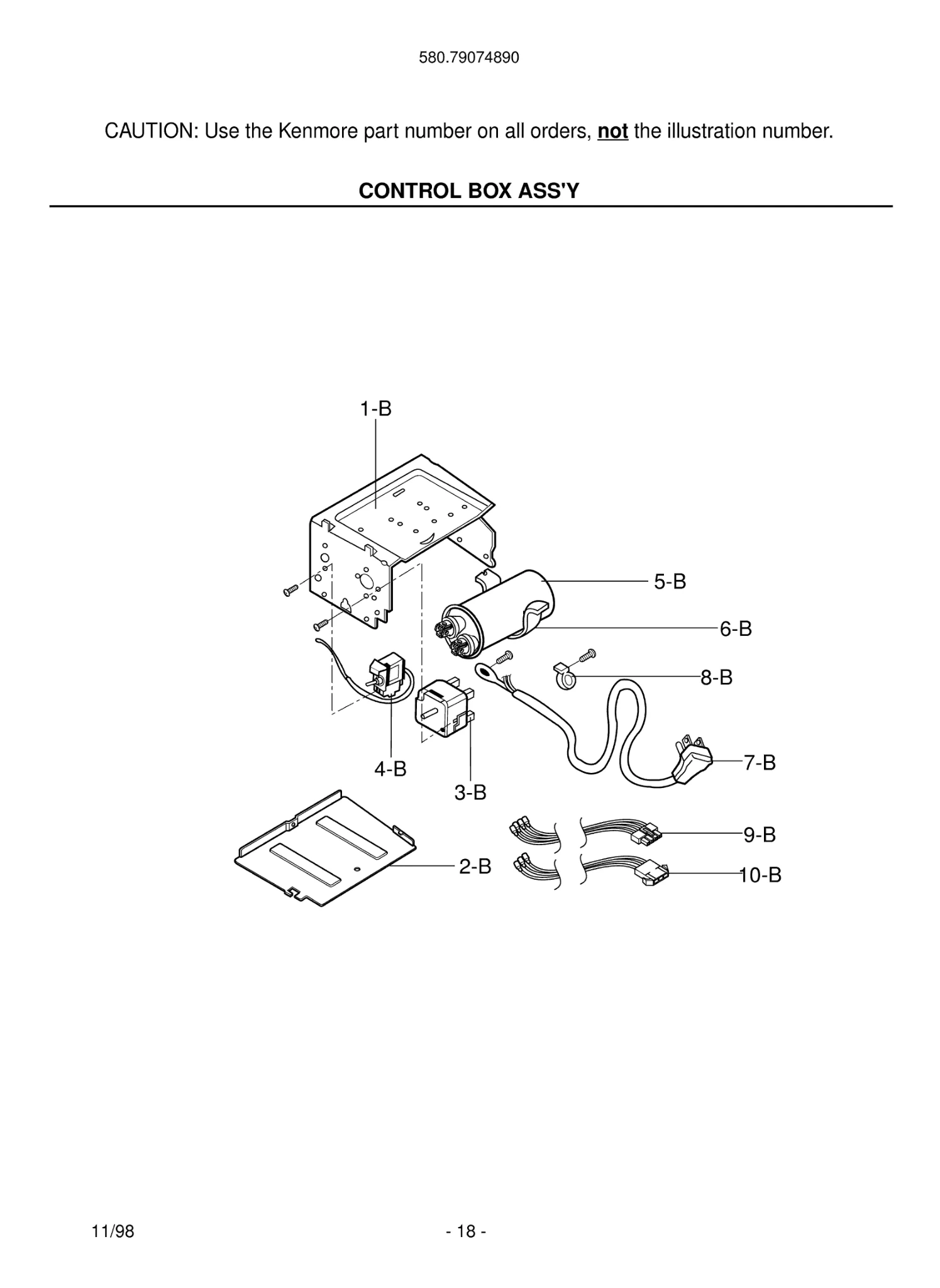

Diagram 1

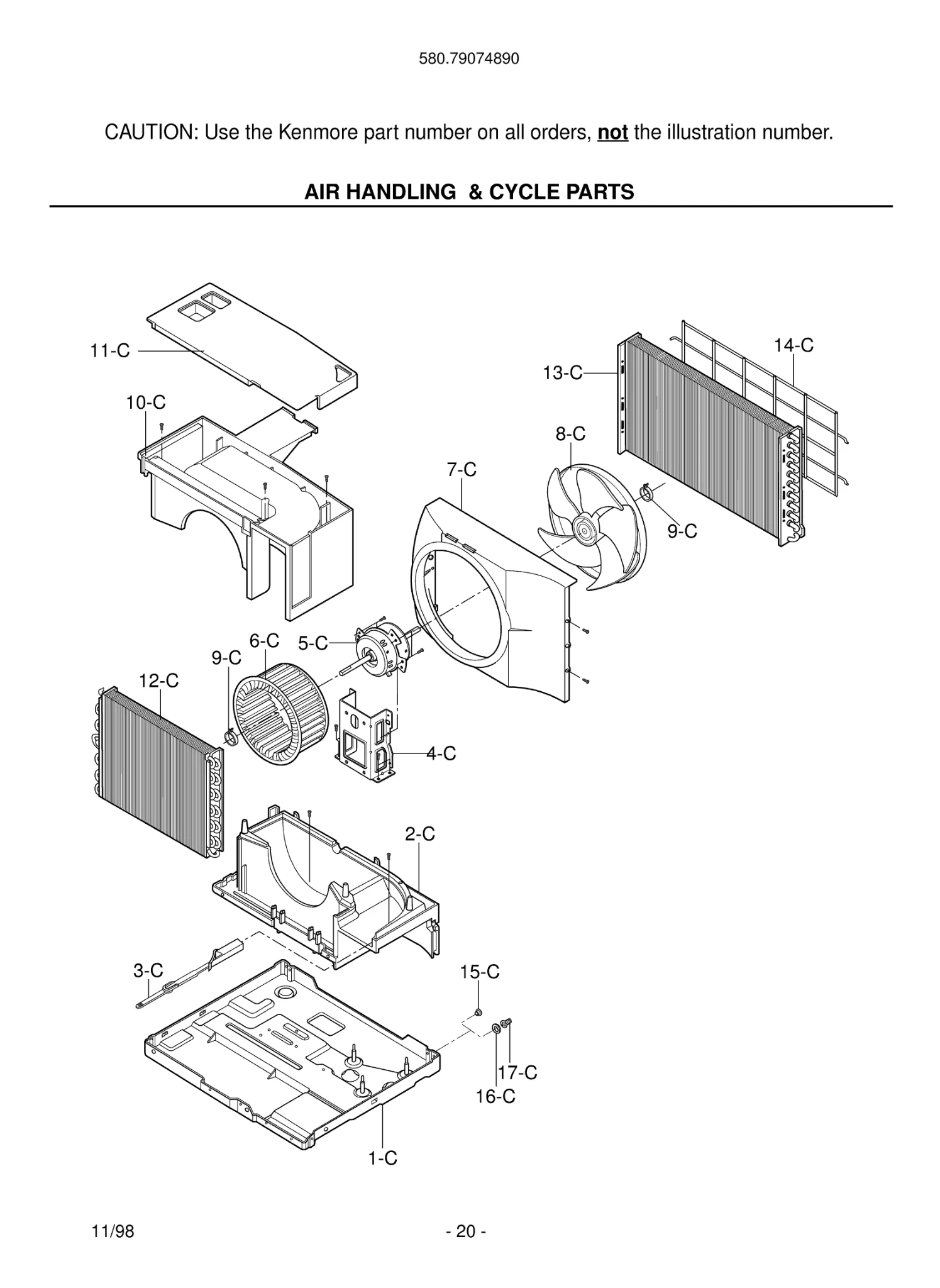

Diagram 2

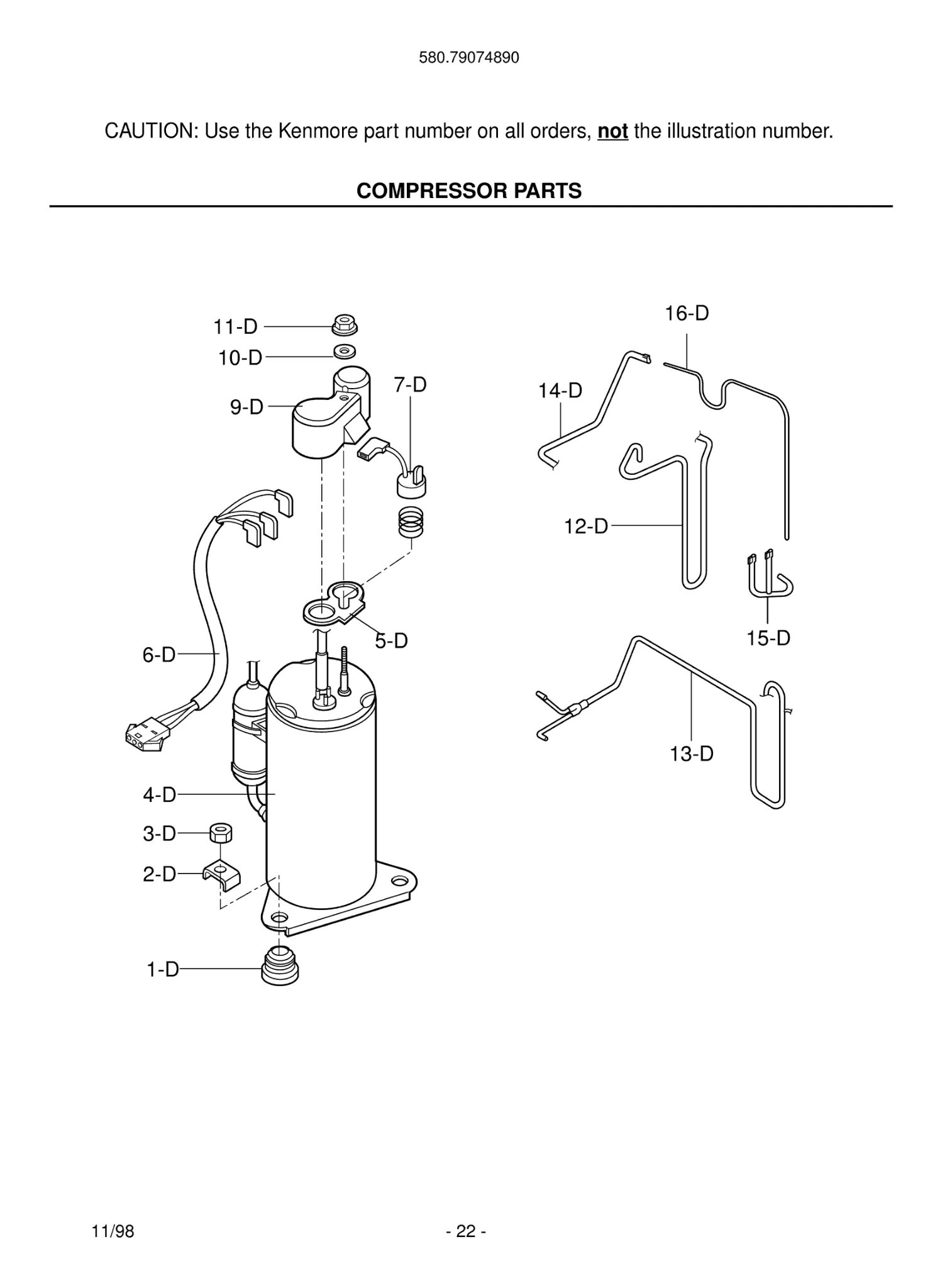

Diagram 3
Diagram 4
Common parts from model LG 580.79074890
1-B
CONTROL BOX LGE 4994AR1166C Contact Us For Availability
1-C
BASE ASSY,PAN LGE 3041AR2306R Contact Us For Availability
1-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
1-E
GUIDE,UPPER LGE 4974AR3328C Contact Us For Availability
2-B
COVER, CONTROL BOX LGE 4994AR3579A Contact Us For Availability
2-C
AIR GUIDE ASSY LOWER LW-B0811C LGE 5239AR3398A Contact Us For Availability
2-E
CURTAIN ASSY LW-B0811CL B0810C LGE 4959AR3402A Contact Us For Availability
3-B
SWITCH ROTARY SRB-315-4-2 LGE 2H00154H Contact Us For Availability
3-C
DAMPER LGE 4900AR3324A Contact Us For Availability
3-E
CURTAIN LW-B0811CL B0810C LGE 4959AR3402B Contact Us For Availability
4-A
VANE LGE 5990AR2973A Contact Us For Availability
4-B
THERMOSTAT LGE 2H01109H Contact Us For Availability
4-C
MOUNT,MOTOR LGE 4960AR6151A Contact Us For Availability
4-D
COMPRESSOR LGE 5416A20004B Contact Us For Availability
4-E
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
5-A
LOUVER LGE 4758AR3330A Contact Us For Availability
5-C
MOTOR ASSY,SINGLE LGE 4681A20010C Contact Us For Availability
5-E
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
6-A
KNOB ASSY LGE 4941AR7134C Contact Us For Availability
6-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
6-C
BLOWER LGE 5834AR1168B Contact Us For Availability
6-D
LEAD WIRE ASSY LGE 6631AR2668F Contact Us For Availability
6-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
7-A
CABINET ASSY LGE 3091AR2317C Contact Us For Availability
7-C
SHROUD LUPOL HF-3208 LW-B0811C LGE 4998AR1163A Contact Us For Availability
7-D
O.L.P LGE 6750U-L030A Contact Us For Availability
8-B
CLIP CORD, GA-1830FC LGE 4H01762A Contact Us For Availability
8-C
FAN ASSEMBLY - AXIAL LGE 5900AR1167B Contact Us For Availability
9-B
LEAD WIRE ASSY LGE 6877A20001C Contact Us For Availability
9-D
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
10-B
LEAD WIRE ASSY LGE 6631AR2667H Contact Us For Availability
10-C
AIR GUIDE ASSY UPPER WB-CHASSI LGE 5239AR3401A Contact Us For Availability
10-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
11-C
COVER EPS(WB-AIR UPPER) LW-B08 LGE 3550AR2334A Contact Us For Availability
12-C
EVAPORATOR ASSY LGE 5421AR2998A Contact Us For Availability
12-D
TUBE,DISCHARGE LGE 5210A30118A Contact Us For Availability
13-C
CONDENSER ASSY LGE 5403AR2473A Contact Us For Availability
13-D
TUBE ASSY SUCTION WB-CHASSIS LGE 5211AR2309A Contact Us For Availability
14-C
GRILLE REAR WIRE LW-B0811CL LGE 3530AR2332B Contact Us For Availability
14-D
TUBE FORMED P6.35 LW-B0811CL LGE 5210AR2311A Contact Us For Availability
15-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
× ![]()
