Model LG 580.76105700 – Common Parts & Diagrams

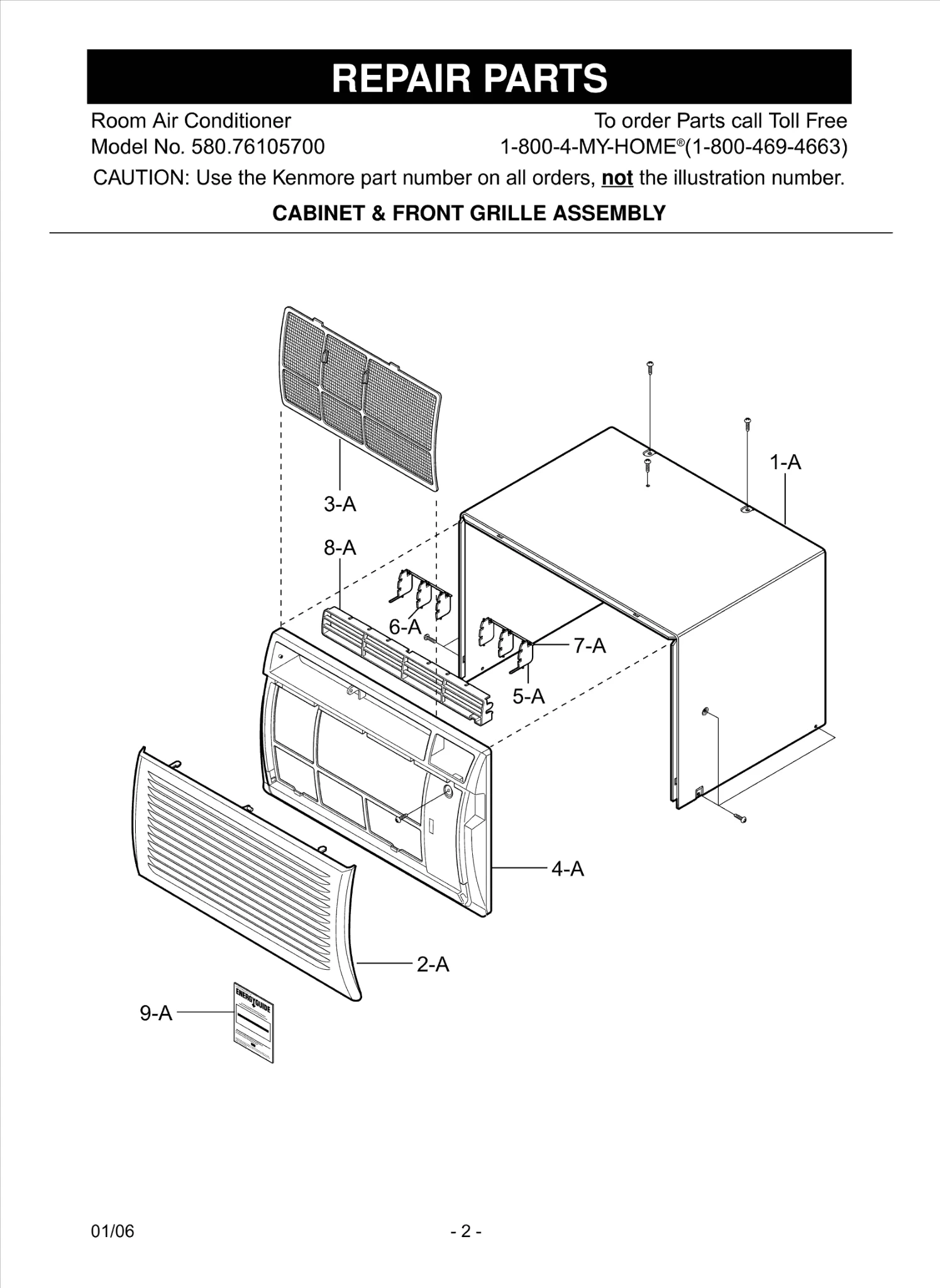

Diagram 0

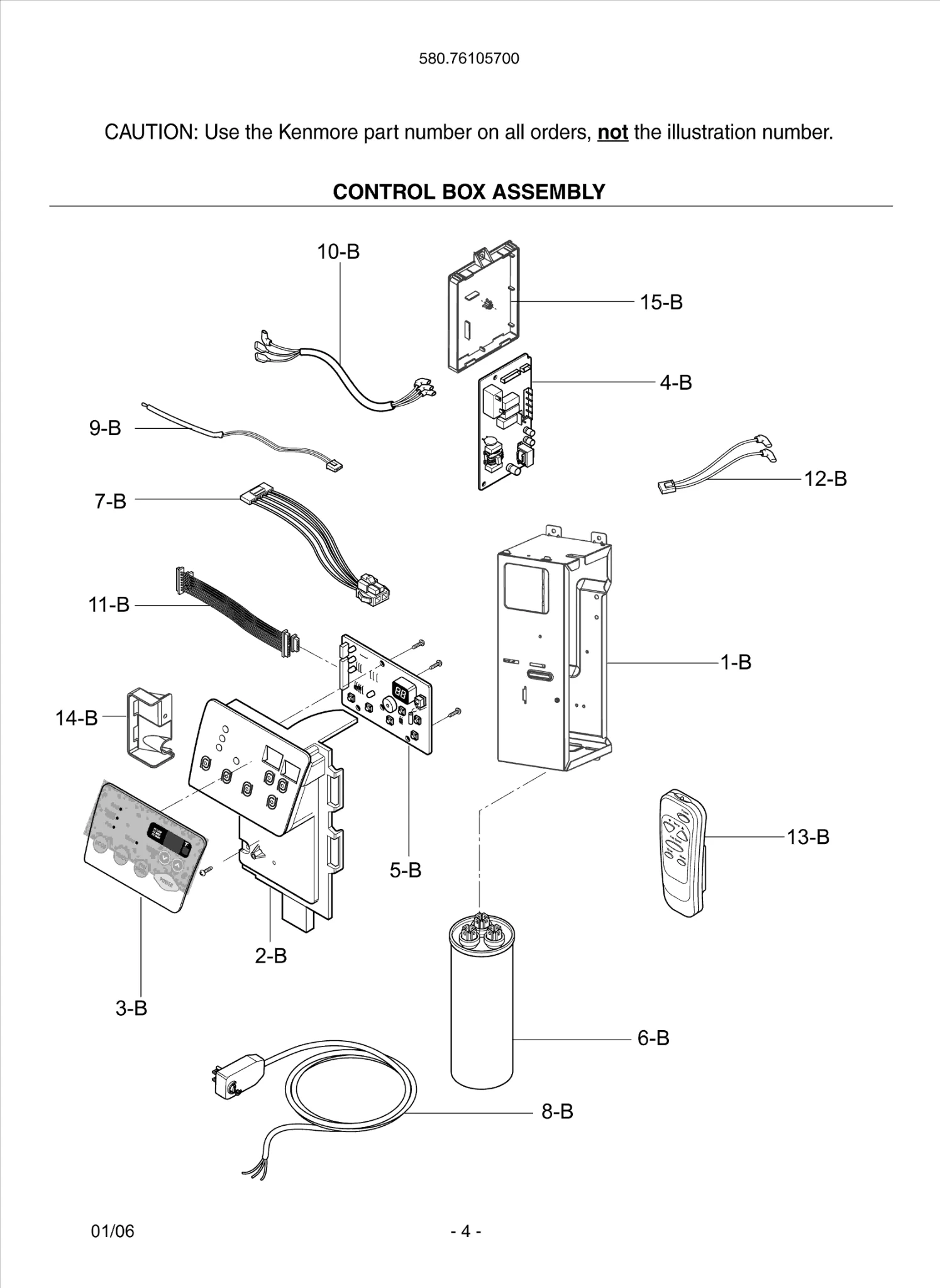

Diagram 1

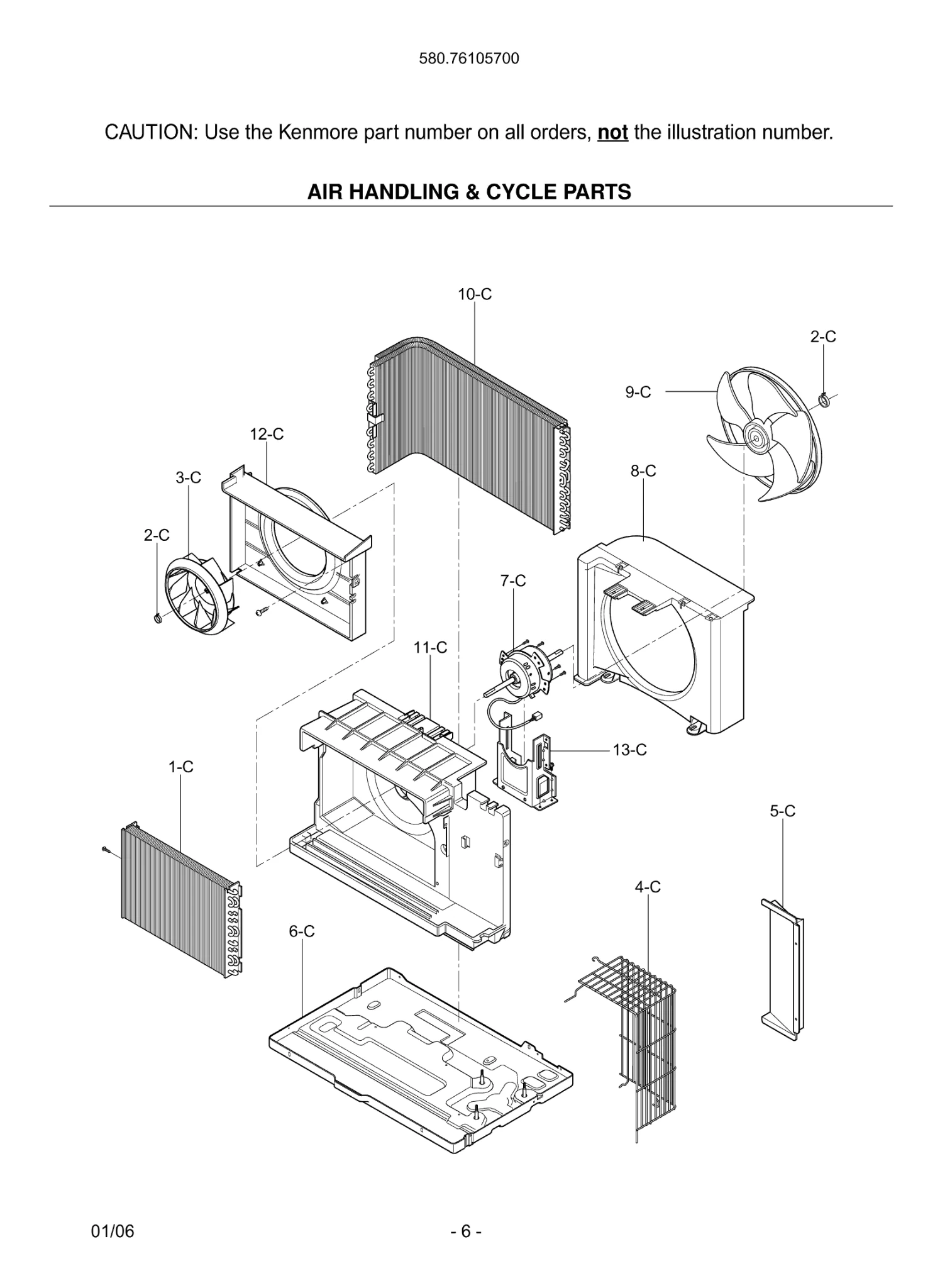

Diagram 2

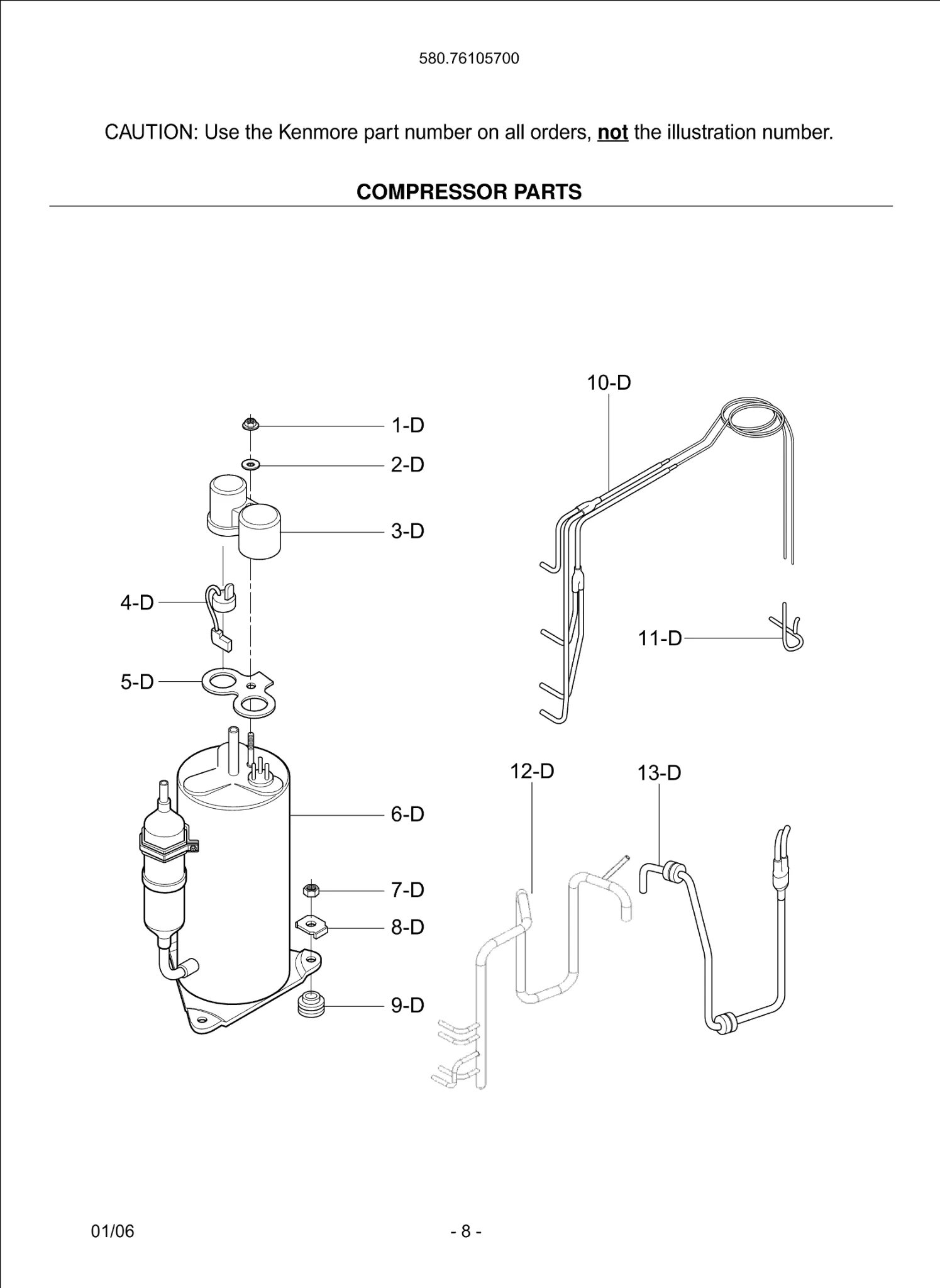

Diagram 3

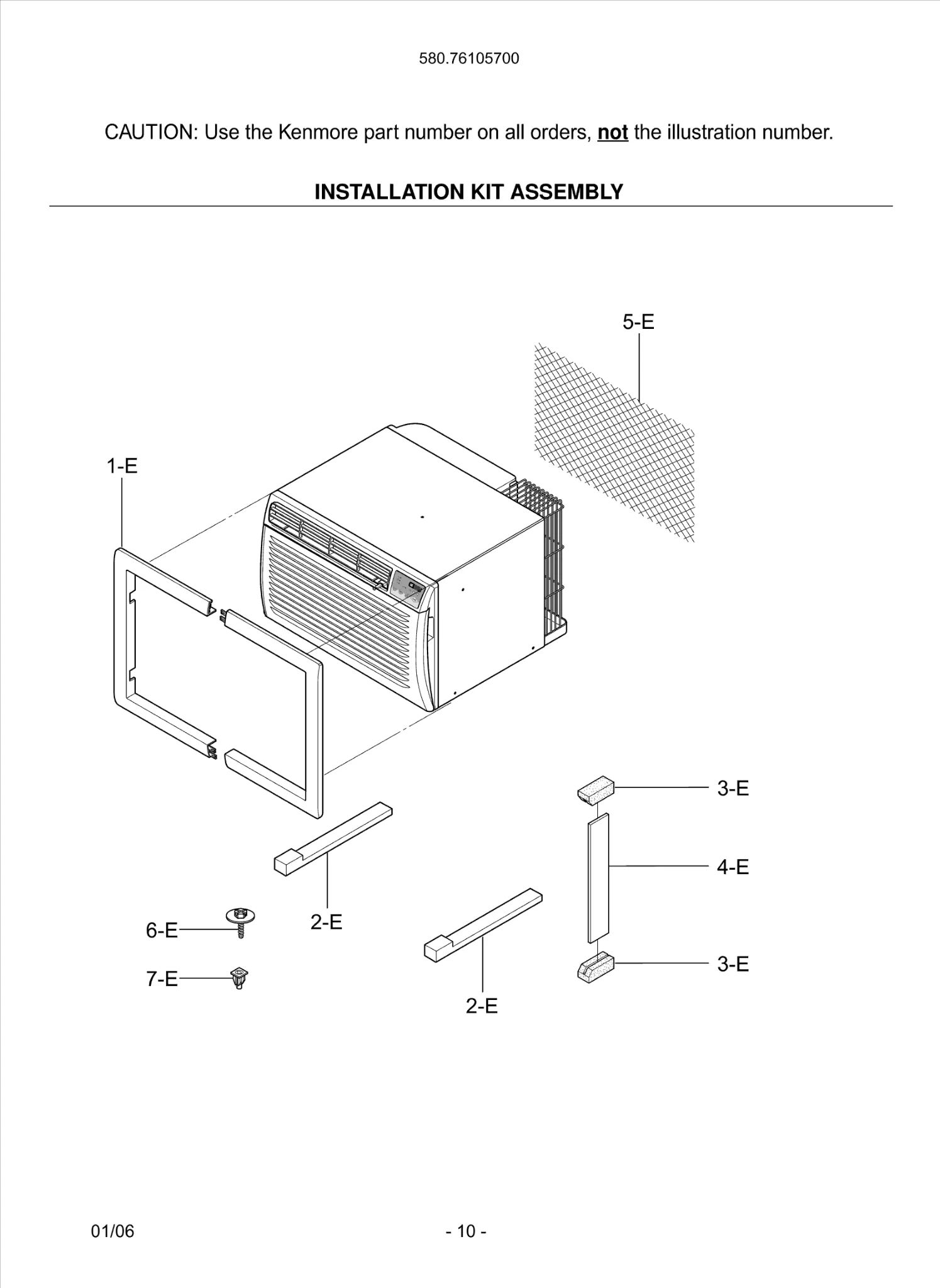

Diagram 4
Common parts from model LG 580.76105700
1-A
Cabinet LGE 3090A20017K Contact Us For Availability
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071G Contact Us For Availability
1-E
FRAME LGE 3210A20075A Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-B
ESCUTCHEON LGE 3831A10037A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
3-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
4-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
5-B
PCB Assembly,Display LGE EBR30852301 Contact Us For Availability
6-C
BASE ASSEMBLY,SINGLE LGE 3041A10046K Contact Us For Availability
6-D
Compressor Set,China LGE TBZ30744301 Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20041K Contact Us For Availability
8-B
Power Cord Assembly LGE 6411A20056T Contact Us For Availability
9-C
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
9-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
10-C
Condenser Assembly,Bending LGE 5403A20183M Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024C Contact Us For Availability
11-C
AIR GUIDE ASSEMBLY LGE 5239A10015B Contact Us For Availability
13-D
Tube Assembly,Discharge LGE 5211A21421J Contact Us For Availability
14-B
Case,Control LGE MBN35987101 Contact Us For Availability
15-B
Cover LGE 3550A20257B Contact Us For Availability
× ![]()
