Model LG 580.76100700 – Common Parts & Diagrams
Diagram 0

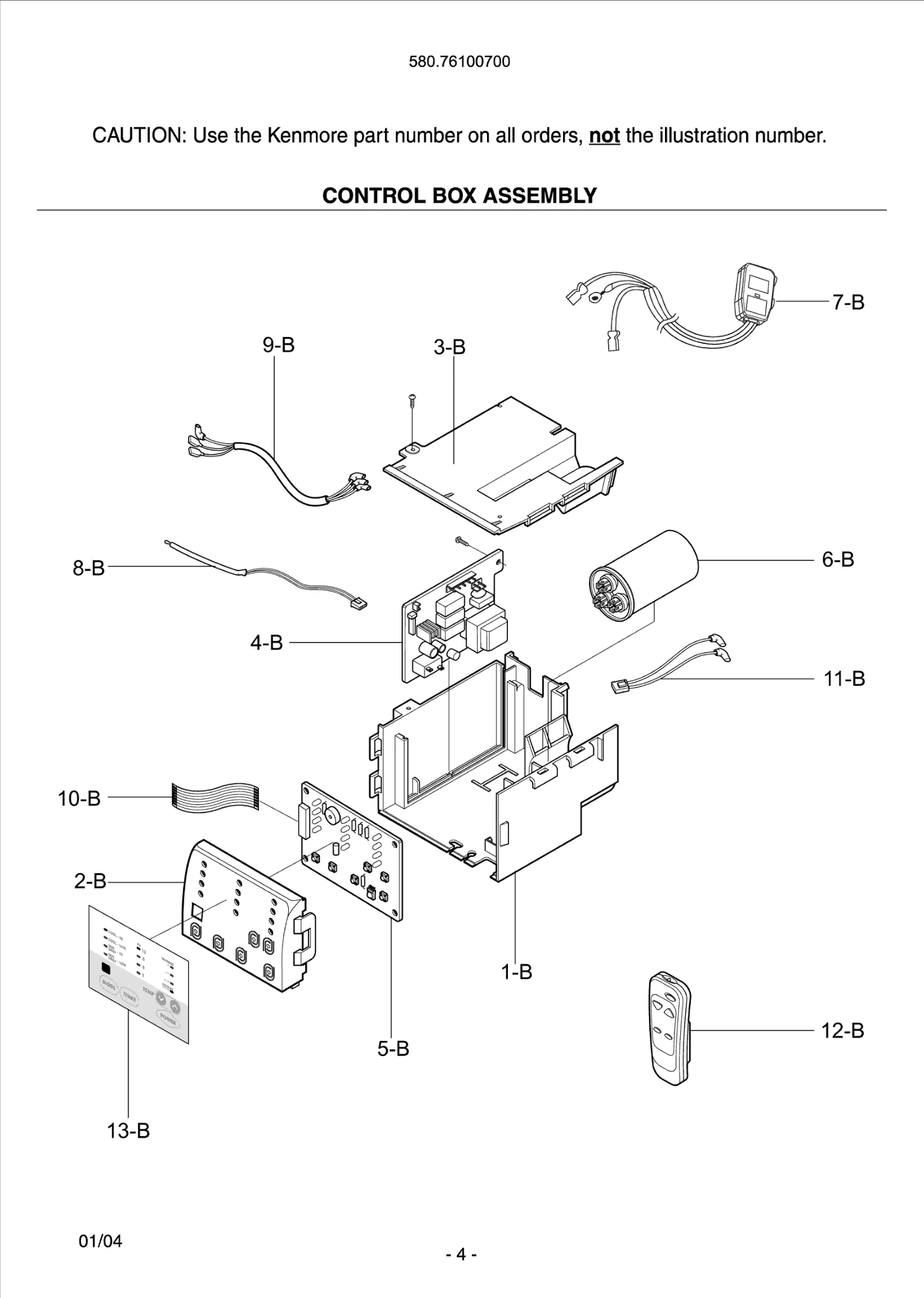

Diagram 1

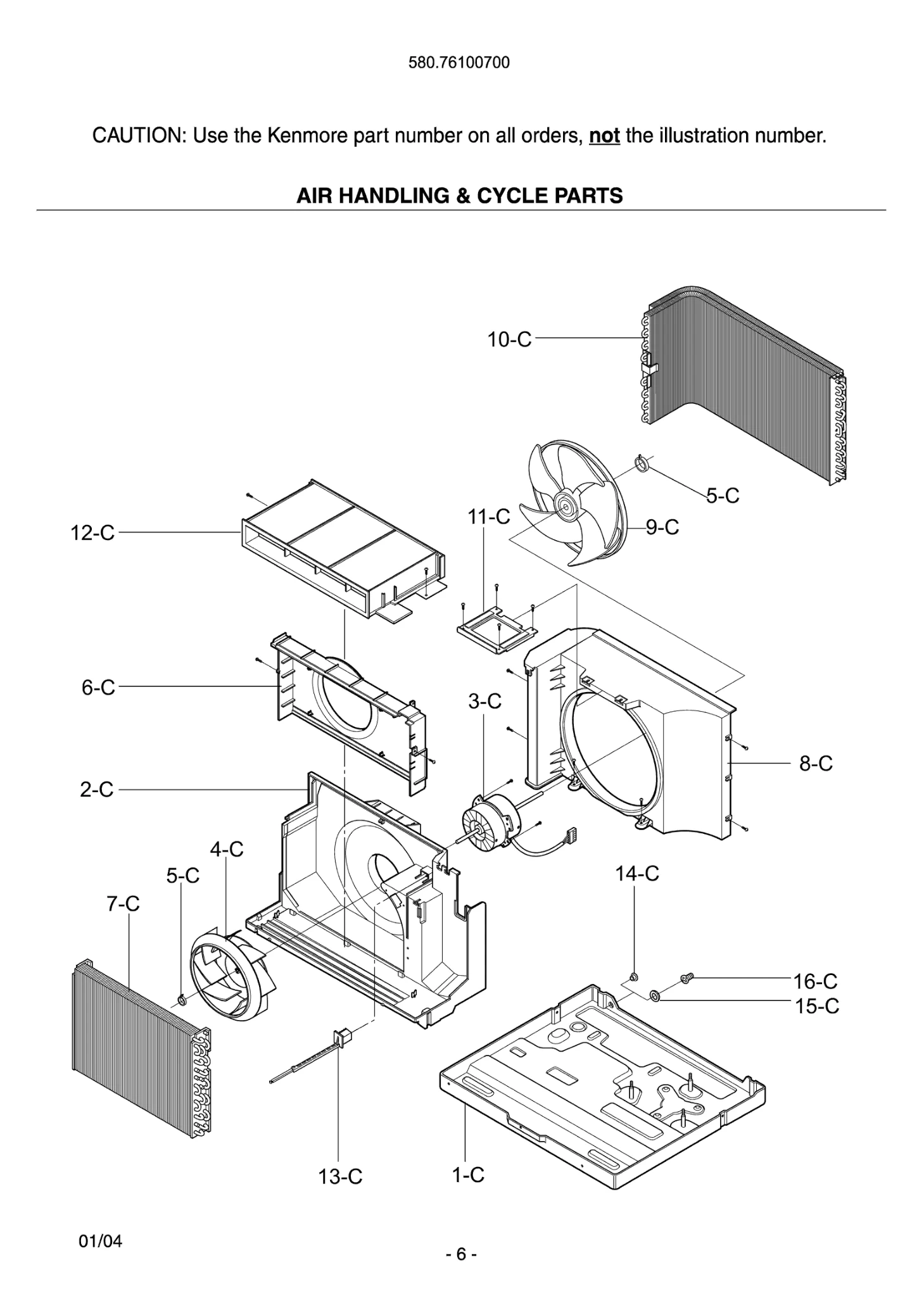

Diagram 2

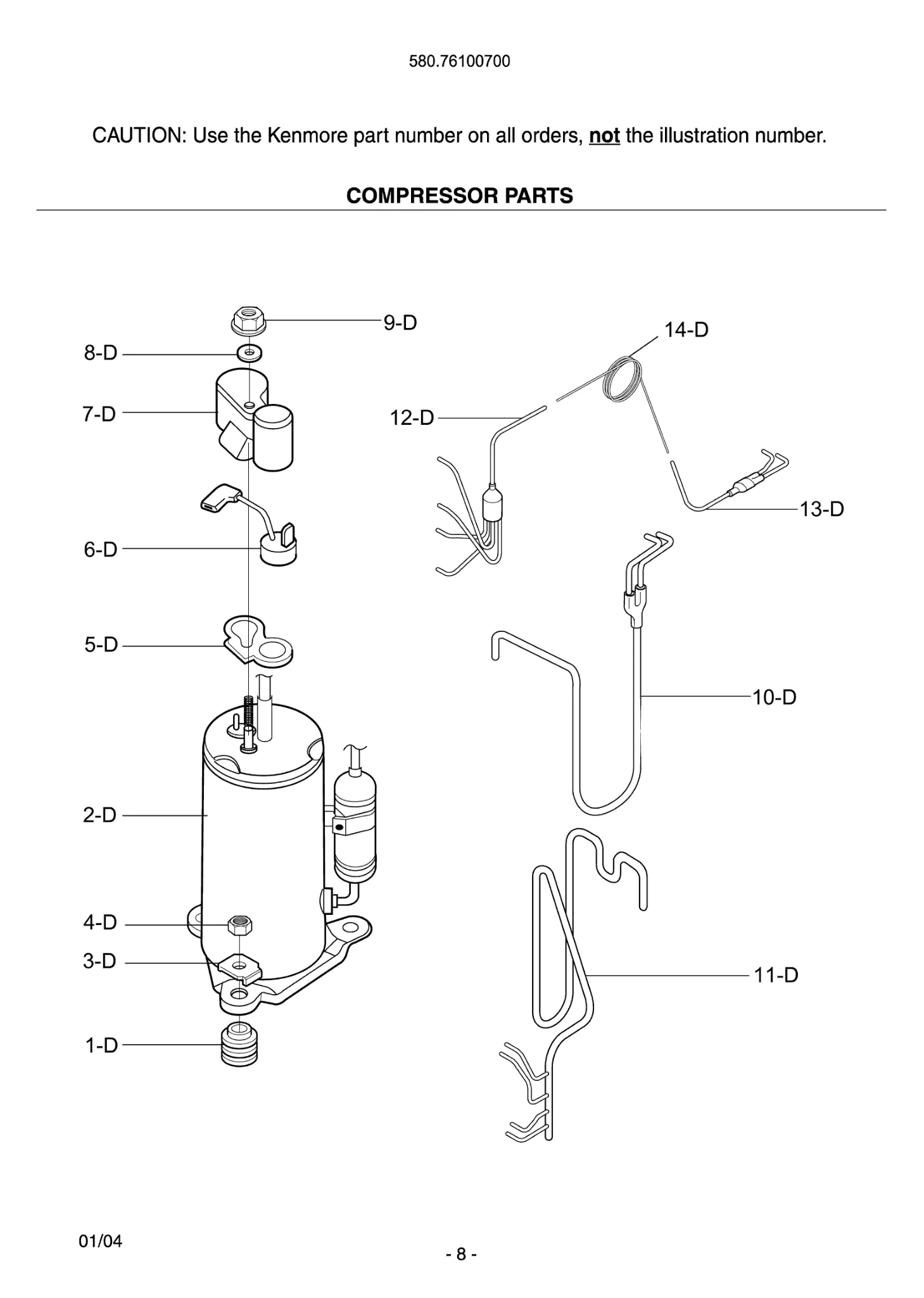

Diagram 3

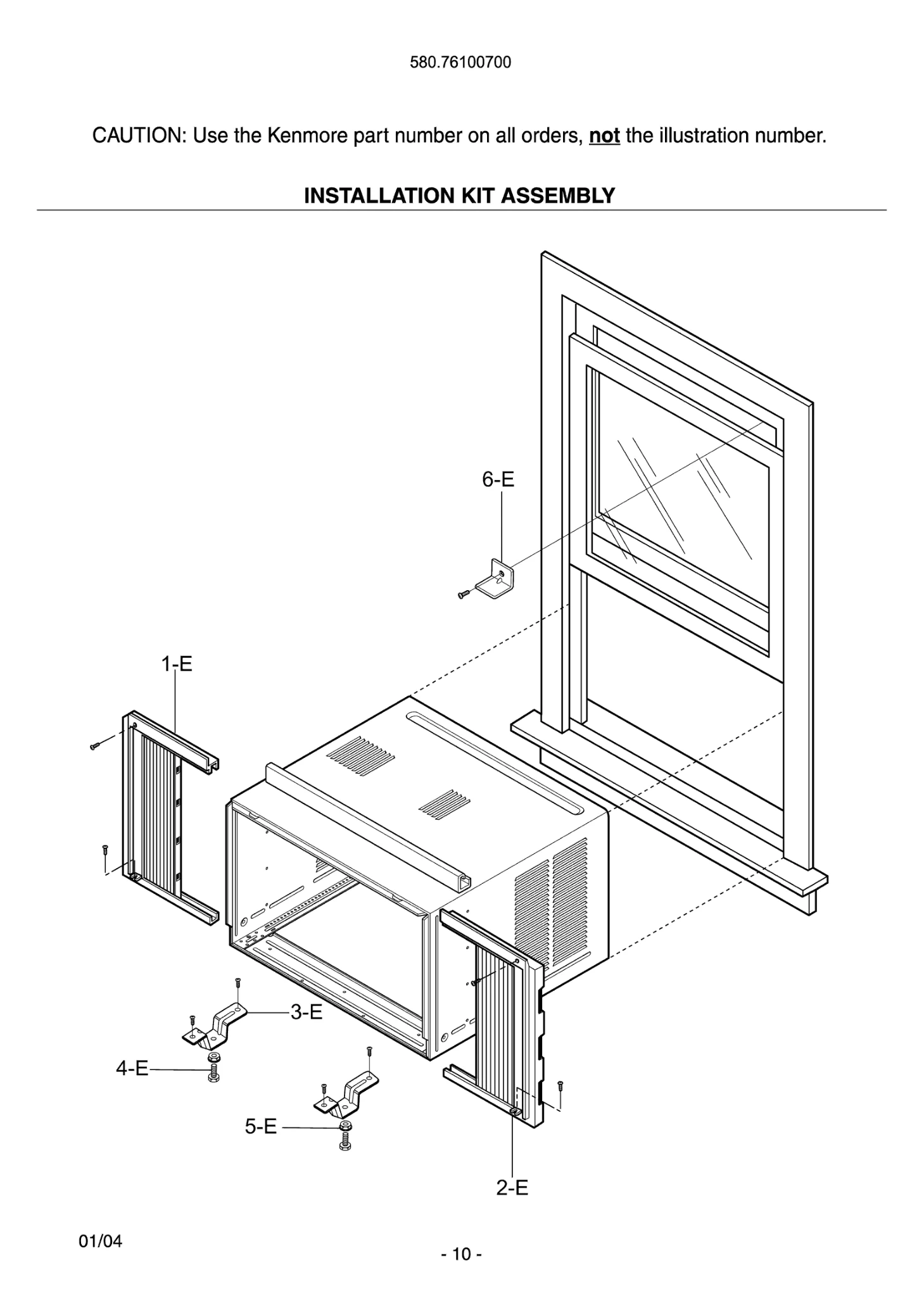

Diagram 4
Common parts from model LG 580.76100700
1-B
CONTROL BOX,SINGLE LGE 4994A10029A Contact Us For Availability
1-C
BASE ASSEMBLY,SINGLE LGE 3041A20021V Contact Us For Availability
1-D
Damper,Compressor LGE 4830AR4335B Contact Us For Availability
1-E
CURTAIN ASSY LW-B0811CL B0810C LGE 4959AR3402A Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A30077A Contact Us For Availability
2-C
AIR GUIDE ASSEMBLY LGE 5239A20012A Contact Us For Availability
2-D
Compressor Set,China LGE TBZ30826701 Contact Us For Availability
2-E
CURTAIN LW-B0811CL B0810C LGE 4959AR3402B Contact Us For Availability
3-B
COVER LGE 3550A30114A Contact Us For Availability
3-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20069H Contact Us For Availability
3-E
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
4-C
FAN,TURBO LGE 5900A20020A Contact Us For Availability
4-E
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
5-B
PCB Assembly, Display for original 6871A20619 LGE 6871A20533A Contact Us For Availability
5-D
Gasket LGE 4986UTL001K Contact Us For Availability
5-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20040B Contact Us For Availability
6-C
ORIFICE LGE 4948A10014A Contact Us For Availability
7-A
CABINET ASSY WB-CHASSIS LGE 3091AR2317P Contact Us For Availability
7-B
POWER CORD ASSEMBLY LGE 6411A20056E Contact Us For Availability
7-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10026P Contact Us For Availability
7-D
Cover LGE 3550UTL006B Contact Us For Availability
8-C
Shroud LGE 4998A10023C Contact Us For Availability
9-A
Label,Unit LGE 3850A27114R Contact Us For Availability
9-B
CONNECTOR ASSEMBLY LGE 6631AR3843W Contact Us For Availability
9-C
FAN ASSEMBLY - AXIAL LGE 5900AR1167B Contact Us For Availability
9-D
NUT,DRAWING LGE 1NZZUTL001A Contact Us For Availability
10-C
Condenser Assembly,First LGE ACG32514901 Contact Us For Availability
11-C
BRACE LGE 4800A30002C Contact Us For Availability
11-D
Tube Assembly,Suction LGE 5211A21786C Contact Us For Availability
12-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A20089C Contact Us For Availability
12-C
AIR GUIDE LGE 5238A20009A Contact Us For Availability
13-B
ESCUTCHEON LGE 3831A10048A Contact Us For Availability
13-C
DAMPER,VENTILATION LGE 4900A20003A Contact Us For Availability
14-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
× ![]()
