Model LG 580.75123700 – Common Parts & Diagrams

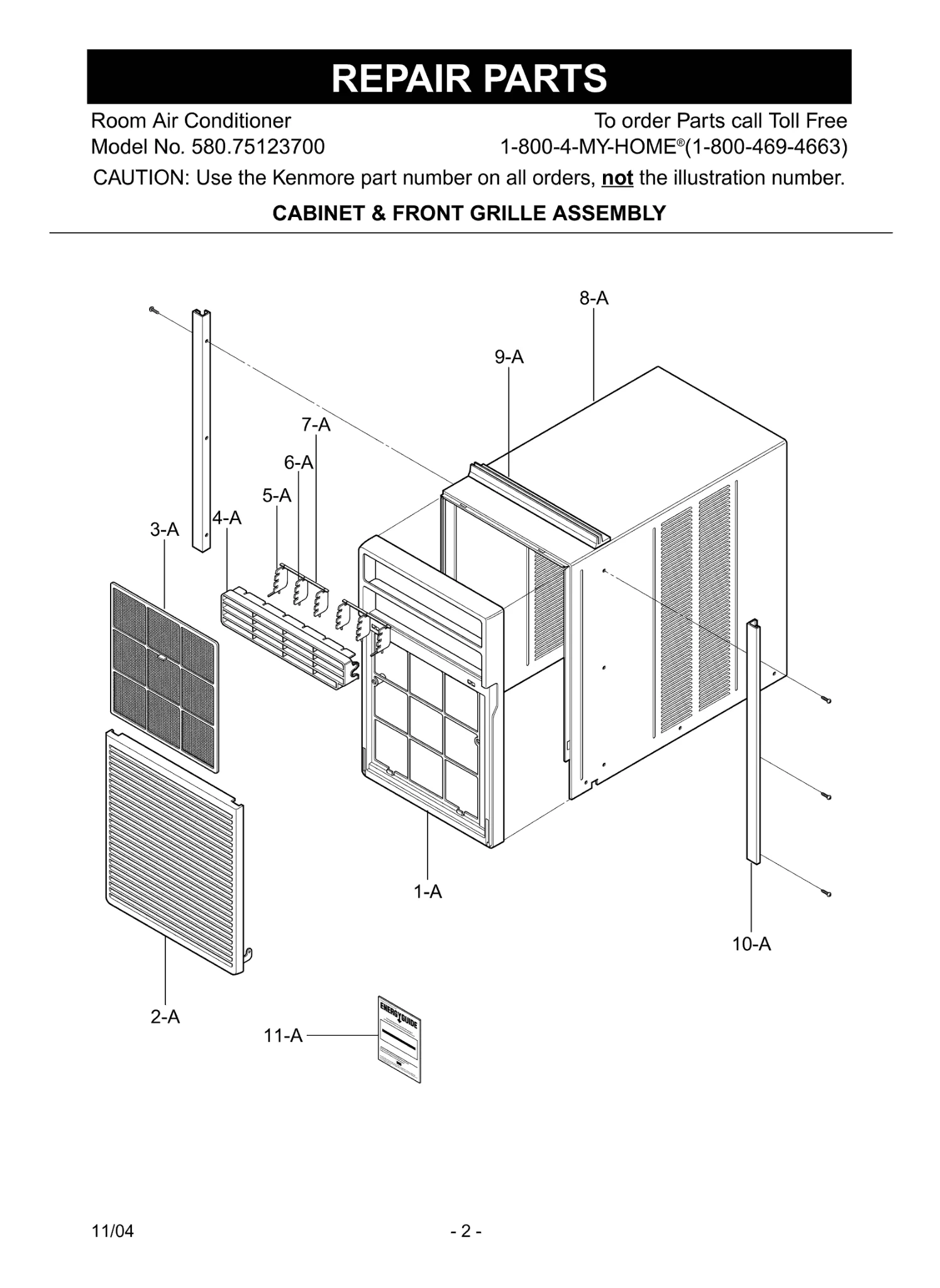

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG 580.75123700
1-B
CONTROL BOX,SINGLE LGE 4994A20048C Contact Us For Availability
1-C
BASE ASSEMBLY,SINGLE LGE 3041A20033N Contact Us For Availability
1-E
WINDOW,DISPLAY LGE 3790A20040A Contact Us For Availability
2-B
PCB Assembly,Main LGE EBR39264103 Contact Us For Availability
2-C
AIR GUIDE ASSEMBLY LGE 5239A20007A Contact Us For Availability
2-D
Compressor Set,China LGE 2520UCBK024 Contact Us For Availability
2-E
FRAME LGE 3210A20043B Contact Us For Availability
3-B
ESCUTCHEON LGE 3831A20084A Contact Us For Availability
3-E
BRACKET LGE 4810A30164B Contact Us For Availability
4-A
LOUVER,HORIZONTAL LGE 4758A20032A Contact Us For Availability
4-B
PANEL,CONTROL LGE 3720A20259A Contact Us For Availability
4-C
ORIFICE LGE 4948A20012A Contact Us For Availability
4-E
BRACKET LGE 4810A30213B Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A20017A Contact Us For Availability
5-B
PCB Assembly,Display LGE EBR30852601 Contact Us For Availability
5-C
DAMPER,VENTILATION LGE 4900A20006A Contact Us For Availability
5-D
Gasket LGE 4986UTL001H Contact Us For Availability
5-E
BOLT,DRAWING LGE 1BZZA30004D Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20017B Contact Us For Availability
6-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20069C Contact Us For Availability
6-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
7-C
FAN,TURBO LGE 5900A20019A Contact Us For Availability
7-D
COVER,TERMINAL LGE 3550UTL006A Contact Us For Availability
8-A
Cabinet Assembly,Single LGE 3091A20014B Contact Us For Availability
8-B
CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability
8-C
FAN,AXIAL LGE 5900A20026A Contact Us For Availability
9-A
GUIDE LGE 4974A20028A Contact Us For Availability
9-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
9-D
NUT,DRAWING LGE 1NZZUTL001A Contact Us For Availability
10-A
GUIDE LGE 4974A30052B Contact Us For Availability
10-B
Power Cord Assembly LGE 6411A20056W Contact Us For Availability
10-C
SHROUD ASSEMBLY LGE 4999A20002A Contact Us For Availability
10-D
Tube Assembly,Discharge LGE 5211A20558M Contact Us For Availability
11-A
Label,Energy LGE MEZ41960907 Contact Us For Availability
11-B
Drawing,Assembly LGE 6877A20002P Contact Us For Availability
11-D
Tube Assembly,Suction LGE 5211A20579G Contact Us For Availability
12-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20115D Contact Us For Availability
12-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20559R Contact Us For Availability
12-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20559M Contact Us For Availability
13-C
CONDENSER ASSEMBLY,FIRST LGE 5403A20082A Contact Us For Availability
14-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
× ![]()
