Model LG 580.75119700 – Common Parts & Diagrams

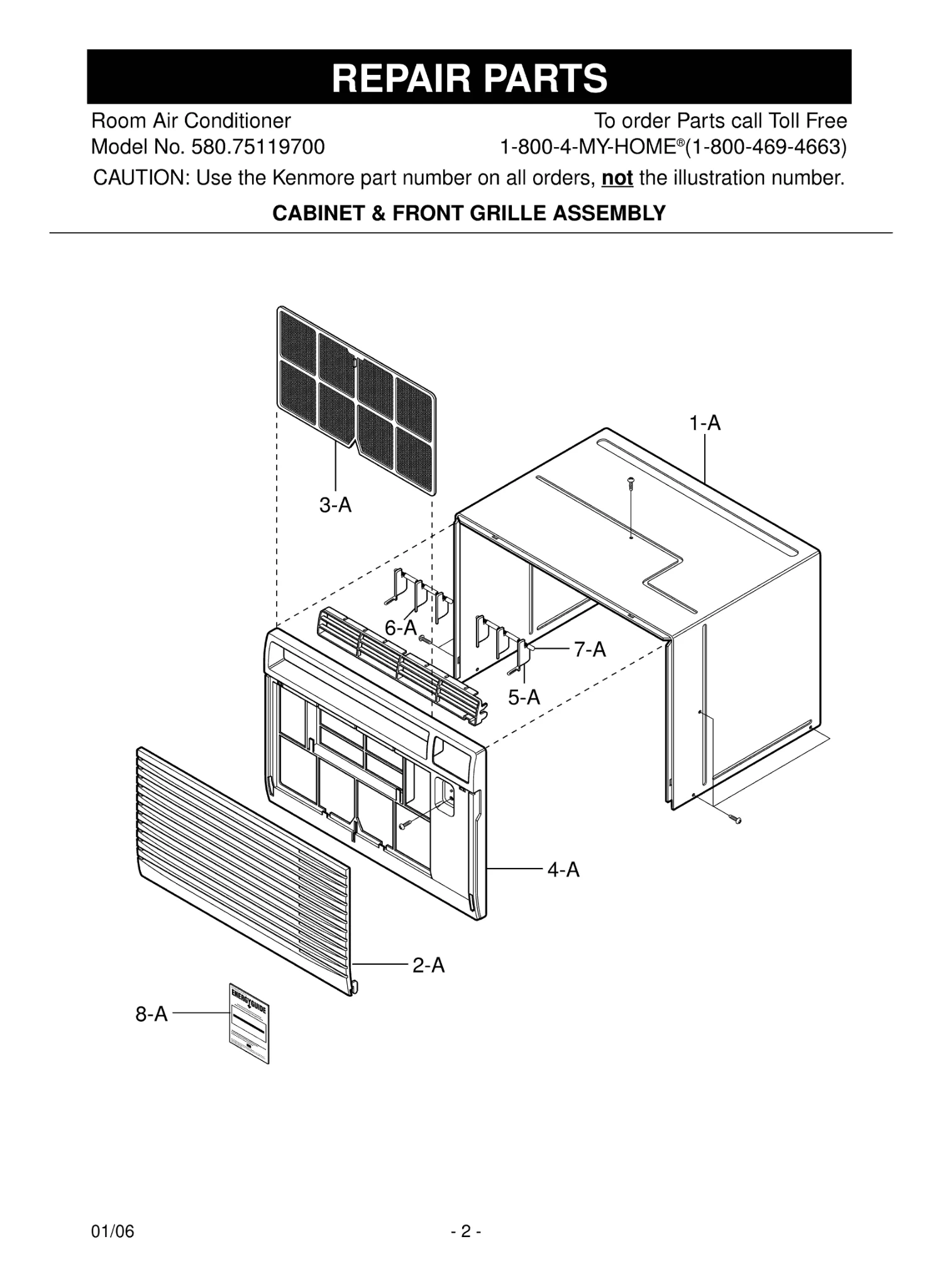

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG 580.75119700
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071J Contact Us For Availability
1-D
NUT,DRAWING LGE 1NZZUTL001A Contact Us For Availability
2-B
CLAMP,CORD LGE 4860AR4166A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550UTL006A Contact Us For Availability
3-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
4-C
SCROLL LGE 3072A20003B Contact Us For Availability
4-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
5-C
Barrier,Single LGE 4790A20024C Contact Us For Availability
5-D
Gasket LGE 4986UTL001H Contact Us For Availability
6-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
6-C
BASE ASSEMBLY,SINGLE LGE 3041A10038F Contact Us For Availability
6-D
Compressor Set,China LGE TBZ31097401 Contact Us For Availability
7-B
CAPACITOR LGE 6120AR2359E Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20041M Contact Us For Availability
8-B
LEAD WIRE ASSY LGE 6631AR2687L Contact Us For Availability
9-B
CONTROL BOX,SINGLE LGE 4994A20018B Contact Us For Availability
9-C
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
9-D
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
10-B
PANEL ASSEMBLY,CONTROL LGE 3721A20049G Contact Us For Availability
10-C
CONDENSER ASSEMBLY,BENT LGE 5403A20040K Contact Us For Availability
11-B
KNOB ASSY LGE 4941A30005B Contact Us For Availability
11-D
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21809B Contact Us For Availability
12-B
Harness,Multi LGE 3661AR6149L Contact Us For Availability
12-D
Tube Assembly,Suction LGE 5211A25028B Contact Us For Availability
13-C
COVER LGE 3550A20030B Contact Us For Availability
16-C
Grille,Rear LGE 3530A30007B Contact Us For Availability
× ![]()
