Model LG 580.75101800 – Common Parts & Diagrams

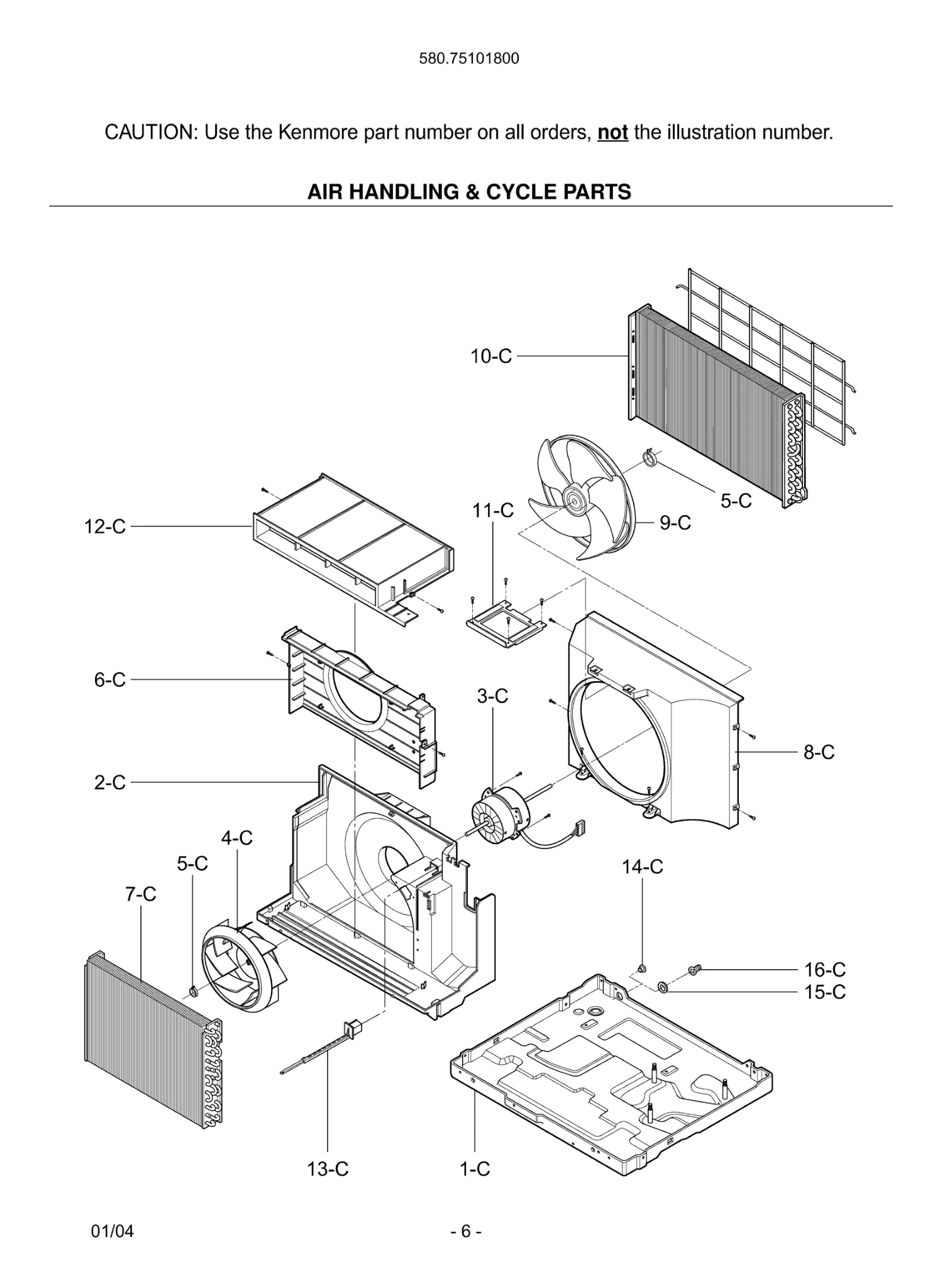

1-C
BASE ASSEMBLY,SINGLE
BASE ASSEMBLY,SINGLE LGE 3041A20020X Contact Us For Availability
View on Model

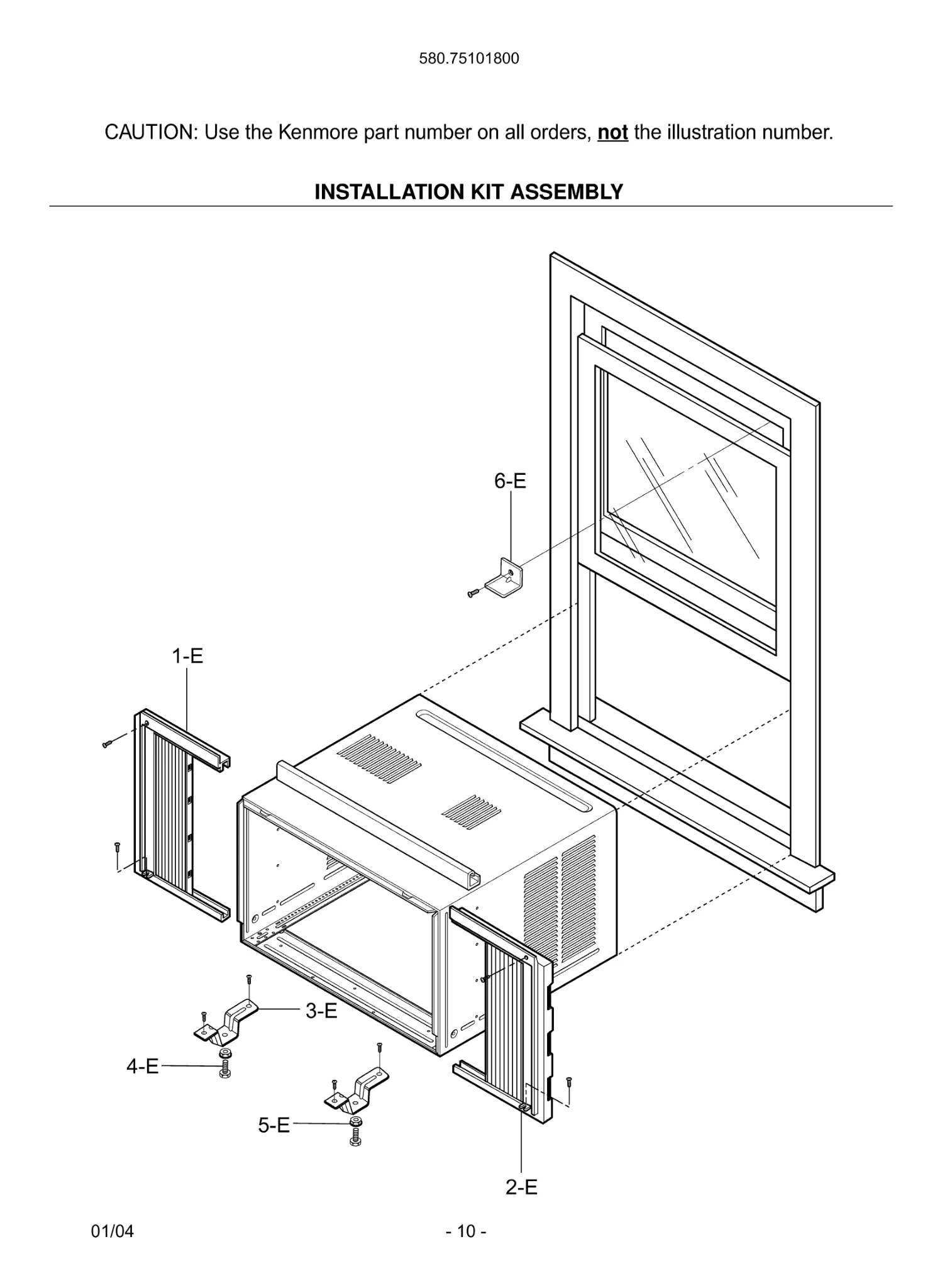

1-E
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U LGE 4959AR3402C Contact Us For Availability
View on Model

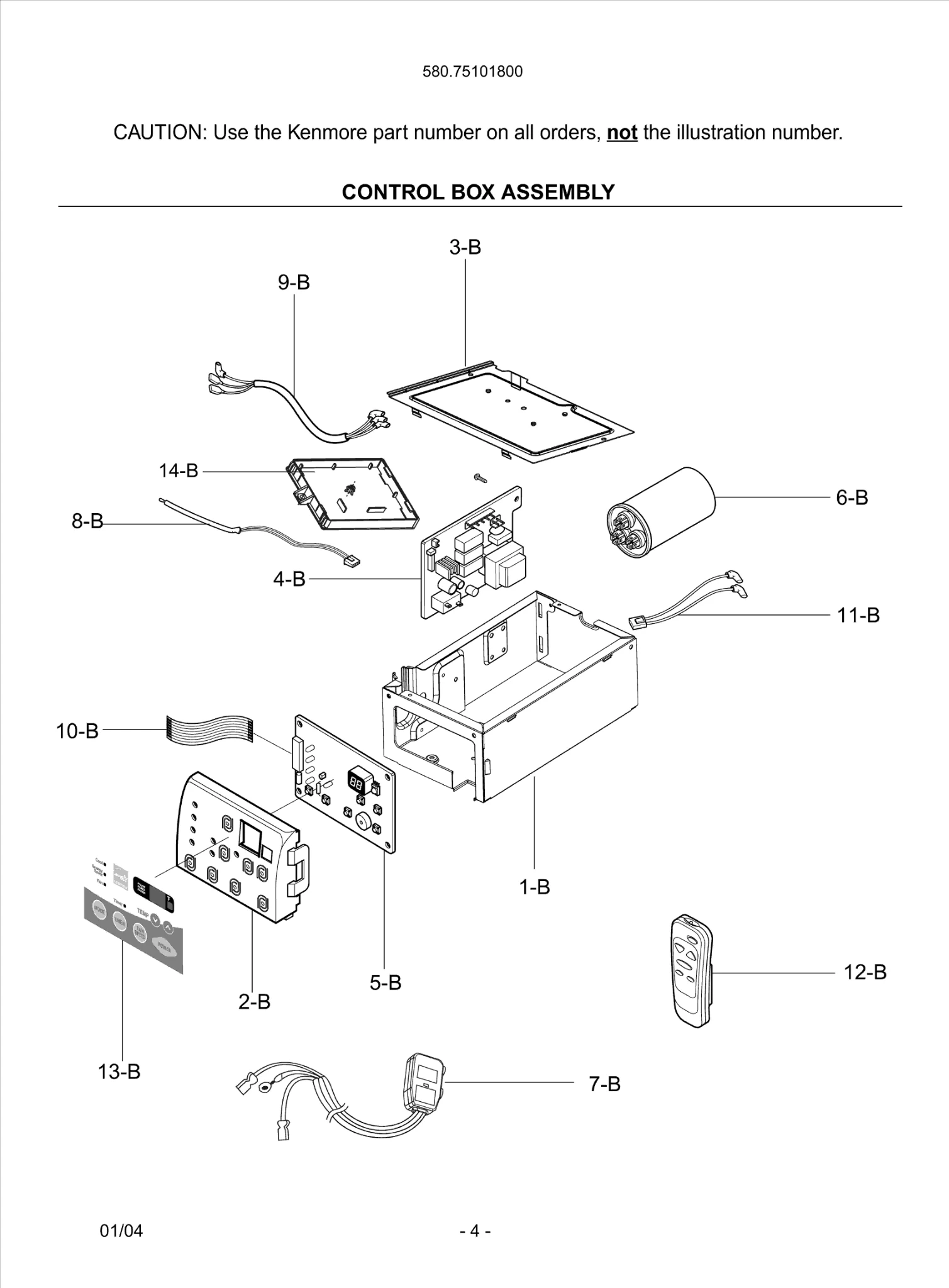

2-B
PANEL,CONTROL
PANEL,CONTROL LGE 3720A10111C Contact Us For Availability
View on Model
2-D
Compressor Set,China
Compressor Set,China LGE TBZ32036701 Contact Us For Availability
View on Model
2-E
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U
CURTAIN ASSY/REGISTERED TO LW1010ER.AWYAUSH/U LGE 4959AR3402D Contact Us For Availability
View on Model

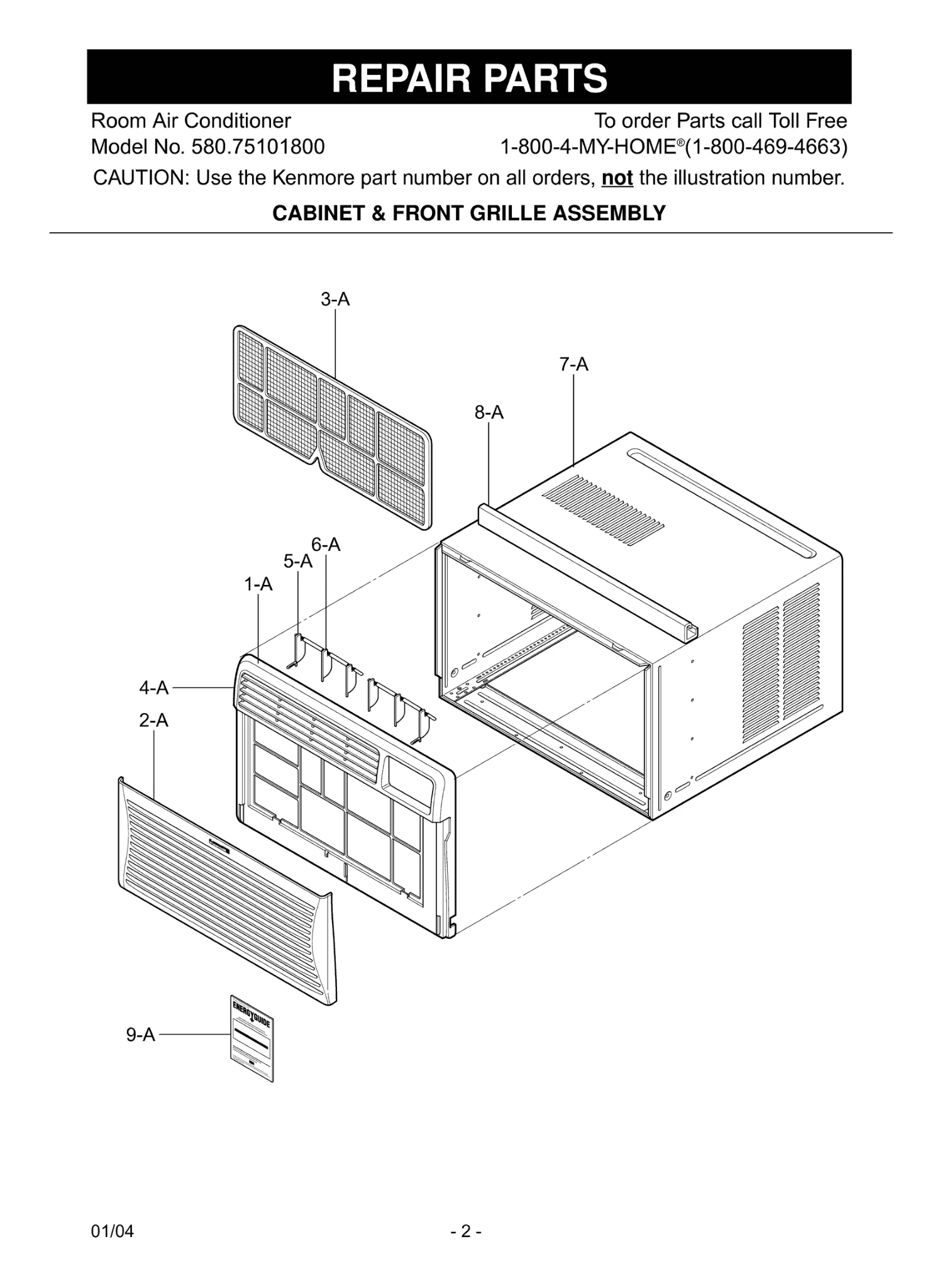

3-A
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20007A Contact Us For Availability
View on Model
3-C
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20069J Contact Us For Availability
View on Model
3-E
BRACKET SILL SUPPORT "WC" FOR
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
View on Model
4-B
PCB Assembly,Main
PCB Assembly,Main LGE EBR39283902 Contact Us For Availability
View on Model
4-E
HEXAGON HEAD BOLT M COARSE 1
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
View on Model
5-B
PWB(PCB) ASSEMBLY,MAIN(DC)
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20418D Contact Us For Availability
View on Model
5-D
Gasket
Gasket LGE MDS41929201 Contact Us For Availability
View on Model
5-E
HEXAGON NUTS 3 (2DRZ6074 06/2
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
View on Model
7-B
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20056E Contact Us For Availability
View on Model
7-C
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20108C Contact Us For Availability
View on Model
7-D
Cover
Cover LGE 3550UTL006D Contact Us For Availability
View on Model
8-A
GUIDE
GUIDE LGE 4974AR3262K Contact Us For Availability
View on Model
8-C
SHROUD
SHROUD LGE 4998A10016A Contact Us For Availability
View on Model
8-D
Washer,Customized
Washer,Customized LGE FAF30209901 Contact Us For Availability
View on Model
9-A
Label,Energy
Label,Energy LGE MEZ41960917 Contact Us For Availability
View on Model
9-B
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631AR3843W Contact Us For Availability
View on Model
10-C
CONDENSER ASSEMBLY,FIRST
CONDENSER ASSEMBLY,FIRST LGE 5403AR2921P Contact Us For Availability
View on Model
10-D
Tube Assembly,Discharge
Tube Assembly,Discharge LGE 5211A10074W Contact Us For Availability
View on Model
11-D
Tube Assembly,Suction(Outdoor)
Tube Assembly,Suction(Outdoor) LGE 5211A20441M Contact Us For Availability
View on Model
12-D
Tube,Connector
Tube,Connector LGE MJU42736401 Contact Us For Availability
View on Model
13-B
ESCUTCHEON
ESCUTCHEON LGE 3831A10046B Contact Us For Availability
View on Model
13-C
DAMPER,VENTILATION
DAMPER,VENTILATION LGE 4900A20002A Contact Us For Availability
View on Model
13-D
Tube,Connector
Tube,Connector LGE MJU42736402 Contact Us For Availability
View on Model
14-C
CAP, HOLE GA-0711HCR/GA-071
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
View on Model
14-D
Tube Assembly,Capillary
Tube Assembly,Capillary LGE 5211A32004C Contact Us For Availability
View on Model
