Model LG 580.75051800 – Common Parts & Diagrams

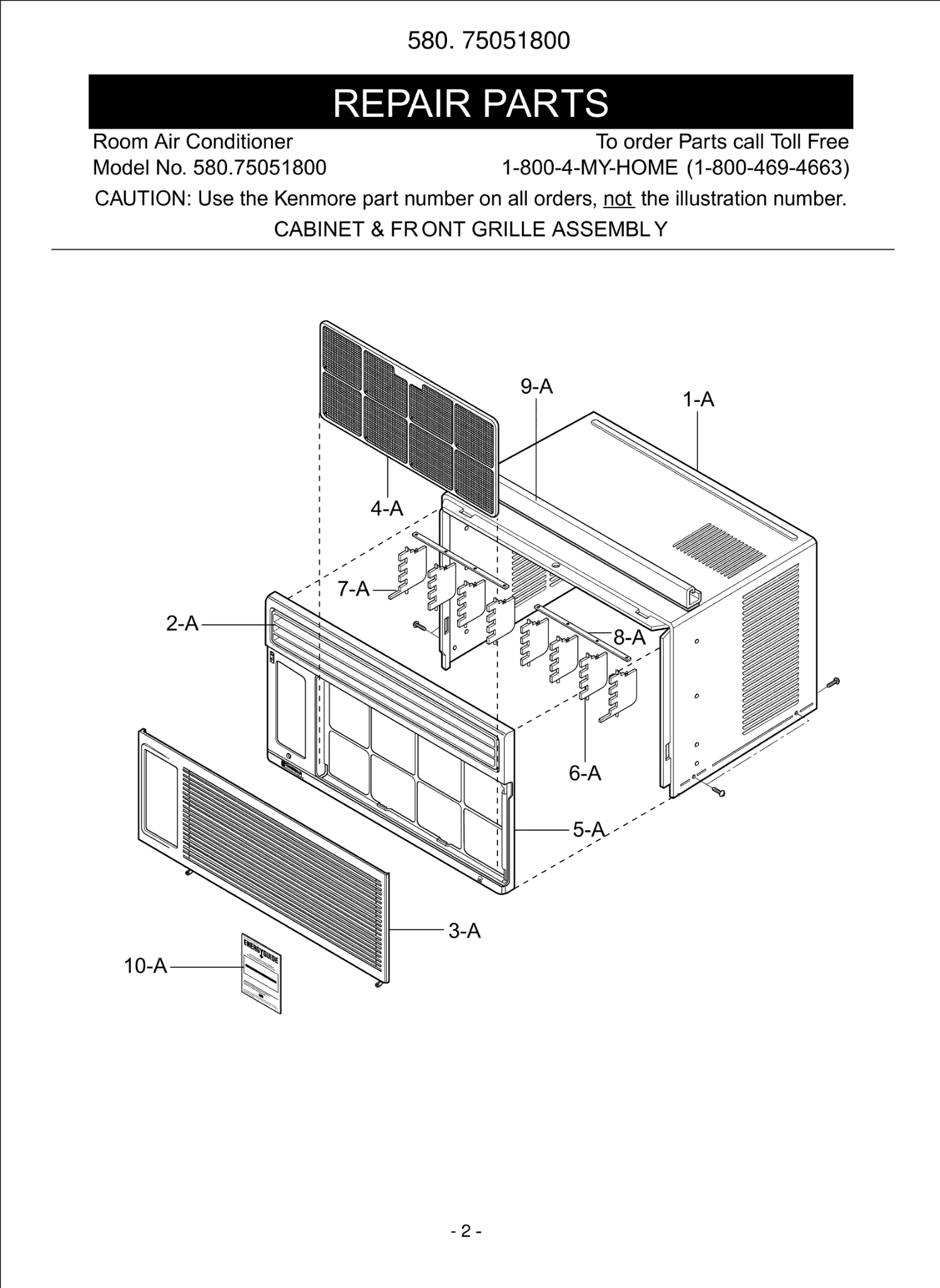

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG 580.75051800
1-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20016L Contact Us For Availability
1-D
NUT,DRAWING LGE 1NZZUTL001A Contact Us For Availability
2-D
Washer,Customized LGE 1WZZUTL001A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550UTL006A Contact Us For Availability
3-E
BRACKET,BASE LGE 4810A30113A Contact Us For Availability
4-A
AIR FILTER ASM HIPS 60HR LW-A0 LGE 5231AR2148A Contact Us For Availability
4-B
Harness,Multi LGE 6631A30027E Contact Us For Availability
4-D
Overload Protect LGE 6750U-L010C Contact Us For Availability
4-E
BRACKET LGE 4810A30152A Contact Us For Availability
5-C
AIR GUIDE LGE 5238A20013A Contact Us For Availability
5-E
TRUSS HEAD TAPPING SCREW + 1 LGE 1TTG0402618 Contact Us For Availability
6-B
Case,Control LGE MBN34751301 Contact Us For Availability
6-C
BASE ASSEMBLY,WELD[SINGLE] LGE 3041A20036N Contact Us For Availability
6-D
Compressor Set,China LGE TBZ32611801 Contact Us For Availability
7-B
PCB Assembly,Main LGE EBR39266510 Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A10016N Contact Us For Availability
7-D
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
8-A
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
8-B
Capacitor,Film,Box LGE 0CZZA20007Y Contact Us For Availability
8-C
SHROUD LGE 4998AR1608A Contact Us For Availability
9-A
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
9-B
Cover LGE MCK47374101 Contact Us For Availability
9-C
FAN ASSEMBLY,AXIAL LGE 5901A20011B Contact Us For Availability
10-A
Label,Energy LGE MEZ51175901 Contact Us For Availability
10-B
PANEL,CONTROL LGE 3720A20017A Contact Us For Availability
11-B
PCB Assembly,Display LGE 6871A20432C Contact Us For Availability
12-B
REMOTE CONTROLLER ASSY LGE 6711A20035E Contact Us For Availability
12-D
Tube Assembly,Suction LGE 5211A10062R Contact Us For Availability
× ![]()
