Model LG 580.72126200 – Common Parts & Diagrams
Diagram 0

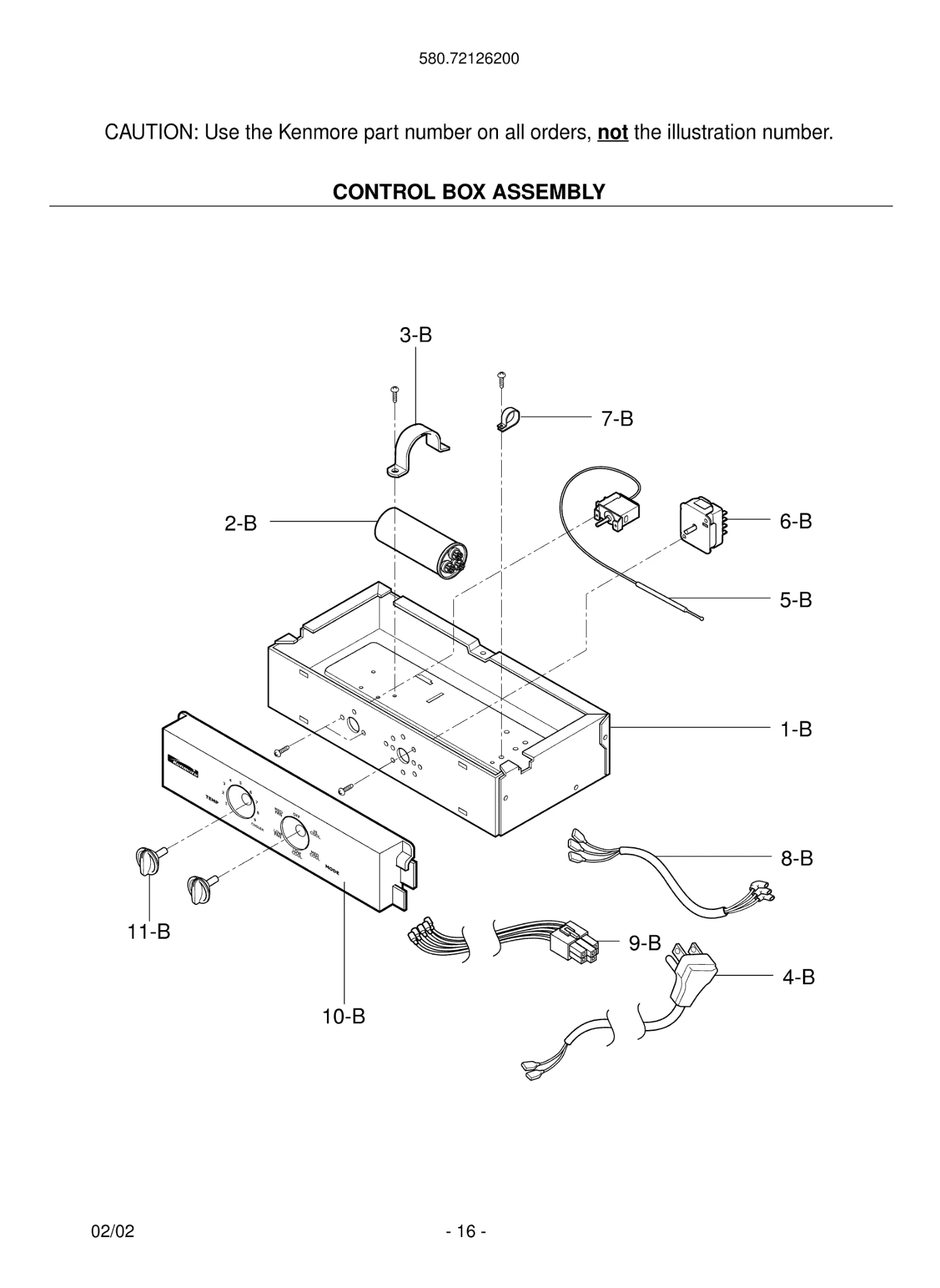

Diagram 1

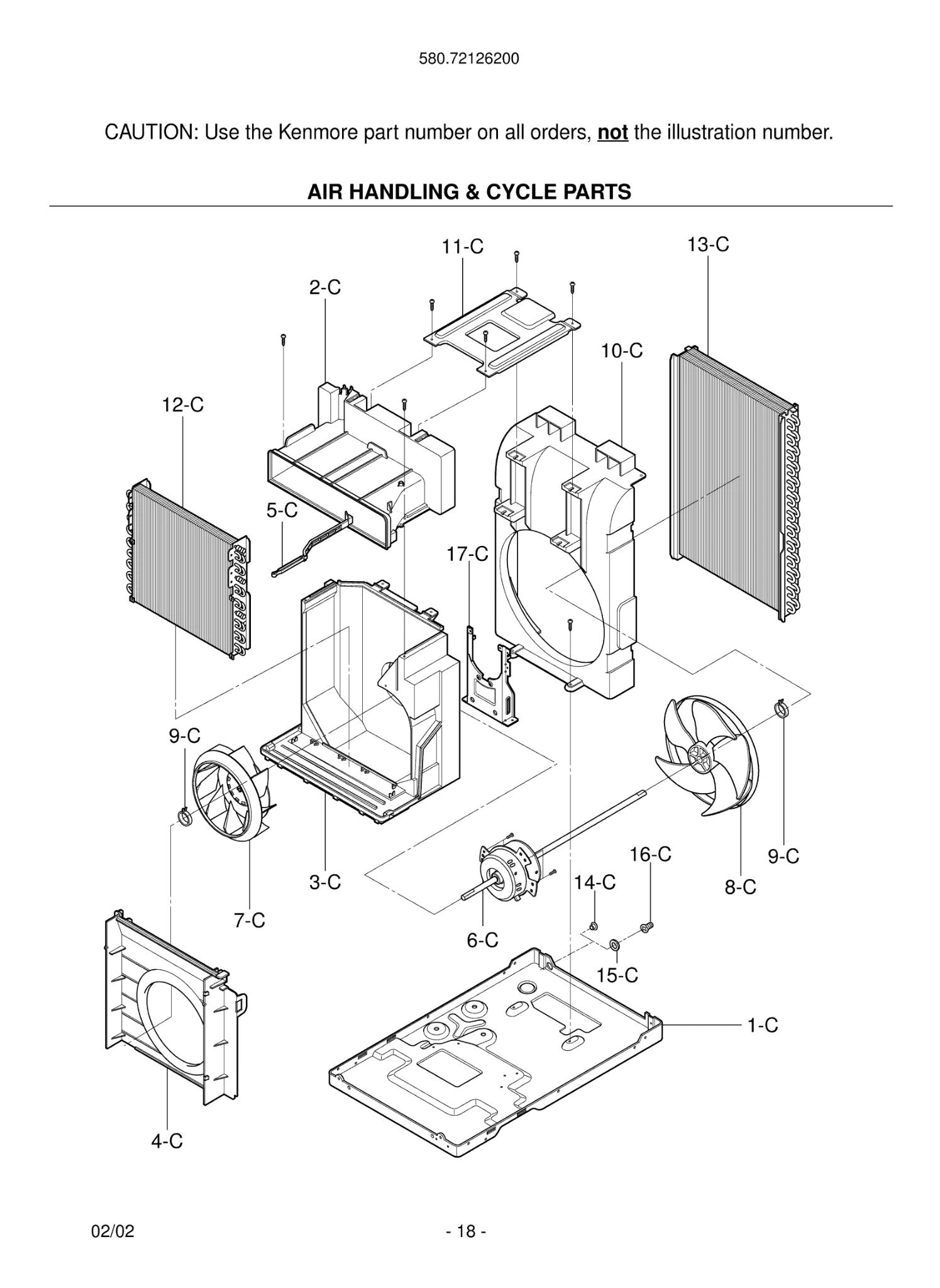

Diagram 2

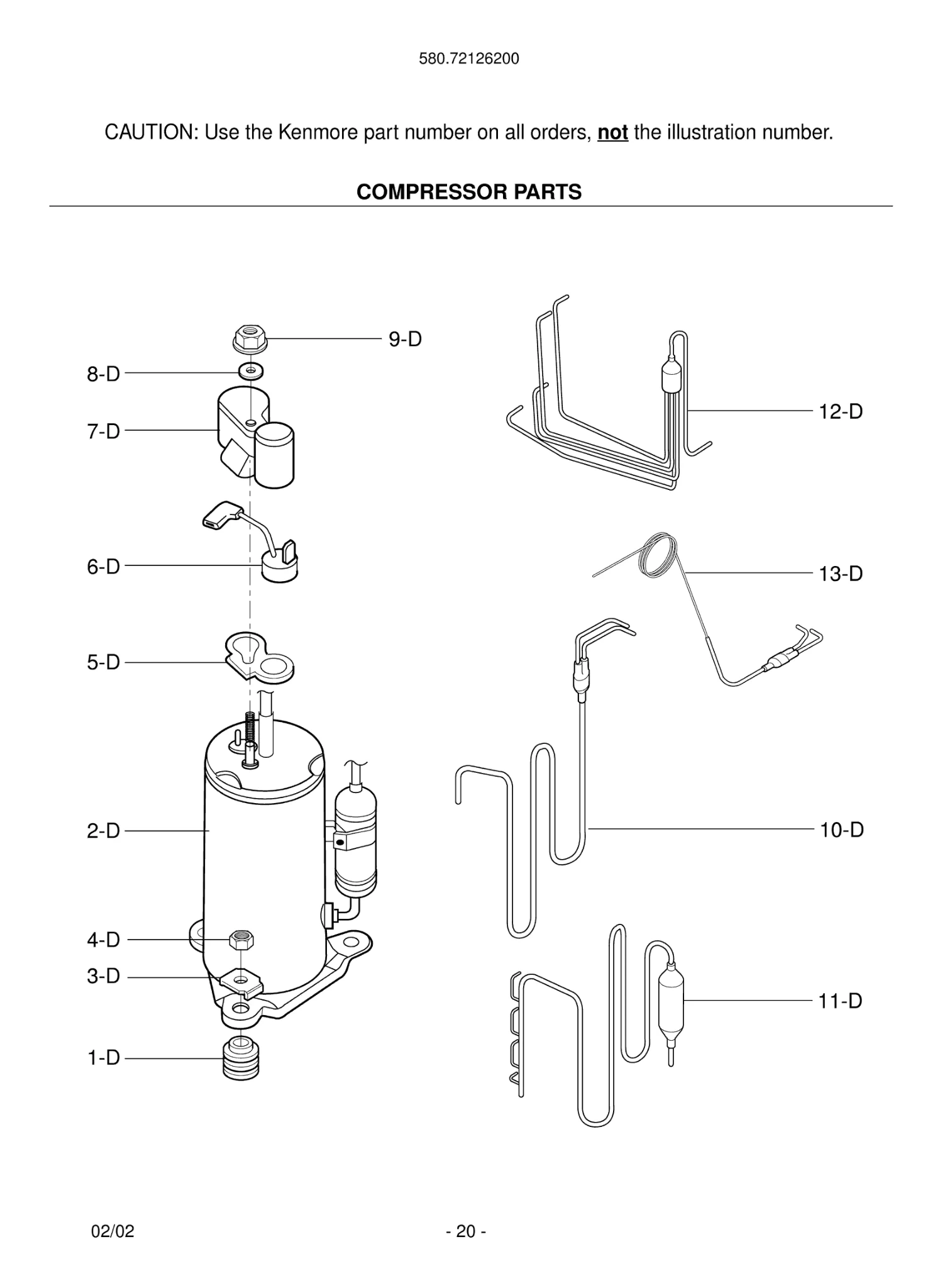

Diagram 3

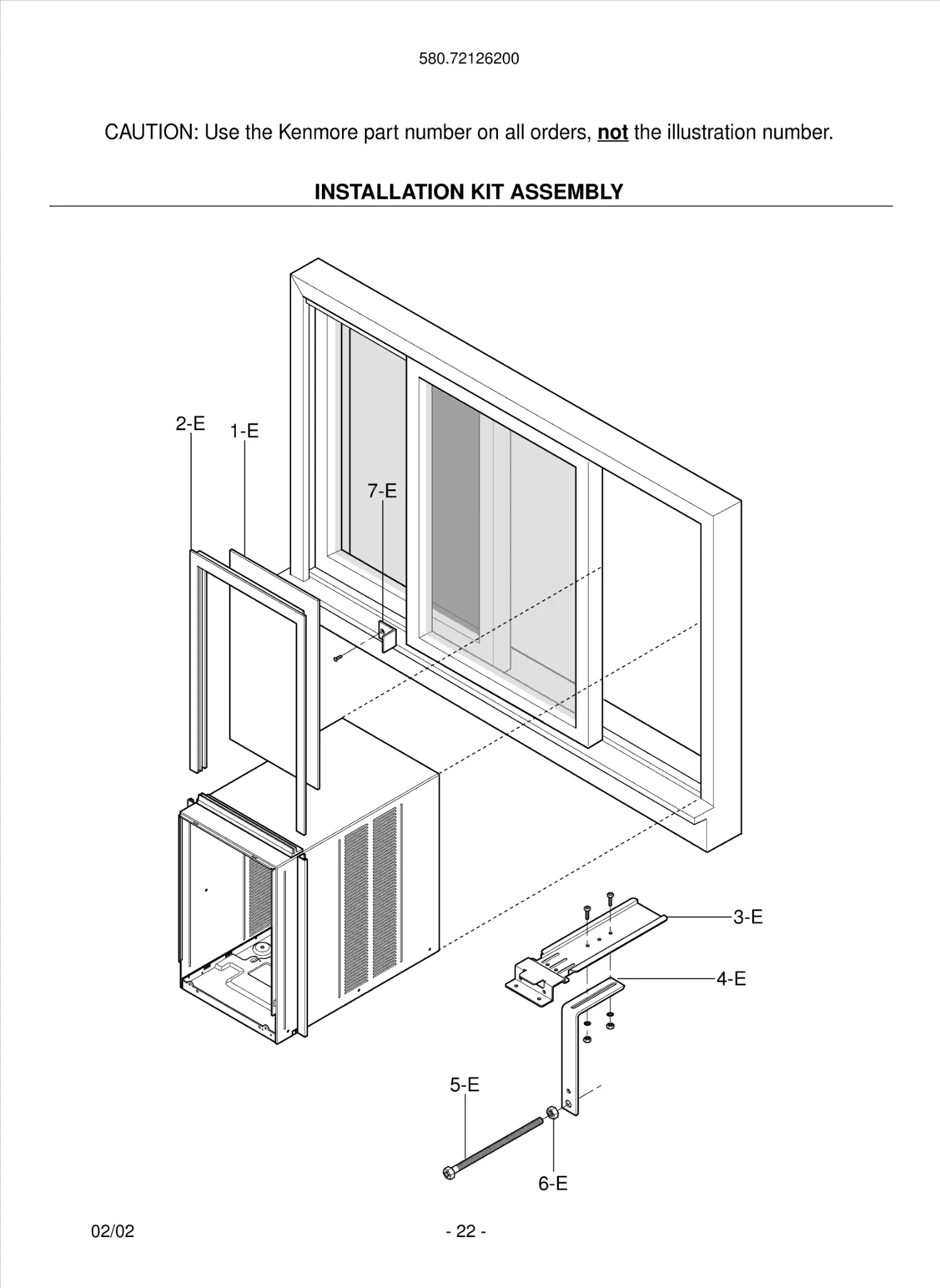

Diagram 4
Common parts from model LG 580.72126200
1-B
CONTROL BOX,SINGLE LGE 4994A20048A Contact Us For Availability
1-C
BASE ASSEMBLY,SINGLE LGE 3041A20033N Contact Us For Availability
1-E
WINDOW,DISPLAY LGE 3790A20040A Contact Us For Availability
2-B
CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability
2-C
AIR GUIDE ASSEMBLY LGE 5239A20007A Contact Us For Availability
2-D
COMPRESSOR SET LGE 2520UKGC2CA Contact Us For Availability
2-E
FRAME LGE 3210A20043B Contact Us For Availability
3-B
CLAMP CAPACITOR MJ/GA-1014LCM LGE 4H00442F Contact Us For Availability
3-C
AIR GUIDE ASSEMBLY LGE 5239A20008A Contact Us For Availability
3-E
BRACKET LGE 4810A30164B Contact Us For Availability
4-B
POWER CORD ASSEMBLY LGE 6411A20011P Contact Us For Availability
4-C
ORIFICE LGE 4948A20012A Contact Us For Availability
4-E
BRACKET LGE 4810A30213B Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A20017A Contact Us For Availability
5-B
THERMOSTAT ASSY LGE 2H01109M Contact Us For Availability
5-C
DAMPER,VENTILATION LGE 4900A20006A Contact Us For Availability
5-E
BOLT,DRAWING LGE 1BZZA30004D Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20017B Contact Us For Availability
6-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20069C Contact Us For Availability
6-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
7-B
CLIP CORD, GA-1830FC LGE 4H01762A Contact Us For Availability
7-C
FAN,TURBO LGE 5900A20019A Contact Us For Availability
7-D
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
8-A
CABINET ASSEMBLY,SINGLE LGE 3091A20014A Contact Us For Availability
8-C
FAN,AXIAL LGE 5900A20026A Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-A
GUIDE LGE 4974A20028A Contact Us For Availability
10-A
GUIDE LGE 4974A30052B Contact Us For Availability
10-B
PANEL,CONTROL LGE 3720A20167A Contact Us For Availability
10-C
SHROUD ASSEMBLY LGE 4999A20002A Contact Us For Availability
10-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20558C Contact Us For Availability
11-A
LABEL,ENERGY LGE 3850A20423T Contact Us For Availability
11-B
KNOB ASSEMBLY LGE 4941A30016A Contact Us For Availability
11-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20579A Contact Us For Availability
12-C
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20115A Contact Us For Availability
12-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20575A Contact Us For Availability
13-C
CONDENSER ASSEMBLY,FIRST LGE 5403A20082A Contact Us For Availability
13-D
TUBE ASSEMBLY,CAPILLARY LGE 5211A20557D Contact Us For Availability
14-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
× ![]()
