Model LG 580.72082200 – Common Parts & Diagrams
Diagram 0

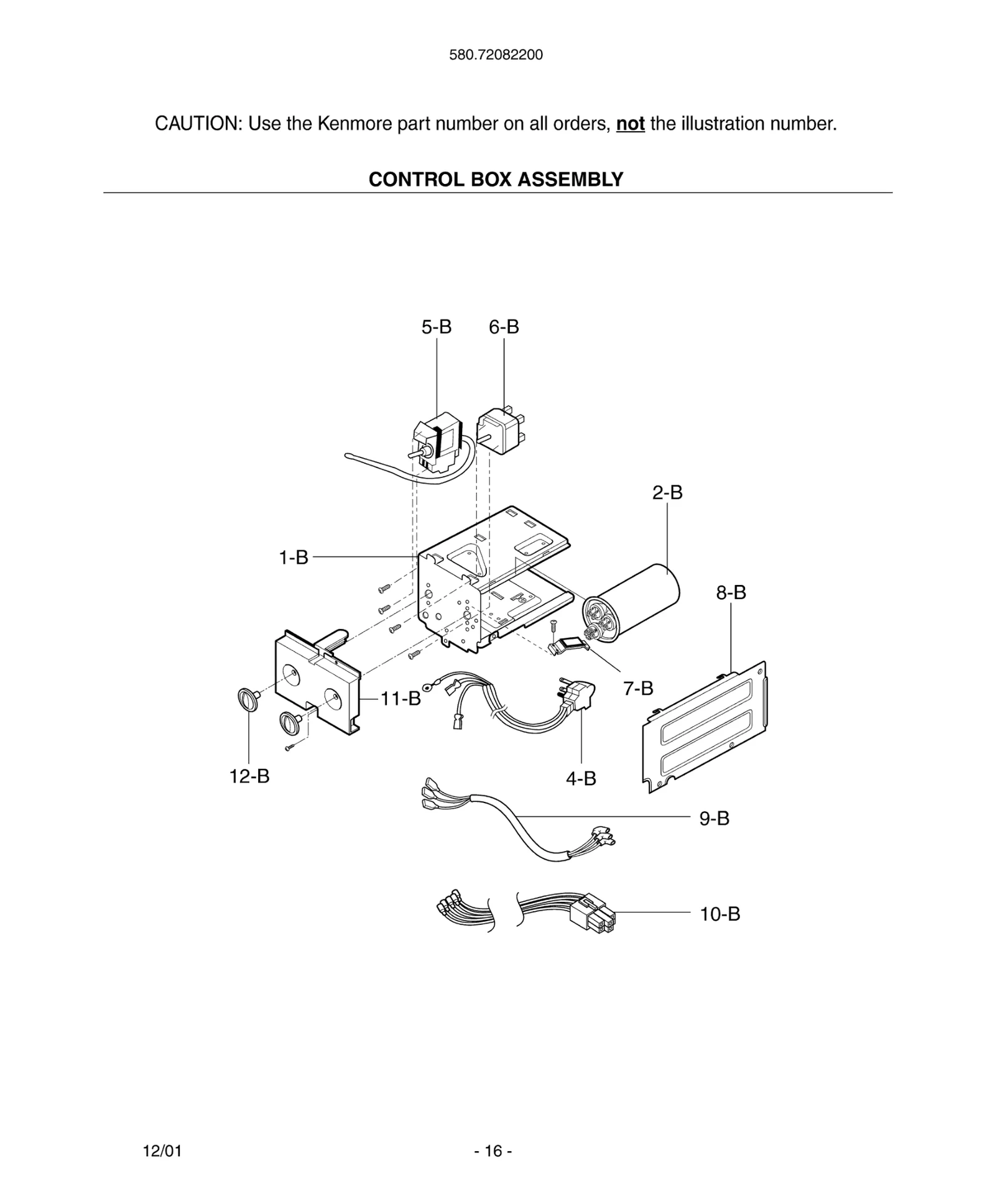

Diagram 1

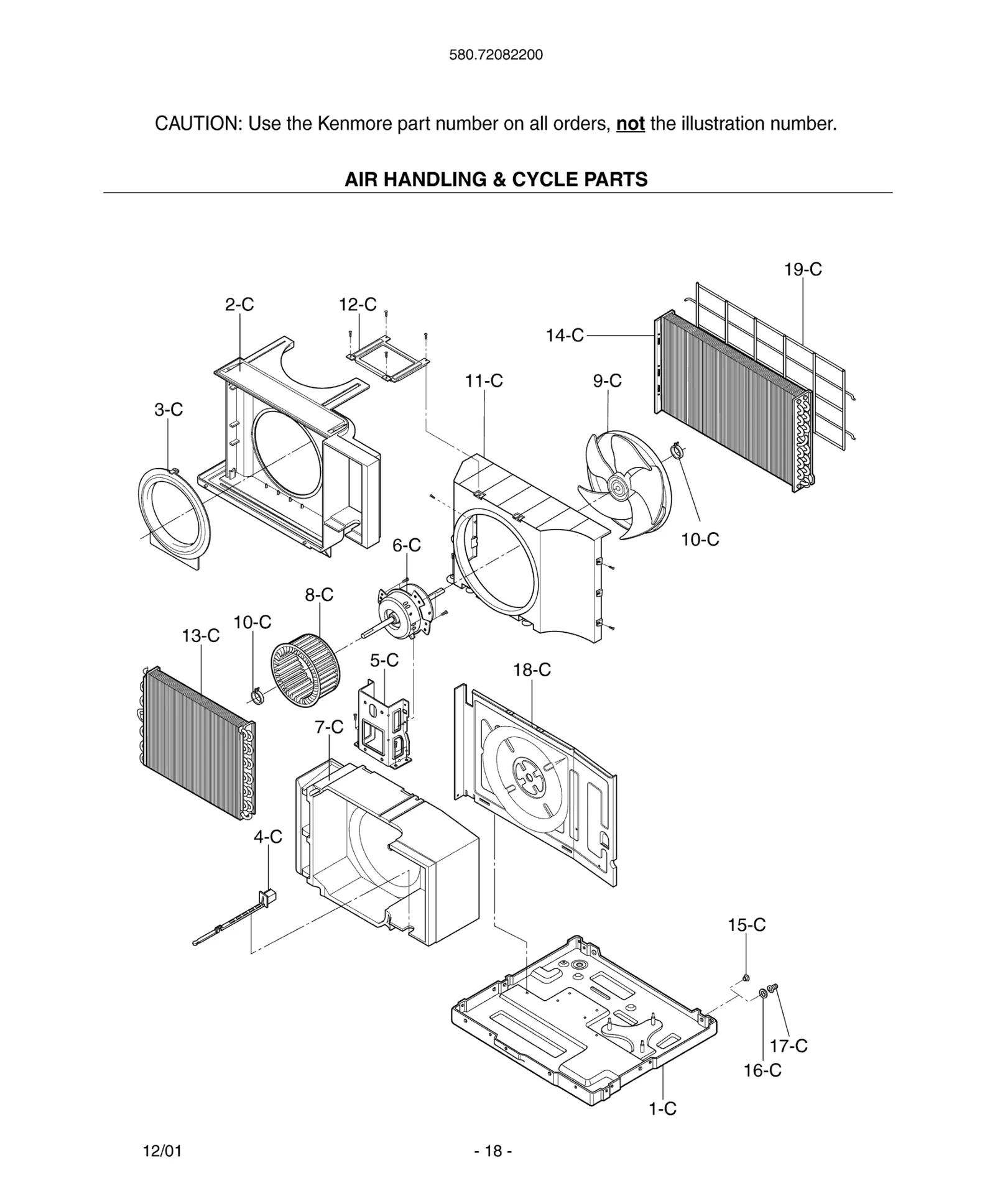

Diagram 2

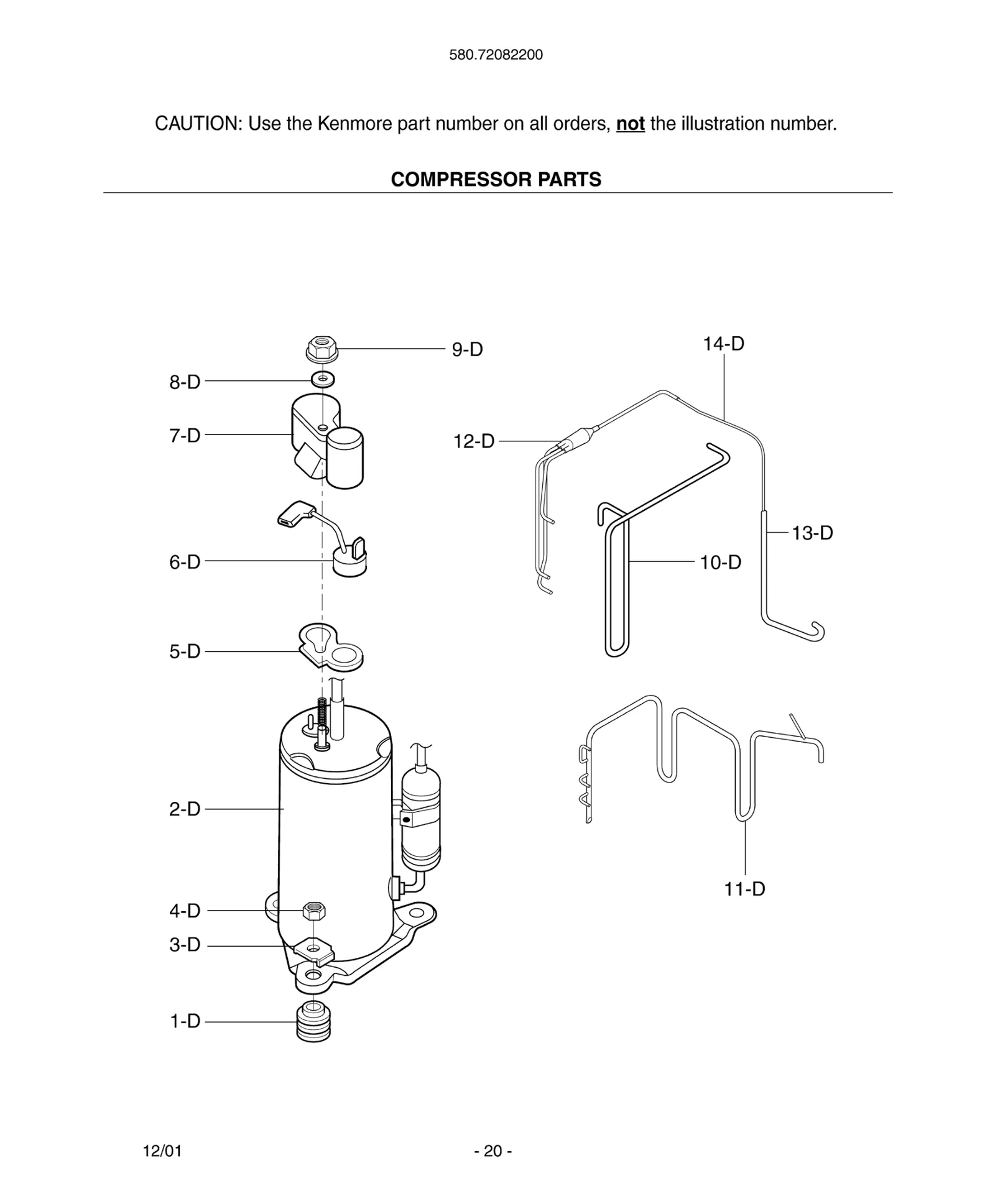

Diagram 3

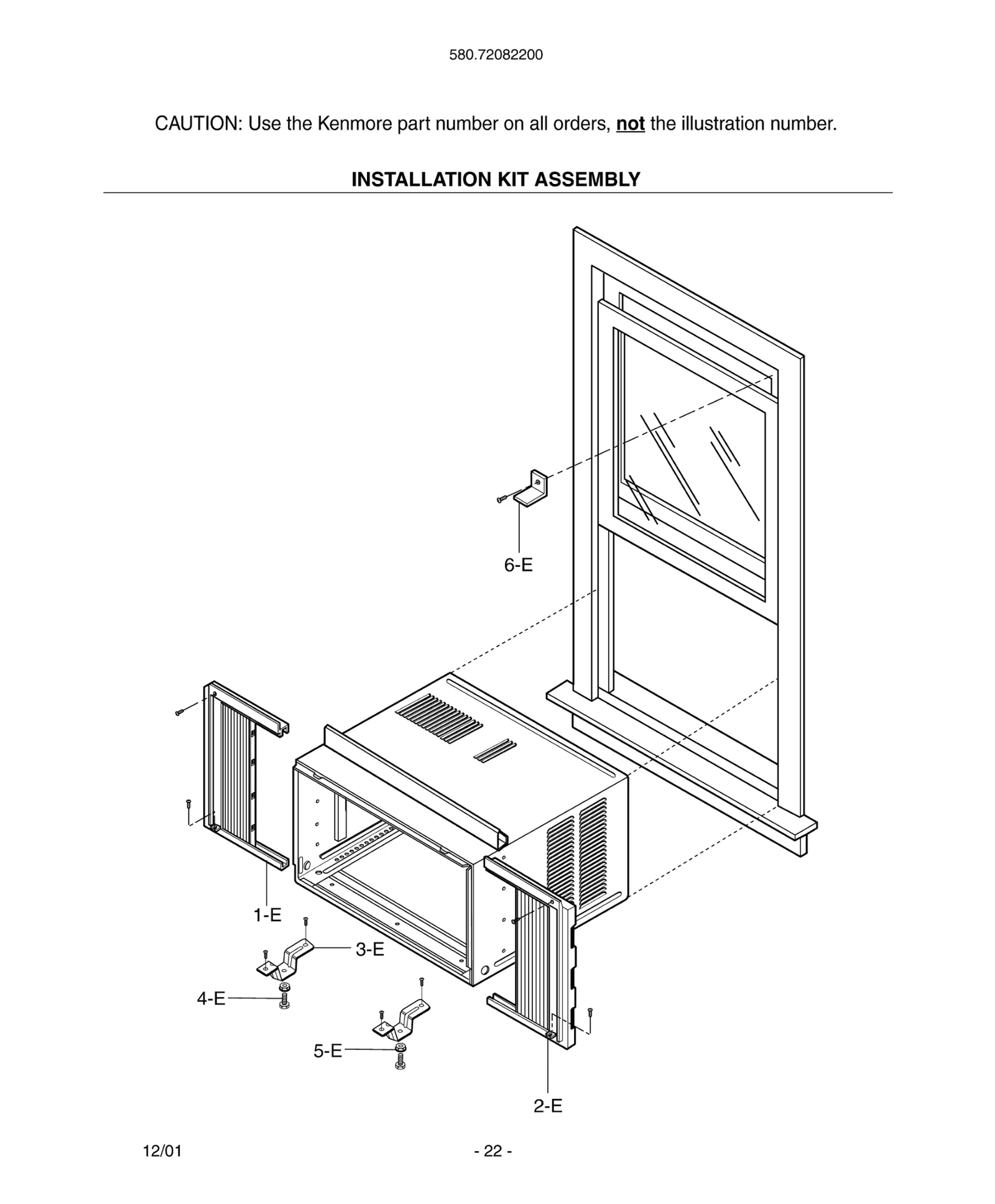

Diagram 4
Common parts from model LG 580.72082200
1-B
CONTROL BOX,SINGLE LGE 4994A10006A Contact Us For Availability
1-C
BASE ASSY,SINGLE LGE 3041A30005D Contact Us For Availability
1-E
CURTAIN ASSY LW-B0811CL B0810C LGE 4959AR3402A Contact Us For Availability
2-B
Capacitor,Unclassified LGE 0CZZA20003A Contact Us For Availability
2-C
AIR GUIDE LGE 5238A10001A Contact Us For Availability
2-D
COMPRESSOR ASSY,FINAL LGE 5417A20012B Contact Us For Availability
2-E
CURTAIN LW-B0811CL B0810C LGE 4959AR3402B Contact Us For Availability
3-C
ORIFICE LGE 4948A30003B Contact Us For Availability
3-E
BRACKET SILL SUPPORT "WC" FOR LGE 4810AR3240A Contact Us For Availability
4-B
POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability
4-E
HEXAGON HEAD BOLT M COARSE 1 LGE 1BHD1004006 Contact Us For Availability
5-A
LOUVER,VERTICAL LGE 4758A30008A Contact Us For Availability
5-C
MOUNT,MOTOR LGE 4960A20002A Contact Us For Availability
5-D
GASKET LGE 4986A30001A Contact Us For Availability
5-E
HEXAGON NUTS 3 (2DRZ6074 06/2 LGE 1NHC1000006 Contact Us For Availability
6-A
BASE ASSY,SINGLE LGE 3091A30005J Contact Us For Availability
6-C
MOTOR ASSY,SINGLE LGE 4681A20027B Contact Us For Availability
7-A
GUIDE LGE 5210AR3196F Contact Us For Availability
7-C
SCROLL LGE 3072A10001A Contact Us For Availability
7-D
COVER LGE 3550A30048A Contact Us For Availability
8-A
LABEL,ENERGY LGE 3850A20423E Contact Us For Availability
8-C
FAN ASSY,BLOWER LGE 5901A10005A Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-C
FAN ASSEMBLY - AXIAL LGE 5900AR1167B Contact Us For Availability
10-D
TUBE,DISCHARGE LGE 5210A20071A Contact Us For Availability
11-B
PANEL ASSY,CONTROL LGE 3721A10018H Contact Us For Availability
11-C
SHROUD LGE 4998A10001A Contact Us For Availability
11-D
TUBE ASSY,SUCTION SINGLE LGE 5211A20130A Contact Us For Availability
12-B
KNOB ASSY LGE 4941A30012C Contact Us For Availability
12-D
TUBE ASSY,EVAPORATOR IN LGE 5211A20131A Contact Us For Availability
13-C
EVAPORATOR ASSY LGE 5421A20036C Contact Us For Availability
13-C
Evaporator Assembly,First LGE 5421A90035B Contact Us For Availability
14-C
Condenser Assembly,First LGE 5403A90043A Contact Us For Availability
14-C
CONDENSER ASSY LGE 5403A20024C Contact Us For Availability
15-C
CAP, HOLE GA-0711HCR/GA-071 LGE 4H02023A Contact Us For Availability
19-C
GRILLE,REAR LGE 3530A20009B Contact Us For Availability
× ![]()
