Model LG 580.72056200 WINDOW AC – Common Parts & Diagrams
Diagram 0

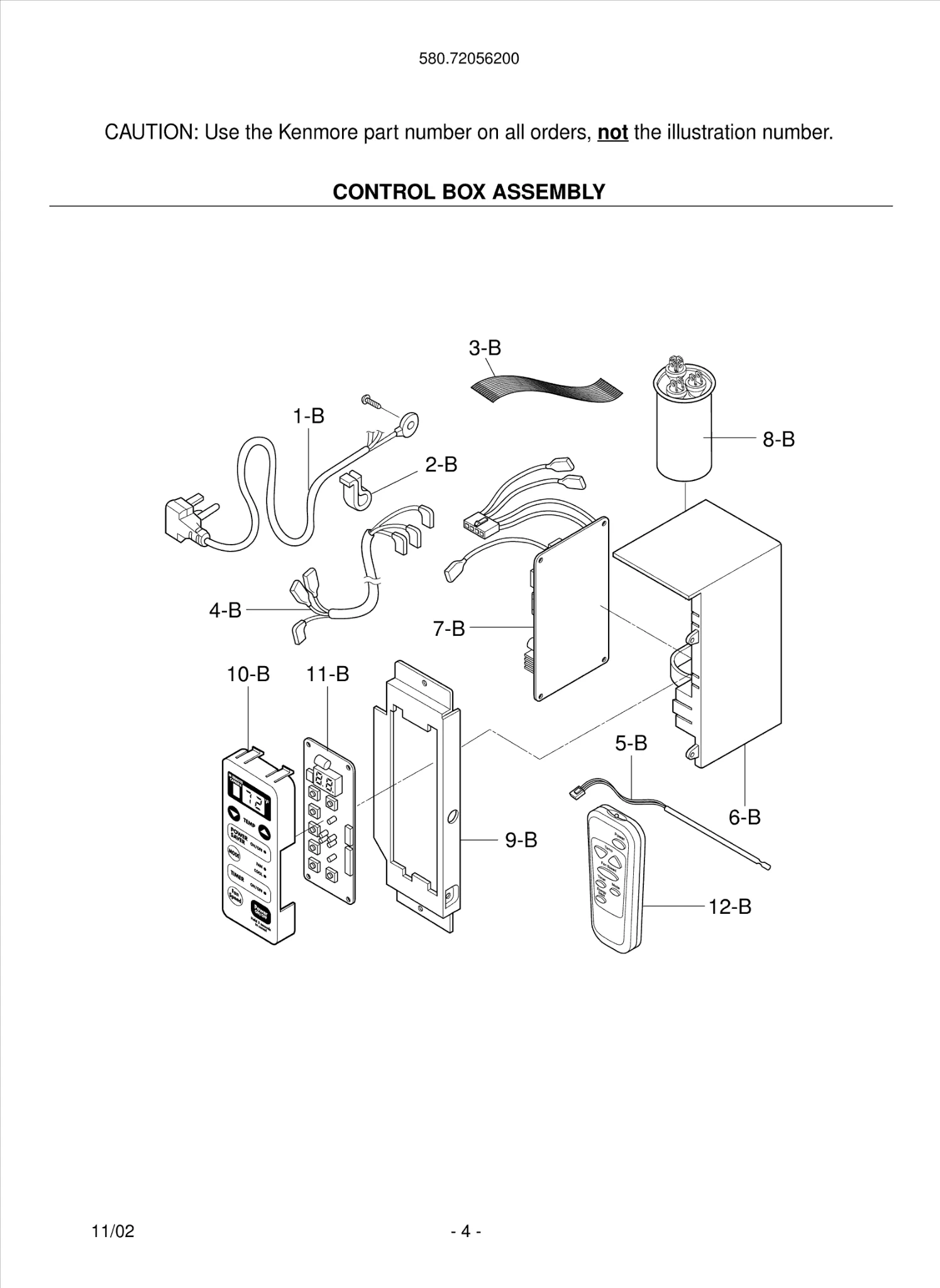

Diagram 1

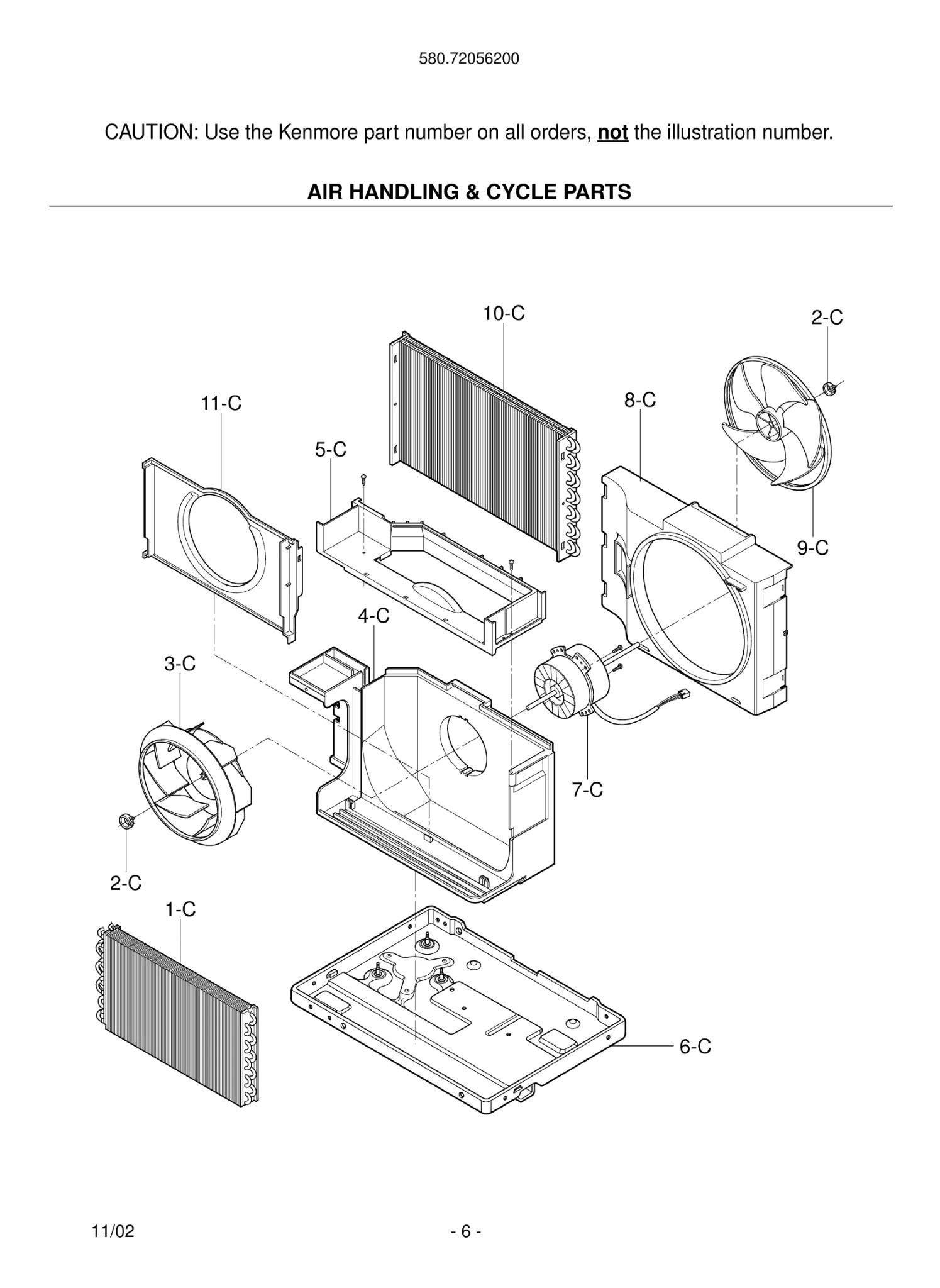

Diagram 2

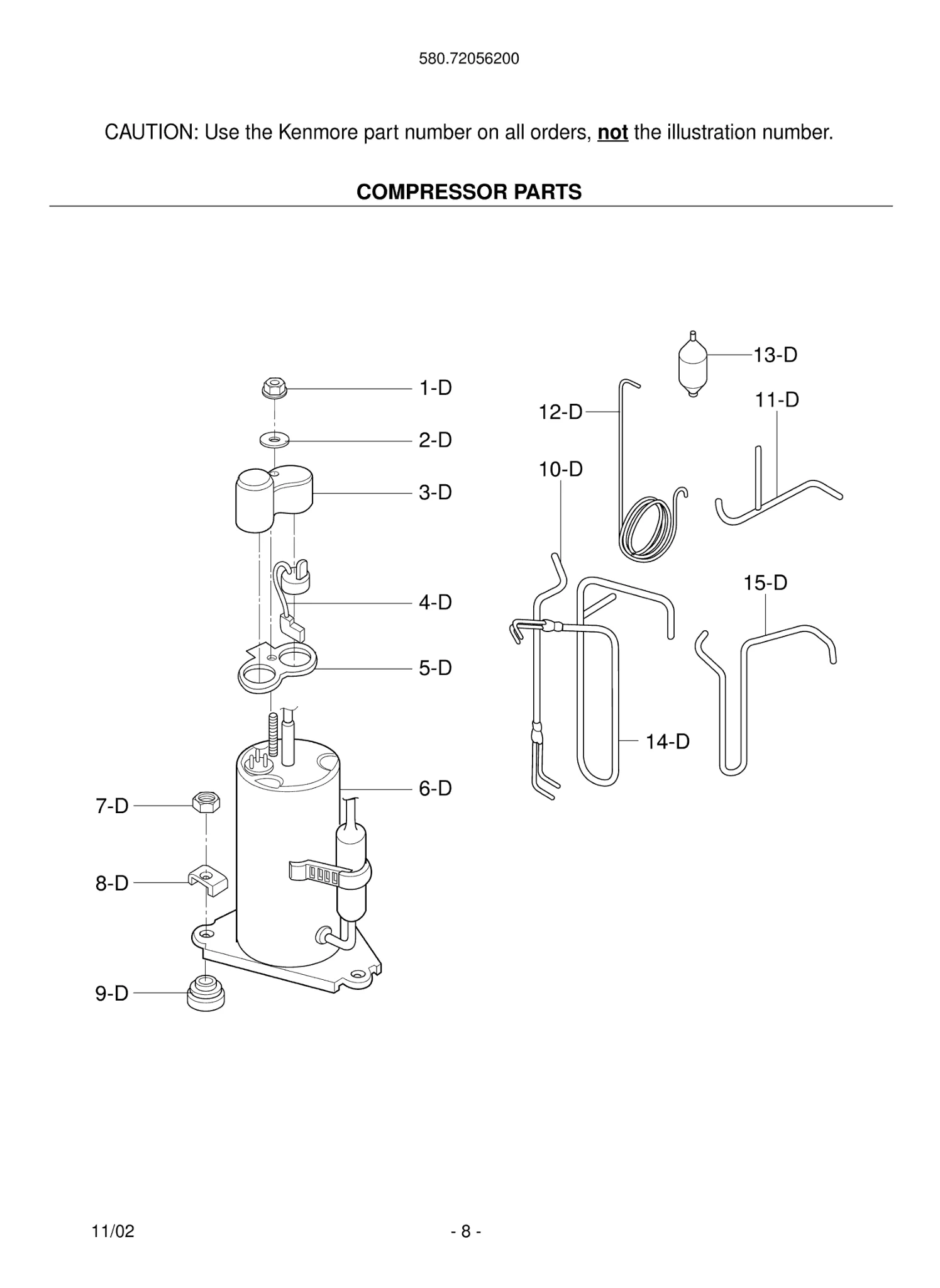

Diagram 3

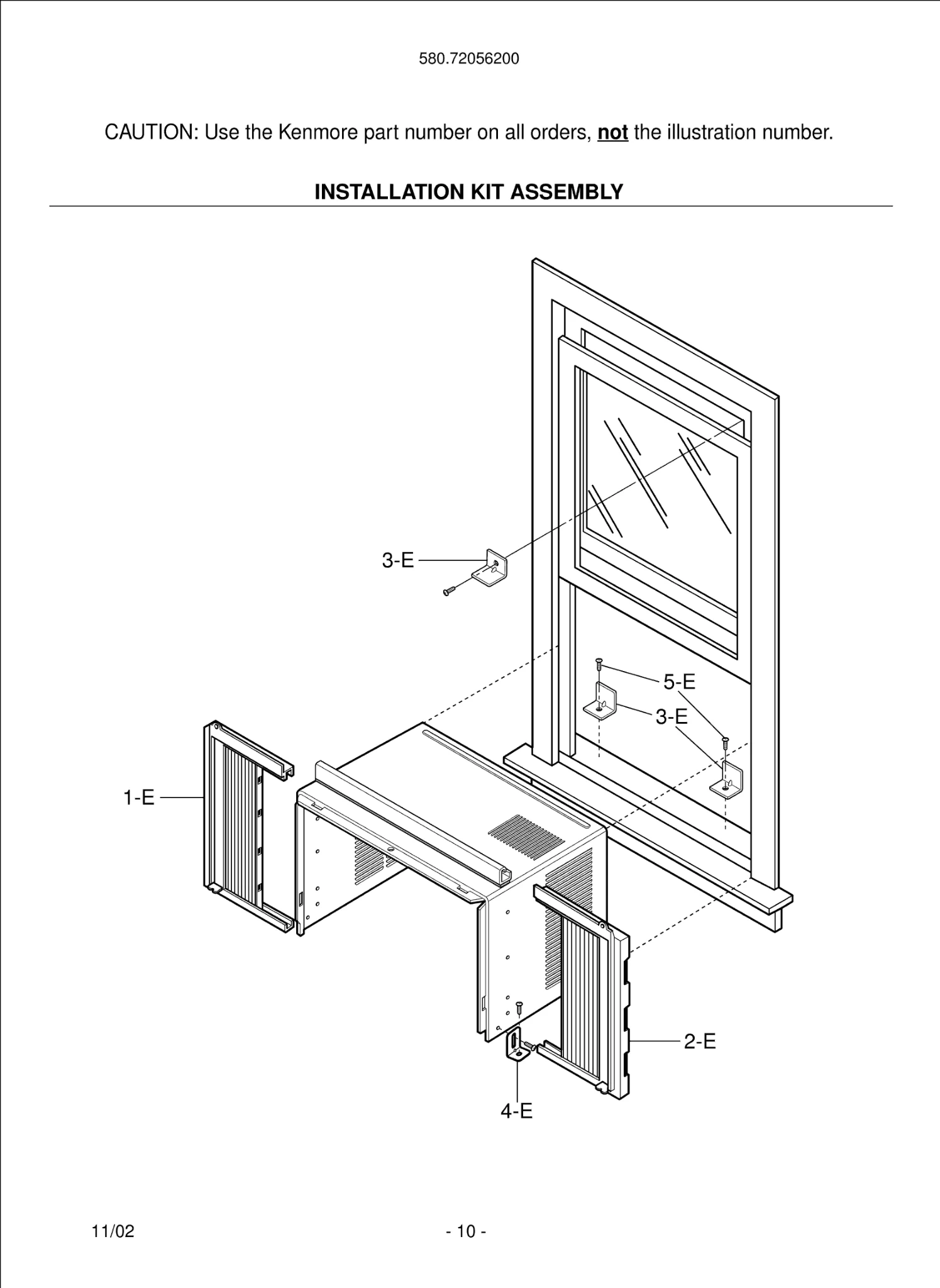

Diagram 4
Common parts from model LG 580.72056200 WINDOW AC
1-B
POWER CODE ASSY WA-CHASSIS, S LGE 2H00677P Contact Us For Availability
1-C
EVAPORATOR ASSY,FIRST LGE 5421A20016G Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-C
FAN,TURBO LGE 5900A10005A Contact Us For Availability
3-D
COVER LGE 3550A30048A Contact Us For Availability
3-E
BRACKET,BASE LGE 4810A30113A Contact Us For Availability
4-B
CONDUCTOR ASSY LGE 6631AR3843R Contact Us For Availability
4-C
AIR GUIDE LGE 5238A20003A Contact Us For Availability
4-D
O.L.P LGE 6750A30001U Contact Us For Availability
4-E
BRACKET LGE 4810A30152A Contact Us For Availability
5-A
GRILLE,FRONT LGE 3530A10009A Contact Us For Availability
5-B
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
5-C
AIR GUIDE ASSEMBLY LGE 5239A10005B Contact Us For Availability
5-D
GASKET LGE 4986A30001A Contact Us For Availability
6-A
VANE,VERTICAL LGE 5990A30005D Contact Us For Availability
6-B
CONTROL BOX,SINGLE LGE 4994A20021A Contact Us For Availability
6-C
BASE ASSY,SINGLE LGE 3041A10011E Contact Us For Availability
6-D
COMPRESSOR LGE 5416A20014D Contact Us For Availability
7-B
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188M Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A10002P Contact Us For Availability
8-A
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
8-C
SHROUD LGE 4998A10008A Contact Us For Availability
9-A
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
9-B
CONTROL BOX,SINGLE LGE 4994A20020A Contact Us For Availability
9-C
FAN,PROPELLER LGE 5900A20017A Contact Us For Availability
10-A
LABEL,ENERGY LGE 3850A20423B Contact Us For Availability
10-B
PANEL,CONTROL LGE 3720A20017A Contact Us For Availability
10-C
CONDENSER ASSY,FIRST LGE 5403A20009E Contact Us For Availability
11-B
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20193C Contact Us For Availability
11-C
ORIFICE LGE 4948A10007A Contact Us For Availability
11-D
TUBE ASSEMBLY,FORMED COND LGE 5211AR3399M Contact Us For Availability
12-B
REMOTE CONTROLLER ASSY LGE 6711A20035E Contact Us For Availability
12-D
TUBE,CAPILLARY BEND LGE 5210A30018K Contact Us For Availability
13-D
DRIER ASSEMBLY LGE 5851A30001L Contact Us For Availability
14-D
TUBE ASSY,SUCTION SINGLE LGE 5211A10062B Contact Us For Availability
× ![]()
