Model LG 580.53701300 – Common Parts & Diagrams

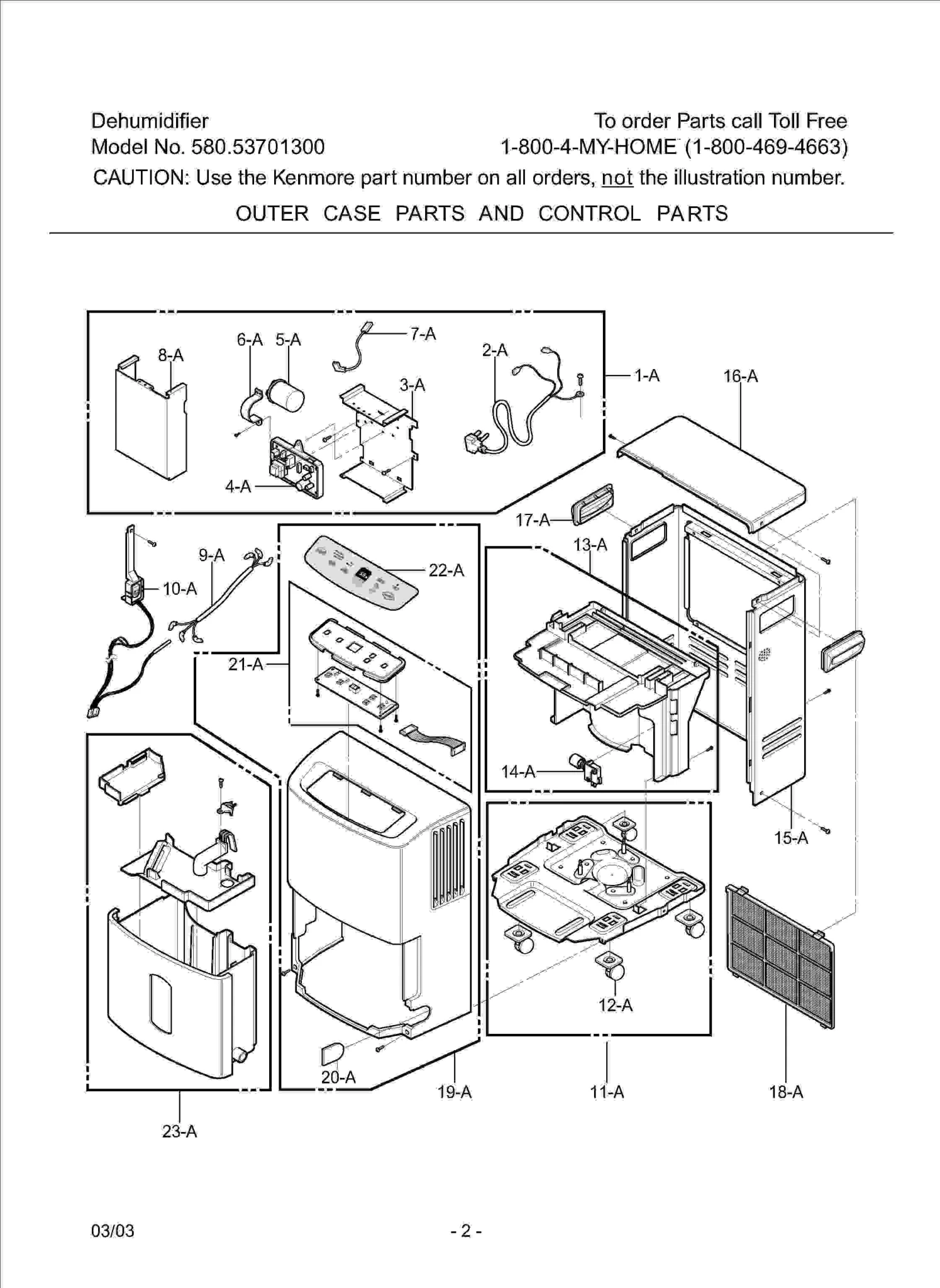

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG 580.53701300
130410
BASE ASSEMBLY,SINGLE LGE 3041A10028D Contact Us For Availability
130910
CABINET ASSEMBLY,SINGLE LGE 3091A20015J Contact Us For Availability
131110
CASE ASSEMBLY,SINGLE LGE 3111A10016E Contact Us For Availability
135500
COVER,TERMINAL LGE 3550UTL006A Contact Us For Availability
135500
COVER LGE 3550A30193A Contact Us For Availability
135515
COVER ASSEMBLY,TOP(INDOOR) LGE 3551A20096B Contact Us For Availability
148380
TANK ASSEMBLY,BUCKET LGE 4839A10001F Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20026C Contact Us For Availability
165010
SENSOR ASSEMBLY LGE 6877A30013H Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A10024B Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20057B Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A20056B Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A20057B Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A10074K Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266011
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10092J Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10011D Contact Us For Availability
336600
HOUSING (MECH),WRAPPER LGE 3660A10003A Contact Us For Availability
336610
HOUSING ASSEMBLY (MECH) LGE 3661A10019B Contact Us For Availability
346810
MOTOR ASSEMBLY,SINGLE LGE 4681A20040G Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352111
BUSHING LGE 4830A30005A Contact Us For Availability
352111
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20869B Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20868B Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10033B Contact Us For Availability
359012
FAN,TURBO LGE 5900A20032A Contact Us For Availability
436500
HANDLE LGE 3650A20003B Contact Us For Availability
552204
COIL ASSEMBLY,SOLENOID LGE 6421A20003K Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A20114E Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UCBA004 Contact Us For Availability
567502
O.L.P LGE 6750U-L048A Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
W1NHA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
W4986
GASKET LGE 4986UTL001G Contact Us For Availability
W6631
CONNECTOR ASSEMBLY LGE 6631A20037E Contact Us For Availability
W6631
CONNECTOR ASSEMBLY LGE 6877A20025J Contact Us For Availability
× ![]()
