Model LG 580. 75062 500 WINDOW – Common Parts & Diagrams

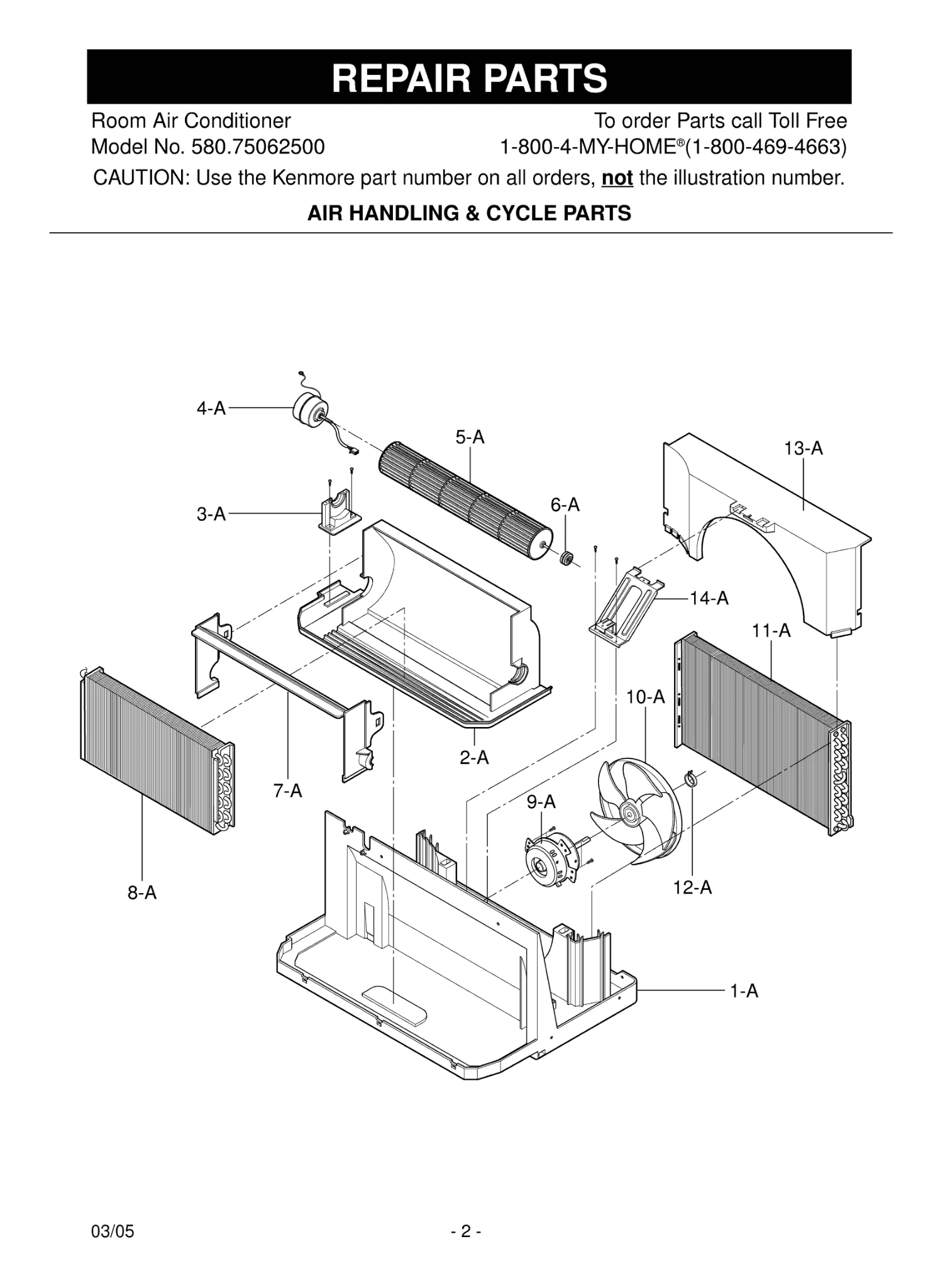

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG 580. 75062 500 WINDOW
1-B
GRILLE,FRONT LGE 3530A10153A Contact Us For Availability
1-C
CONTROL BOX,SINGLE LGE 4994A20063A Contact Us For Availability
1-E
BRACKET LGE 4810A20162A Contact Us For Availability
2-B
GRILLE,INLET LGE 3530A10152A Contact Us For Availability
2-C
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20343C Contact Us For Availability
2-D
COMPRESSOR SET,CHINA LGE 2520UCDA013 Contact Us For Availability
2-E
BOLT,DRAWING LGE 1BZZA30005A Contact Us For Availability
3-A
MOUNT,MOTOR LGE 4960A20045A Contact Us For Availability
3-B
FILTER(MECH),A/C LGE 5230A20031A Contact Us For Availability
3-C
CONNECTOR ASSEMBLY LGE 6631A10005A Contact Us For Availability
3-E
BOLT,DRAWING LGE 1BZZA30005B Contact Us For Availability
4-A
MOTOR ASSEMBLY,INDOOR LGE 4681A20088B Contact Us For Availability
4-B
GUIDE LGE 4974A20044A Contact Us For Availability
4-C
CAPACITOR,DRAWING LGE 3A02157J Contact Us For Availability
4-D
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
5-A
FAN ASSEMBLY,CROSS FLOW LGE 5901A20020A Contact Us For Availability
5-B
HOLDER,COVER LGE 4930A20041A Contact Us For Availability
5-C
CONNECTOR ASSEMBLY LGE 6631A30012C Contact Us For Availability
6-B
GRILLE,DISCHARGE LGE 3530A20078A Contact Us For Availability
6-D
O.L.P LGE 6750U3L001A Contact Us For Availability
7-B
CABINET ASSEMBLY,SINGLE LGE 3091A20017B Contact Us For Availability
7-C
CONNECTOR ASSEMBLY LGE 6631A30003E Contact Us For Availability
7-D
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
8-A
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20137A Contact Us For Availability
8-B
COVER LGE 3550A20202B Contact Us For Availability
8-C
CONNECTOR ASSEMBLY LGE 6631A30012D Contact Us For Availability
8-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
9-A
MOTOR Package Assembly,C/SKD LGE 3911A30082H Contact Us For Availability
9-B
WINDOW,DISPLAY LGE 3790A20065A Contact Us For Availability
9-C
POWER CORD ASSEMBLY LGE 6411A20048Y Contact Us For Availability
10-A
FAN,PROPELLER LGE 5900A20006A Contact Us For Availability
10-B
ESCUTCHEON LGE 3831A20055A Contact Us For Availability
10-C
CLIP LGE 4004AR4357A Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20834B Contact Us For Availability
11-A
CONDENSER ASSEMBLY,FIRST LGE 5403A20117A Contact Us For Availability
11-B
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20342D Contact Us For Availability
11-C
COVER LGE 3550A20201A Contact Us For Availability
11-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20831A Contact Us For Availability
12-B
CONNECTOR ASSEMBLY LGE 6631A10005B Contact Us For Availability
12-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A20832A Contact Us For Availability
13-A
SHROUD LGE 4998A20002A Contact Us For Availability
13-B
COVER LGE 3550A20200A Contact Us For Availability
13-C
COVER LGE 3550A20209A Contact Us For Availability
13-D
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A20879C Contact Us For Availability
14-A
BRACE LGE 4800A20009A Contact Us For Availability
14-B
CLAMP,CORD LGE 4H00399F Contact Us For Availability
14-C
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
15-C
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
16-B
LOUVER,VERTICAL LGE 4758A30037B Contact Us For Availability
17-B
LINK LGE 4520A30052A Contact Us For Availability
18-B
CURTAIN ASSEMBLY LGE 4959A20001A Contact Us For Availability
19-B
CURTAIN ASSEMBLY LGE 4959A20001B Contact Us For Availability
20-B
LABEL,ENERGY LGE 3850A21286V Contact Us For Availability
× ![]()
