Model Electrolux 56-4474-10-02 MICROWAVE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR

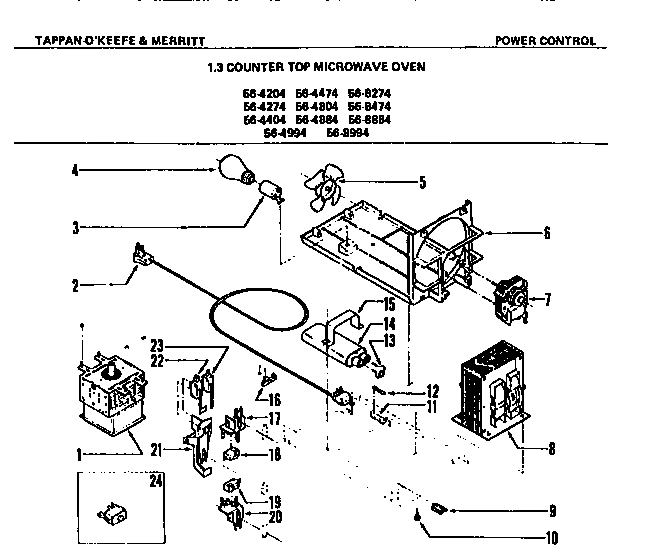

04 - POWER CONTROL

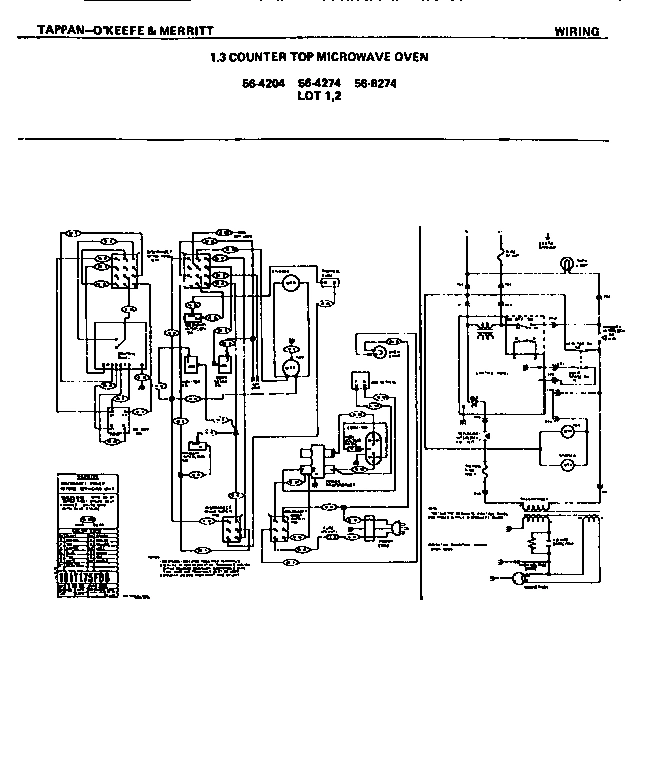

05 - WIRING

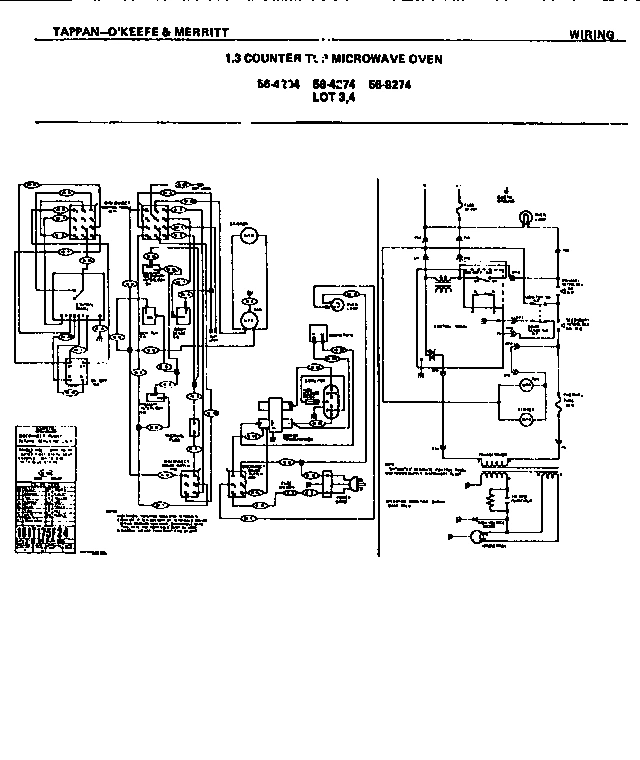

06 - WIRING

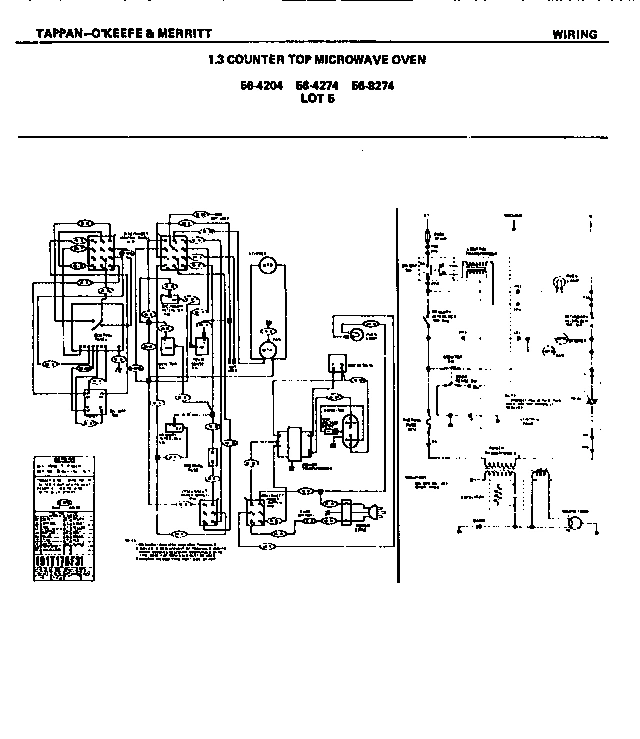

07 - WIRING

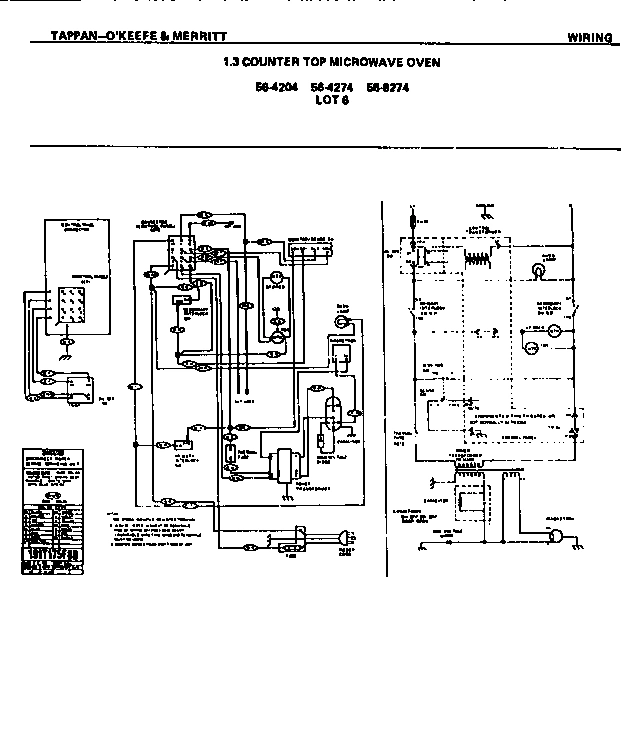

08 - WIRING
09 - WIRING

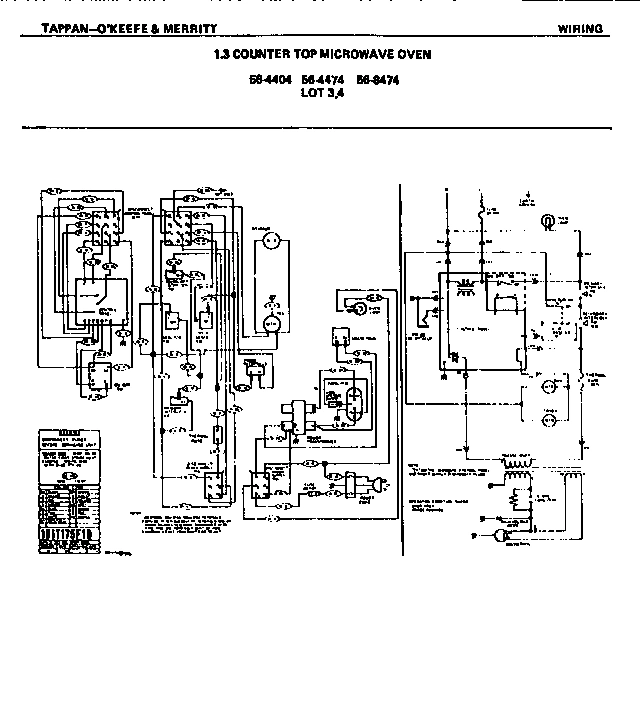

10 - WIRING

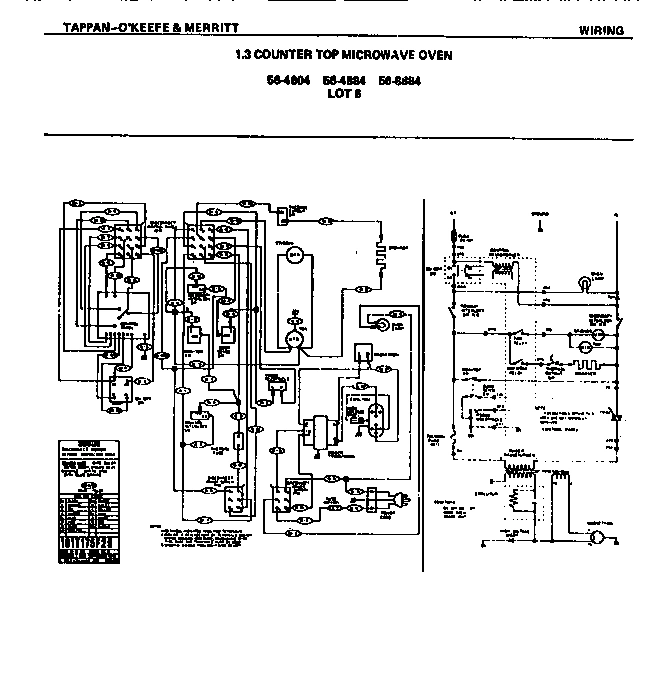

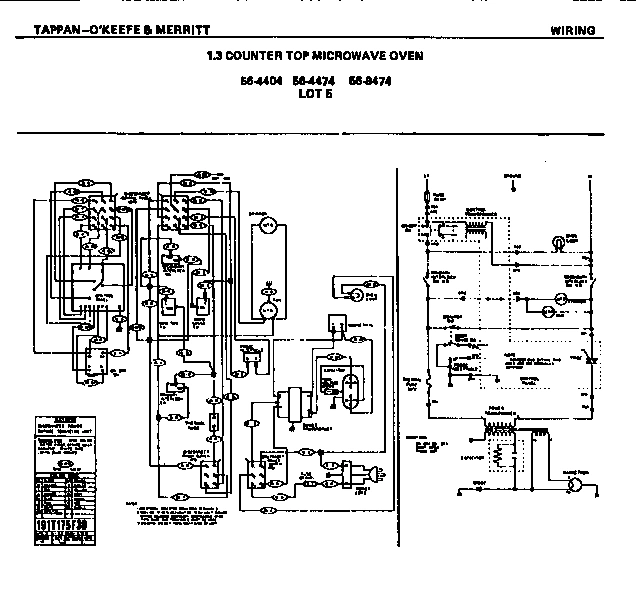

11 - WIRING

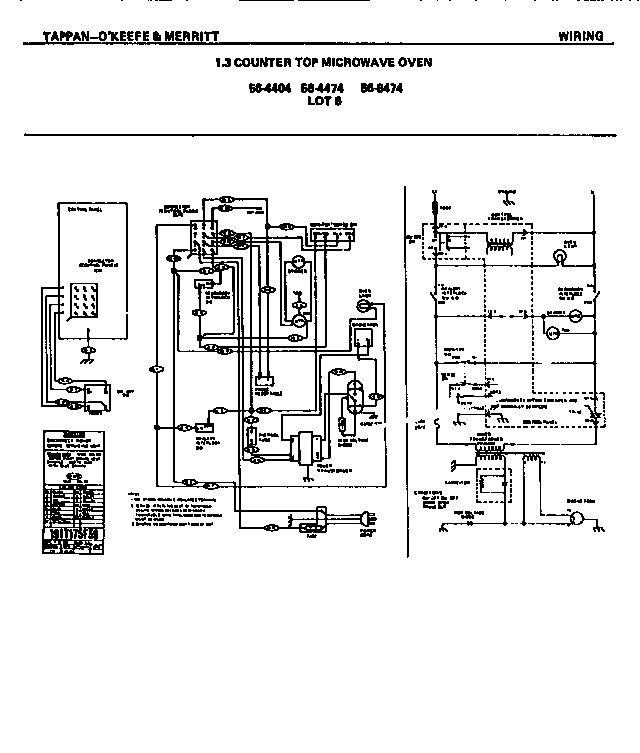

12 - WIRING

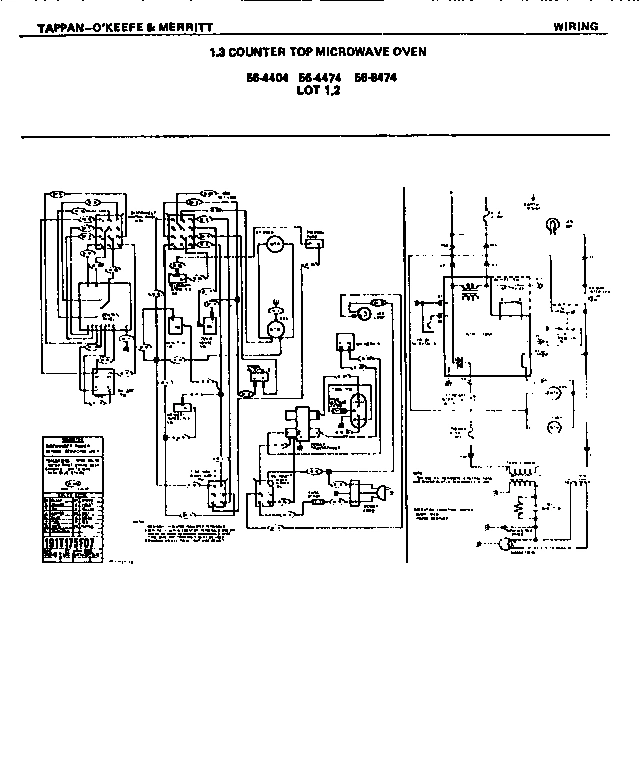

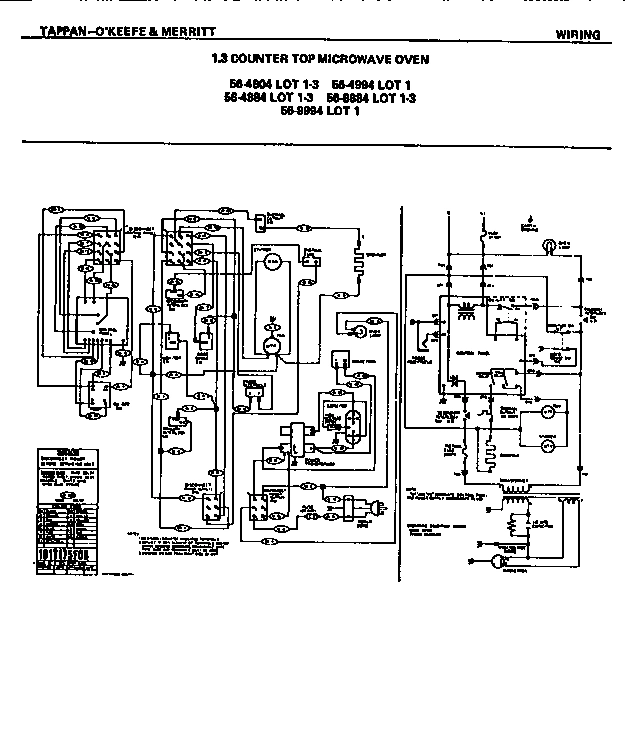

13 - WIRING

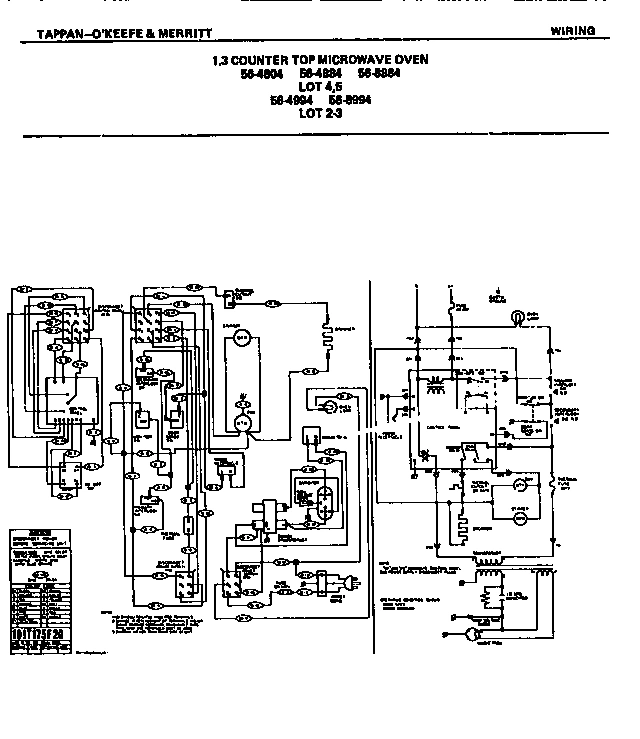

14 - WIRING
15 - WIRING

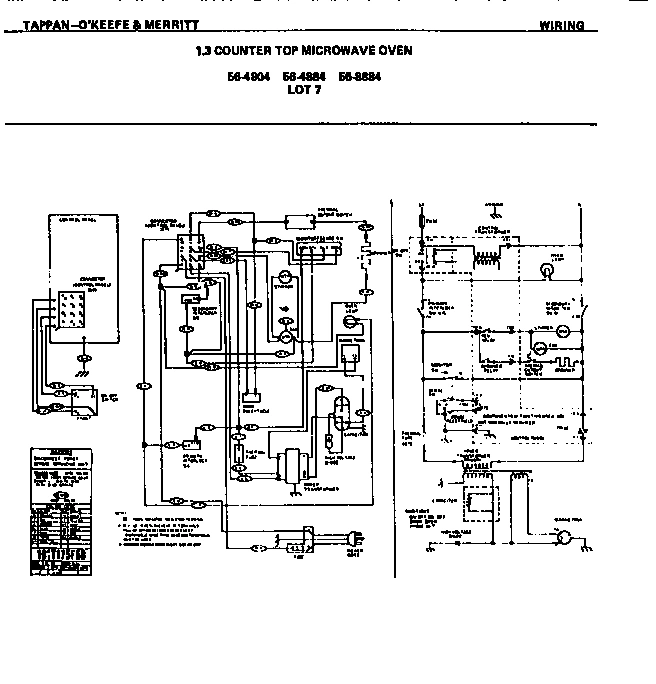

16 - WIRING

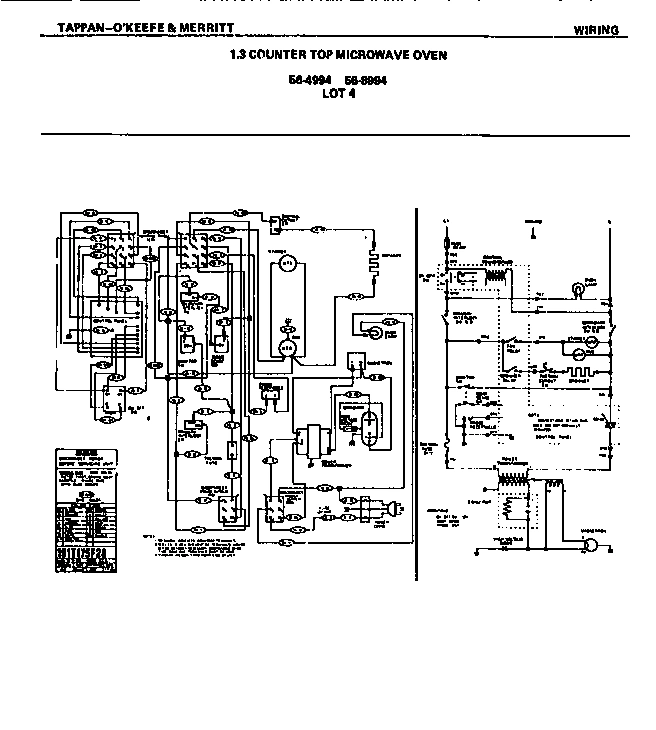

17 - WIRING

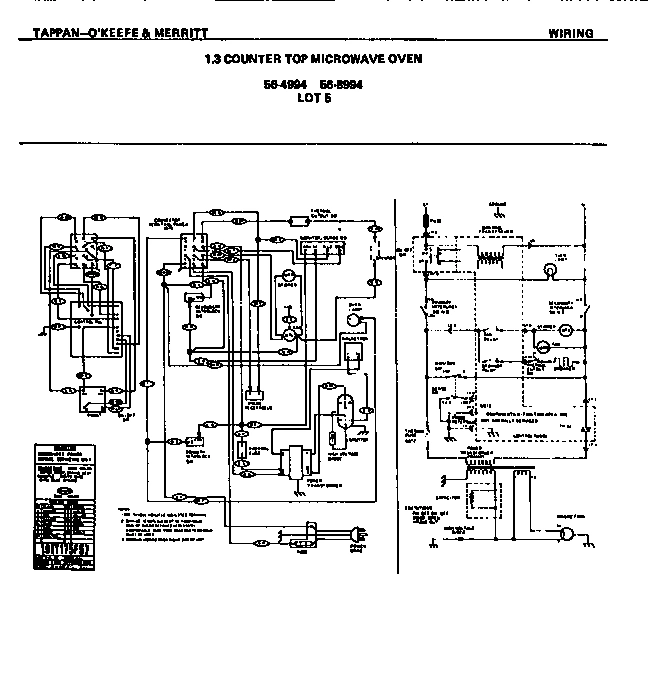

18 - WIRING

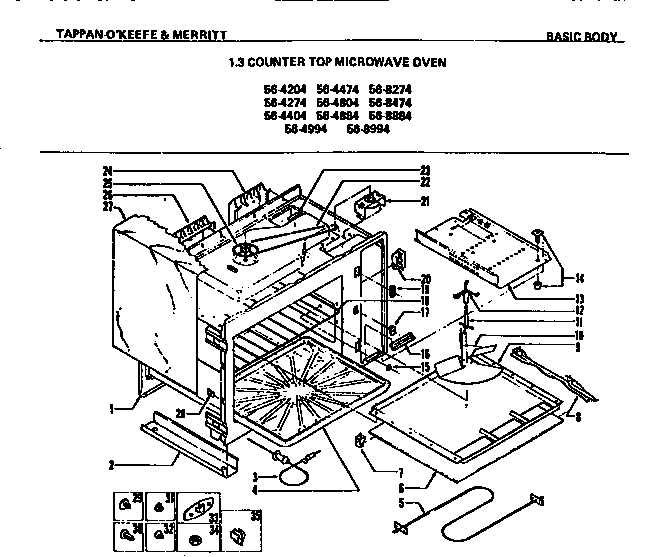

19 - BASIC BODY

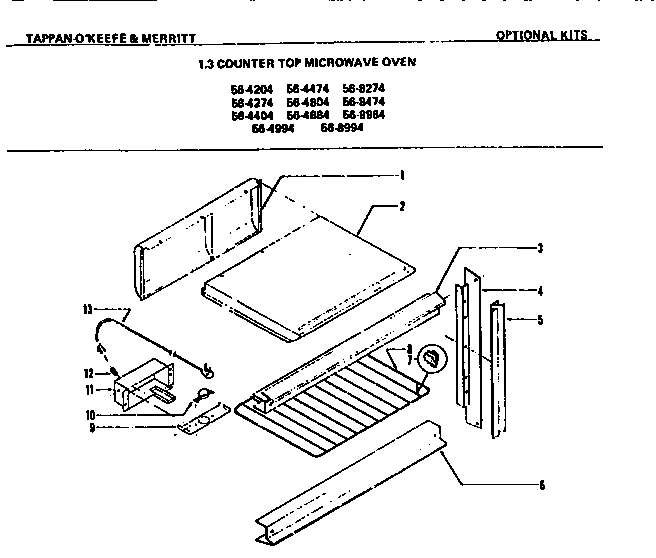

20 - OPTIONAL KITS
Common parts from model Electrolux 56-4474-10-02 MICROWAVE
*18440
WCI 299T405S380 WCI 299T405S380 Contact Us For Availability
*18441
WCI 299T405S316 WCI 299T405S316 Contact Us For Availability
*18442
WCI 299T405S330 WCI 299T405S330 Contact Us For Availability
*18443
HARNESS-BROWNER (4804,4884,8884 LOT 3-8)(4994 WCI 299T405S353 Contact Us For Availability
*18444
WCI 16GR30-12MJ1 WCI 16GR30-12MJ1 Contact Us For Availability
*18445
WCI 16GR30-5MJ1 WCI 16GR30-5MJ1 Contact Us For Availability
*18446
SWITCH-THERMAL CUTOUT (4804,4884,4994,8884,89 WCI 115T695P02 Contact Us For Availability
*18447
WCI 299T400S220 WCI 299T400S220 Contact Us For Availability
*18448
WCI 560T705P01 WCI 560T705P01 Contact Us For Availability
*18450
WCI 560T695P01 WCI 560T695P01 Contact Us For Availability
*18451
WCI 560T695P03 WCI 560T695P03 Contact Us For Availability
*18452
WCI 570T668P05 WCI 570T668P05 Contact Us For Availability
*18453
WCI 508T020P02 WCI 508T020P02 Contact Us For Availability
*18454
WCI 626T069P07 WCI 626T069P07 Contact Us For Availability
*18455
WCI 636T095P30 WCI 636T095P30 Contact Us For Availability
*18456
WCI 299T405S317 WCI 299T405S317 Contact Us For Availability
*18457
WCI 299T400S176 WCI 299T400S176 Contact Us For Availability
*18458
WCI 299T405S368 WCI 299T405S368 Contact Us For Availability
*18459
WCI 299T405S314 WCI 299T405S314 Contact Us For Availability
*18460
DUCT AIR FOAM WCI 211T053P02 Contact Us For Availability
*18463
LABEL-COOKING GUIDE (4274,4474,8274,8474 LOT WCI 560T786P01 Contact Us For Availability
*18464
WCI 115T655P01 WCI 115T655P01 Contact Us For Availability
*18465
WCI 655T382P02 WCI 655T382P02 Contact Us For Availability
1
WCI 521T117S06 WCI 521T117S06 Contact Us For Availability
1
WCI 521T117S07 WCI 521T117S07 Contact Us For Availability
1
WCI 521T117S08 WCI 521T117S08 Contact Us For Availability
1
WCI 521T117S13 WCI 521T117S13 Contact Us For Availability
1
WCI 521T117S14 WCI 521T117S14 Contact Us For Availability
1
WCI 521T117S15 WCI 521T117S15 Contact Us For Availability
1
WCI 521T117S17 WCI 521T117S17 Contact Us For Availability
1
WCI 636T096P26 WCI 636T096P26 Contact Us For Availability
1
WCI 296T108P01 WCI 296T108P01 Contact Us For Availability
1
WCI 296T108P03 WCI 296T108P03 Contact Us For Availability
1
WCI 296T108P08 WCI 296T108P08 Contact Us For Availability
1
WCI 296T109P01 WCI 296T109P01 Contact Us For Availability
1
WCI 296T109P03 WCI 296T109P03 Contact Us For Availability
1
WCI 296T109P06 WCI 296T109P06 Contact Us For Availability
1
WCI 116T423P02 WCI 116T423P02 Contact Us For Availability
1
WCI 000000000 WCI 000000000 Contact Us For Availability
1
FSTENER-WRAPPER CLIP (2) (NON-ILLUSTRATED) WCI 241T017P234 Contact Us For Availability
1
WCI 780T025W01-18 WCI 780T025W01-18 Contact Us For Availability
2
WCI 106T040P01 WCI 106T040P01 Contact Us For Availability
2
WCI 106T045P01 WCI 106T045P01 Contact Us For Availability
2
WCI 707T064P01 WCI 707T064P01 Contact Us For Availability
2
WCI 636T145P01 WCI 636T145P01 Contact Us For Availability
2
SCREW-LATCH MTG (8-32 X 5/8`` SPEC LOP)(4204, WCI 636T145P02 Contact Us For Availability
2
WCI 171T035P01 WCI 171T035P01 Contact Us For Availability
2
CORD-POWER SUPPLY (4204,4274,4404,4474,8274,8 WCI 171T039P01 Contact Us For Availability
2
CHANNEL BASE LH WCI 136T327F01-18 Contact Us For Availability
2
WCI 780T023W01-18 WCI 780T023W01-18 Contact Us For Availability
3
WCI 3091233 WCI 3091233 Contact Us For Availability
3
WCI 521T119P01 WCI 521T119P01 Contact Us For Availability
3
WCI 521T119P02 WCI 521T119P02 Contact Us For Availability
3
WCI 521T119P03 WCI 521T119P03 Contact Us For Availability
3
WCI 521T119P10 WCI 521T119P10 Contact Us For Availability
3
WCI 521T119P11 WCI 521T119P11 Contact Us For Availability
3
WCI 521T119P12 WCI 521T119P12 Contact Us For Availability
3
WCI 521T119P19 WCI 521T119P19 Contact Us For Availability
3
WCI 521T119P20 WCI 521T119P20 Contact Us For Availability
3
WCI 521T119P21 WCI 521T119P21 Contact Us For Availability
3
WCI 521T120P02 WCI 521T120P02 Contact Us For Availability
3
WCI 521T120P03 WCI 521T120P03 Contact Us For Availability
3
WCI 521T120P04 WCI 521T120P04 Contact Us For Availability
3
WCI 521T142P02 WCI 521T142P02 Contact Us For Availability
3
WCI 521T142P03 WCI 521T142P03 Contact Us For Availability
3
WCI 521T142P04 WCI 521T142P04 Contact Us For Availability
3
WCI 521T143P01 WCI 521T143P01 Contact Us For Availability
3
WCI 008T486S01 WCI 008T486S01 Contact Us For Availability
3
WCI 008T496S02 WCI 008T496S02 Contact Us For Availability
3
SOCKET-OVEN LIGHT WCI 662T027P02 Contact Us For Availability
3
PROBE (4404,4474,4804,4884,4994,8474,8884,899 WCI 115T563P03 Contact Us For Availability
3
WCI 233T112P01 WCI 233T112P01 Contact Us For Availability
4
WCI 697T058P01 WCI 697T058P01 Contact Us For Availability
4
WCI 174T275P01 WCI 174T275P01 Contact Us For Availability
4
WCI 174T275P02 WCI 174T275P02 Contact Us For Availability
4
WCI 174T275P03 WCI 174T275P03 Contact Us For Availability
4
WCI 174T275P08 WCI 174T275P08 Contact Us For Availability
4
WCI 174T275P09 WCI 174T275P09 Contact Us For Availability
4
COVER - DOOR (4884 LOT 8)(4274 LOT 7) WCI 3091081 Contact Us For Availability
4
WCI 3091232 WCI 3091232 Contact Us For Availability
4
WCI 3091234 WCI 3091234 Contact Us For Availability
4
TRAY-OVEN (4204,4274,4404,4474,8274,8474 LOT WCI 115T736P01 Contact Us For Availability
4
WCI 736T011P01 WCI 736T011P01 Contact Us For Availability
4
WCI 233T114P01 WCI 233T114P01 Contact Us For Availability
5
PANEL DOOR ASSY (4274 LOT 7,4884 LOT 8, 4994 WCI 3091017 Contact Us For Availability
5
WCI 533T057S08 WCI 533T057S08 Contact Us For Availability
5
WCI 533T059S01 WCI 533T059S01 Contact Us For Availability
5
WCI 533T059S08 WCI 533T059S08 Contact Us For Availability
5
SCREW-DOOR MTG TO CHASSIS (8A X 1/2`` PH.FL.U WCI 636T069P05 Contact Us For Availability
5
FAN BLADE (4204,4274,4404,4474,8274,8474,LOT WCI 115T239P01 Contact Us For Availability
5
WCI 239T034P01 WCI 239T034P01 Contact Us For Availability
5
WCI 220T013P06 WCI 220T013P06 Contact Us For Availability
5
WCI 220T013P09 WCI 220T013P09 Contact Us For Availability
5
WCI 233T113P01 WCI 233T113P01 Contact Us For Availability
6
WCI 636T141P02 WCI 636T141P02 Contact Us For Availability
6
SCREW-DOOR STRIKE (4204,4274,4404,4474,8274,8 WCI 636T148P01 Contact Us For Availability
6
WCI 211T051P01 WCI 211T051P01 Contact Us For Availability
6
WCI 211T051P02 WCI 211T051P02 Contact Us For Availability
6
DUCT - AIR (FAN)(4204,4274,4404,4474,8274,847 WCI 211T051P03 Contact Us For Availability
6
WCI 277T201P01 WCI 277T201P01 Contact Us For Availability
6
GLASS-STIRRER COVER (4804,4884,8884 LOT 6,7,8 WCI 277T212P01 Contact Us For Availability
6
WCI 233T111P01 WCI 233T111P01 Contact Us For Availability
6
SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TR WCI 636T069P07 Contact Us For Availability
7
NUT-MOTOR MTG (6-32) (2) (NON-ILLUSTRATED) WCI 479T069P09 Contact Us For Availability
7
WCI 615T041P01 WCI 615T041P01 Contact Us For Availability
7
MOTOR-FAN WCI 115T463P02 Contact Us For Availability
7
WCI 636T095P49 WCI 636T095P49 Contact Us For Availability
7
WCI 612T111P01 WCI 612T111P01 Contact Us For Availability
7
WCI 612T111P02 WCI 612T111P02 Contact Us For Availability
7
WCI 612T111P03 WCI 612T111P03 Contact Us For Availability
7
WCI 612T111P04 WCI 612T111P04 Contact Us For Availability
7
WCI 612T111P05 WCI 612T111P05 Contact Us For Availability
7
WCI 612T111P06 WCI 612T111P06 Contact Us For Availability
7
SUPPORT-RACK (MEAL-MAKER KIT)(8) WCI 694T077P02 Contact Us For Availability
8
WCI 115T737P03 WCI 115T737P03 Contact Us For Availability
8
TRANSFORMER (4204,4274,4404,4474,8274,8474, L WCI 115T737P06 Contact Us For Availability
8
CHANNEL-STIRRER GLASS SUPPORT LH (4804,4884,8 WCI 136T348P01 Contact Us For Availability
8
CHANNEL-STIRRER GLASS SUPPORT LH (4804,4884,8 WCI 136T348P02 Contact Us For Availability
8
RACK-OVEN (MEAL-MAKER KIT) WCI 591T074P02 Contact Us For Availability
9
FASTENER-WIRE CLIP (3) WCI 241T017P222 Contact Us For Availability
9
WCI 174T259P01 WCI 174T259P01 Contact Us For Availability
9
WCI 554T276F01-18 WCI 554T276F01-18 Contact Us For Availability
10
WCI 636T101P10 WCI 636T101P10 Contact Us For Availability
10
SCREW-TRANSFORMER MTG (1/4-20 X 5/8`` SERR HE WCI 636T101P14 Contact Us For Availability
10
FAN-STIRRER (4204,4274,4404,4474,8274,8474) WCI 239T049F01 Contact Us For Availability
10
WCI 239T050F01 WCI 239T050F01 Contact Us For Availability
10
WCI 597T026P01 WCI 597T026P01 Contact Us For Availability
11
RECEPTABLE-FUSE (4204,4274,4404,4474,8274,847 WCI 597T042P01 Contact Us For Availability
11
WCI 694T076P01 WCI 694T076P01 Contact Us For Availability
11
WCI 174T180W02-18 WCI 174T180W02-18 Contact Us For Availability
12
FUSE (20 AMP)(4204,4274,4404,4474,8274,8474 L WCI 115T262P01 Contact Us For Availability
12
WCI 262T017P01 WCI 262T017P01 Contact Us For Availability
12
WCI 154T022P01 WCI 154T022P01 Contact Us For Availability
12
WCI 102T024P04 WCI 102T024P04 Contact Us For Availability
13
DIODE-HI WCI 115T198P02 Contact Us For Availability
13
WCI 198T020P01 WCI 198T020P01 Contact Us For Availability
13
WCI 136T325F04 WCI 136T325F04 Contact Us For Availability
13
CHANNEL-BASE RH (4204,4274,4404,4474,8274,847 WCI 136T325F06 Contact Us For Availability
13
WCI 136T326F01-18 WCI 136T326F01-18 Contact Us For Availability
13
WCI 171T022P02 WCI 171T022P02 Contact Us For Availability
14
WCI 115T157P01 WCI 115T157P01 Contact Us For Availability
14
WCI 157T029P04 WCI 157T029P04 Contact Us For Availability
14
WCI 355T683S01 WCI 355T683S01 Contact Us For Availability
15
WCI 612T108F01 WCI 612T108F01 Contact Us For Availability
15
WCI 612T122F01 WCI 612T122F01 Contact Us For Availability
15
NUT-RECEPTACLE MTG (4404,4474,4804,4884,4994, WCI 479T084P01 Contact Us For Availability
16
WCI 262T015P02 WCI 262T015P02 Contact Us For Availability
16
WCI 072T780F01 WCI 072T780F01 Contact Us For Availability
17
WCI 072T774S02 WCI 072T774S02 Contact Us For Availability
17
WCI 072T774S10 WCI 072T774S10 Contact Us For Availability
17
WCI 072T774S14 WCI 072T774S14 Contact Us For Availability
17
WCI 045T068P01 WCI 045T068P01 Contact Us For Availability
17
WCI 287T003P12 WCI 287T003P12 Contact Us For Availability
19
WCI 115T695P03 WCI 115T695P03 Contact Us For Availability
19
WCI 695T186P01 WCI 695T186P01 Contact Us For Availability
19
WCI 045T067P01 WCI 045T067P01 Contact Us For Availability
20
WCI 072T826S01 WCI 072T826S01 Contact Us For Availability
20
WCI 072T774S01 WCI 072T774S01 Contact Us For Availability
20
WCI 072T774S09 WCI 072T774S09 Contact Us For Availability
20
WCI 072T774S13 WCI 072T774S13 Contact Us For Availability
20
RECEPTACLE - PROBE (4404,4474,4804,4884,4994, WCI 597T048P01 Contact Us For Availability
21
WCI 072T775P01 WCI 072T775P01 Contact Us For Availability
21
MOTOR-STIRRER W/ BELT WCI 463T095S01 Contact Us For Availability
22
WCI 115T695P06 WCI 115T695P06 Contact Us For Availability
22
WCI 695T186P04 WCI 695T186P04 Contact Us For Availability
22
WCI 044T002P03 WCI 044T002P03 Contact Us For Availability
23
WCI 115T695P04 WCI 115T695P04 Contact Us For Availability
23
WCI 695T186P02 WCI 695T186P02 Contact Us For Availability
23
WCI 665T177P01 WCI 665T177P01 Contact Us For Availability
24
WCI 115T695P13 WCI 115T695P13 Contact Us For Availability
24
DUCT, AIR, MAG WCI 211T055P01 Contact Us For Availability
25
PULLEY, STIRRER WCI 566T002P01 Contact Us For Availability
25
WASHER-STIRRER PULLEY (NON-ILLUSTRATED) WCI 789T064P01 Contact Us For Availability
26
WCI 211T049P01 WCI 211T049P01 Contact Us For Availability
26
DUCT - AIR (CAVITY)(404,4274,4404,4474,8274,8 WCI 211T049P02 Contact Us For Availability
27
WRAPPER-TOP & SIDES WCI 809T021F01 Contact Us For Availability
29
PLUG-BUTTON ( WCI 557T028P01 Contact Us For Availability
30
WCI 615T030P03 WCI 615T030P03 Contact Us For Availability
31
WCI 557T030P01 WCI 557T030P01 Contact Us For Availability
32
WCI 557T029P01 WCI 557T029P01 Contact Us For Availability
33
WCI 557T027P01 WCI 557T027P01 Contact Us For Availability
34
WCI 241T017P243 WCI 241T017P243 Contact Us For Availability
35
WCI 694T077P01 WCI 694T077P01 Contact Us For Availability
× ![]()
