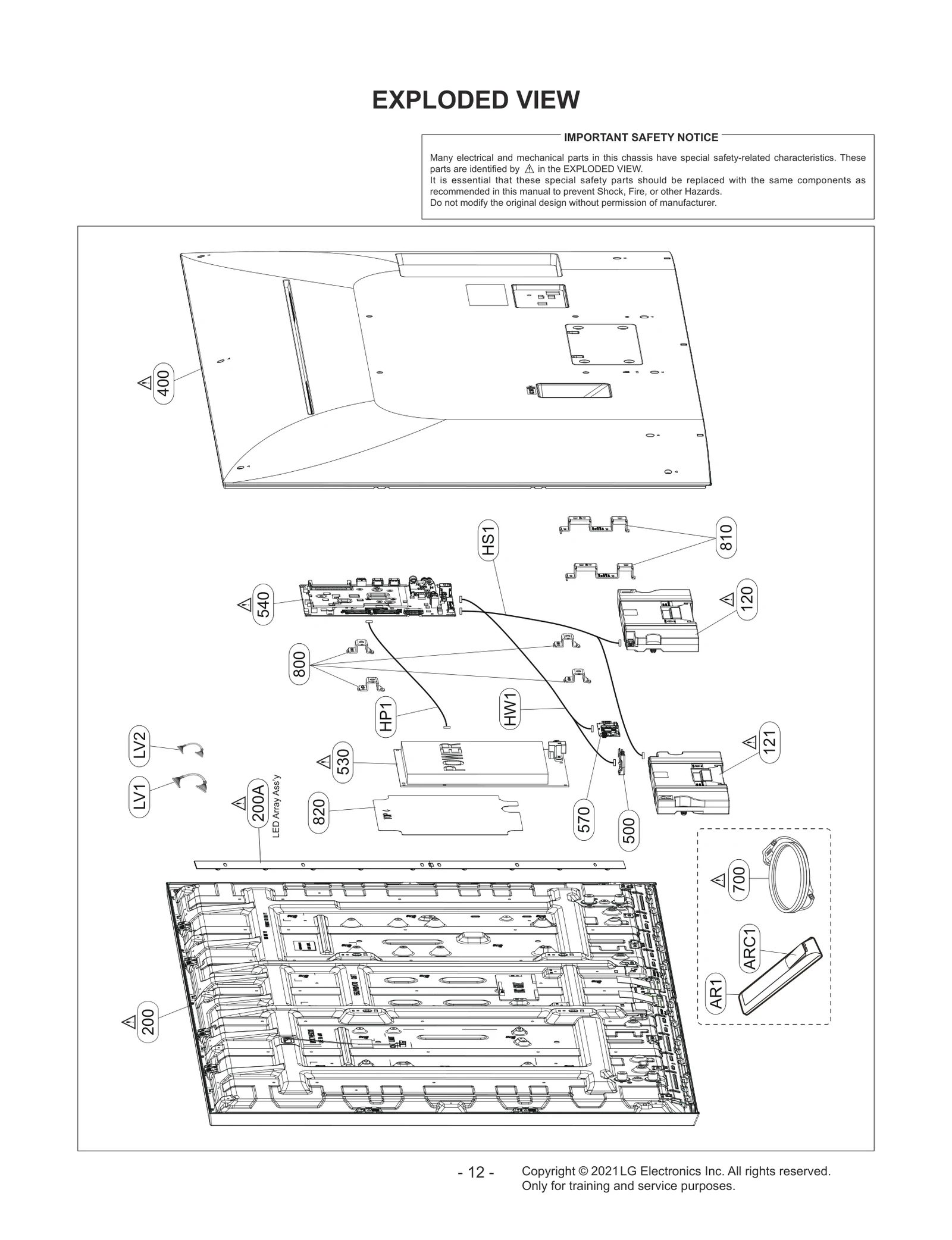

Model LG 55UR762H9ZC – Common Parts & Diagrams

200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65686601 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ65686602 Contact Us For Availability
View on Model
200A
Package Assembly,LED Array
Package Assembly,LED Array LGE AGF30110401 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30450511 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65895526 Contact Us For Availability
View on Model
540
Mainboard,BPR Total Assembly,SVC
Mainboard,BPR Total Assembly,SVC LGE EBU66726801 Contact Us For Availability
View on Model
700
Power Cord,Detach
Power Cord,Detach LGE EAD61891001 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH64334001 Contact Us For Availability
View on Model
800
Supporter,VESA
Supporter,VESA LGE MJH64334002 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67462702 Contact Us For Availability
View on Model
810
Bracket
Bracket LGE MAZ67462701 Contact Us For Availability
View on Model
820
Insulator
Insulator LGE MEV67702102 Contact Us For Availability
View on Model
A2
Cable,Assembly
Cable,Assembly LGE EAD62707906 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB76037101 Contact Us For Availability
View on Model
ARC1
Cover,Rear
Cover,Rear LGE MCK62976101 Contact Us For Availability
View on Model
HP1
Harness,Single
Harness,Single LGE EAD64586003 Contact Us For Availability
View on Model
