Model LG 55QNED85UQA – Common Parts & Diagrams

Common parts from model LG 55QNED85UQA

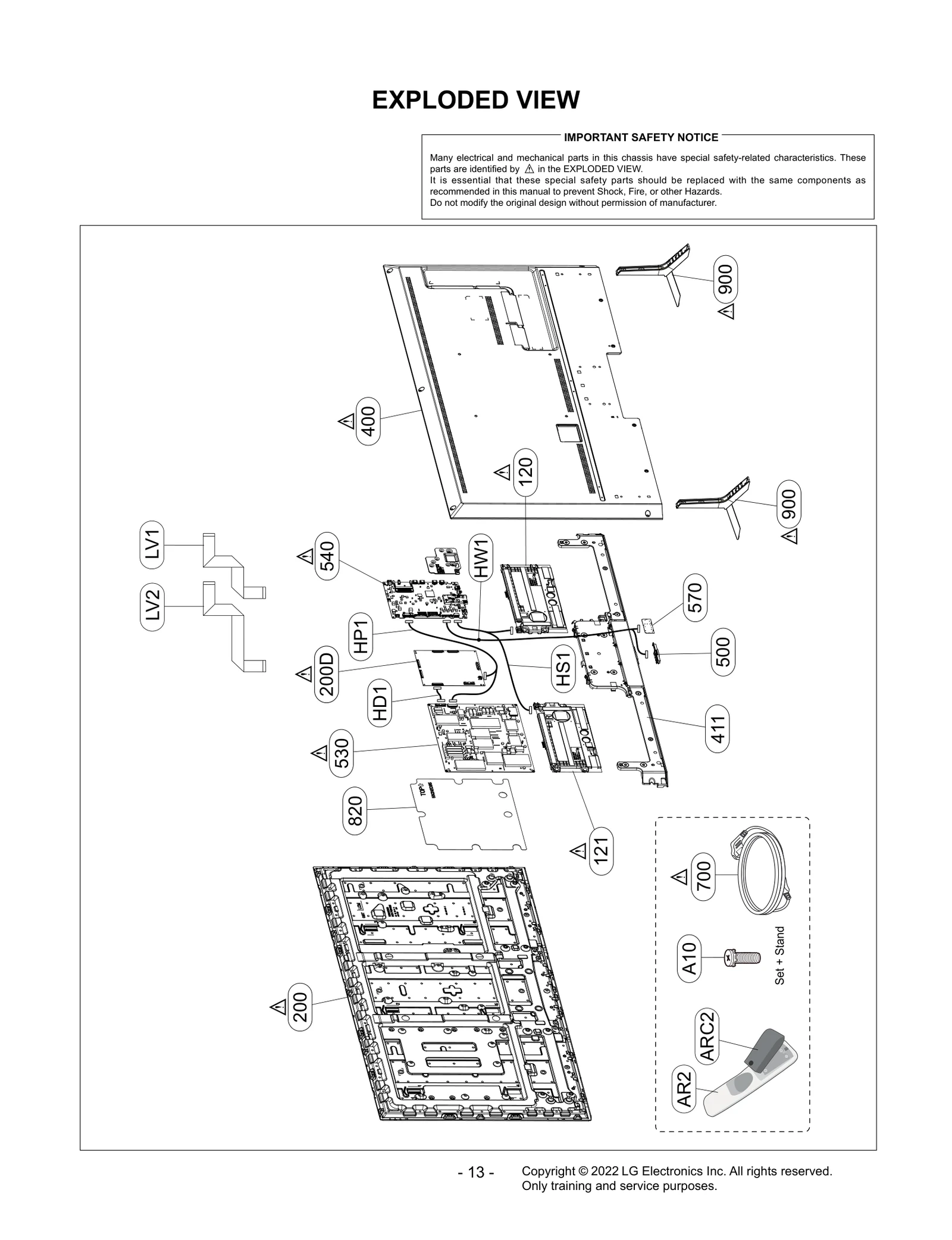

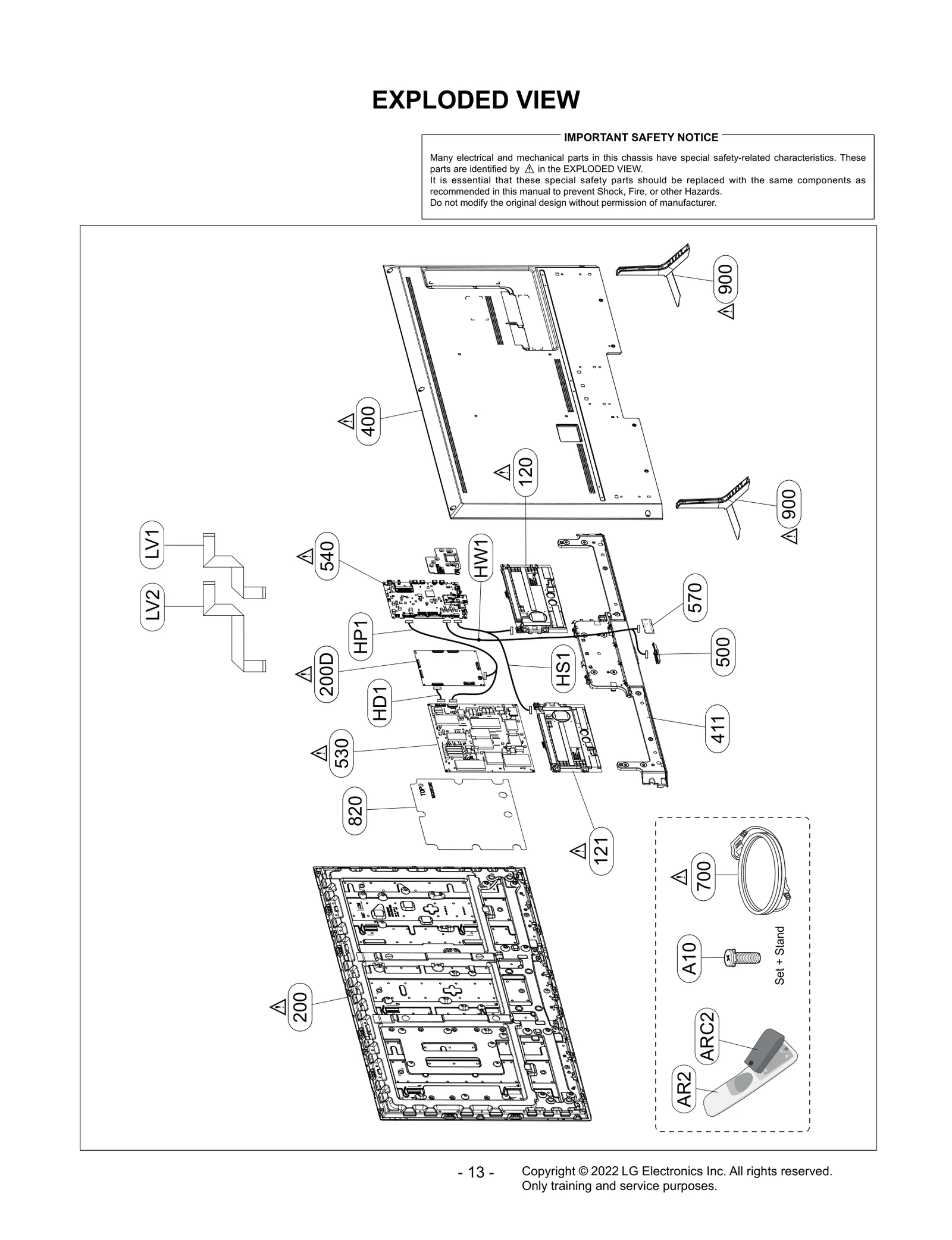

Diagram 0

Print

• This Diagram
• All Diagrams

120

Speaker Assembly LGE EAB65818703 Contact Us For Availability

View on Model

121

Speaker Assembly LGE EAB65818704 Contact Us For Availability

View on Model

200

LCD,Module-TFT LGE EAJ65782001 Contact Us For Availability

View on Model

200D

PCB Assembly Backorder LGE EBR36085301 View Details $290.34

View on Model

400

Cover Assembly,Rear LGE ACQ30475903 Contact Us For Availability

View on Model

400

Cover Assembly,Rear LGE ACQ30475917 Contact Us For Availability

View on Model

411

ACQ30270820 LG Cover Assembly,Bottom Backorder LGE ACQ30270820 View Details $132.41

View on Model

411

Cover Assembly,Bottom LGE ACQ30270827 Contact Us For Availability

View on Model

500

EBR31871302 LG IR Key PCB Assembly Backorder LGE EBR31871302 View Details $31.06

View on Model

530

Power Supply Assembly Backorder LGE EAY65904131 View Details $290.34

View on Model

540

Mainboard,BPR Total Assembly,SVC LGE EBU67171610 Contact Us For Availability

View on Model

570

EAT65167004 LG Bluetooth Module Backorder LGE EAT65167004 View Details $49.13

View on Model

700

EAD64026802 LG Power Cord Backorder LGE EAD64026802 View Details $17.46

View on Model

820

Insulator LGE MEV67753201 Contact Us For Availability

View on Model

900

Base Assembly LGE AAN30013444 Contact Us For Availability

View on Model

900

Base Assembly LGE AAN30013440 Contact Us For Availability

View on Model

A10

Screw Assembly Backorder LGE FAB30016105 View Details $2.23

View on Model

AR2

AKB76039902 LG Remote Controller Assembly Backorder LGE AKB76039902 View Details $65.22

View on Model

ARC2

Backorder LGE EBZ64559402 View Details $3.79

View on Model

HD1

Harness,Single LGE EAD63026118 Contact Us For Availability

View on Model

HP1

Harness,Multi LGE EAD64687823 Contact Us For Availability

View on Model

HS1

Harness,Multi LGE EAD65705222 Contact Us For Availability

View on Model

HW1

Cable,FFC LGE EAD65825857 Contact Us For Availability

View on Model

LV1

Cable,FFC LGE EAD64666335 Contact Us For Availability

View on Model

LV2

Cable,FFC LGE EAD64666336 Contact Us For Availability

View on Model

×
