Model LG 55QNED80TUC – Common Parts & Diagrams
Diagram 0

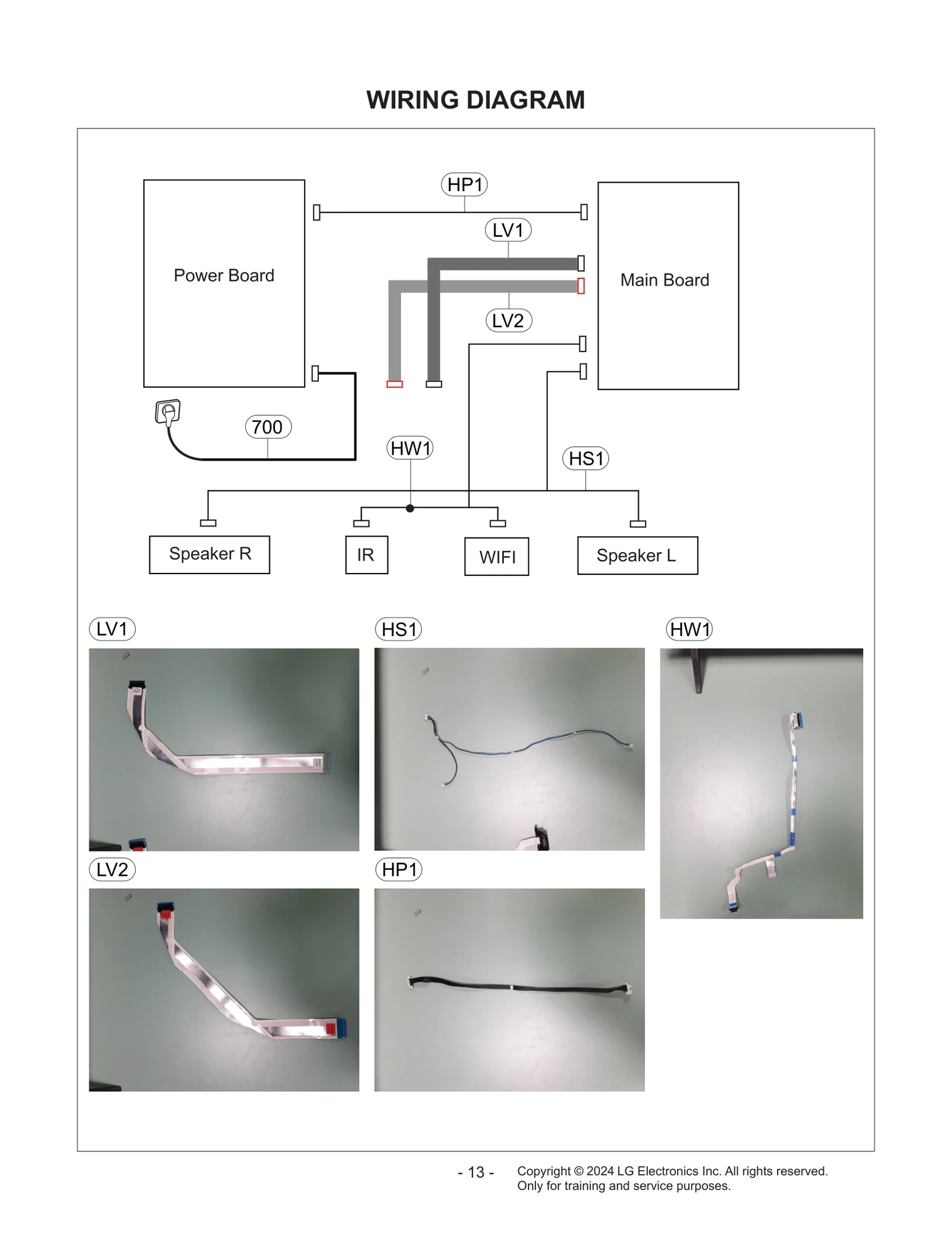

Diagram 1
Diagram 2
Common parts from model LG 55QNED80TUC
200
LCD,Module-TFT LGE EAJ65900703 Contact Us For Availability
200L
Plate Assembly,Light Guide LGE AGU30068101 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65835306 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30654352 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR38734203 Contact Us For Availability
522
Bracket LGE MAZ67664803 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU67747999 Contact Us For Availability
571
Bracket LGE MAZ67664403 Contact Us For Availability
820
Insulator LGE MEV67773904 Contact Us For Availability
900
Base Assembly LGE AAN30154414 Contact Us For Availability
AB2
Bracket LGE MAZ67464206 Contact Us For Availability
AR2
Remote Controller Assembly LGE AKB76045002 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
HS1
Harness,Multi LGE EAD63727375 Contact Us For Availability
HW1
Cable,FFC LGE EAD65825870 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666343 Contact Us For Availability
× ![]()
