Model LG 55LN549E – Common Parts & Diagrams

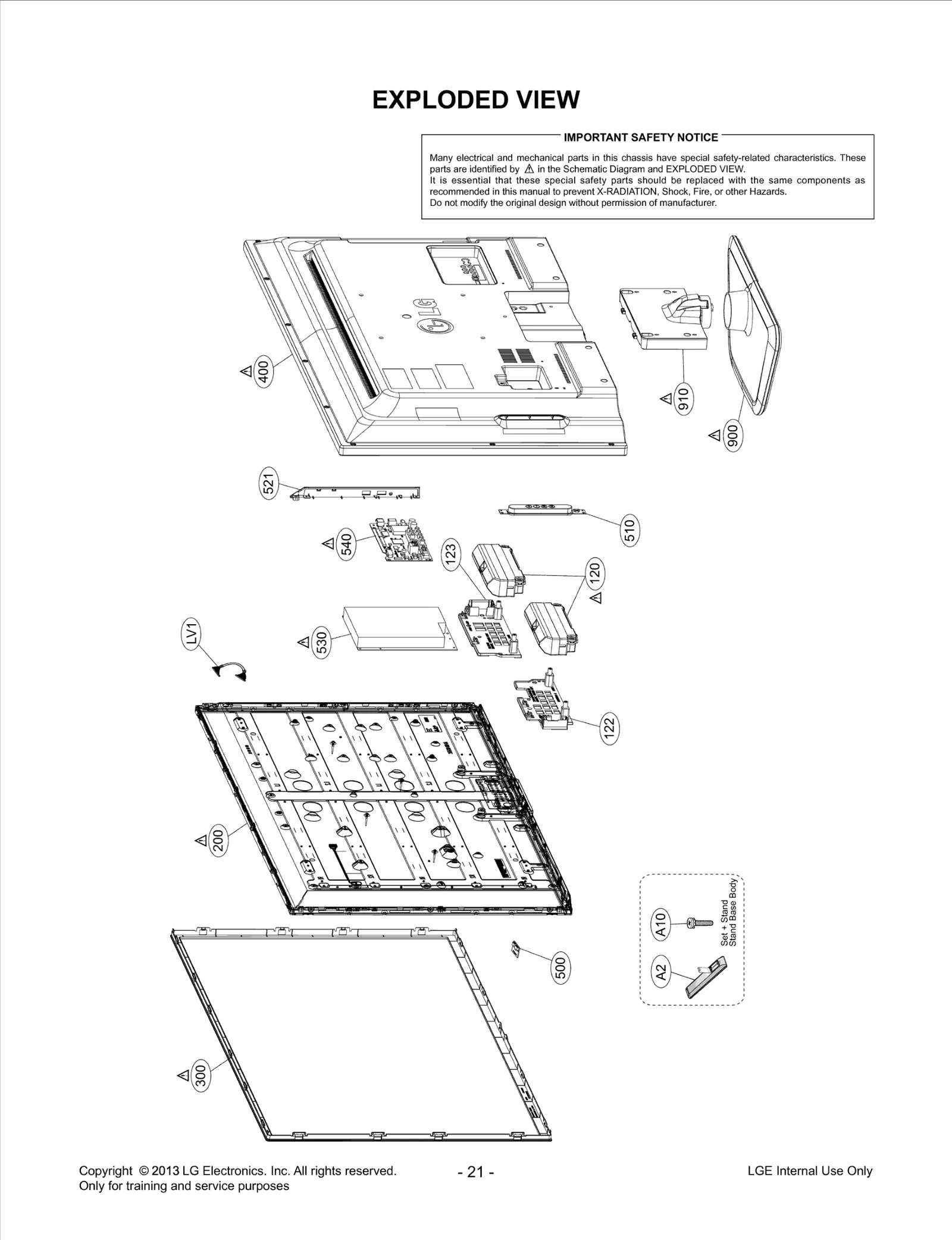

Diagram 0
Diagram 1
Common parts from model LG 55LN549E
2
Screw,Machine LGE FAB31339401 Contact Us For Availability
2
Screw,Taptite LGE FAB31639801 Contact Us For Availability
200
LCD Assembly,LCM LGE AFB73530101 Contact Us For Availability
200T
Time Control LGE EAT61973301 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73869003 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86474105 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR76931301 Contact Us For Availability
521
Bracket Assembly LGE ABA74489632 Contact Us For Availability
700
Plate Assembly LGE 49519K0002S Contact Us For Availability
900
Base Assembly LGE AAN74389404 Contact Us For Availability
910
Bracket Assembly LGE ABA74528602 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692613 Contact Us For Availability
AM
Manual Assembly LGE AFN75916212 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
B2
Box LGE MAY65262731 Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C233
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C241
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C247
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C406
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C411
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C424
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C427
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C431
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C433
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C444
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C519
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C528
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C536
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C901
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C916
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C917
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C924
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C928
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1006
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C1009
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1019
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1205
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C1217
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
CA1
Harness,Single LGE EAD60958302 Contact Us For Availability
CA2
Harness,Single LGE EAD61646272 Contact Us For Availability
CA3
Harness,Multi LGE EAD62334706 Contact Us For Availability
D702
Diode,TVS LGE EAH39491701 Contact Us For Availability
D707
Diode,Switching LGE EAH60666101 Contact Us For Availability
D802
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC1
Receiver Module LGE EAV62055001 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708702 Contact Us For Availability
IC301
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC404
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC702
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC901
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC1001
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
JK701
Jack,RCA LGE EAG60968107 Contact Us For Availability
JK703
Connector,USB LGE EAG62571101 Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK706
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK901
Jack,Modular LGE EAG61453603 Contact Us For Availability
L205
Inductor,Multilayer,Chip LGE EAP39314712 Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L403
Filter,Bead LGE EAM62091201 Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L411
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L501
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L904
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
LV1
Cable,FFC LGE EAD62370718 Contact Us For Availability
P401
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q406
FET LGE EBK60752501 Contact Us For Availability
Q602
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q1002
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R137
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R148
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R200
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R402
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R411
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R436
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R440
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R444
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R462
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R515
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R606
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R706
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R820
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R903
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R919
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R1009
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R1010
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1024
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1029
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R1030
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1225
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R4003
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4025
Resistor,Chip LGE EBC32176201 Contact Us For Availability
TU1002
Tuner,Analog/Digital LGE EBL61060103 Contact Us For Availability
VA704
Varistor LGE EAF61530301 Contact Us For Availability
ZD904
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
