Model Whirlpool 55HA-1W ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

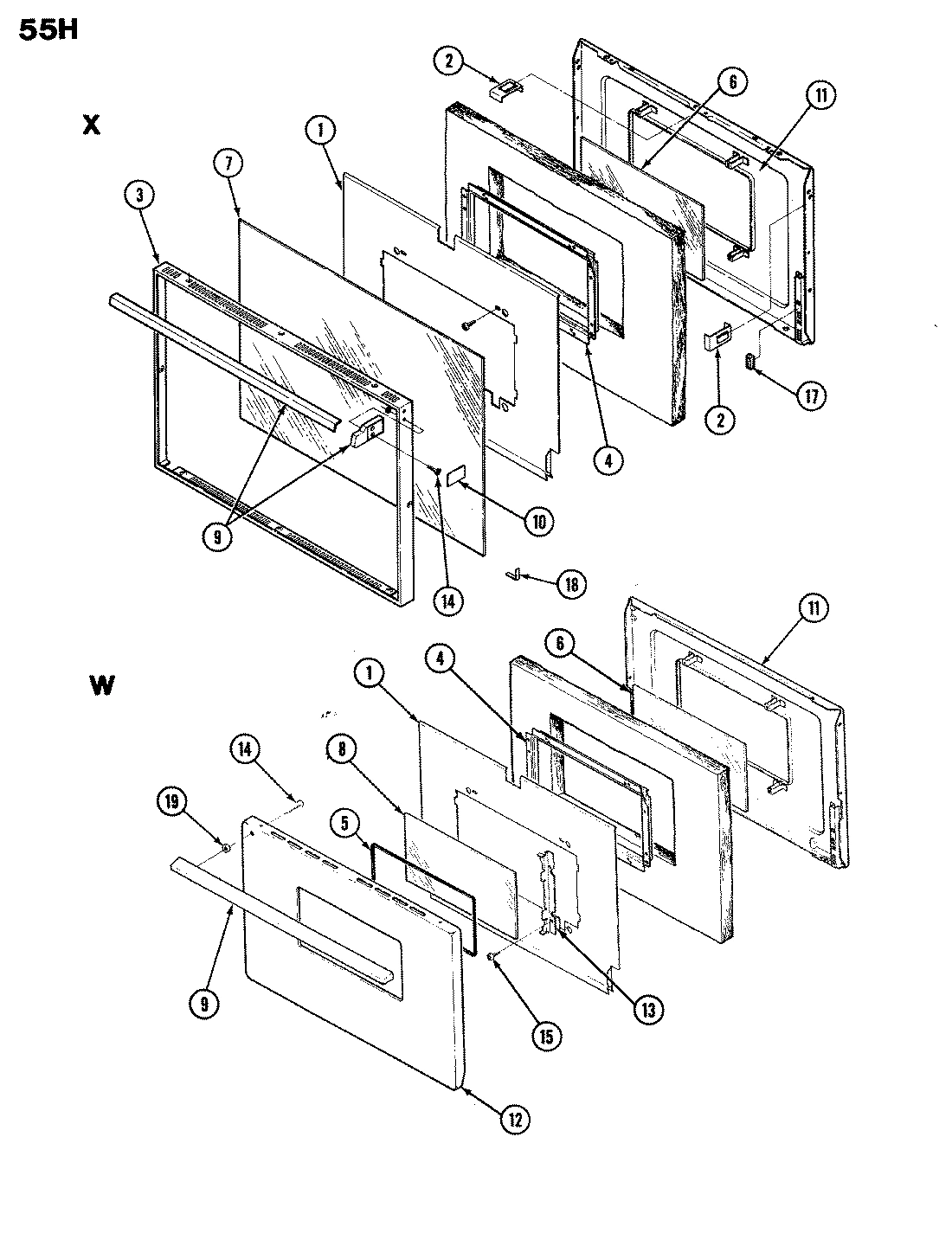

02 - DOOR
Common parts from model Whirlpool 55HA-1W ELECTRIC RANGE
1
KIT, BACKGUARD WPL 1430276 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
BOX, BURNER WPL 4011F08223 Contact Us For Availability
4
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
5
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
6
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
7
BRACKET, CABLE ROLLER WPL 3801F01734 Contact Us For Availability
8
BRACKET, CLOCK MTG WPL 3801F19351 Contact Us For Availability
8
GLASS WPL 7902P05160 Contact Us For Availability
9
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
9
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
9
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
9
CHANNEL, WIRE REAR WPL 3818F02151 Contact Us For Availability
9
CHANNEL, WIRE SIDE WPL 3818F02251 Contact Us For Availability
9
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
9
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
10
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
11
LINING ASSY WPL 2402W15116 Contact Us For Availability
11
LINING DOOR WPL 2402W15119 Contact Us For Availability
12
CLOCK WPL 7602P09760 Contact Us For Availability
12
PANEL, DOOR (ALM) WPL 2401F04274 Contact Us For Availability
13
COVER ACCESS WPL 4005F30251 Contact Us For Availability
13
RETAINER, GLASS WPL 3804F09580 Contact Us For Availability
14
COVER WPL 4005F00545 Contact Us For Availability
14
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
15
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
16
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
17
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
17
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
18
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
18
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
19
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
19
WASHER WPL 7109P01960 Contact Us For Availability
19
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
20
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
21
KS-60 FILLER STRIP WPL 1430241 Contact Us For Availability
21
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
22
FRONT, BURNER BOX WPL 4012F01380 Contact Us For Availability
23
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
24
GLASS, CLOCK/BACKGUARD WPL 7902P31660 Contact Us For Availability
25
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
26
HINGE WPL 7106P04060 Contact Us For Availability
27
HOUSING,MAIN WIRE WPL 4001F05151 Contact Us For Availability
28
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
29
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
29
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
30
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
30
KNOB, CLOCK WPL 7711P42260 Contact Us For Availability
31
KNOB, SELECTOR WPL 7739P01960 Contact Us For Availability
32
KNOB, SURFACE SWITCH WPL 7737P01560 Contact Us For Availability
33
KNOB, THERMOSTAT WPL 7711P21860 Contact Us For Availability
34
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
35
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
36
BULB, OVEN WPL 7407P02660 Contact Us For Availability
37
LINING ASSY, INNER SIDE WPL 4009W03080 Contact Us For Availability
38
PAN, BROIL WPL 3401F00423 Contact Us For Availability
38
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
39
PANEL MANIFOLD WPL 2614F02309 Contact Us For Availability
40
PANEL SIDE TRIM ALM WPL 2618F07174 Contact Us For Availability
40
PANEL S WPL 2618F07274 Contact Us For Availability
41
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
42
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
42
WPL 3605F15651 WPL 3605F15651 Contact Us For Availability
42
WPL 7718P00360 WPL 7718P00360 Contact Us For Availability
43
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
44
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
46
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
47
WPL W10124350 WPL W10124350 Contact Us For Availability
48
WPL 7101P00560 WPL 7101P00560 Contact Us For Availability
48
WPL 7101P11260 WPL 7101P11260 Contact Us For Availability
49
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
50
WPL 7212P00260 WPL 7212P00260 Contact Us For Availability
50
WPL 8312P01960 WPL 8312P01960 Contact Us For Availability
51
WPL 3604F00380 WPL 3604F00380 Contact Us For Availability
52
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
53
WPL 3604F05680 WPL 3604F05680 Contact Us For Availability
54
WPL 3604F01745 WPL 3604F01745 Contact Us For Availability
54
WPL 3604F06751 WPL 3604F06751 Contact Us For Availability
54
WPL 3604F09134 WPL 3604F09134 Contact Us For Availability
54
WPL 3604W00270 WPL 3604W00270 Contact Us For Availability
54
WPL 3604W15570 WPL 3604W15570 Contact Us For Availability
55
WPL 7803P05760 WPL 7803P05760 Contact Us For Availability
56
WPL 3420A03434 WPL 3420A03434 Contact Us For Availability
57
WPL 8019P00160 WPL 8019P00160 Contact Us For Availability
58
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
59
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
60
WPL 3807F19480 WPL 3807F19480 Contact Us For Availability
61
WPL 7403P10260 WPL 7403P10260 Contact Us For Availability
62
WPL 7403P03160 WPL 7403P03160 Contact Us For Availability
63
WPL 7403P16860 WPL 7403P16860 Contact Us For Availability
64
WPL 7404P02960 WPL 7404P02960 Contact Us For Availability
65
WPL 2002W04994 WPL 2002W04994 Contact Us For Availability
65
WPL 7706P04260 WPL 7706P04260 Contact Us For Availability
66
WPL 8026P00160 WPL 8026P00160 Contact Us For Availability
× ![]()
