Model LG 55EW5TF-A – Common Parts & Diagrams

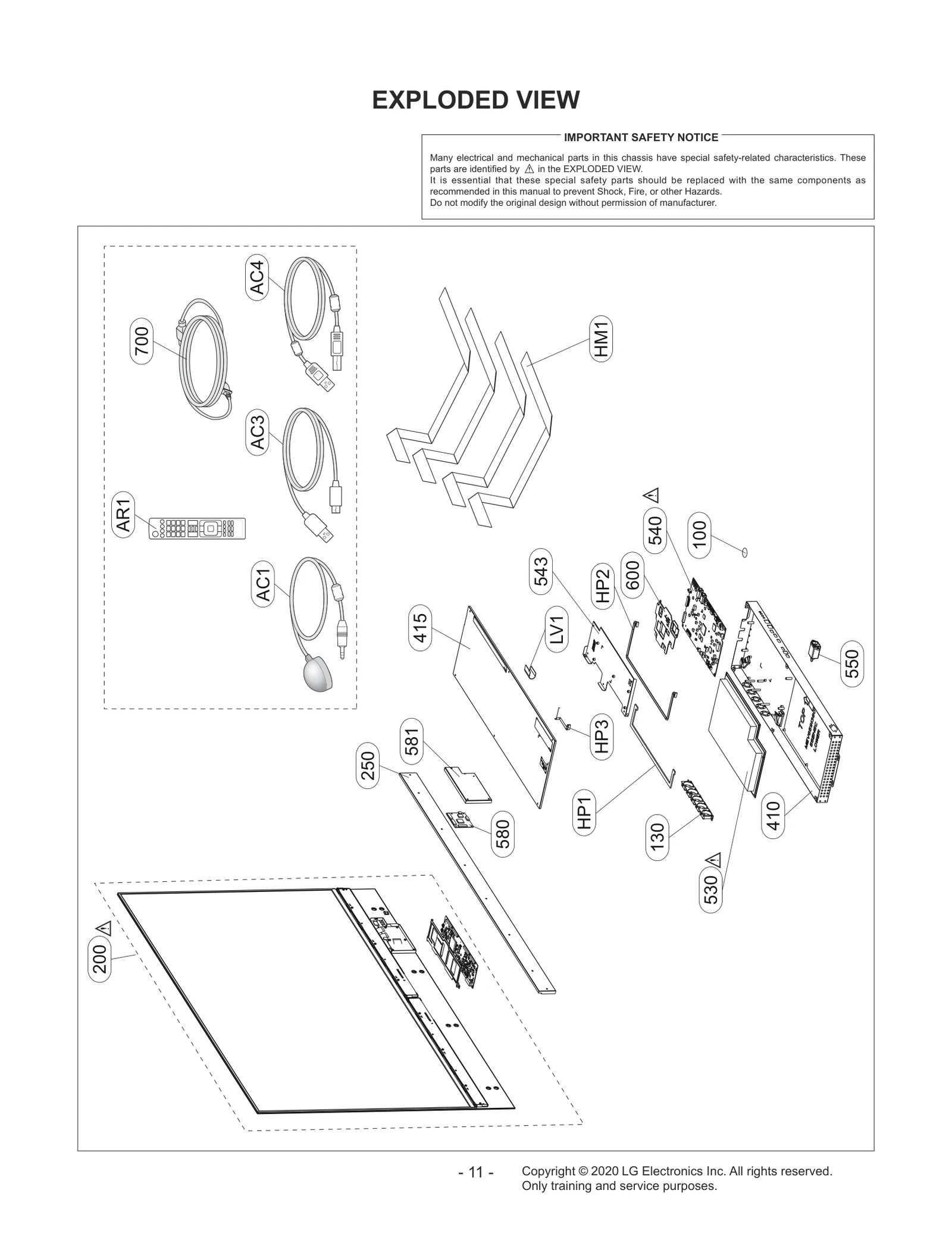

Diagram 0
Common parts from model LG 55EW5TF-A
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
130
Chassis Assembly LGE EBT65436601 Contact Us For Availability
200
Package Assembly LGE AGF30057901 Contact Us For Availability
250
Frame Assembly LGE ADV77707002 Contact Us For Availability
410
Frame Assembly LGE ADV77105802 Contact Us For Availability
415
Frame Assembly LGE ADV77145704 Contact Us For Availability
530
Power Supply Assembly LGE EAY64408801 Contact Us For Availability
543
Frame Assembly LGE ADV77145801 Contact Us For Availability
580
PCB Assembly,Touch Control LGE EBR30366901 Contact Us For Availability
581
Frame Assembly LGE ADV30004902 Contact Us For Availability
600
Heat Sink LGE MED64870901 Contact Us For Availability
AC1
Cable,Assembly LGE EAD61273144 Contact Us For Availability
AC3
Cable,Assembly LGE EAD65835601 Contact Us For Availability
AC4
Cable,Assembly LGE EAD61273135 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095363 Contact Us For Availability
HM1
Package Assembly LGE AGF30057903 Contact Us For Availability
HM1
Cable,FFC LGE EAD64105603 Contact Us For Availability
HP2
Harness,Single LGE EAD62825408 Contact Us For Availability
HP3
Harness,Single LGE EAD63966202 Contact Us For Availability
LV1
Cable,FFC LGE EAD62572214 Contact Us For Availability
× ![]()
