Model Whirlpool 51FN-2KX-ON GAS RANGE – Common Parts & Diagrams

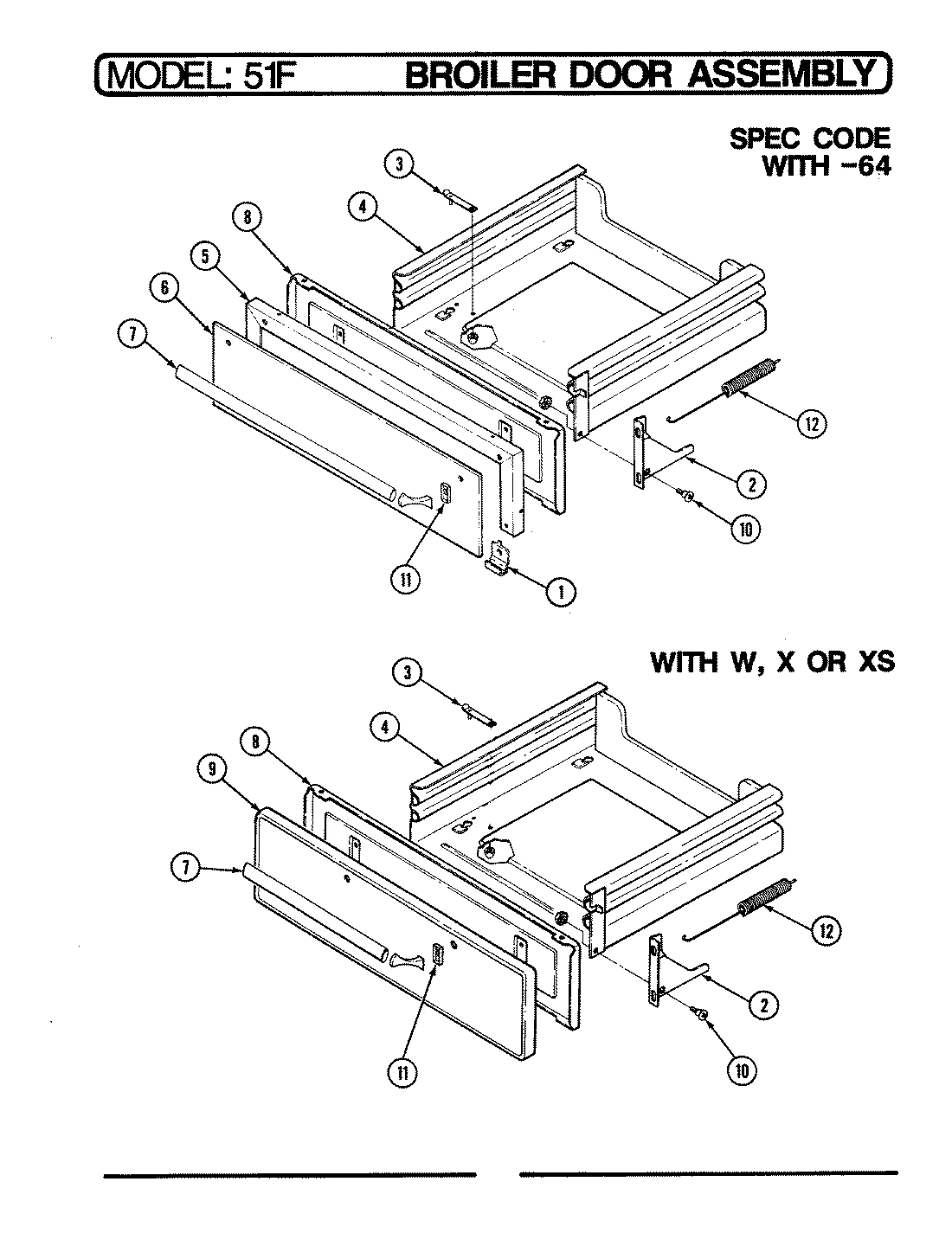

03 - DRAWER

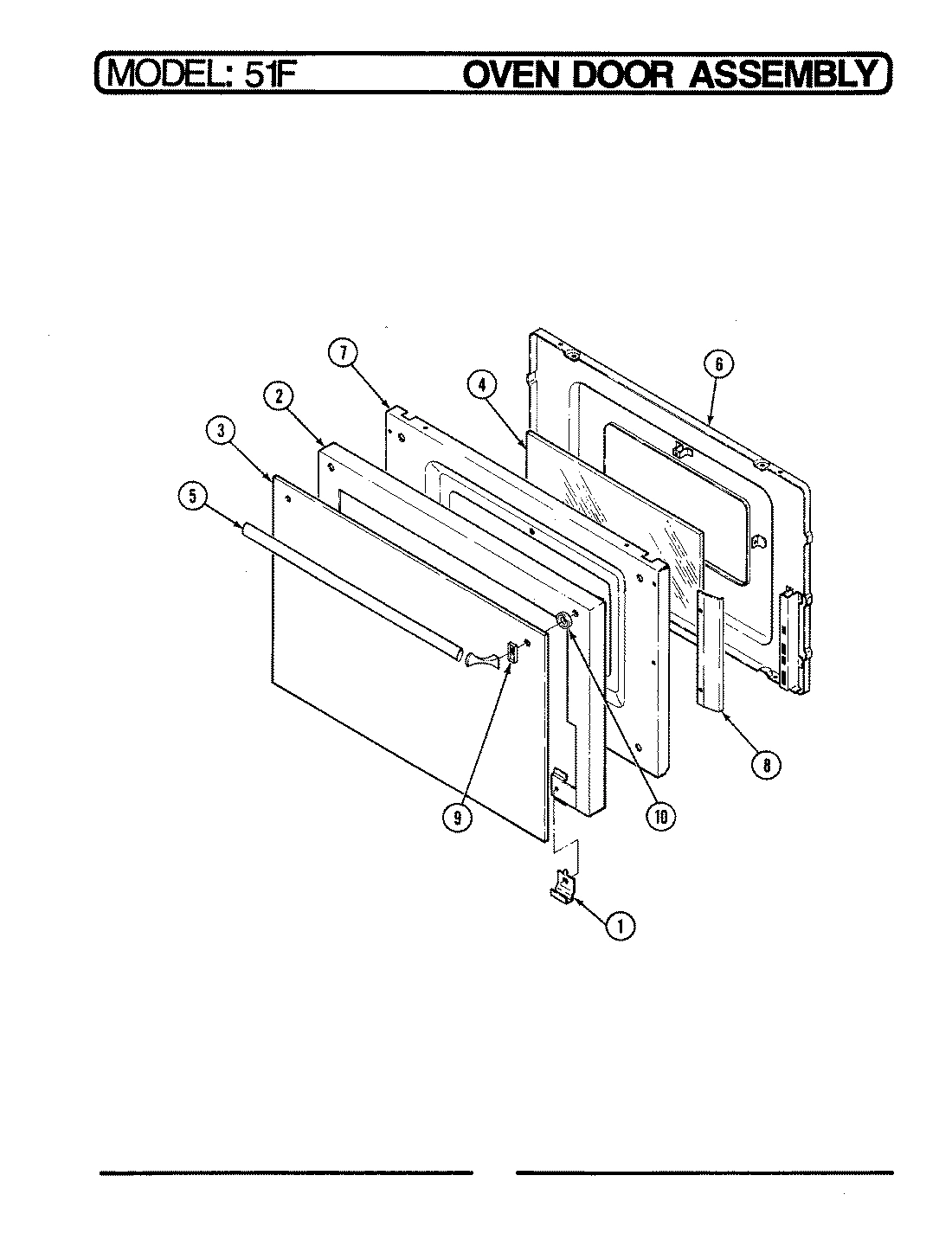

02 - DOOR

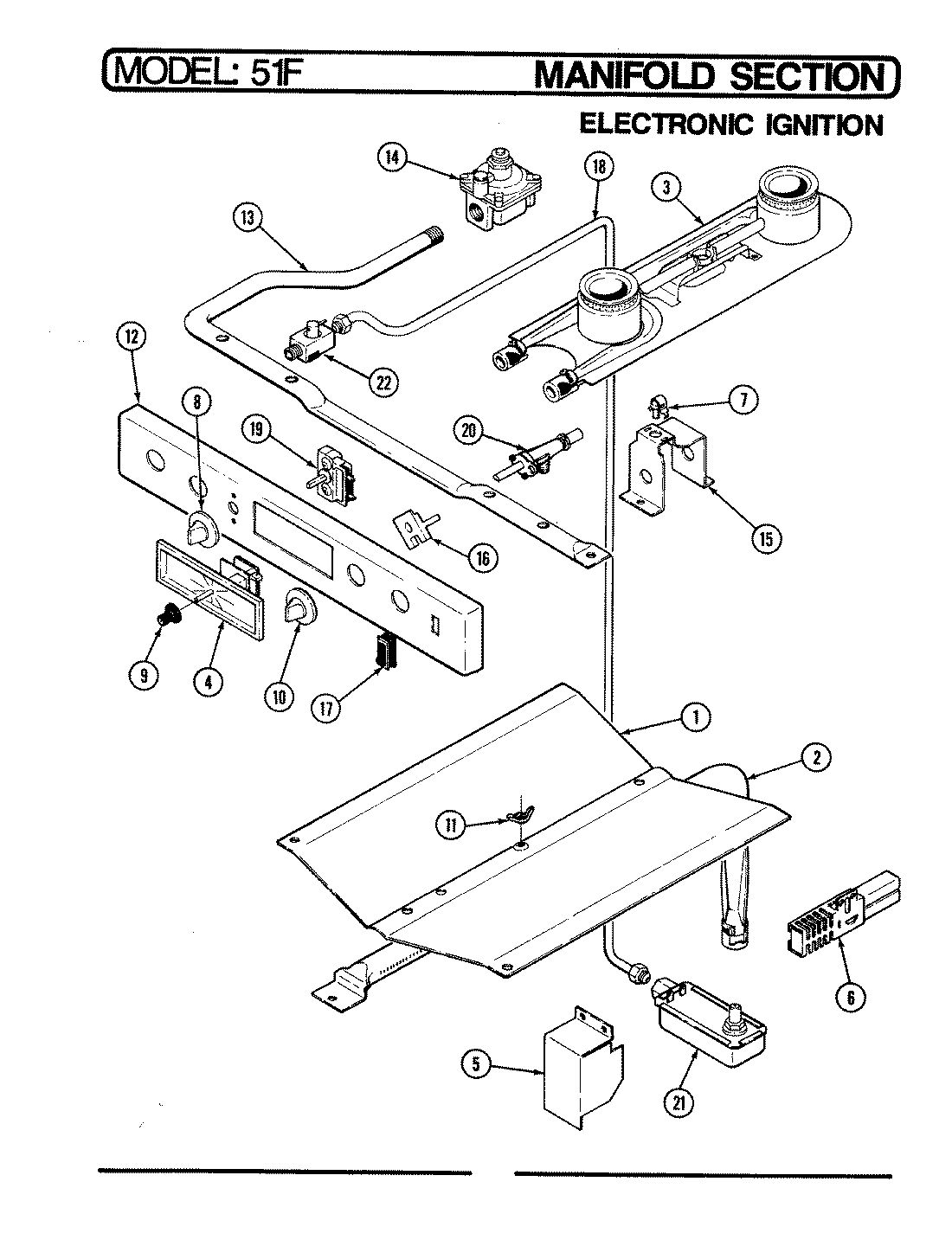

04 - MANIFOLD SECTION

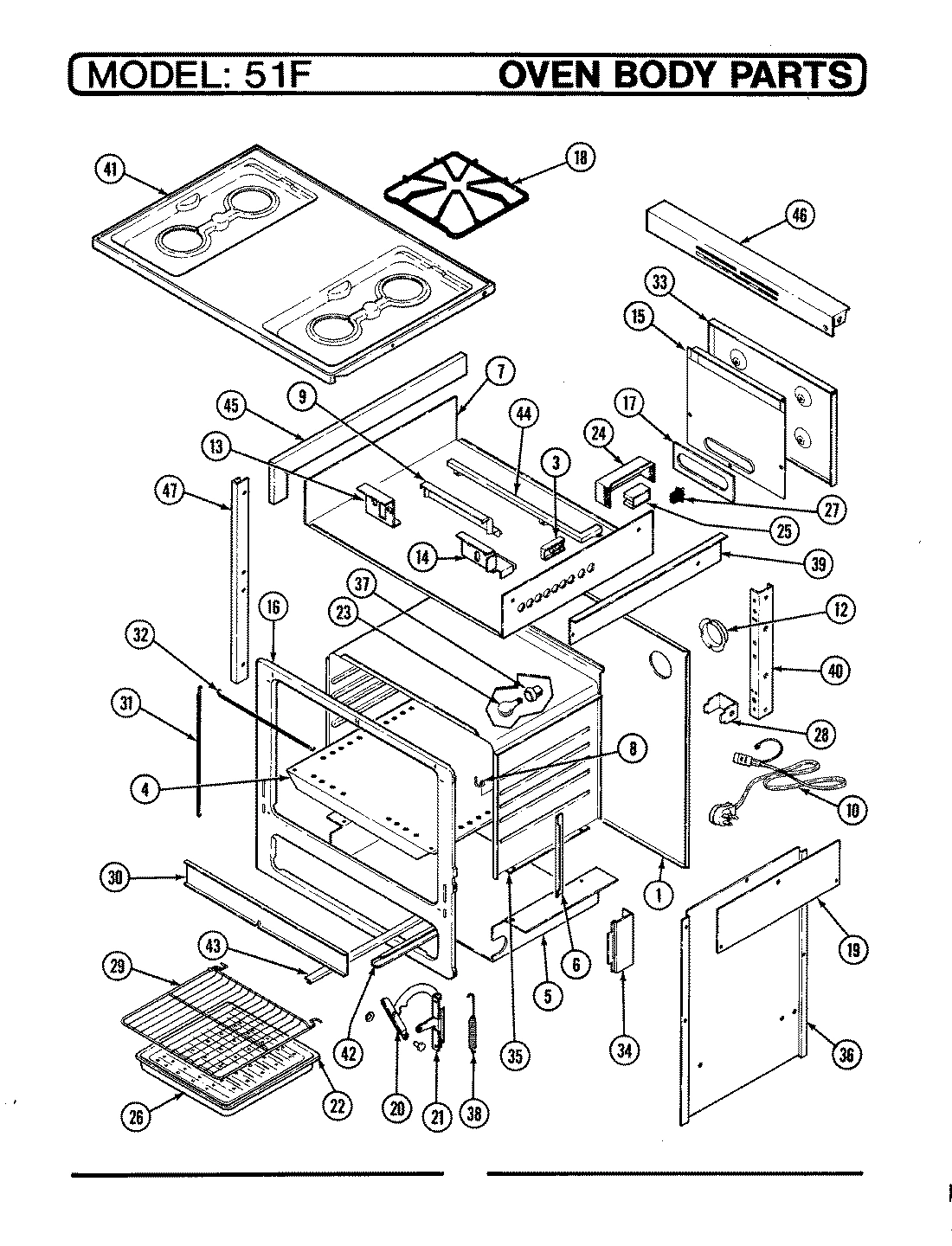

01 - BODY
Common parts from model Whirlpool 51FN-2KX-ON GAS RANGE
1
BRACKET, FRONT GLASS WPL 8020P00460 Contact Us For Availability
1
BAFFLE, BROILER WPL 3601F16245 Contact Us For Availability
1
BACK, BODY WPL 4002F08980 Contact Us For Availability
2
BRACKET, PIVOT LEFT WPL 3801F15335 Contact Us For Availability
2
BRACKET, PIVOT RIGHT WPL 3801F15435 Contact Us For Availability
2
FRAME, DOOR ASSY WPL 3603W01870 Contact Us For Availability
2
BURNER, OVEN WPL 7505P11360 Contact Us For Availability
2
BACK, DRUM WPL 2204W07023 Contact Us For Availability
3
CATCH WPL 8002P00160 Contact Us For Availability
3
GLASS, DOOR WPL 7902P23660 Contact Us For Availability
3
UNIBURNER ASSY WPL 3412A00119 Contact Us For Availability
3
TOP BURNER ASSY WPL 3412A00123 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P02960 Contact Us For Availability
4
DRAWER BROILER WPL 3407W00619 Contact Us For Availability
4
BROILER, DRAWER WPL 3407W00623 Contact Us For Availability
4
GLASS, MIDDLE WINDOW WPL 7902P26060 Contact Us For Availability
4
CLOCK WPL 7602P07960 Contact Us For Availability
4
CLOCK WPL 7602P10060 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F01423 Contact Us For Availability
5
HANDLE, OVEN DOOR WPL 7701P06660 Contact Us For Availability
5
COVER, VALVE WPL 4005F23651 Contact Us For Availability
5
BOTTOM, RANGE WPL 4011F12180 Contact Us For Availability
6
LINING DOOR WPL 2402W12619 Contact Us For Availability
6
LINING ASSY, WD DR WPL 2402W12623 Contact Us For Availability
6
IGNITER ASSY, OVEN WPL 4810D00160 Contact Us For Availability
6
IGNITER, OVEN WPL 7432P03260 Contact Us For Availability
6
BRACE, DRUM SIDE WPL 3802F06961 Contact Us For Availability
7
HANDLE, BROILER DOOR WPL 7701P06560 Contact Us For Availability
7
RETAINER, INSULATION WPL 3804F07680 Contact Us For Availability
7
IGNITER, TOP BURNER (RT) WPL 7432P03360 Contact Us For Availability
7
IGNITER, TOP BURNER (LT)----NA WPL 7432P03460 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F13280 Contact Us For Availability
8
LINING DOOR BROILER WPL 2404F02619 Contact Us For Availability
8
LINING WPL 2404F02623 Contact Us For Availability
8
HEATSHIELD WPL 3604F11780 Contact Us For Availability
8
KNOB, THERMOSTAT WPL 7731P01560 Contact Us For Availability
8
LATCH, OVEN BUTTON WPL 8002P01960 Contact Us For Availability
9
PANEL, BROILER DOOR WHT WPL 2403F02571 Contact Us For Availability
9
SPACER, HANDLE (BLK) WPL 8010P01560 Contact Us For Availability
9
KNOB, CLOCK WPL 1437241 Contact Us For Availability
9
CLAMP, WIRE WPL 7111P00460 Contact Us For Availability
10
SCREW WPL 7101P16960 Contact Us For Availability
10
TAPE, LWR DR GLASS (1``X1.25``) WPL 8270P04660 Contact Us For Availability
10
KNOB, VALVE WPL 7733P01660 Contact Us For Availability
10
CORD, POWER WPL 7402P02060 Contact Us For Availability
11
SPACER, DOOR HANDLE WPL 8010P03260 Contact Us For Availability
11
NUT, LOCK WPL 7103P11160 Contact Us For Availability
11
COVER, CLOCK & THERMO WPL 4005F21680 Contact Us For Availability
12
SPRING, BROILER DOOR----NA WPL 7803P03560 Contact Us For Availability
12
PANEL, MANIFOLD BLACK WPL 2616F05090 Contact Us For Availability
12
INLAY, MANIFOLD PNL WPL 7728P03860 Contact Us For Availability
12
COVER, RECEPTACLE WPL 4005F23251 Contact Us For Availability
13
PIPE MANIFOLD WPL 5725A12580 Contact Us For Availability
13
COVER, WIRE LEFT HAND WPL 4005F24480 Contact Us For Availability
14
REGULATOR WPL 7510P02160 Contact Us For Availability
14
REGULATOR GAS WPL 7510P04260 Contact Us For Availability
14
COVER, WIRE RIGHT HAND WPL 4005F24580 Contact Us For Availability
15
SUPPORT, TOP BURNER WPL 3807F32351 Contact Us For Availability
15
FLUE, BOX ASSY WPL 4006W07280 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P13560 Contact Us For Availability
16
SWITCH, IGNITER WPL 7403P25760 Contact Us For Availability
16
SWITCH, VALVE WPL 7403P30160 Contact Us For Availability
17
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
17
GASKET, FLUE BOX WPL 7201P03160 Contact Us For Availability
18
TUBING, OVEN BURNER WPL 3414F02944 Contact Us For Availability
18
GRATE WPL 2003W00100 Contact Us For Availability
18
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
19
THERMOSTAT WPL 7404P05360 Contact Us For Availability
19
THERMOSTAT WPL 7404P06660 Contact Us For Availability
19
SHIELD, HEAT WPL 3604F11651 Contact Us For Availability
20
VALVE, BURNER WPL 7502P06960 Contact Us For Availability
20
VALVE, BURNER WPL 7502P18660 Contact Us For Availability
20
VALVE, BURNER WPL 7502P24660 Contact Us For Availability
20
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
21
VALVE, OVEN WPL 7501P05460 Contact Us For Availability
21
VALVE WPL 7501P10960 Contact Us For Availability
21
BRACE WPL 3418A06534 Contact Us For Availability
21
HINGE, ROLLER WPL 3418A06634 Contact Us For Availability
22
VALVE, SHUT OFF WPL 7501P05560 Contact Us For Availability
22
GRIDDLE, BROILER WPL 3413F01123 Contact Us For Availability
24
COVER, MODULE WPL 4005F23180 Contact Us For Availability
25
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
26
PAN, BROILER WPL 3401F01223 Contact Us For Availability
27
CORD, POWER WPL 7402P02160 Contact Us For Availability
28
PROTECTOR, TUBING WPL 3604F12951 Contact Us For Availability
29
RACK, OVEN WPL 7801P02660 Contact Us For Availability
30
RETAINER, INSUL. WPL 3804F08451 Contact Us For Availability
31
SEAL, DOOR TOP WPL 2418F00360 Contact Us For Availability
32
SEAL, DOOR SIDE WPL 2418F00260 Contact Us For Availability
33
SHIELD, FLUE BOX WPL 3604F11451 Contact Us For Availability
34
SHIELD, HIGH INSULATION WPL 3604F11861 Contact Us For Availability
35
SIDE, DRUM WPL 2206F05219 Contact Us For Availability
35
SIDE, DRUM WPL 2206F05223 Contact Us For Availability
36
SIDE, INNER BODY WPL 4016F02280 Contact Us For Availability
37
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
38
SPRING, DOOR WPL 7803P03760 Contact Us For Availability
39
SUPPORT, RANGE WPL 3820F00280 Contact Us For Availability
40
SUPPORT, TRIM WPL 3807F31380 Contact Us For Availability
41
TOP, MAIN ENAMEL WHITE WPL 2001F06171 Contact Us For Availability
42
TRACK, BROILER DOOR LOWER WPL 3404F00751 Contact Us For Availability
43
TRACK, BROILER DRAWER WPL 3404F00851 Contact Us For Availability
44
COVER WPL 4005F22080 Contact Us For Availability
45
TRIM, DECORATIVE WPL 7746P01360 Contact Us For Availability
45
TRIM, SIDE LEFT WPL 7746P01460 Contact Us For Availability
46
TRIM, BACK WPL 3608F01032 Contact Us For Availability
47
TRIM, VENT WPL 7746P01560 Contact Us For Availability
47
TRIM, VENT LEFT WPL 7746P01660 Contact Us For Availability
× ![]()
