Model LG 50PC5DC-UL – Common Parts & Diagrams

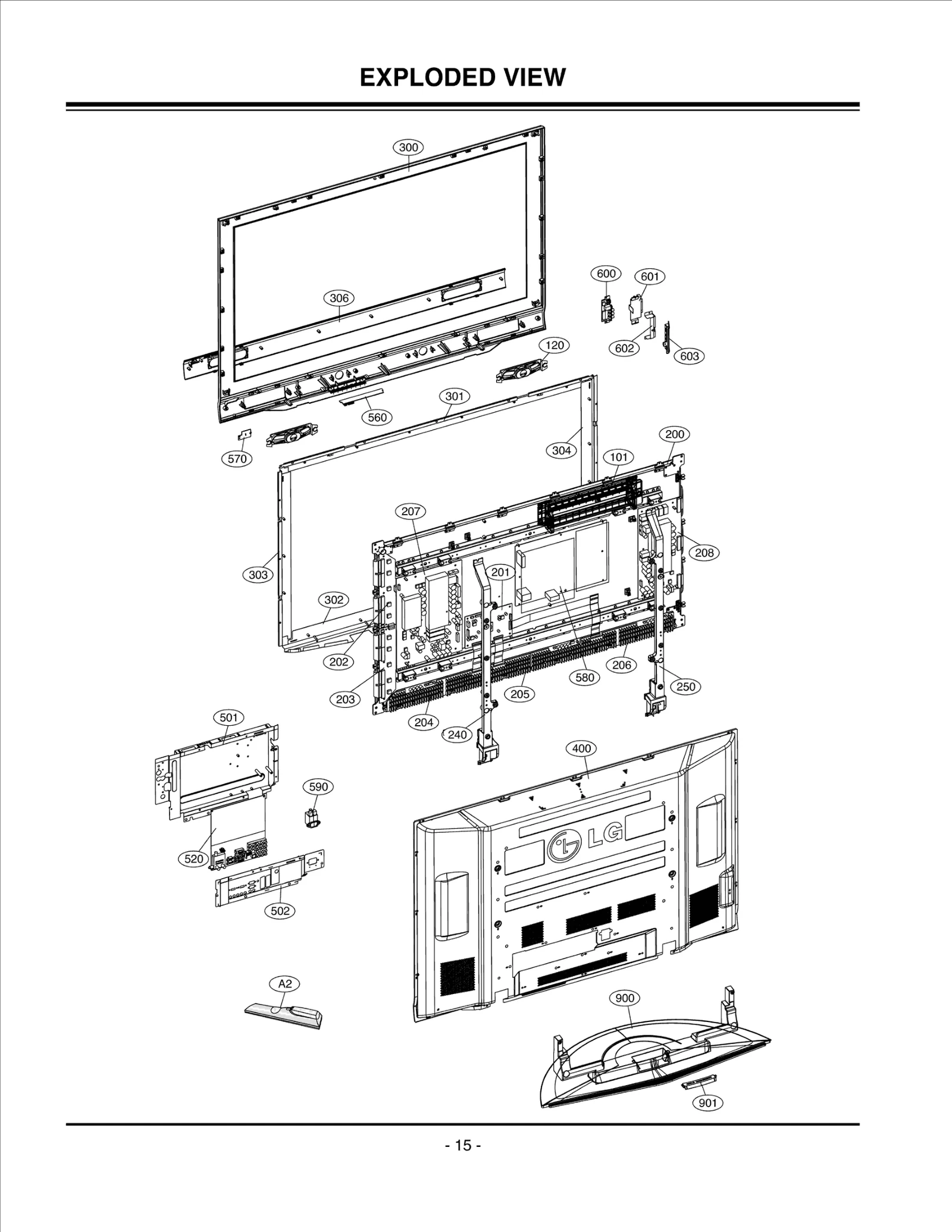

Diagram 0
Diagram 1
Common parts from model LG 50PC5DC-UL
120
Speaker,Full Range LGE EAB33775101 Contact Us For Availability
200
PDP,Module-XGA FILTER INCLUDED LGE EAJ36420204 Contact Us For Availability
201
Hand Insert PCB Asse LGE EBR35959201 Contact Us For Availability
202
Hand Insert PCB Asse LGE EBR37397801 Contact Us For Availability
207
Hand Insert PCB Asse LGE EBR37284101 Contact Us For Availability
208
Hand Insert PCB Asse LGE EBR37284601 Contact Us For Availability
240
Supporter Assembly LGE AJJ31591603 Contact Us For Availability
250
Supporter Assembly LGE AJJ31591604 Contact Us For Availability
300
Cabinet Assembly LGE ABJ31591213 Contact Us For Availability
301
Supporter Assembly LGE AJJ31592502 Contact Us For Availability
302
Supporter Assembly LGE AJJ31592602 Contact Us For Availability
303
Supporter Assembly LGE AJJ31592702 Contact Us For Availability
304
Supporter Assembly LGE AJJ31592802 Contact Us For Availability
306
Bracket Assembly LGE ABA31593004 Contact Us For Availability
400
Cover Assembly LGE ACQ31591304 Contact Us For Availability
501
Plate Assembly LGE AGU31680939 Contact Us For Availability
520
Hand Insert PCB Assembly LGE EBR42870102 Contact Us For Availability
560
Hand Insert PCB Assembly LGE EBR41438805 Contact Us For Availability
570
Hand Insert PCB Assembly LGE EBR41437805 Contact Us For Availability
590
Filter,AC Line LGE EAM35012703 Contact Us For Availability
600
Chassis Assembly LGE EBT41439305 Contact Us For Availability
601
Supporter LGE MJH32554904 Contact Us For Availability
602
Plate,Shield LGE MGJ32369301 Contact Us For Availability
603
Bracket Assembly LGE ABA31583302 Contact Us For Availability
900
Base Assembly LGE AAN31593103 Contact Us For Availability
A
Bag,Vinyl LGE 3880VA0031E Contact Us For Availability
A
Chassis Assembly LGE EBT41438205 Contact Us For Availability
A
Box LGE MAY34495201 Contact Us For Availability
A
LGE 1WZZV10003B LGE 1WZZV10003B Contact Us For Availability
A
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
A
Manual,Owners LGE MFL34797033 Contact Us For Availability
A
Harness,Single LGE 6631V12031F Contact Us For Availability
A
Hand Insert PCB Assembly LGE EBR41439406 Contact Us For Availability
A
Pin,Customized LGE 366-017A Contact Us For Availability
A
Bag LGE 38809P0004A Contact Us For Availability
A
Damper LGE 3940TKK091S Contact Us For Availability
A
Chassis Assembly LGE EBT41437706 Contact Us For Availability
A
Chassis Assembly LGE EBT41954401 Contact Us For Availability
A
Packing LGE 3920900195K Contact Us For Availability
A
Packing LGE MFZ32386902 Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631V39016E Contact Us For Availability
A2
Remote Controller LGE MKJ39927801 Contact Us For Availability
B103
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
C103
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107SF6DC Contact Us For Availability
LD803
LED LGE 0DL233309AC Contact Us For Availability
LV1
Harness,Single LGE EAD35682502 Contact Us For Availability
P102
Connector,Wafer LGE 6602T20008N Contact Us For Availability
R972
LGE 0RD0302A609 LGE 0RD0302A609 Contact Us For Availability
SW107
SWITCH TACT LGE 140-313B Contact Us For Availability
× ![]()
