Model Maytag 4KNTW4705FW0 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

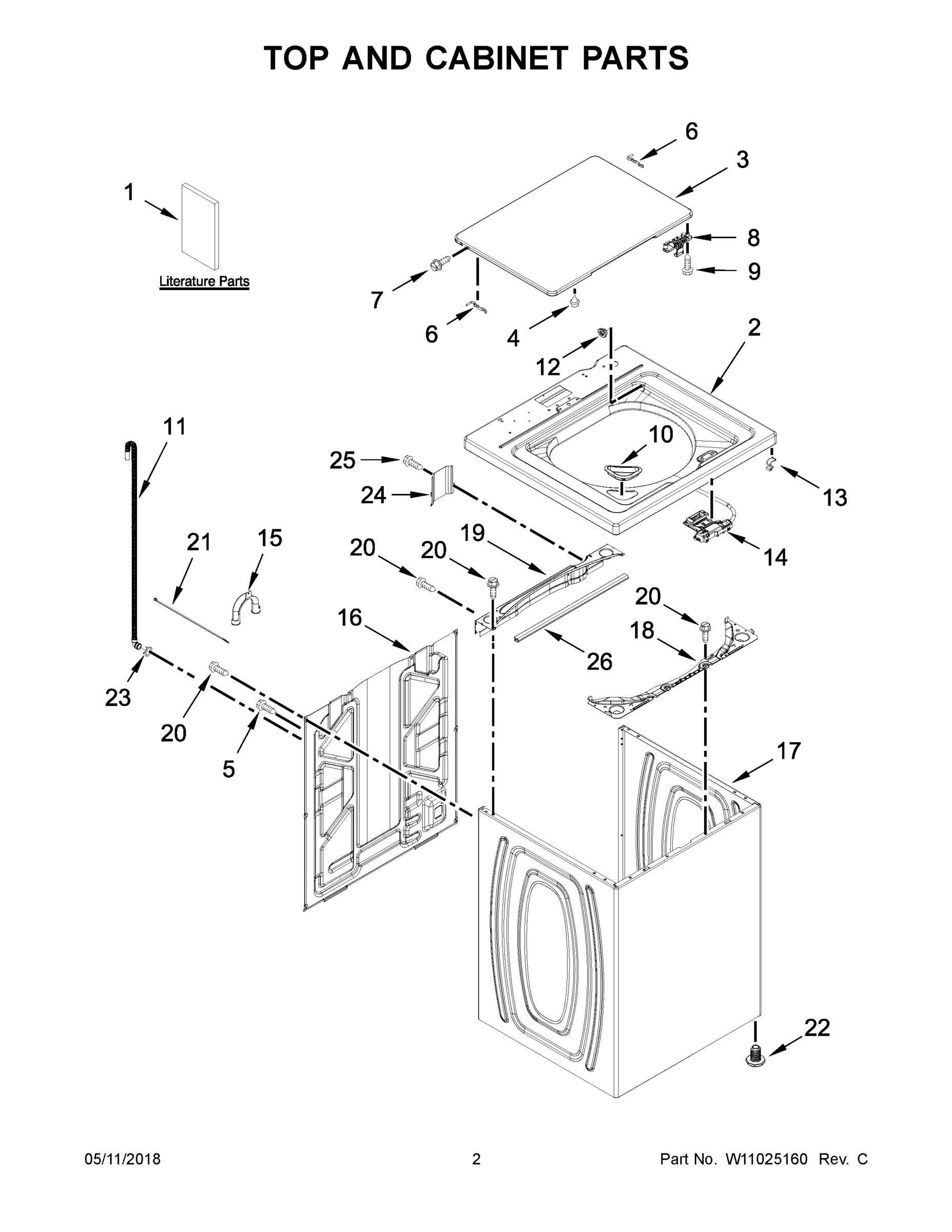

02 - TOP AND CABINET PARTS

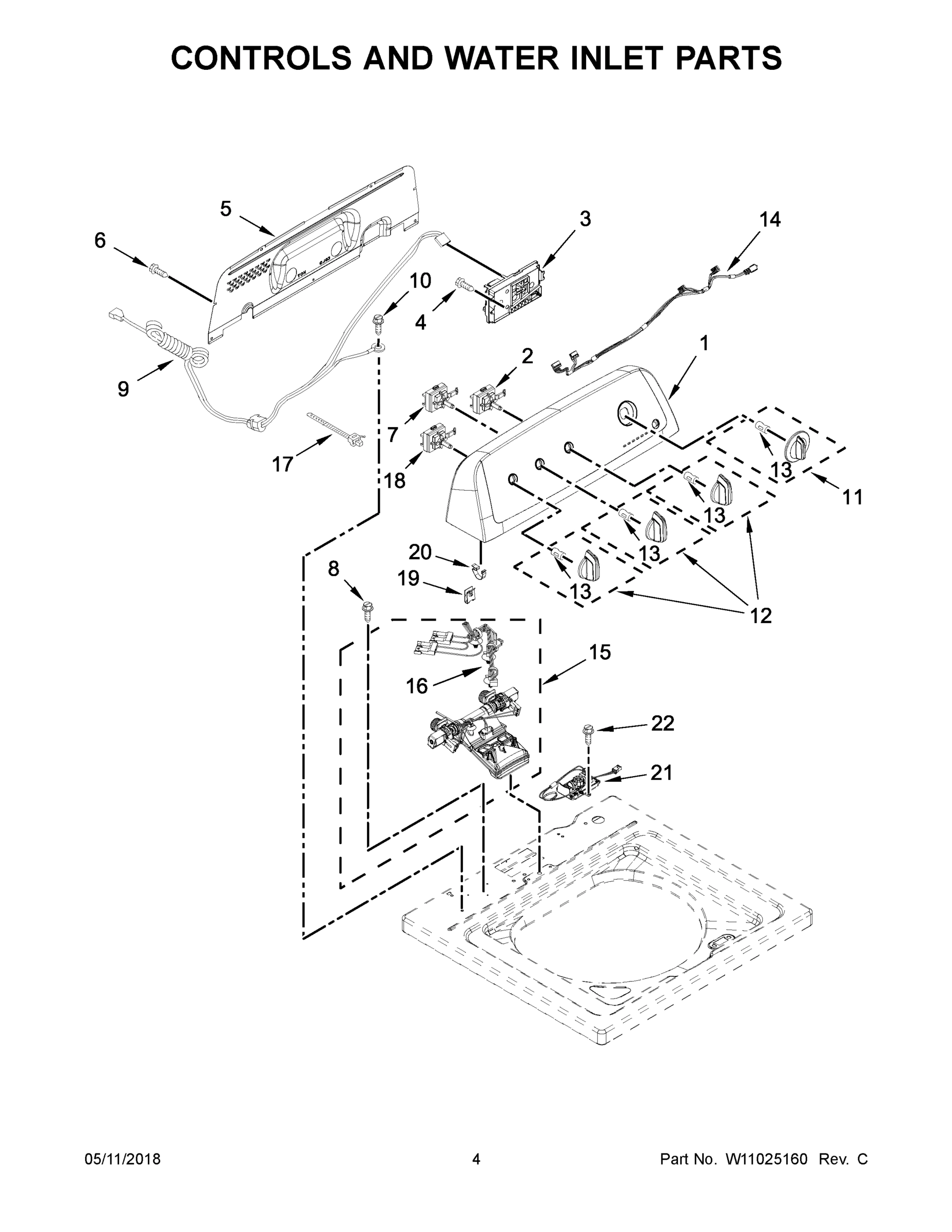

03 - CONTROLS AND WATER INLET PARTS

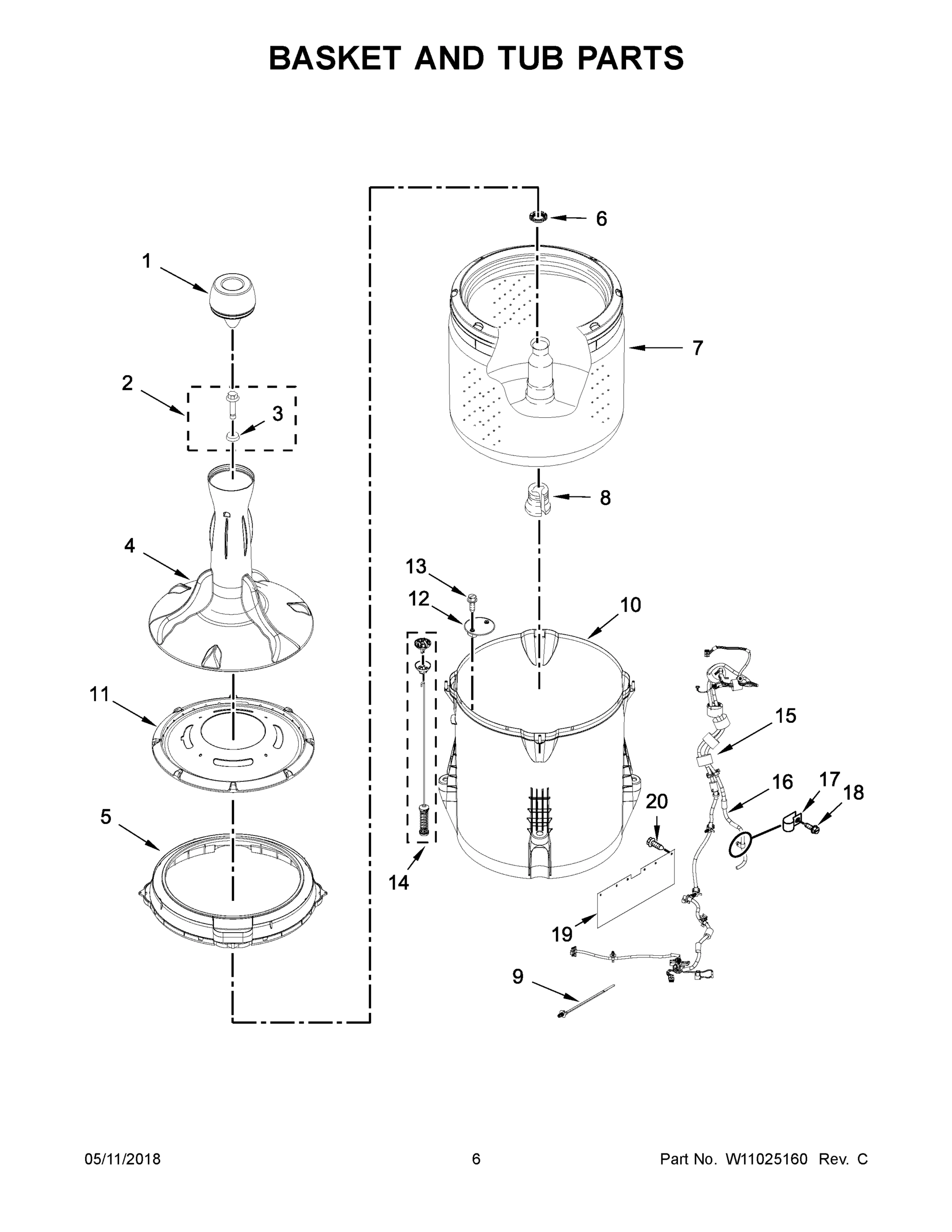

04 - BASKET AND TUB PARTS

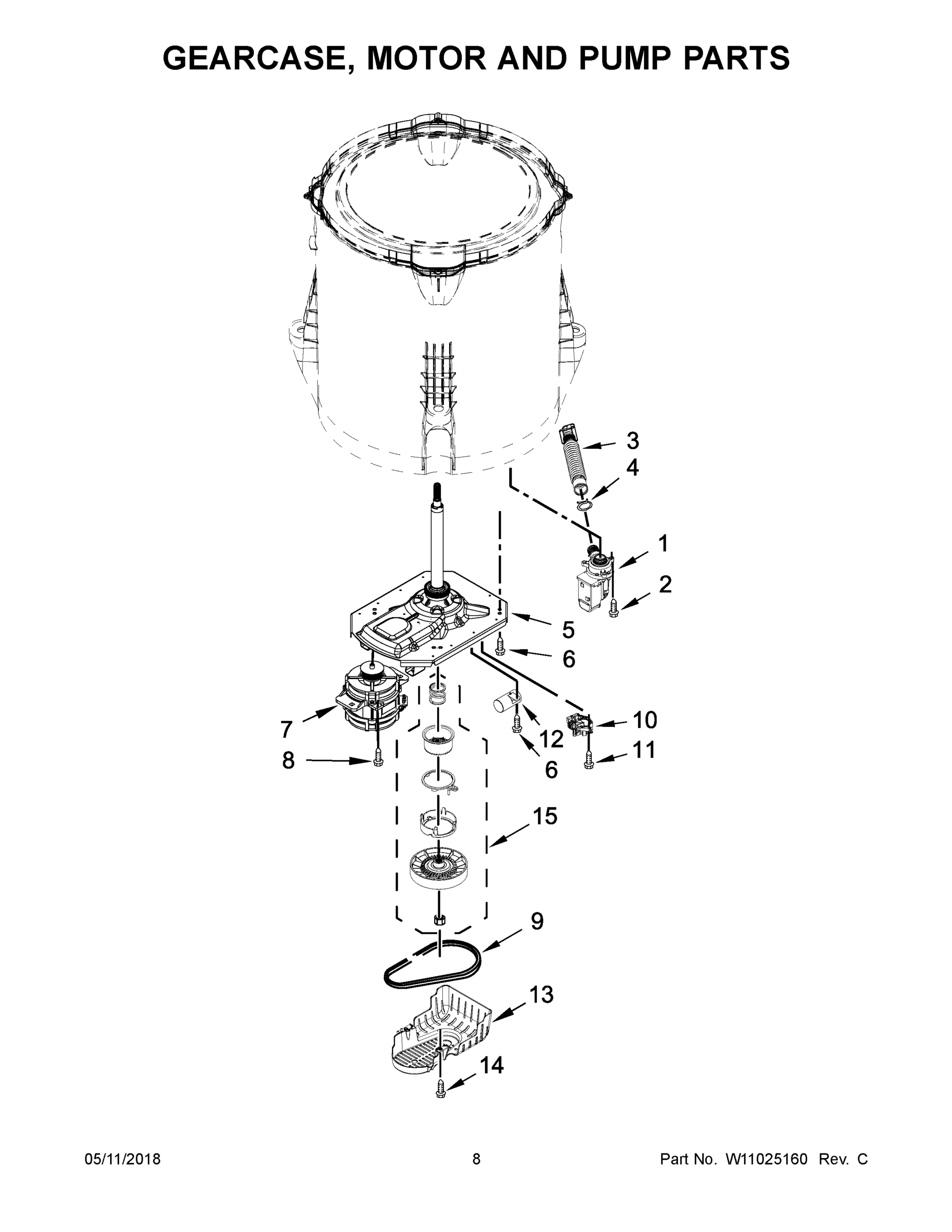

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KNTW4705FW0 LAUNDRY, RESIDENTIAL, WASHER
1
INSTALLATION INSTRUCTIONS MAY W10849505 Contact Us For Availability
1
PANEL, CONSOLE MAY W10774514 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10680192 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10297344 Contact Us For Availability
1A
OWNERS MANUAL MAY W10849503 Contact Us For Availability
1B
TECH SHEET MAY W10845896 Contact Us For Availability
1C
QUICK START GUIDE MAY W10849506 Contact Us For Availability
2
TOP (WHITE) MAY W10686433 Contact Us For Availability
2
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10414381 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID (WHITE) MAY W10251302 Contact Us For Availability
3
MAY W11099828 MAY W11099828 Contact Us For Availability
3
WASHER MAY 3949550 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
SCREW MAY 3400076 Contact Us For Availability
4
AGITATOR MAY W10680208 Contact Us For Availability
4
HOSE, INNER DRAIN MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
PANEL, CONSOLE REAR COVER MAY W10409320 Contact Us For Availability
5
RING, TUB MAY W10531289 Contact Us For Availability
5
ASSEMBLY MAY W10903969 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
SCREW MAY W10660565 Contact Us For Availability
6
NUT, SPANNER MAY 21366 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10414398 Contact Us For Availability
7
BASKET ASSEMBLY MAY W10554251 Contact Us For Availability
7
MOTOR, DRIVE MAY W11028438 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY W10213953 Contact Us For Availability
8
BLOCK, BASKET DRIVE MAY 389140 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
CORD, UNIVERSAL POWER MAY W10836356 Contact Us For Availability
9
CABLE TIE MAY W10267532 Contact Us For Availability
9
BELT, DRIVE MAY W10006384 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
TUB MAY W10238320 Contact Us For Availability
10
ACTUATOR, SHIFT MAY W10815027 Contact Us For Availability
11
HOSE, OUTER DRAIN ASSEMBLY MAY W11203364 Contact Us For Availability
11
ASSEMBLY, TIMER KNOB (WHITE) MAY W10711289 Contact Us For Availability
11
BASE SHIELD MAY W10723583 Contact Us For Availability
11
SCREW MAY 9741052 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
ASSEMBLY, CONTROL KNOB (WHITE) MAY W10453947 Contact Us For Availability
12
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
12
CAPACITOR, MOTOR RUN MAY W10625044 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
CLIP, SPRING MAY 8536939 Contact Us For Availability
13
SCREW MAY 8533928 Contact Us For Availability
13
SHIELD, PULLEY COVER MAY W10427633 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10828830 Contact Us For Availability
14
HARNESS, UPPER MAY W10694671 Contact Us For Availability
14
DAMPER ASSEMBLY, TUB SUSPENSION SET OF 4-INCL MAY W10821951 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
15
INLET ASSEMBLY, WATER MAY W11026622 Contact Us For Availability
15
HARNESS, LOWER MAY W10746351 Contact Us For Availability
15
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
HARNESS, VALVE MAY W10917060 Contact Us For Availability
16
HOSE, PRESSURE SWITCH MAY W10520039 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
TIE, CABLE MAY W10339879 Contact Us For Availability
17
CLAMP, CABLE MAY W10005430 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W11172902 Contact Us For Availability
18
SCREW MAY 8533943 Contact Us For Availability
18
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10414397 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
NUT, "U" MAY W10298336 Contact Us For Availability
19
SHIELD, SPLASH MAY W10339098 Contact Us For Availability
20
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
20
RETAINER, PUSH-IN MAY W10429200 Contact Us For Availability
21
LINE FILTER ASSY MAY W10906191 Contact Us For Availability
22
FOOT ASSEMBLY, LEVELING MAY W10732708 Contact Us For Availability
22
SCREW MAY W10567155 Contact Us For Availability
23
CLAMP, HOSE MAY 356138 Contact Us For Availability
24
COVER, HARNESS MAY W10676061 Contact Us For Availability
26
BRACE-GUARD, CABINET REAR TOP MAY W10521454 Contact Us For Availability
NI
ADAPTER, POWER CORD MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTER (BRITISH) MAY W10476820 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
ACCESSORY PARTS, ADAPTER, HOSE MAY 3357397 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10194210 MAY W10194210 Contact Us For Availability
NI
MAY W10194211 MAY W10194211 Contact Us For Availability
NI
MAY W10242307 MAY W10242307 Contact Us For Availability
NI
MAY W10269488 MAY W10269488 Contact Us For Availability
NI
MAY W10615809 MAY W10615809 Contact Us For Availability
NI
MAY W10615831 MAY W10615831 Contact Us For Availability
NI
MAY W10810281 MAY W10810281 Contact Us For Availability
× ![]()
