Model Maytag 4KNTW4430EQ0 WASHER – Common Parts & Diagrams

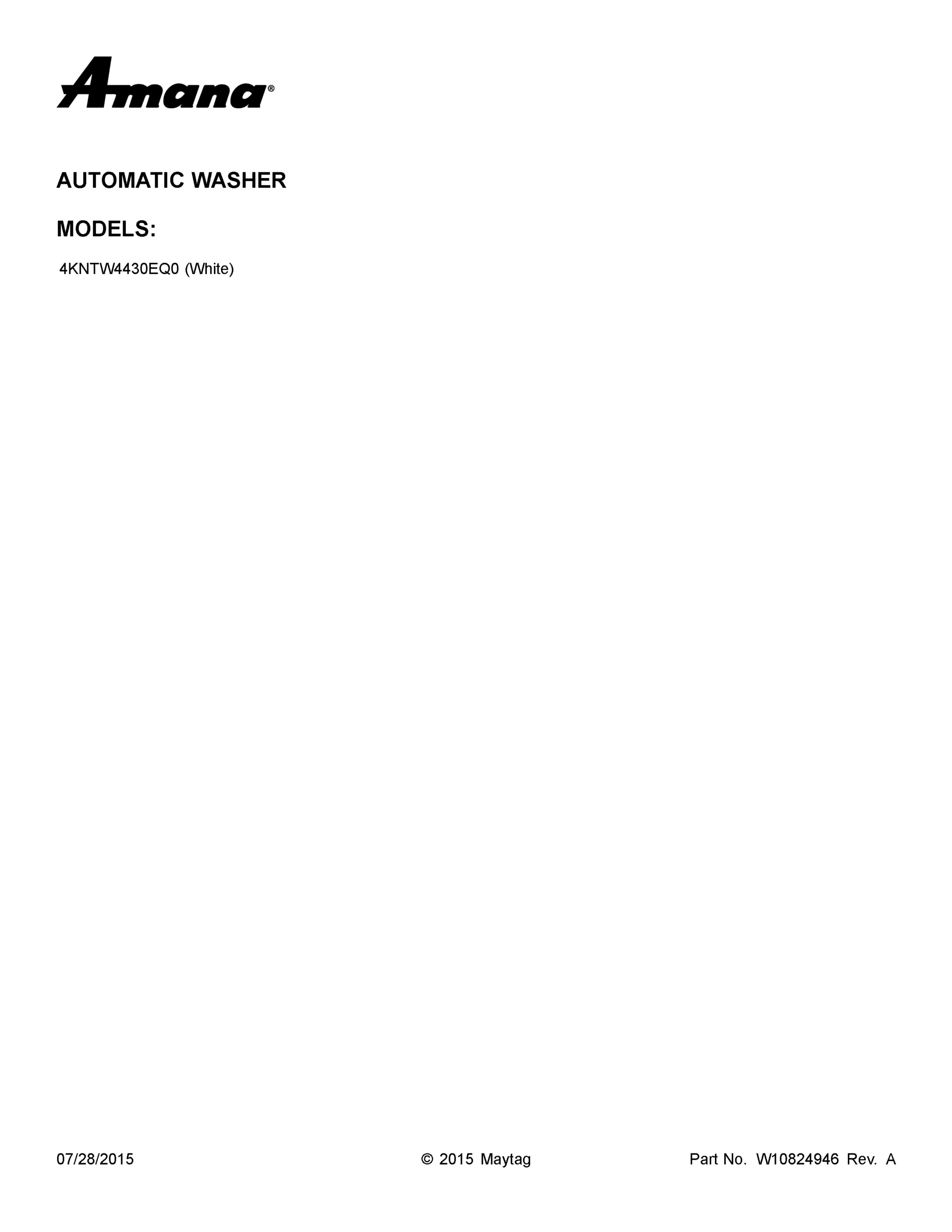

01 - COVER SHEET

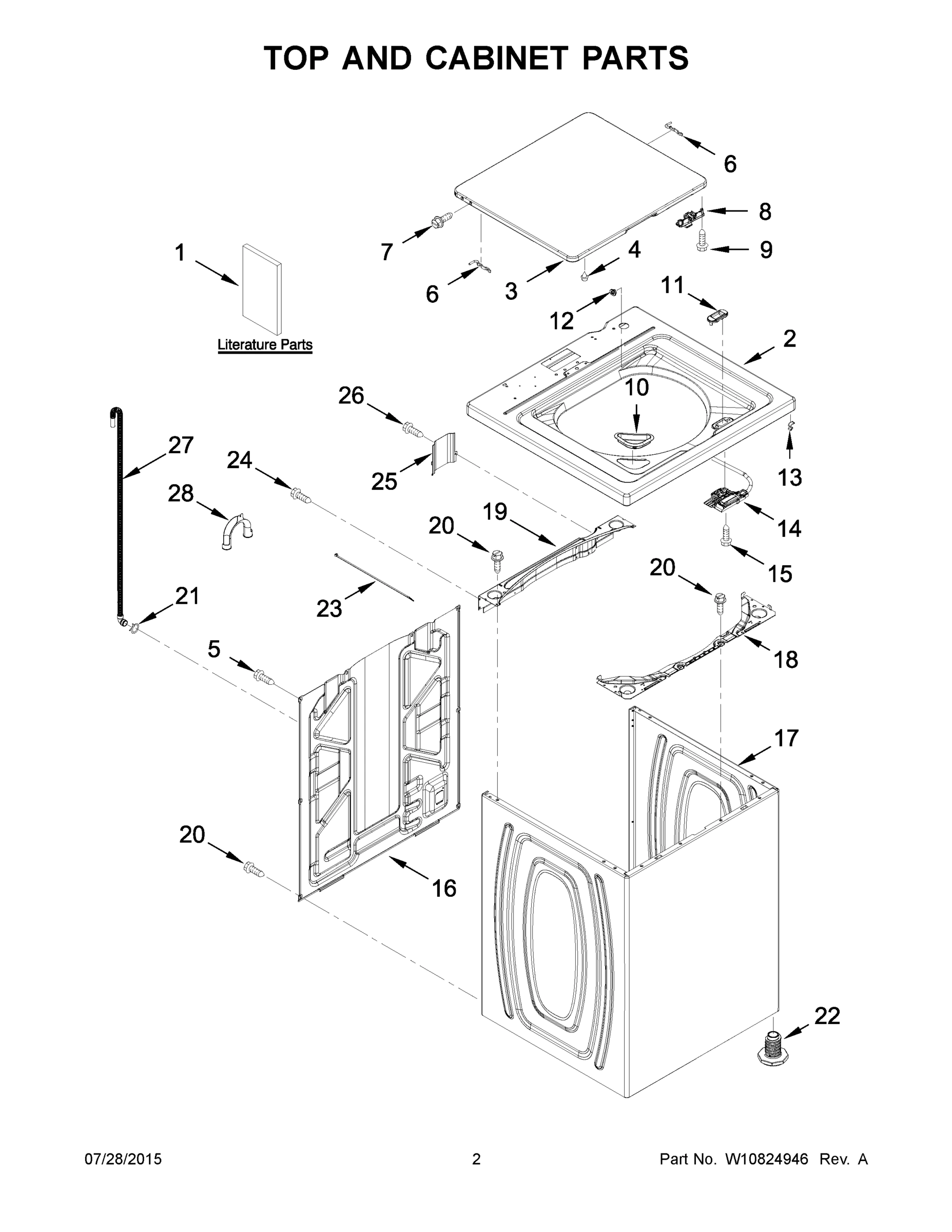

02 - TOP AND CABINET PARTS

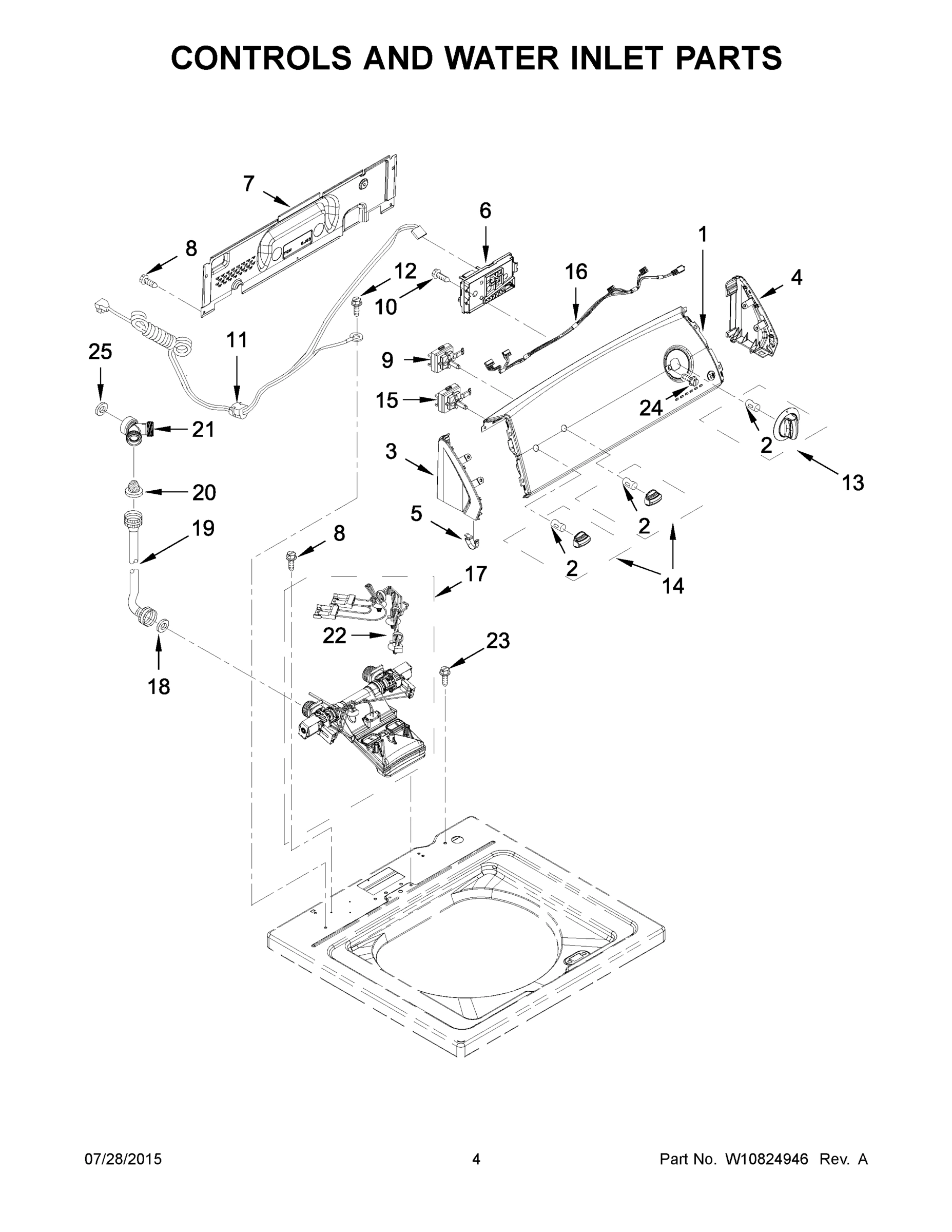

03 - CONTROLS AND WATER INLET PARTS

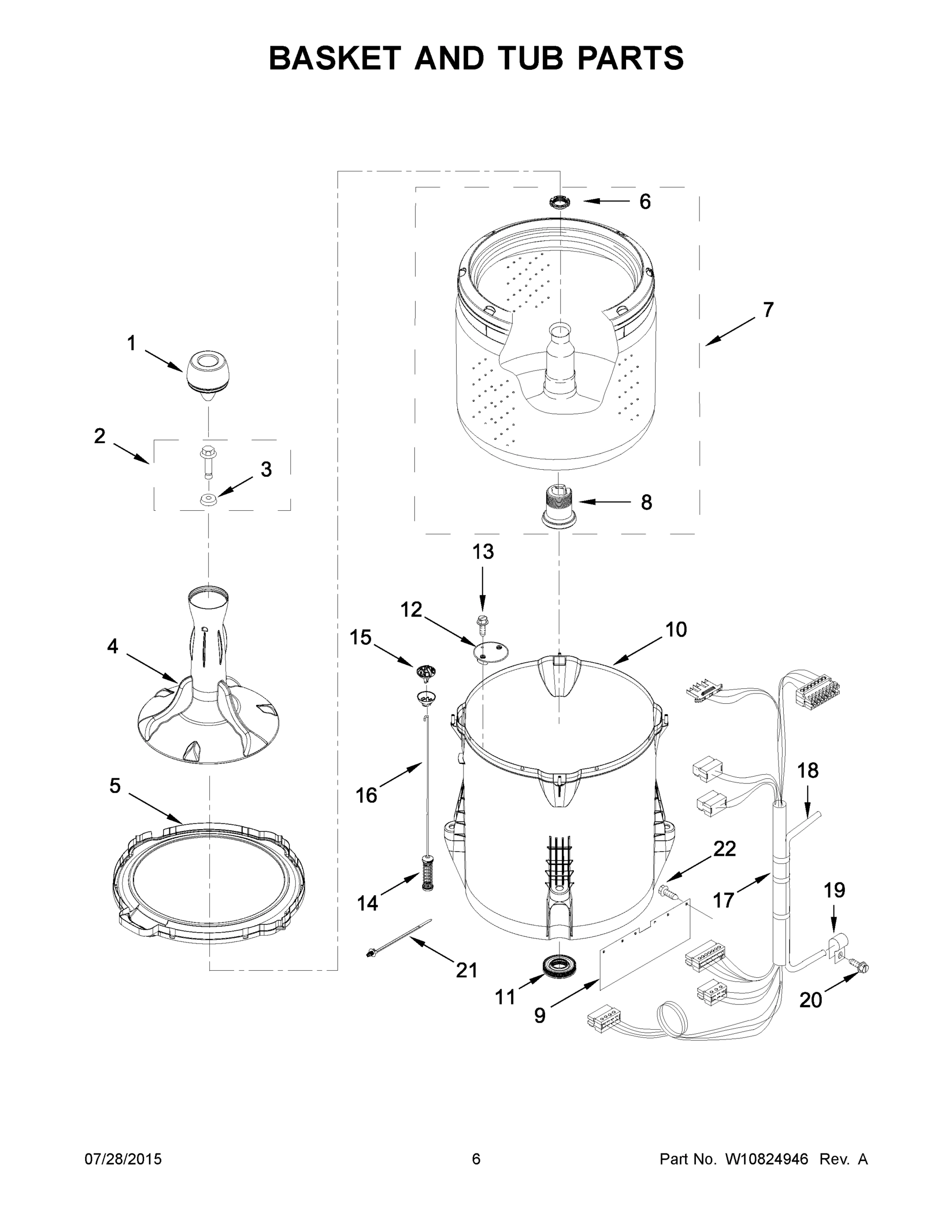

04 - BASKET AND TUB PARTS

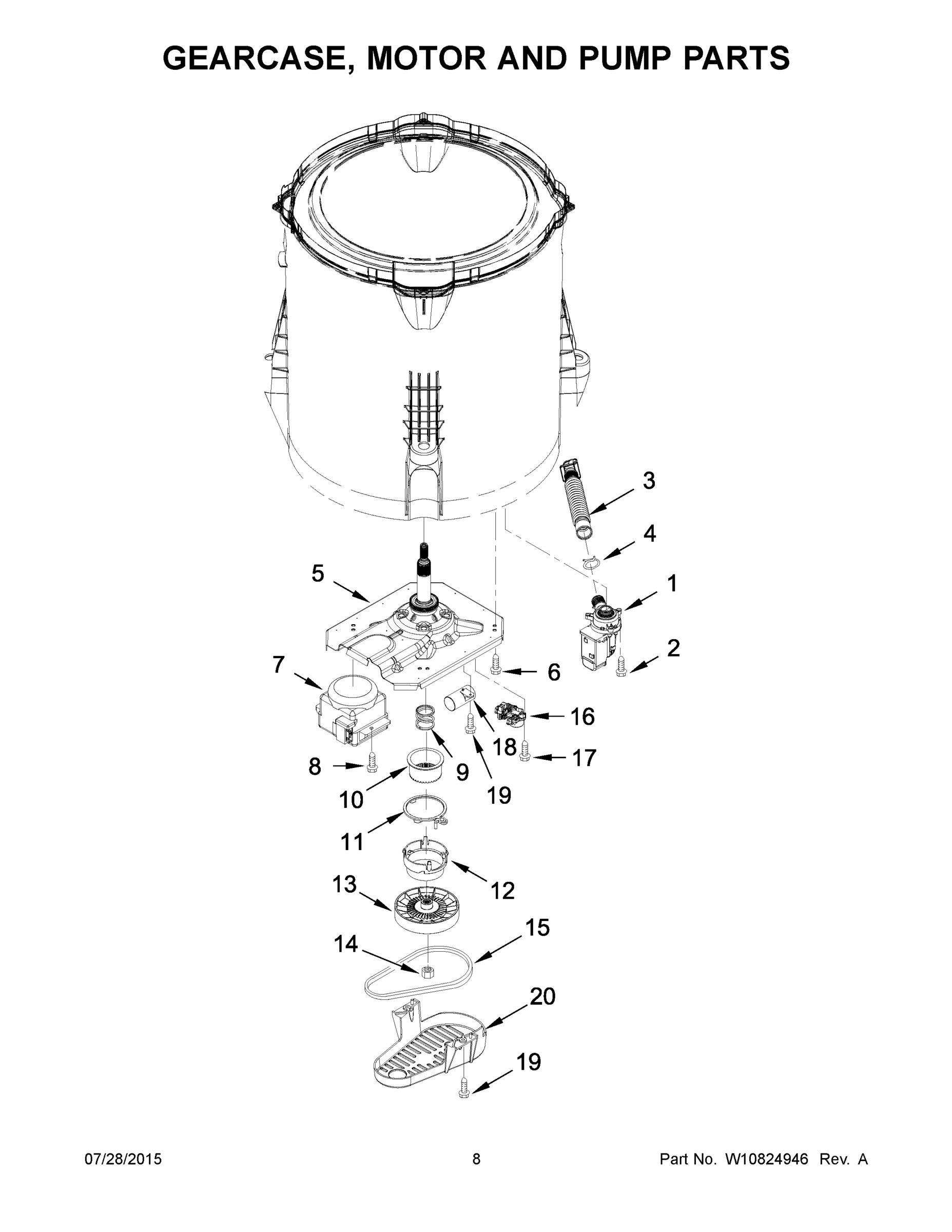

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KNTW4430EQ0 WASHER
1
MAY W10547679 MAY W10547679 Contact Us For Availability
1
MAY W10736641 MAY W10736641 Contact Us For Availability
1
MAY W10680192 MAY W10680192 Contact Us For Availability
1
MAY W10297344 MAY W10297344 Contact Us For Availability
1A
MAY W10589601 MAY W10589601 Contact Us For Availability
1B
MAY W10740680 MAY W10740680 Contact Us For Availability
2
TOP (WHITE) MAY W10251299 Contact Us For Availability
2
CLIP, SPRING MAY 8536939 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10251302 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10251358 Contact Us For Availability
3
MAY 3949550 MAY 3949550 Contact Us For Availability
3
MAY W10444123 MAY W10444123 Contact Us For Availability
4
BUMPER, LID MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10251355 Contact Us For Availability
4
MAY W10680208 MAY W10680208 Contact Us For Availability
4
MAY 8317496 MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
MAY 8312709 MAY 8312709 Contact Us For Availability
5
MAY W10215107 MAY W10215107 Contact Us For Availability
5
MAY W10473144 MAY W10473144 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W10758699 MAY W10758699 Contact Us For Availability
6
MAY 21366 MAY 21366 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
MAY W10461159 MAY W10461159 Contact Us For Availability
7
MAY W10358261 MAY W10358261 Contact Us For Availability
7
MAY W10416659 MAY W10416659 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10240513 Contact Us For Availability
8
MAY 1157158 MAY 1157158 Contact Us For Availability
8
MAY 389140 MAY 389140 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
9
MAY W10339098 MAY W10339098 Contact Us For Availability
9
SPRING, SPLUTCH MAY W10006382 Contact Us For Availability
10
MAY W10192089 MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
TUB (INCLUDES TUB SEAL) MAY W10238320 Contact Us For Availability
10
MAY W10239971 MAY W10239971 Contact Us For Availability
11
BEZEL, LID LOCK (WHITE) MAY W10392041 Contact Us For Availability
11
MAY W10422755 MAY W10422755 Contact Us For Availability
11
MAY W10006371 MAY W10006371 Contact Us For Availability
11
CAM RING, SPLUTCH MAY W10006353 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
MAY W10215093 MAY W10215093 Contact Us For Availability
12
CAM, SPLUTCH MAY W10006354 Contact Us For Availability
13
MAY 90016 MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10317457 Contact Us For Availability
13
SCREW (STAINLESS) MAY 8533928 Contact Us For Availability
13
MAY W10239973 MAY W10239973 Contact Us For Availability
14
LOCK, LID MAY W10294102 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10317458 Contact Us For Availability
14
MAY W10748952 MAY W10748952 Contact Us For Availability
14
NUT MAY W10604214 Contact Us For Availability
15
MAY W10285512 MAY W10285512 Contact Us For Availability
15
BALL, SUSPENSION (SET OF 4 - INCLUDES SUSPENS MAY W10583768 Contact Us For Availability
15
MAY W10006384 MAY W10006384 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
MAY W10537670 MAY W10537670 Contact Us For Availability
16
BUSHING - UPPER SUSPENSION (SET OF 4 - INCLUD MAY W10256551 Contact Us For Availability
16
MAY W10597178 MAY W10597178 Contact Us For Availability
17
MAY W10478060 MAY W10478060 Contact Us For Availability
17
MAY W10683676 MAY W10683676 Contact Us For Availability
17
MAY W10746346 MAY W10746346 Contact Us For Availability
17
SCREW MAY 9741052 Contact Us For Availability
18
MAY W10215098 MAY W10215098 Contact Us For Availability
18
WASHER, INLET HOSE MAY W10242307 Contact Us For Availability
18
MAY W10431037 MAY W10431037 Contact Us For Availability
18
MAY W10625044 MAY W10625044 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
HOSE, WATER INLET (COLD) MAY W10194210 Contact Us For Availability
19
CLAMP, CABLE MAY W10005430 Contact Us For Availability
19
SCREW MAY 357640 Contact Us For Availability
19A
HOSE, WATER INLET (HOT) MAY W10194211 Contact Us For Availability
20
WASHER, FILTER MAY W10810281 Contact Us For Availability
20
SCREW MAY 8533943 Contact Us For Availability
20
MAY W10427633 MAY W10427633 Contact Us For Availability
21
MAY 356138 MAY 356138 Contact Us For Availability
21
CONNECTOR, HOSE -"Y" MAY W10269488 Contact Us For Availability
21
MAY W10298887 MAY W10298887 Contact Us For Availability
22
MAY W10397994 MAY W10397994 Contact Us For Availability
22
MAY W10684972 MAY W10684972 Contact Us For Availability
22
MAY W10429200 MAY W10429200 Contact Us For Availability
23
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
24
SCREW MAY 3400818 Contact Us For Availability
25
MAY W10676061 MAY W10676061 Contact Us For Availability
25
WASHER, HOSE ADAPTER MAY 3357450 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
MAY W10280024 MAY W10280024 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTER (TYPE B) MAY W10475423 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
MAY 285834 MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, ADAPTER, STANDPIPE 2" DIA MAY 3363920 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487RP Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BLAC MAY 8212641RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 10 FT. (TWO BLA MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
