Model Maytag 4KNED5800TQ0 ELECTRIC DRYER – Common Parts & Diagrams

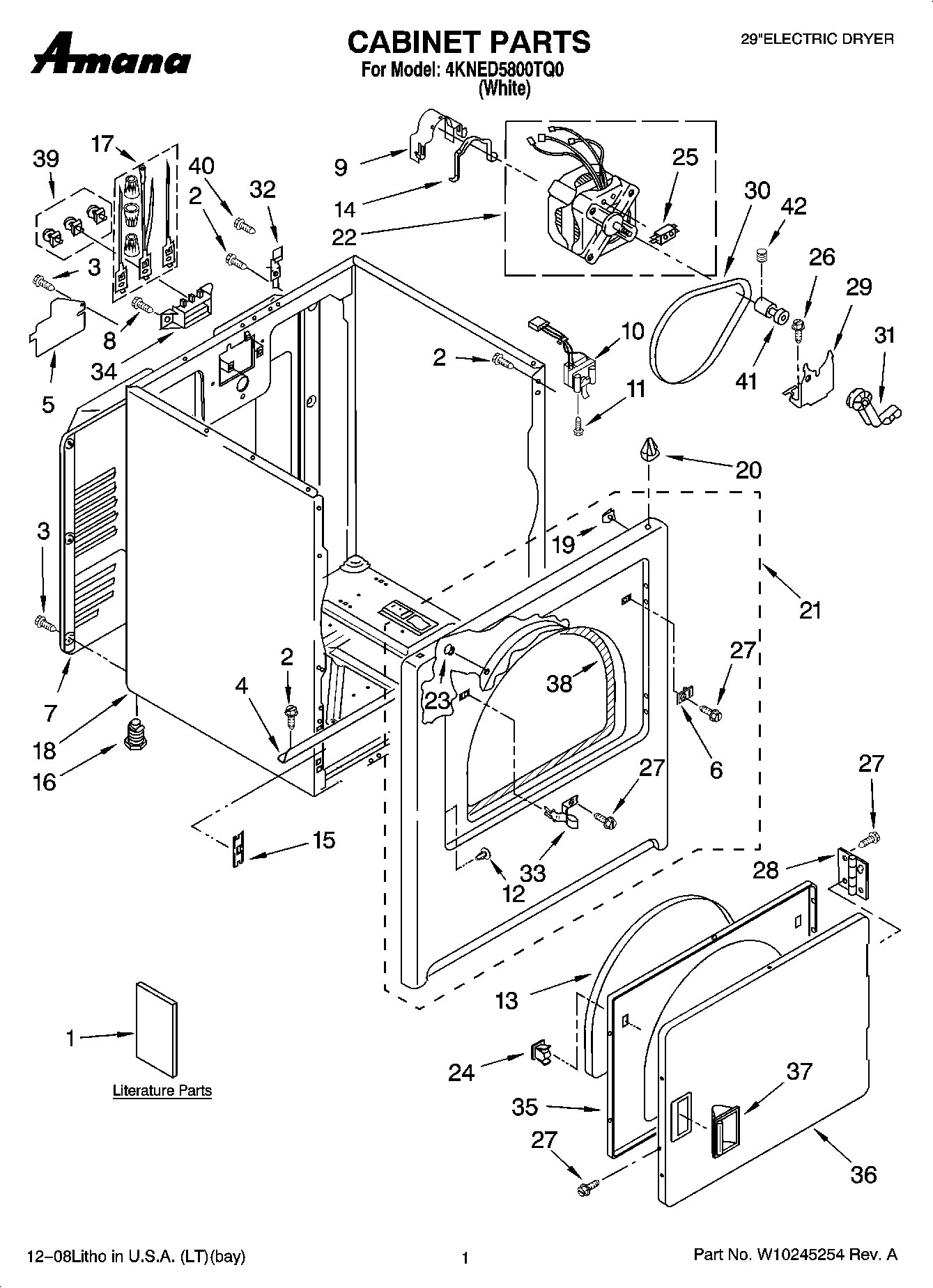

01 - CABINET PARTS
02 - TOP AND CONSOLE PARTS
03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KNED5800TQ0 ELECTRIC DRYER
1
MAY W10131613 MAY W10131613 Contact Us For Availability
1
MAY W10131614 MAY W10131614 Contact Us For Availability
1
MAY W10131615 MAY W10131615 Contact Us For Availability
1
MAY W10131616 MAY W10131616 Contact Us For Availability
1
MAY W10131623 MAY W10131623 Contact Us For Availability
1
MAY W10131624 MAY W10131624 Contact Us For Availability
1
MAY W10167648 MAY W10167648 Contact Us For Availability
1
MAY 8274261 MAY 8274261 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
Nut-Push-In (2) MAY 357213 Contact Us For Availability
2
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
3
MAY 693995 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
MAY 8271365 MAY 8271365 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 3396795 MAY 3396795 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
PLUG-STRIKE MAY 3403630 Contact Us For Availability
6
Panel, Control MAY W10086670 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 3952439 MAY 3952439 Contact Us For Availability
7
MAY 339956 MAY 339956 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
8
MAY 8271359 MAY 8271359 Contact Us For Availability
8
THERMOSTAT, INTERNAL BIAS MAY 3387137 Contact Us For Availability
9
MAY 3404162 MAY 3404162 Contact Us For Availability
9
Switch, Temperature MAY 3399639 Contact Us For Availability
9
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
10
MAY 3406109 MAY 3406109 Contact Us For Availability
10
Screen, Lint MAY 8558463 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
MAY 8271418 MAY 8271418 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
MAY 3405246 MAY 3405246 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
14
MAY W10121316 MAY W10121316 Contact Us For Availability
14
MAY 8533951 MAY 8533951 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 8557930 MAY 8557930 Contact Us For Availability
16
MAY 3403636 MAY 3403636 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
Knob, Control (2) MAY W10110047 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
MAY 8066086 MAY 8066086 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 3391885 MAY 3391885 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
MAY 690363 MAY 690363 Contact Us For Availability
20
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
MAY W10224853 MAY W10224853 Contact Us For Availability
21
MAY 3979617 MAY 3979617 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
Motor Assembly 50 Hz. MAY 685815 Contact Us For Availability
22
MAY 3405152 MAY 3405152 Contact Us For Availability
22
MAY 90296 MAY 90296 Contact Us For Availability
23
Clip, Felt Pad (3) MAY 685203 Contact Us For Availability
23
MAY W10110049 MAY W10110049 Contact Us For Availability
23
MAY 3976434 MAY 3976434 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
MAY 8558178 MAY 8558178 Contact Us For Availability
24
MAY 692490 MAY 692490 Contact Us For Availability
25
Switch, Centrifugal MAY 3388235 Contact Us For Availability
25
MAY 3936144 MAY 3936144 Contact Us For Availability
25
MAY 690997 MAY 690997 Contact Us For Availability
26
MAY 3400500 MAY 3400500 Contact Us For Availability
26
Timer Knob Assembly MAY W10110048 Contact Us For Availability
26
MAY 3399506 MAY 3399506 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
MAY W10119074 MAY W10119074 Contact Us For Availability
27
MAY 3399507 MAY 3399507 Contact Us For Availability
28
Hinge, Door MAY 3405514 Contact Us For Availability
28
Terminal MAY 94614 Contact Us For Availability
28
MAY 3397590 MAY 3397590 Contact Us For Availability
29
MAY 348780 MAY 348780 Contact Us For Availability
29
Screw, Mounting (8-18 x 5/16) MAY 8533971 Contact Us For Availability
29
MAY 348197 MAY 348197 Contact Us For Availability
30
MAY W10131364 MAY W10131364 Contact Us For Availability
30
MAY W10221862 MAY W10221862 Contact Us For Availability
30
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
31
MAY 691366 MAY 691366 Contact Us For Availability
31
Connector-Timer MAY 3397269 Contact Us For Availability
31
MAY 3403410 MAY 3403410 Contact Us For Availability
32
MAY 8066217 MAY 8066217 Contact Us For Availability
32
Connector 6-Circuit MAY 3347243 Contact Us For Availability
32
MAY 695587 MAY 695587 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
Jumper, Buzzer (On/Off) MAY 3401695 Contact Us For Availability
33
Ring, Bearing (2) MAY 692526 Contact Us For Availability
34
MAY 3397659 MAY 3397659 Contact Us For Availability
34
Jumper, Three Wire Temperature MAY 3396029 Contact Us For Availability
34
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
MAY 3406130 MAY 3406130 Contact Us For Availability
36
DOOR FRONT MAY 3402335 Contact Us For Availability
37
MAY 3405184 MAY 3405184 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
40
Screw, 10-32 x 5/8 MAY 697776 Contact Us For Availability
41
MAY 685011 MAY 685011 Contact Us For Availability
42
Screw, Set MAY 690046 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
