Model Maytag 4KMER7685EW0 ELECTRIC RANGE – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

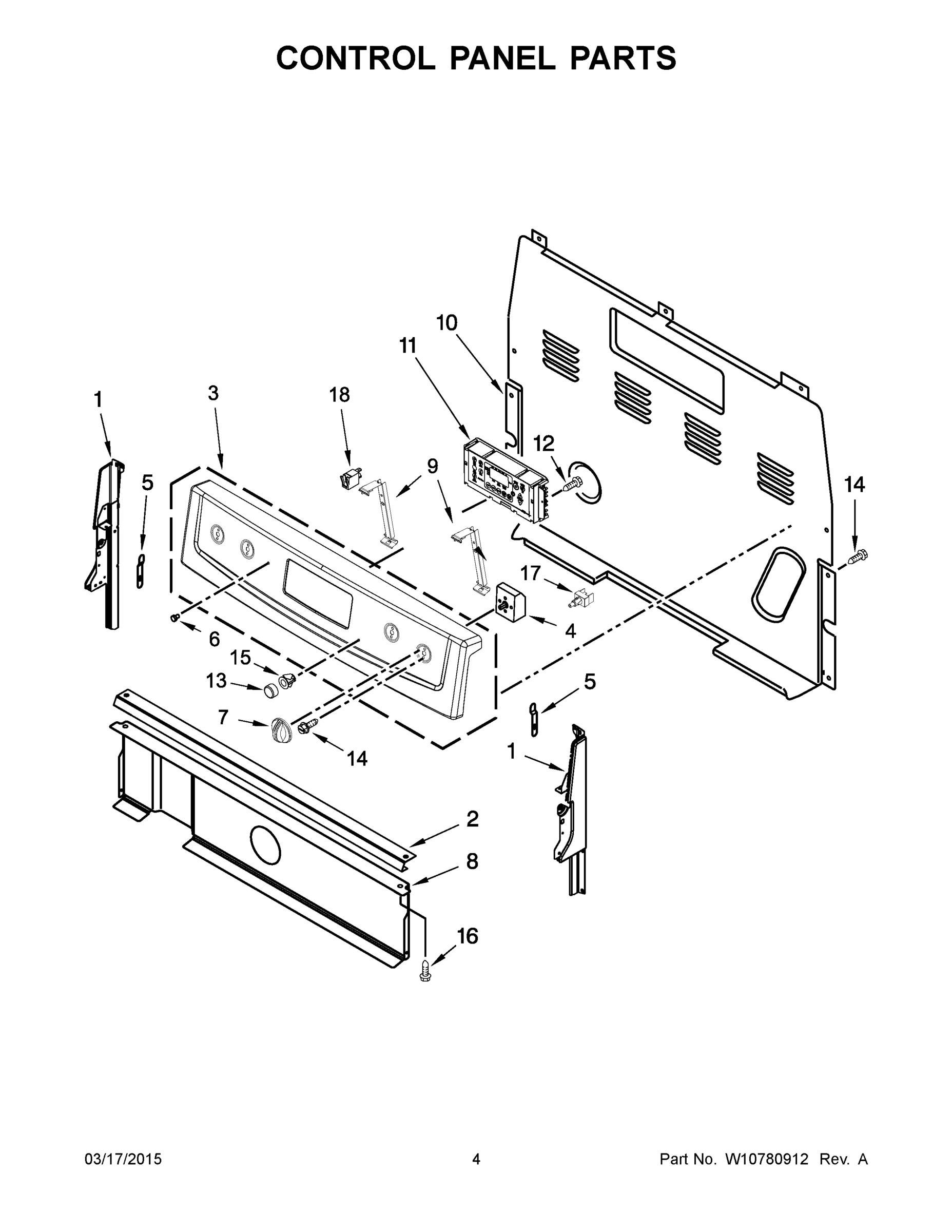

03 - CONTROL PANEL PARTS

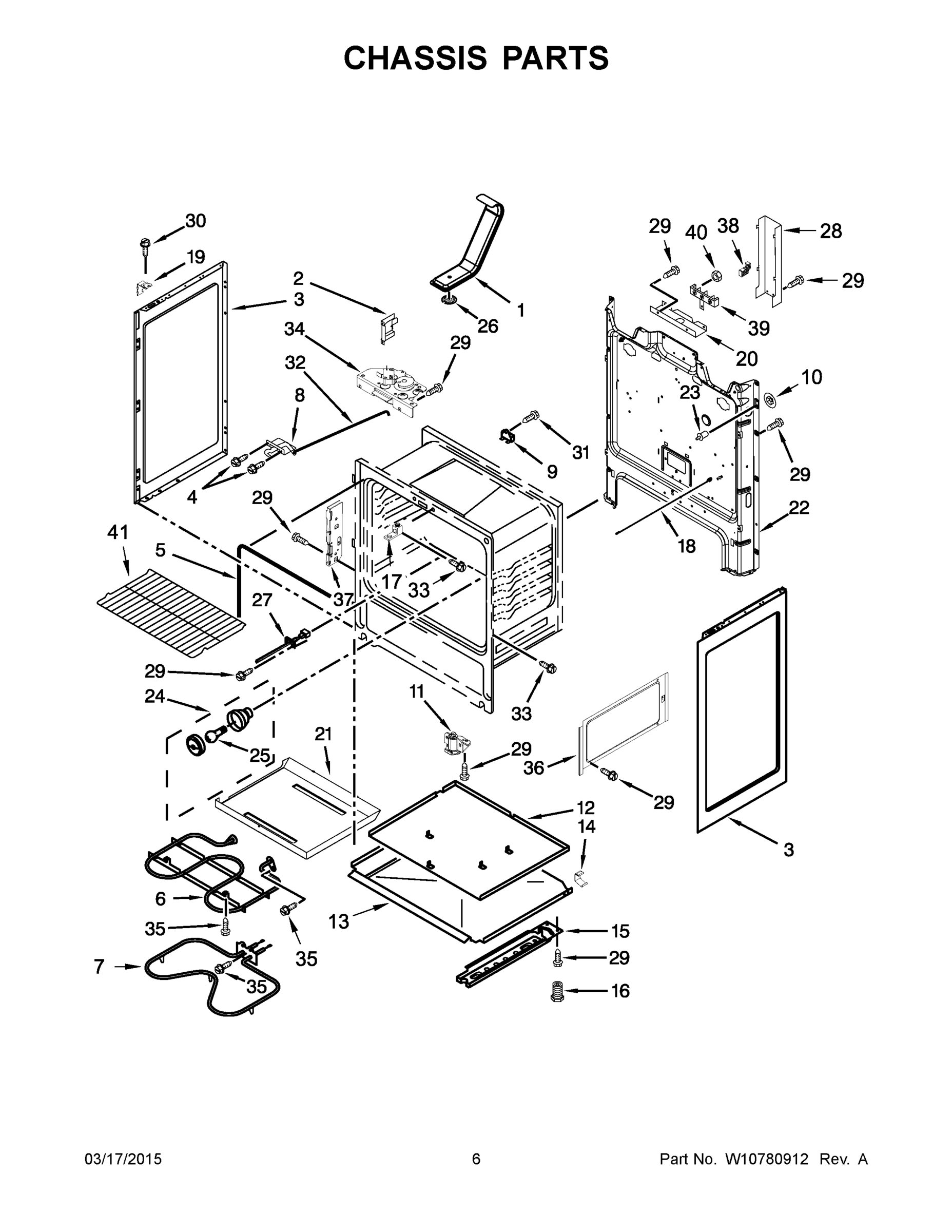

04 - CHASSIS PARTS

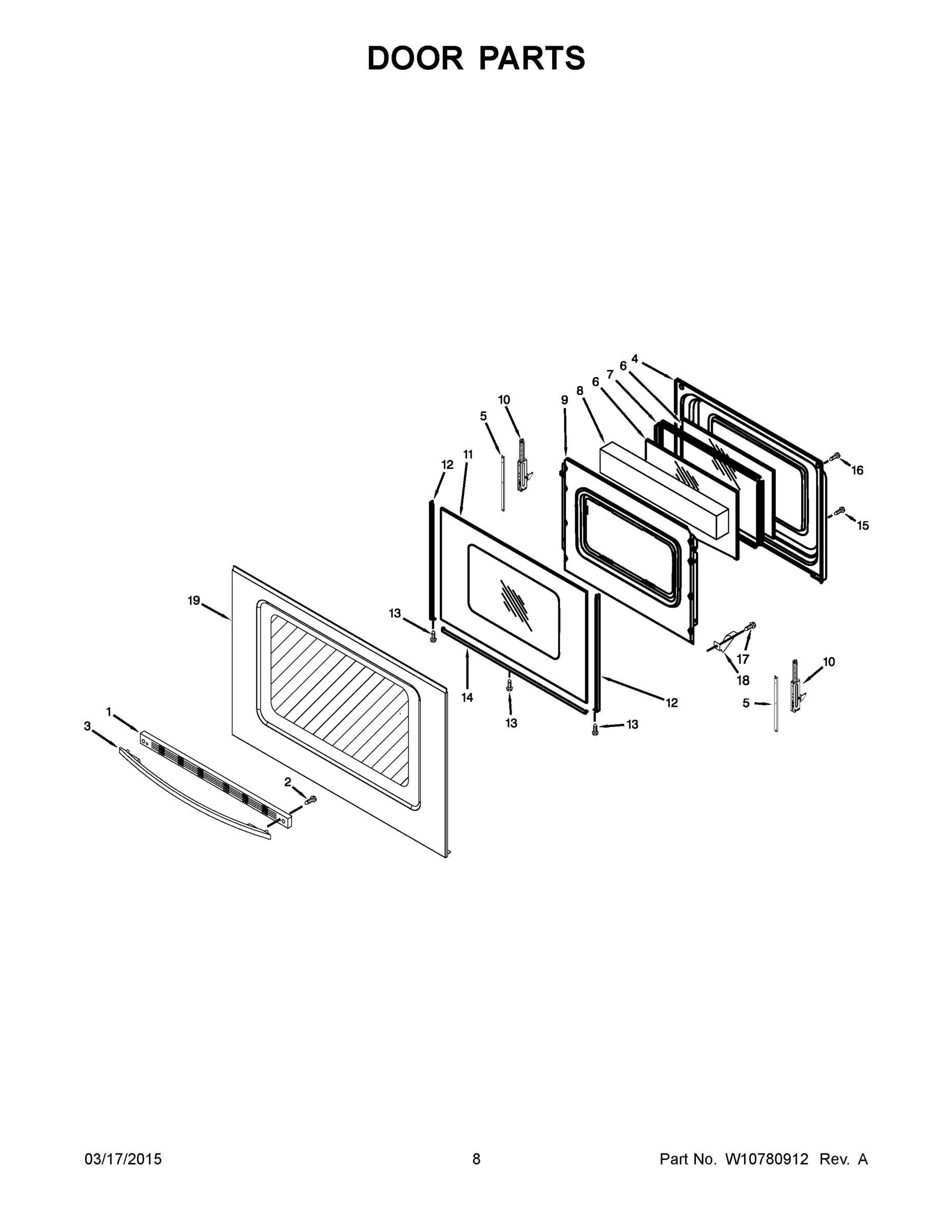

05 - DOOR PARTS

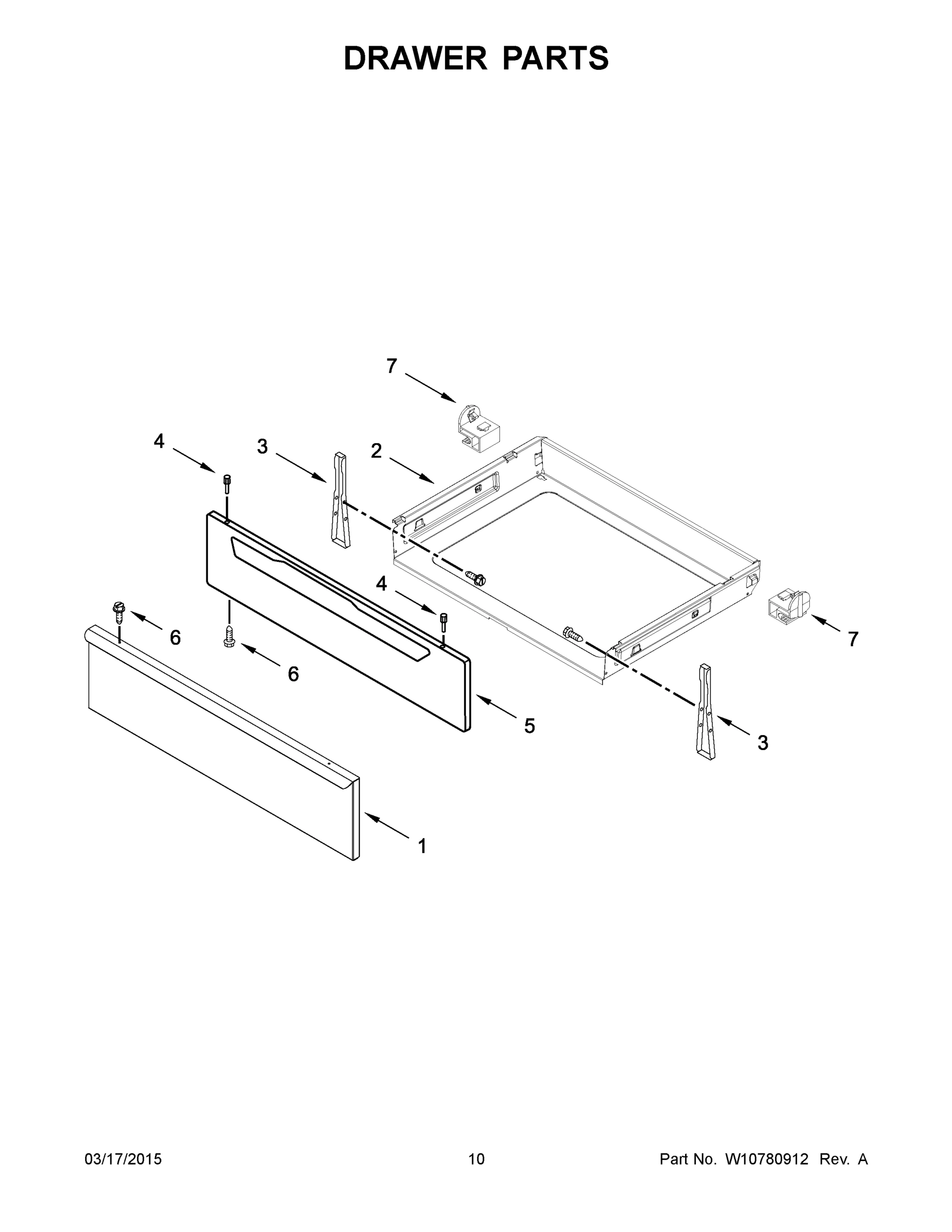

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag 4KMER7685EW0 ELECTRIC RANGE
1
MAY W10419388 MAY W10419388 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10134285 MAY W10134285 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10330070 MAY W10330070 Contact Us For Availability
1A
MAY W10720111 MAY W10720111 Contact Us For Availability
1A
MAY W10184434 MAY W10184434 Contact Us For Availability
1A
MAY W10310922 MAY W10310922 Contact Us For Availability
1B
MAY W10403811 MAY W10403811 Contact Us For Availability
1B
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1C
MAY 9757143 MAY 9757143 Contact Us For Availability
1C
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1D
MAY 9757142 MAY 9757142 Contact Us For Availability
1E
MAY 9762761 MAY 9762761 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY W10525121 MAY W10525121 Contact Us For Availability
2
MAY W10404688 MAY W10404688 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
2
MAY W10663433 MAY W10663433 Contact Us For Availability
3
MAY W10691223 MAY W10691223 Contact Us For Availability
3
MAY W10772078 MAY W10772078 Contact Us For Availability
3
MAY W10575396 MAY W10575396 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462912 Contact Us For Availability
3A
MAY W10772077 MAY W10772077 Contact Us For Availability
3A
MAY W10162245 MAY W10162245 Contact Us For Availability
3A
MAY W10323584 MAY W10323584 Contact Us For Availability
4
MAY W10720823 MAY W10720823 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT) MAY 3148954 Contact Us For Availability
4
MAY 3196560 MAY 3196560 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4A
MAY W10380661 MAY W10380661 Contact Us For Availability
4A
MAY 3148951 MAY 3148951 Contact Us For Availability
4A
MAY 3196813 MAY 3196813 Contact Us For Availability
4B
SWITCH, INFINITE (LEFT FRONT) MAY W10434452 Contact Us For Availability
5
MAY W10162040 MAY W10162040 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
MAY W10658354 MAY W10658354 Contact Us For Availability
5
MAY W10544179 MAY W10544179 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5A
MAY 8273994 MAY 8273994 Contact Us For Availability
5B
MAY 8273992 MAY 8273992 Contact Us For Availability
5C
MAY W10388271 MAY W10388271 Contact Us For Availability
6
MAY W10607641 MAY W10607641 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
6
MAY 9755770 MAY 9755770 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6A
MAY W10607642 MAY W10607642 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY 9757340 MAY 9757340 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
7
MAY W10317899 MAY W10317899 Contact Us For Availability
7A
MAY W10211372 MAY W10211372 Contact Us For Availability
8
MAY W10306542 MAY W10306542 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY 9761013 MAY 9761013 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
60 SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
9
MAY W10695491 MAY W10695491 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY 3400968 MAY 3400968 Contact Us For Availability
10
MAY W10299227 MAY W10299227 Contact Us For Availability
10A
MAY W10299224 MAY W10299224 Contact Us For Availability
11
MAY W10734600 MAY W10734600 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11A
MAY W10734599 MAY W10734599 Contact Us For Availability
12
MAY W10134125 MAY W10134125 Contact Us For Availability
12
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
12A
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
12B
TRIM, SIDE (BLACK (LEFT)) MAY 8523171 Contact Us For Availability
12C
TRIM, SIDE (BLACK (RIGHT)) MAY 8523165 Contact Us For Availability
13
MAY 9757492 MAY 9757492 Contact Us For Availability
13
MAY W10134121 MAY W10134121 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
13A
BUTTON, KEEP WARM (BLACK) MAY 9758491 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
14A
TRIM, LOWER (BLACK) MAY 8523177 Contact Us For Availability
15
BEZEL, KEEP WARM (WHITE) MAY W10217760 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
15A
MAY W10217758 MAY W10217758 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
MAY 8272820 MAY 8272820 Contact Us For Availability
17
MAY W10674705 MAY W10674705 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
MAY 8523265 MAY 8523265 Contact Us For Availability
18
MAY W10137382 MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
MAY W10183541 MAY W10183541 Contact Us For Availability
19
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10144884 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10183712 MAY W10183712 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY W10627802 MAY W10627802 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 9761301 MAY 9761301 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY W10326122 MAY W10326122 Contact Us For Availability
29
MAY 3196169 MAY 3196169 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
32
MAY W10078380 MAY W10078380 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
34
MAY W10107820 MAY W10107820 Contact Us For Availability
35
SCREW MAY 3196174 Contact Us For Availability
36
MAY W10450380 MAY W10450380 Contact Us For Availability
37
MAY W10289077 MAY W10289077 Contact Us For Availability
38
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
39
MAY W10245259 MAY W10245259 Contact Us For Availability
40
MAY 3400029 MAY 3400029 Contact Us For Availability
41
MAY W10268578 MAY W10268578 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10084660 MAY W10084660 Contact Us For Availability
NI
MAY W10261085 MAY W10261085 Contact Us For Availability
NI
MAY W10278580 MAY W10278580 Contact Us For Availability
NI
MAY W10349661 MAY W10349661 Contact Us For Availability
NI
MAY W10465644 MAY W10465644 Contact Us For Availability
NI
MAY W10744973 MAY W10744973 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
MAY W10465685 MAY W10465685 Contact Us For Availability
NI
MAY W10646923 MAY W10646923 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 3184478 MAY 3184478 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
× ![]()
