Model Maytag 4KMEDX505BW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

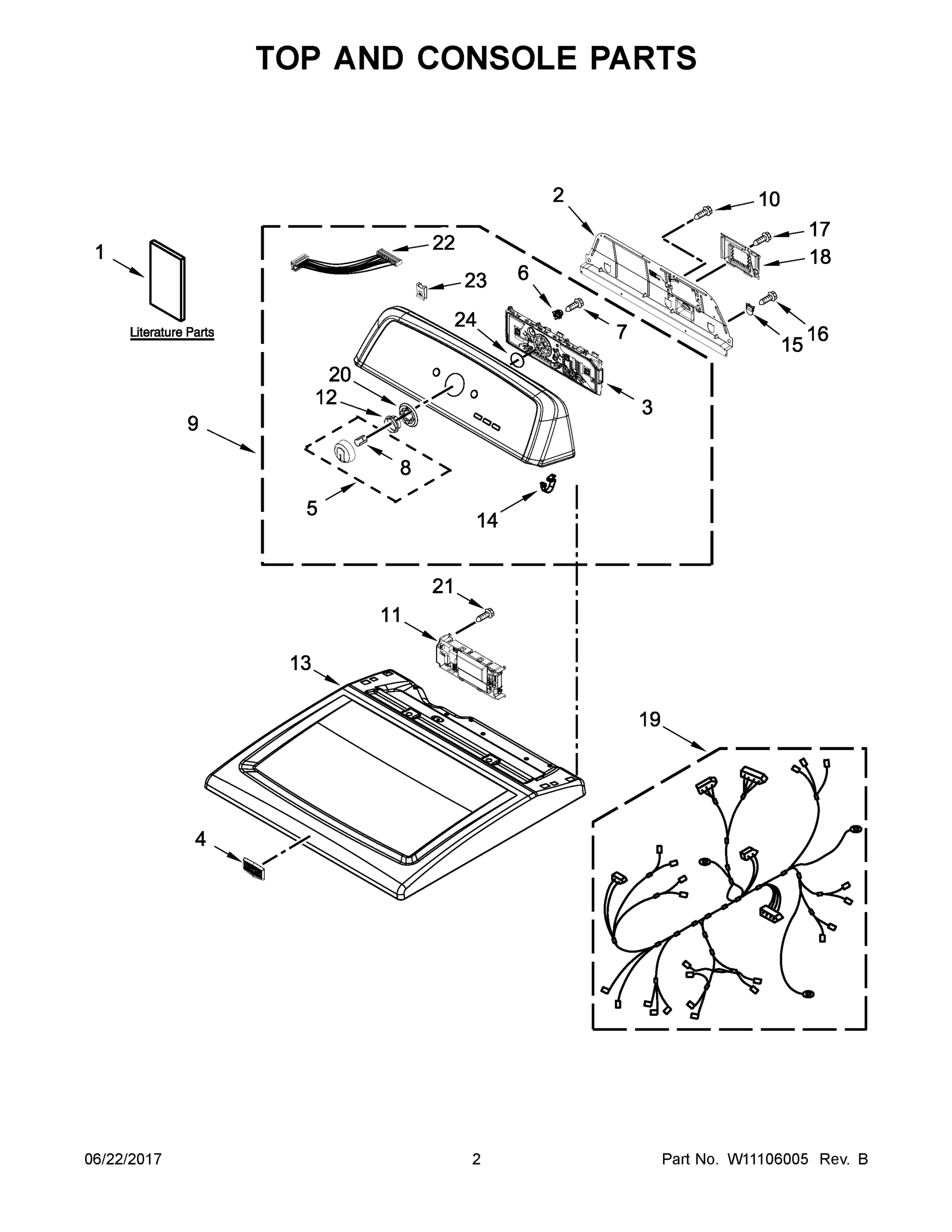

02 - TOP AND CONSOLE PARTS

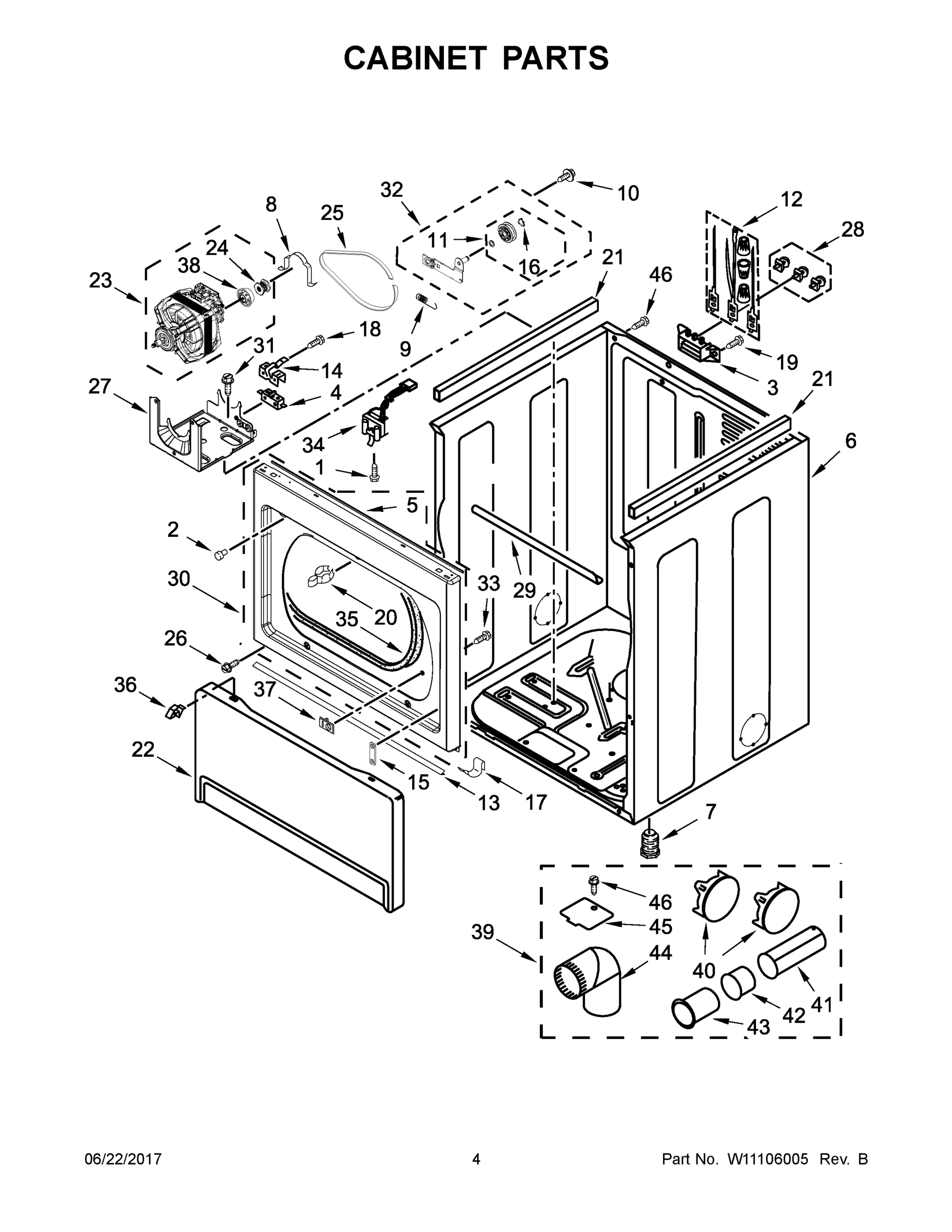

03 - CABINET PARTS

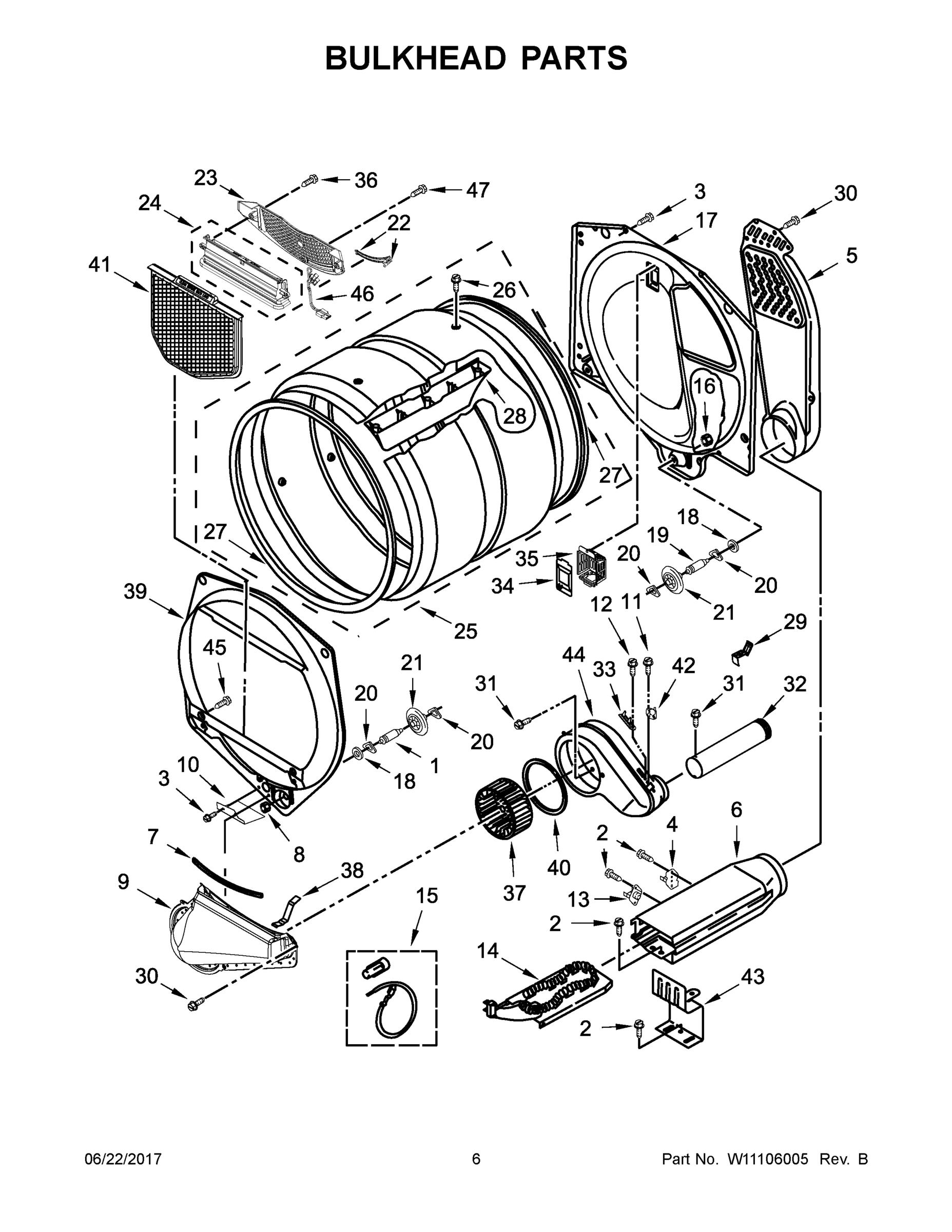

04 - BULKHEAD PARTS

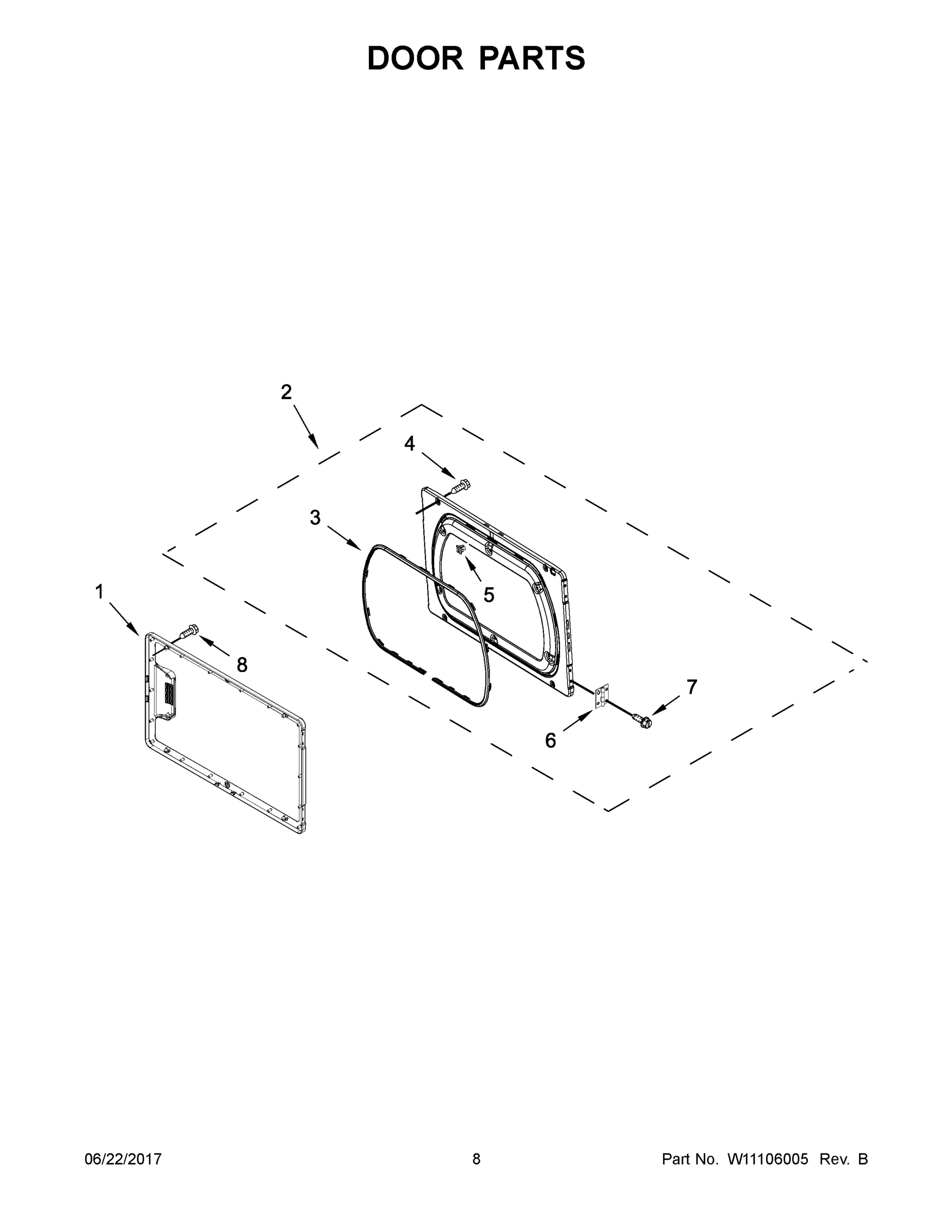

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMEDX505BW1 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
INSTRUCTIONS, INSTALLATION MAY W11083790 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, OUTER DOOR (WHITE) MAY W10284127 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W11083793 Contact Us For Availability
1B
TECH SHEET MAY W10524061 Contact Us For Availability
2
PANEL, REAR CONSOLE MAY W10550615 Contact Us For Availability
2
BUMPER MAY 693152 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
2
ASSEMBLY, INNER DOOR (WHITE) MAY W10513690 Contact Us For Availability
3
ASSEMBLY, USER INTERFACE MAY W10272634 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
3
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
3
SEAL, DOOR MAY W10354795 Contact Us For Availability
4
BADGE MAY W10492808 Contact Us For Availability
4
SWITCH, BROKEN BELT MAY 8318457 Contact Us For Availability
4
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 279973 Contact Us For Availability
4
SCREW MAY 3393258 Contact Us For Availability
5
ASSEMBLY, CONTROL KNOB (SILVER) MAY W10251381 Contact Us For Availability
5
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
6
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
6
CABINET (WHITE) MAY W10547697 Contact Us For Availability
6
ASSEMBLY, WELD HEATER BOX MAY W10608837 Contact Us For Availability
6
ASSEMBLY, HINGE & PIN (WHITE) MAY W10575696 Contact Us For Availability
7
FOOT, DRYER MAY 3392100 Contact Us For Availability
7
SEAL, DRUM FRONT MAY 697814 Contact Us For Availability
7
SCREW MAY 342055 Contact Us For Availability
8
CLIP, SPRING MAY 8536939 Contact Us For Availability
8
CLAMP, MOTOR MAY 660658 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY 8534022 Contact Us For Availability
9
ASSEMBLY, CONSOLE (WHITE) MAY W10464793 Contact Us For Availability
9
SPRING, IDLER MAY W10446781 Contact Us For Availability
9
ASSEMBLY, LINT DUCT MAY 8066168 Contact Us For Availability
10
SCREW MAY 3389420 Contact Us For Availability
10
SHIELD, BLOWER MAY W10128629 Contact Us For Availability
11
CONTROL, ELECTRONIC MAY W11082414 Contact Us For Availability
11
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
12
SPACER, KNOB MAY W10326923 Contact Us For Availability
12
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
12
SCREW MAY 359625 Contact Us For Availability
13
TOP (WHITE) MAY W10268730 Contact Us For Availability
13
SEAL, DEFLECTOR MAY W10576519 Contact Us For Availability
13
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
14
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
14
LEVER, SWITCH MAY W10083220 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
15
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
15
PLUG, FRONT PANEL (WHITE) MAY W10191265 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY W10748311 Contact Us For Availability
17
CLIP MAY W10291934 Contact Us For Availability
17
BULKHEAD, REAR MAY 8520836 Contact Us For Availability
18
COVER, TERMINAL BLOCK MAY W10601020 Contact Us For Availability
18
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
HARNESS, MAIN MAY W10511243 Contact Us For Availability
19
SCREW MAY 3393008 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
BEZEL, CYCLE TRIM MAY W10305134 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
STRIKE, DOOR MAY 3403431 Contact Us For Availability
21
SEAL, FOAM MAY W10336128 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
CABLE, USER INTERFACE MAY W10285495 Contact Us For Availability
22
TOE PANEL (INCLUDES ITEM. 2) (WHITE) MAY 697215 Contact Us For Availability
22
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
23
NUT, "U" MAY W10298336 Contact Us For Availability
23
MOTOR, ASSEMBLY 60 HZ. MAY W10489550 Contact Us For Availability
23
GRILL, OUTLET MAY W10692558 Contact Us For Availability
24
SEAL, USER INTERFACE MAY W10323092 Contact Us For Availability
24
PULLEY, MOTOR MAY 3389729 Contact Us For Availability
24
ASSEMBLY, OUTLET HOUSING MAY W10685669 Contact Us For Availability
25
SCREW MAY W10773242 Contact Us For Availability
25
BELT, DRIVE MAY W10112954 Contact Us For Availability
25
ASSEMBLY, DRUM MAY W10545923 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
26
SCREW MAY 693995 Contact Us For Availability
27
BRACKET, MOTOR MAY 3387118 Contact Us For Availability
27
SEAL, DRUM MAY W10521118 Contact Us For Availability
28
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
28
BAFFLE, DRUM MAY 697693 Contact Us For Availability
29
BRACKET, CABINET MAY W10236068 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
SCREW MAY 8533971 Contact Us For Availability
30
PANEL, UPPER FRONT (WHITE) MAY W10362983 Contact Us For Availability
31
SCREW MAY 343641 Contact Us For Availability
31
SCREW MAY 489463 Contact Us For Availability
32
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
32
PIPE, EXHAUST MAY 8066224 Contact Us For Availability
33
THERMISTOR MAY 8577274 Contact Us For Availability
34
SWITCH, DOOR MAY 3406109 Contact Us For Availability
34
LENS, DRUM LIGHT MAY 3402841 Contact Us For Availability
35
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
35
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
36
SCREW MAY 3357011 Contact Us For Availability
36
RETAINER MAY 3388229 Contact Us For Availability
37
COVER, STRIKE (WHITE) MAY W10521429 Contact Us For Availability
37
WHEEL, BLOWER MAY W10349492 Contact Us For Availability
38
RESTRAINER, BELT MAY 3393657 Contact Us For Availability
38
CLIP, SPRING MAY W10345456 Contact Us For Availability
39
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10186596 Contact Us For Availability
39
BULKHEAD, FRONT MAY 697557 Contact Us For Availability
40
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
41
LINT SCREEN (WHITE) MAY W10596627 Contact Us For Availability
42
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
42
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
43
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
43
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
44
ELBOW MAY 49026 Contact Us For Availability
44
HOUSING, BLOWER MAY 8544362 Contact Us For Availability
45
PLATE, COVER MAY W10354249 Contact Us For Availability
45
SCREW MAY 695240 Contact Us For Availability
46
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
47
SCREW MAY 3387230 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
