Model Maytag 4KMEDC410JW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 29 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

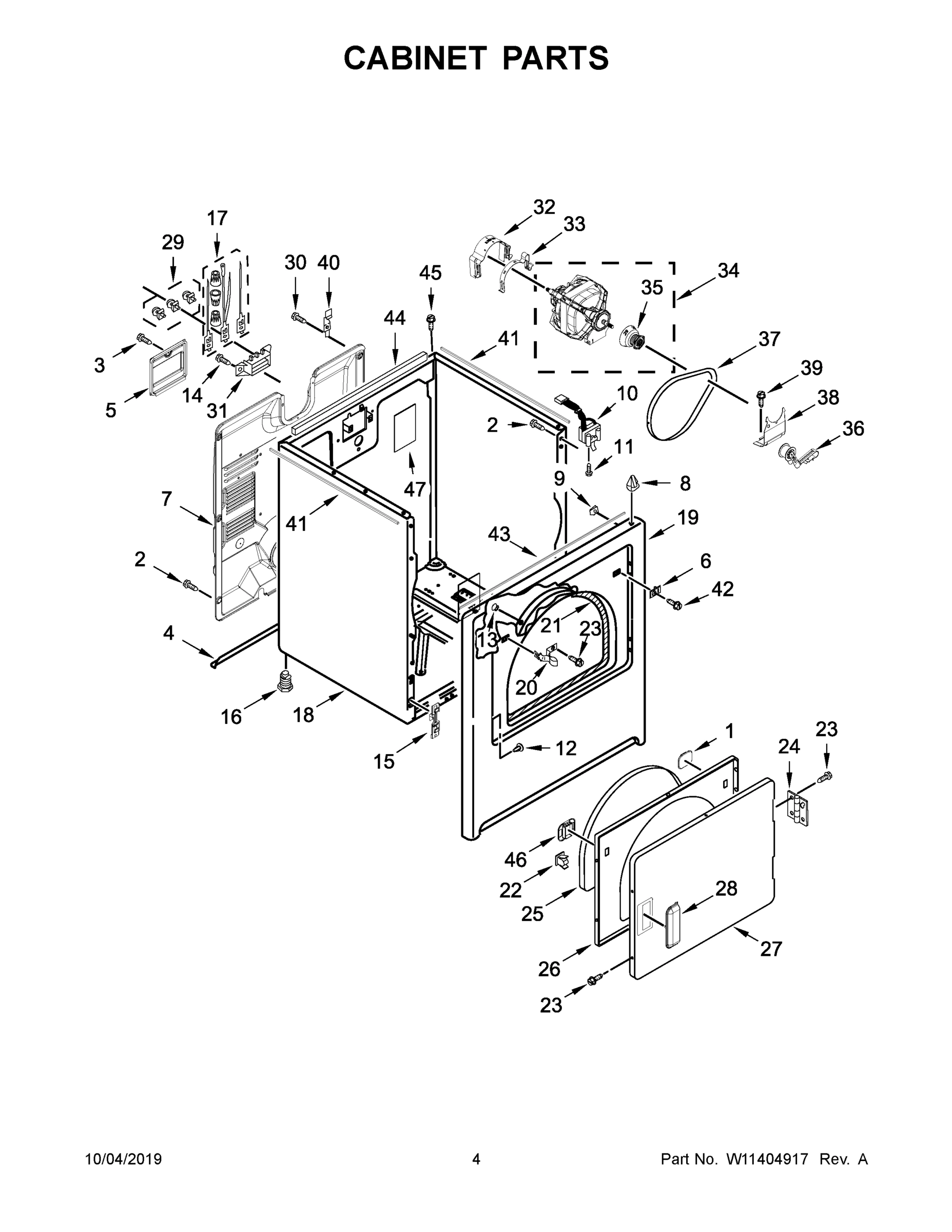

03 - CABINET PARTS

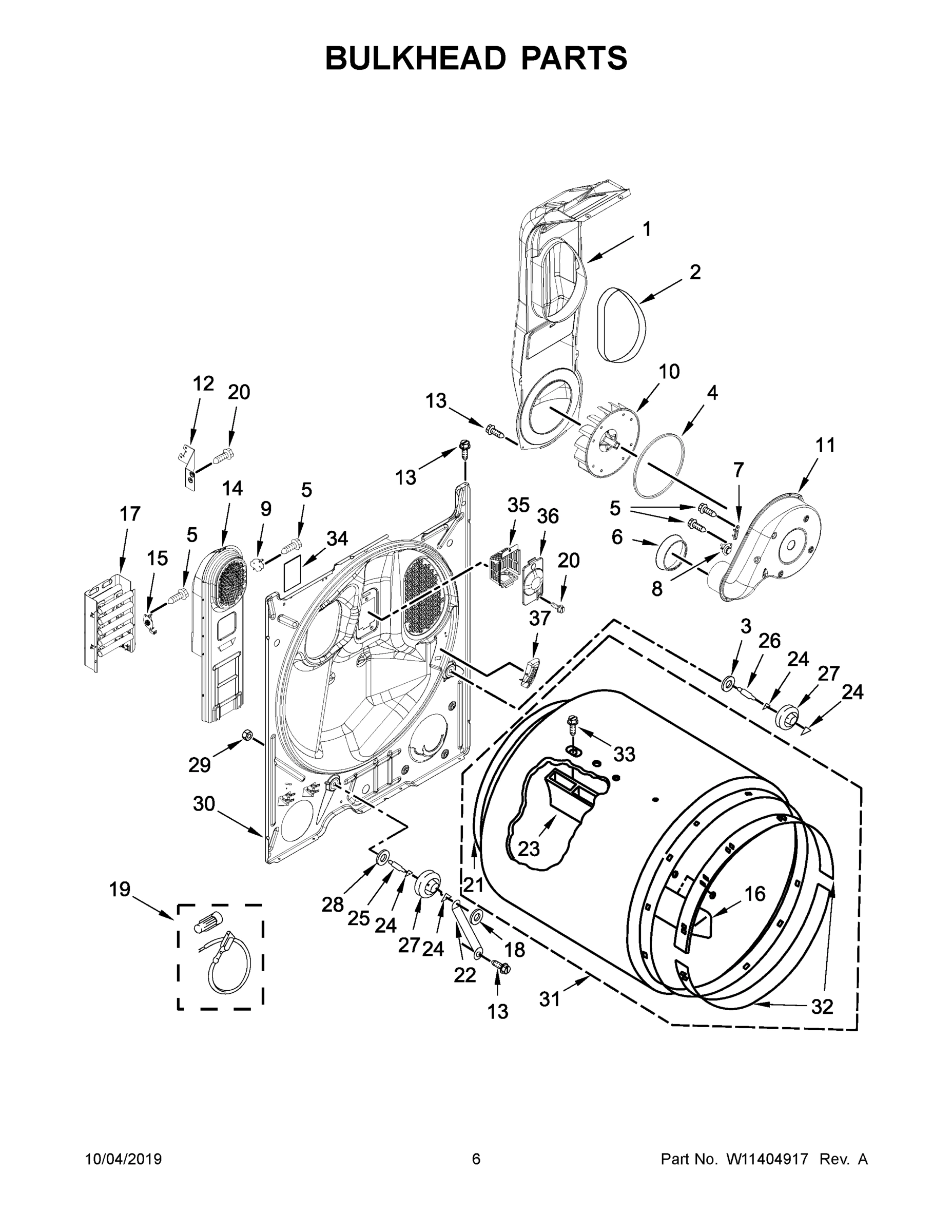

04 - BULKHEAD PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMEDC410JW0 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER, 29 INCH
1
MAY W11387407 MAY W11387407 Contact Us For Availability
1
COVER, DOOR CATCH MAY W10529198 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY W10798023 Contact Us For Availability
1A
WIRING DIAGRAM MAY W10916392 Contact Us For Availability
1B
MAY W11399547 MAY W11399547 Contact Us For Availability
2
SCREW MAY 8533971 Contact Us For Availability
2
SEAL MAY 339956 Contact Us For Availability
3
SCREW MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
4
CONSOLE (WHITE) MAY W10804420 Contact Us For Availability
4
SEAL, SPILL GUARD MAY W10841728 Contact Us For Availability
4
SEAL, LINT CHUTE MAY 347139 Contact Us For Availability
5
SCREW MAY 343641 Contact Us For Availability
5
COVER, TERMINAL BLOCK MAY W10786875 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
6
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
6
PLUG, STRIKE MAY W10567345 Contact Us For Availability
6
SHIELD, EXHAUST MAY W10389567 Contact Us For Availability
7
MAY W11352182 MAY W11352182 Contact Us For Availability
7
MAY W11165016 MAY W11165016 Contact Us For Availability
7
FUSE, THERMAL (91C) MAY 3392519 Contact Us For Availability
8
PANEL, REAR CONSOLE MAY W10416486 Contact Us For Availability
8
LOCK, FRONT TOP MAY 8066092 Contact Us For Availability
8
THERMOSTAT MAY 3387137 Contact Us For Availability
9
SCREW MAY 3348629 Contact Us For Availability
9
CLIP, GROUND MAY 98234 Contact Us For Availability
9
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY W11034847 Contact Us For Availability
10
SWITCH, PUSH TO START MAY W10804432 Contact Us For Availability
10
SWITCH, DOOR MAY W10237959 Contact Us For Availability
10
WHEEL, BLOWER MAY 694089 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
HOUSING, BLOWER MAY 8577230 Contact Us For Availability
12
ASSEMBLY, CONTROL KNOB (WHITE) MAY W10453947 Contact Us For Availability
12
PLUG, HOLE (WHITE) MAY 3404413 Contact Us For Availability
12
CLIP, HEATER BOX MAY W11102319 Contact Us For Availability
13
TIMER MAY W10745655 Contact Us For Availability
13
SCREW MAY 3390631 Contact Us For Availability
13
CLIP, FELT PAD MAY 685203 Contact Us For Availability
14
SEAL, FOAM MAY W10316616 Contact Us For Availability
14
SCREW MAY 3393008 Contact Us For Availability
14
BOX, HEATER MAY 8541818 Contact Us For Availability
15
SCREEN, LINT (WHITE) MAY W10717210 Contact Us For Availability
15
CLIP, FRONT PANEL MAY W10775448 Contact Us For Availability
15
THERMOSTAT, 221 F (105 C) MAY 3977767 Contact Us For Availability
16
TOP (WHITE) MAY 8559800 Contact Us For Availability
16
FOOT, DRYER MAY 3392100 Contact Us For Availability
16
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
17
ASSEMBLY, TIMER KNOB (WHITE) MAY W10711289 Contact Us For Availability
17
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
17
ELEMENT, HEATER MAY W10798739 Contact Us For Availability
18
SCREW MAY 688983 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
NUT, PUSH ON MAY 90296 Contact Us For Availability
19
SPACER, TOE PANEL MAY 3389682 Contact Us For Availability
19
PANEL, FRONT (WHITE) MAY W10664697 Contact Us For Availability
19
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
20
NUT, "U" MAY W10298336 Contact Us For Availability
20
STRIKE, DOOR MAY 3403431 Contact Us For Availability
20
SCREW MAY 489463 Contact Us For Availability
21
MAY W11387733 MAY W11387733 Contact Us For Availability
21
ASSEMBLY, SEAL AND BEARING MAY W10803476 Contact Us For Availability
21
SEAL, REAR DRUM MAY W10899408 Contact Us For Availability
22
ASSEMBLY, DOOR CATCH MAY W10610880 Contact Us For Availability
22
BRACKET, SUPPORT MAY W11032820 Contact Us For Availability
23
SCREW MAY 342055 Contact Us For Availability
23
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
24
ASSEMBLY, HINGE AND PIN MAY W10362431 Contact Us For Availability
24
WASHER, TRI RING MAY W10512946 Contact Us For Availability
25
SEAL, DOOR MAY W10730752 Contact Us For Availability
25
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359270 Contact Us For Availability
26
DOOR, INNER MAY W10463967 Contact Us For Availability
26
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359269 Contact Us For Availability
27
DOOR, FRONT (WHITE) MAY W10714510 Contact Us For Availability
27
ROLLER, SUPPORT MAY W10756057 Contact Us For Availability
28
HANDLE, DOOR (WHITE) MAY W10714516 Contact Us For Availability
28
WASHER MAY 348197 Contact Us For Availability
29
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
29
NUT, HEX MAY W10298789 Contact Us For Availability
30
SCREW MAY W10773242 Contact Us For Availability
30
BULKHEAD MAY W10714469 Contact Us For Availability
31
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
31
ASSEMBLY, DRUM (COMPLETE) MAY W10899578 Contact Us For Availability
32
CLAMP, MOTOR (WITH SHIELD) MAY 3404162 Contact Us For Availability
32
BEARING, RING MAY 692526 Contact Us For Availability
33
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
33
SCREW MAY W10219342 Contact Us For Availability
34
ASSEMBLY, MOTOR (50 HZ) MAY W10289660 Contact Us For Availability
34
PAD, FOAM MAY W10922156 Contact Us For Availability
35
PULLEY MAY W10832956 Contact Us For Availability
35
BRACKET, DRUM LIGHT MAY 8578825 Contact Us For Availability
36
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
36
MAY W10183187 MAY W10183187 Contact Us For Availability
37
BELT, DRIVE MAY W10198086 Contact Us For Availability
37
PAD, SENSOR MAY W10681051 Contact Us For Availability
38
BASE, MOTOR MAY 348780 Contact Us For Availability
39
BOLT MAY 3400500 Contact Us For Availability
40
HINGE, TOP MAY 8066217 Contact Us For Availability
42
SCREW MAY 3390647 Contact Us For Availability
43
SEAL, SPILL GUARD MAY W10316619 Contact Us For Availability
44
SEAL, FOAM MAY W10316529 Contact Us For Availability
45
SCREW MAY 3390663 Contact Us For Availability
46
BEZEL, DOOR CATCH MAY W10529197 Contact Us For Availability
47
PAD, FOAM MAY W10653662 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
× ![]()
