Model Maytag 4KMEDC405WQ0 ELECTRIC DRYER – Common Parts & Diagrams

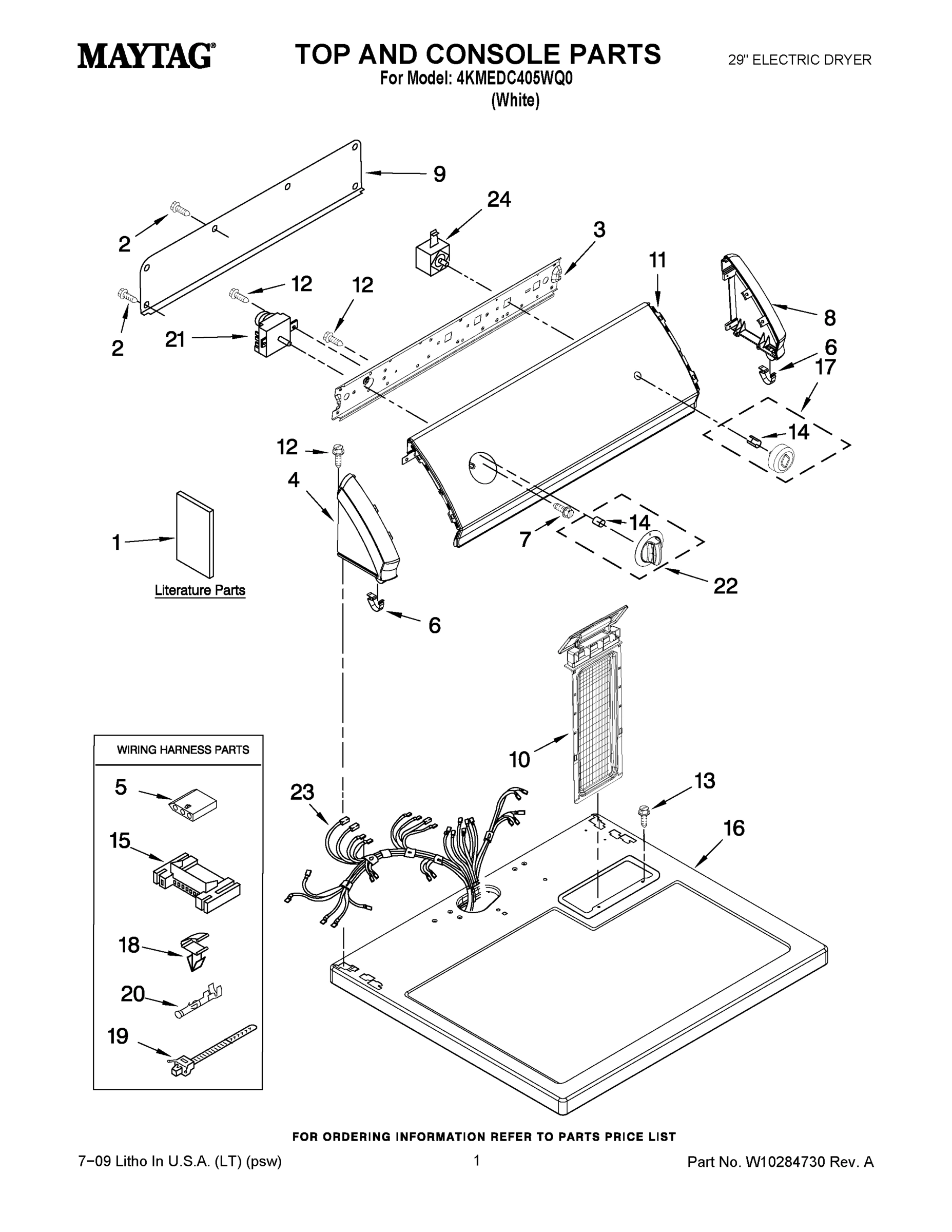

01 - TOP AND CONSOLE PARTS

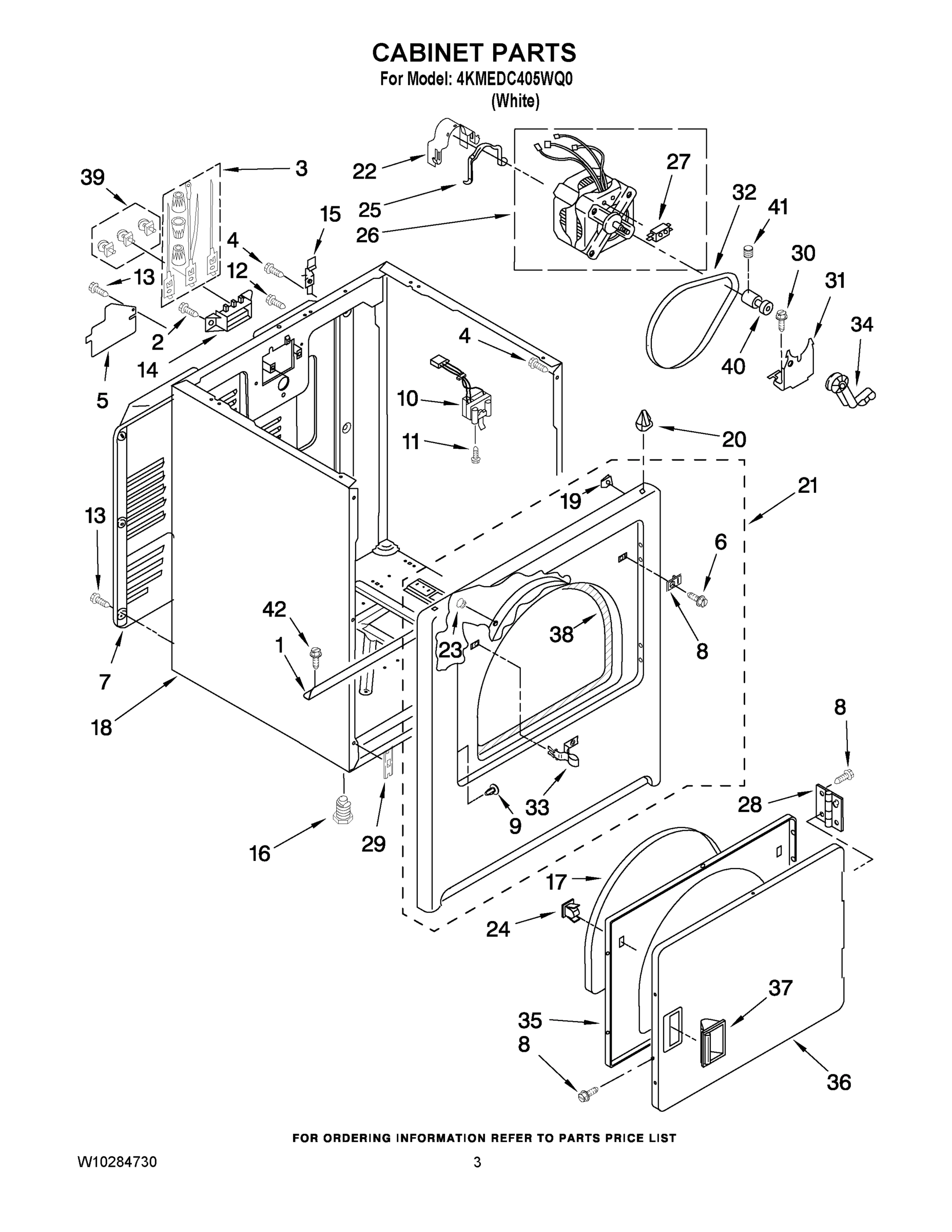

02 - CABINET PARTS

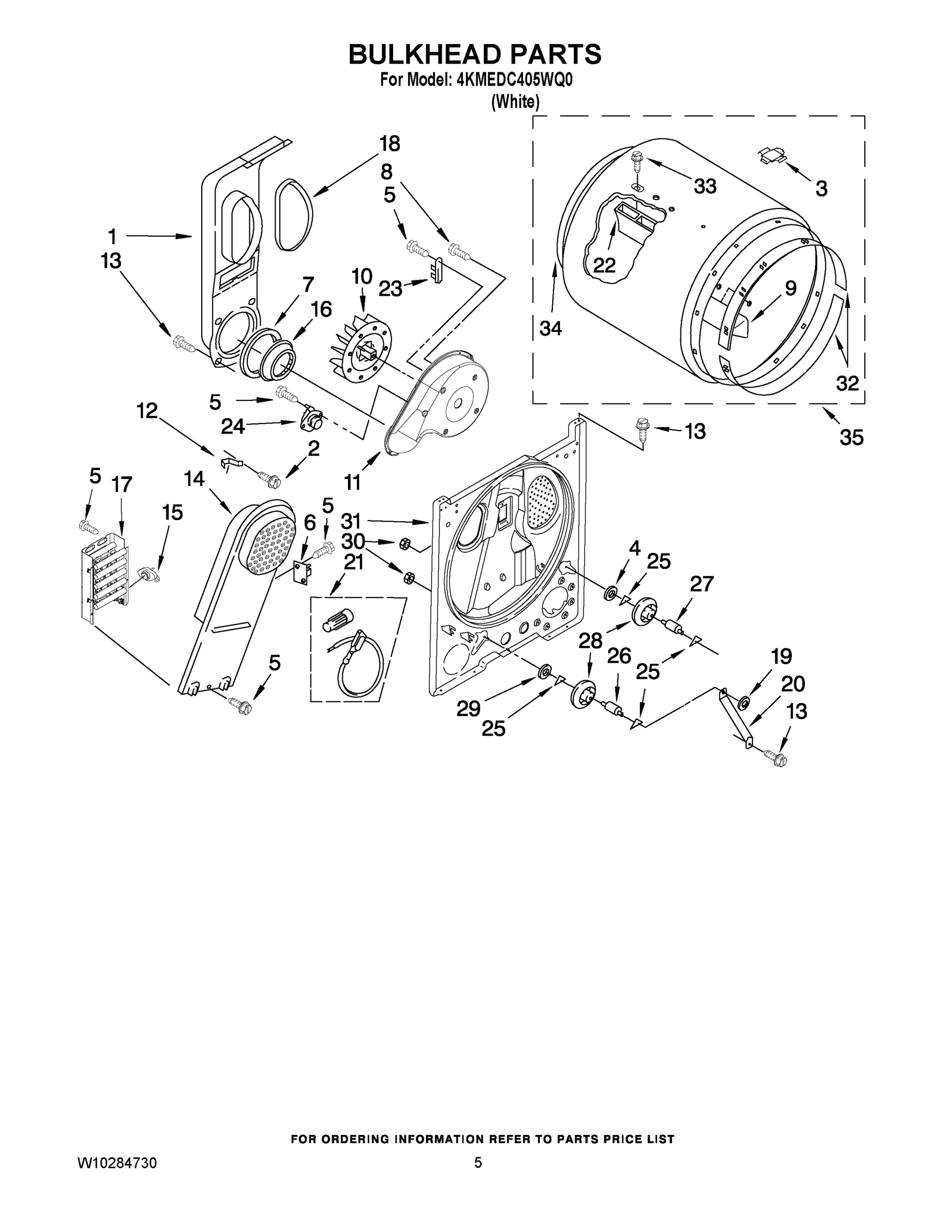

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMEDC405WQ0 ELECTRIC DRYER
1
MAY W10115531 MAY W10115531 Contact Us For Availability
1
GUIDE, USE & CARE (ENGLISH) MAY W10131619 Contact Us For Availability
1
GUIDE, USE & CARE (ARABIC) MAY W10131620 Contact Us For Availability
1
MAY W10167647 MAY W10167647 Contact Us For Availability
1
MAY 8541400 MAY 8541400 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
3
MAY 8559772 MAY 8559772 Contact Us For Availability
3
Terminal, Tinned & Brass (3) (Includes No.40) MAY 279318 Contact Us For Availability
3
MAY 8066086 MAY 8066086 Contact Us For Availability
4
CAP, END (L.H.) MAY 8559502 Contact Us For Availability
4
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
5
MAY 3936144 MAY 3936144 Contact Us For Availability
5
Cover, Terminal Block MAY 3396795 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
PLUG-STRIKE MAY 3403630 Contact Us For Availability
6
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
7
MAY 8533951 MAY 8533951 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 347139 MAY 347139 Contact Us For Availability
8
CAP, END (R.H.) MAY 8559501 Contact Us For Availability
8
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
8
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
9
MAY 8274261 MAY 8274261 Contact Us For Availability
9
Plug, Hinge Holes (4) MAY 3404413 Contact Us For Availability
9
MAY 3403636 MAY 3403636 Contact Us For Availability
10
MAY 8557857 MAY 8557857 Contact Us For Availability
10
MAY 3406109 MAY 3406109 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY W10115462 MAY W10115462 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY 8533971 MAY 8533971 Contact Us For Availability
12
Screw, 8-18 x 5/8 (External Ground) MAY 697776 Contact Us For Availability
12
MAY 8066155 MAY 8066155 Contact Us For Availability
13
Screw, Hex Washer Head MAY 693995 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
MAY 3397659 MAY 3397659 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY 8066217 MAY 8066217 Contact Us For Availability
15
THERMOSTAT, HIGH LIMIT 221° F (105° C) MAY 3977767 Contact Us For Availability
16
TOP MAY 8559800 Contact Us For Availability
16
Foot, Dryer (4) MAY 3392100 Contact Us For Availability
16
MAY 696302 MAY 696302 Contact Us For Availability
17
MAY 3956790 MAY 3956790 Contact Us For Availability
17
MAY 3405246 MAY 3405246 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
Cabinet (Includes Illus. 1) MAY 8530603 Contact Us For Availability
18
MAY 339956 MAY 339956 Contact Us For Availability
19
Tie, Cable MAY 3391249 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
MAY 90296 MAY 90296 Contact Us For Availability
20
Terminal MAY 94614 Contact Us For Availability
20
MAY 690363 MAY 690363 Contact Us For Availability
20
MAY 3976434 MAY 3976434 Contact Us For Availability
21
MAY 8299781 MAY 8299781 Contact Us For Availability
21
Panel Front Assembly MAY W10224853 Contact Us For Availability
21
Wire Kit (For Heater Element Wiring Harness R MAY 279457 Contact Us For Availability
22
MAY 8571409 MAY 8571409 Contact Us For Availability
22
MAY 3404162 MAY 3404162 Contact Us For Availability
22
MAY 692490 MAY 692490 Contact Us For Availability
23
MAY W10267858 MAY W10267858 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
23
MAY 3392519 MAY 3392519 Contact Us For Availability
24
MAY 3977456 MAY 3977456 Contact Us For Availability
24
Catch, Door MAY 3389441 Contact Us For Availability
24
THERMOSTAT, INTERNAL BIAS MAY 3387137 Contact Us For Availability
25
MAY W10121316 MAY W10121316 Contact Us For Availability
25
MAY 690997 MAY 690997 Contact Us For Availability
26
Motor Assembly MAY 685815 Contact Us For Availability
26
MAY 3399506 MAY 3399506 Contact Us For Availability
27
Switch, Motor MAY 3388235 Contact Us For Availability
27
MAY 3399507 MAY 3399507 Contact Us For Availability
28
Hinge and Pin Assembly (2) MAY 3405514 Contact Us For Availability
28
MAY 3397590 MAY 3397590 Contact Us For Availability
29
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
29
MAY 348197 MAY 348197 Contact Us For Availability
30
MAY 3400500 MAY 3400500 Contact Us For Availability
30
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
31
MAY 348780 MAY 348780 Contact Us For Availability
31
MAY 3403410 MAY 3403410 Contact Us For Availability
32
MAY W10131364 MAY W10131364 Contact Us For Availability
32
MAY 692526 MAY 692526 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
34
MAY 691366 MAY 691366 Contact Us For Availability
34
MAY 3406130 MAY 3406130 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
MAY 695587 MAY 695587 Contact Us For Availability
36
DOOR FRONT MAY 3402335 Contact Us For Availability
37
MAY 8566059 MAY 8566059 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
40
Pulley MAY 685011 Contact Us For Availability
41
Screw, Set MAY 690046 Contact Us For Availability
42
MAY 3390631 MAY 3390631 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Dry Rack MAY 689790 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
4` 30 AMP 3 WIRE DRYER CORD MAY PT220L Contact Us For Availability
NI
4` 30 AMP 4 WIRE DRYER CORD MAY PT400L Contact Us For Availability
NI
6` 30 AMP 4 WIRE DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
