Model Maytag 4GNED4400YQ1 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS

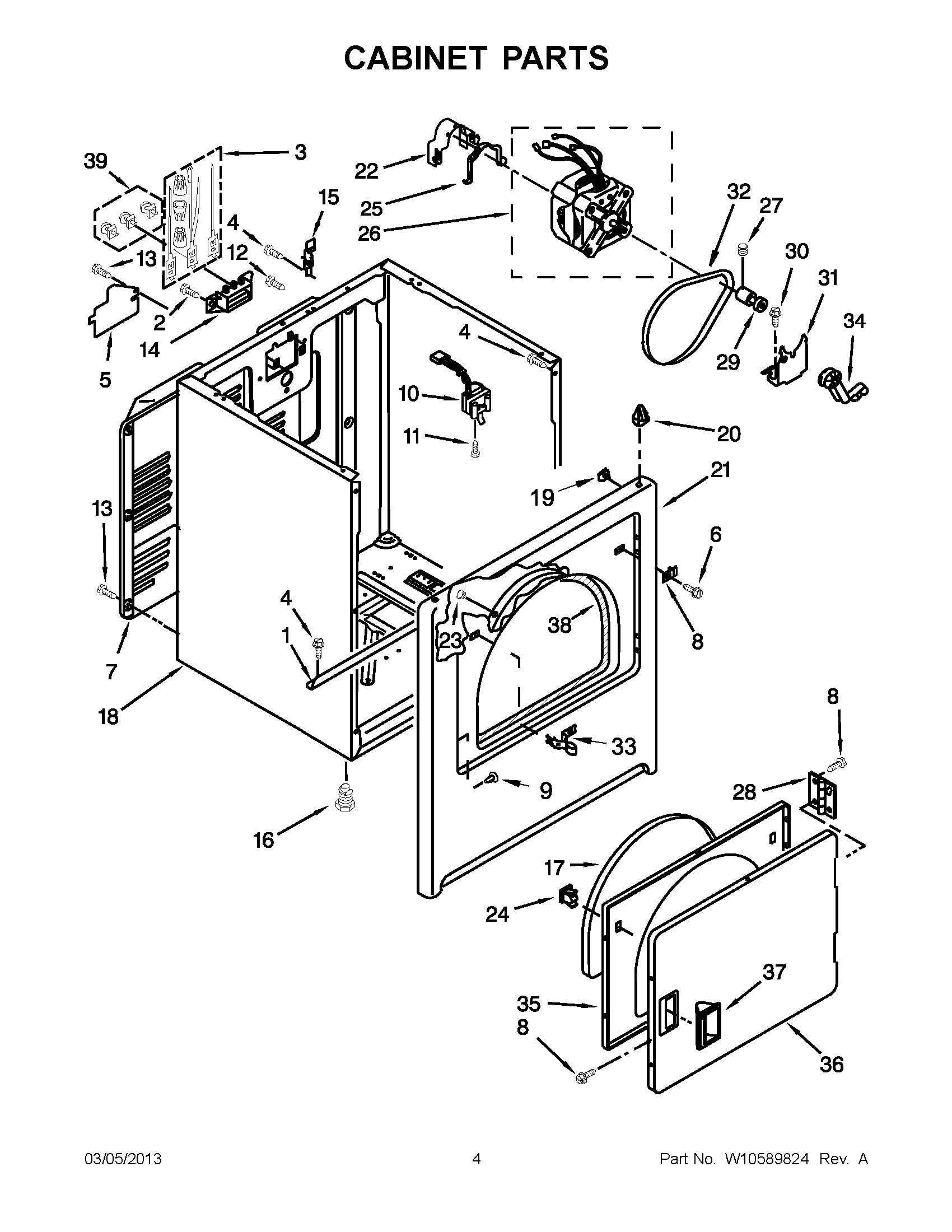

02 - CABINET PARTS

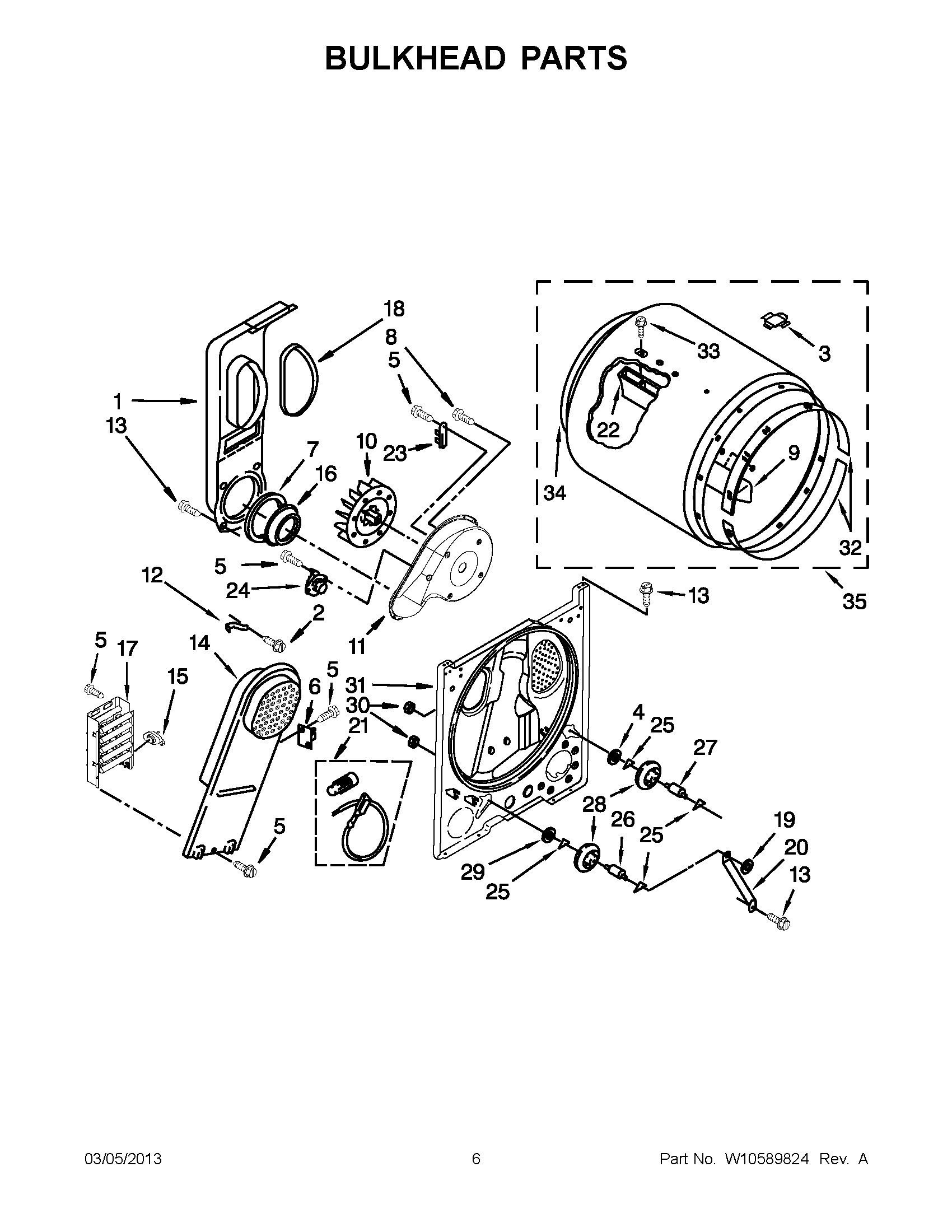

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4GNED4400YQ1 ELECTRIC DRYER
1
MAY W10396178 MAY W10396178 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10454274 Contact Us For Availability
1
MAY W10462985 MAY W10462985 Contact Us For Availability
1
MAY W10236073 MAY W10236073 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
MAY 3393008 MAY 3393008 Contact Us For Availability
2
Screw MAY 489463 Contact Us For Availability
3
MAY 3977456 MAY 3977456 Contact Us For Availability
3
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
3
Plug, Drum Hole MAY 8066086 Contact Us For Availability
4
END CAP (L.H.) (WHITE) MAY W10251358 Contact Us For Availability
4
WASHER MAY 3388703 Contact Us For Availability
5
MAY W10386309 MAY W10386309 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
5
Cover, Terminal Block MAY 3396795 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY 342055 MAY 342055 Contact Us For Availability
6
MAY 3977393 MAY 3977393 Contact Us For Availability
7
MAY 3348629 MAY 3348629 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
MAY 347139 MAY 347139 Contact Us For Availability
8
END CAP (R.H.) (WHITE) MAY W10251355 Contact Us For Availability
8
PLUG-STRIKE MAY 3403630 Contact Us For Availability
8
SCREW MAY 3390647 Contact Us For Availability
9
PANEL, REAR MAY 8274261 Contact Us For Availability
9
PLUG, HOLE MAY 3404413 Contact Us For Availability
9
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
10
LINT SCREEN (WHITE) MAY 8559787 Contact Us For Availability
10
Switch, Door MAY 3406109 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
MAY W10449052 MAY W10449052 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
SCREW MAY 3390631 Contact Us For Availability
12
Clip, Heater Box MAY 8066155 Contact Us For Availability
13
Screw MAY 693995 Contact Us For Availability
13
SCREW MAY 688983 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
14
CLIP, SPRING MAY 8536939 Contact Us For Availability
14
MAY 3397659 MAY 3397659 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
MAY 8559800 MAY 8559800 Contact Us For Availability
15
Hinge, Top MAY 8066217 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY W10317459 MAY W10317459 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 696302 MAY 696302 Contact Us For Availability
17
TIMER ASSEMBLY (60 HZ.) MAY 8299781 Contact Us For Availability
17
MAY 3405246 MAY 3405246 Contact Us For Availability
17
MAY 3403585 MAY 3403585 Contact Us For Availability
18
KNOB, TIMER (GREY) MAY W10317457 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
MAY 339956 MAY 339956 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
NUT, PUSH ON MAY 90296 Contact Us For Availability
20
MAY 8066092 MAY 8066092 Contact Us For Availability
20
MAY 3976434 MAY 3976434 Contact Us For Availability
21
PANEL, FRONT (WHITE) MAY W10224853 Contact Us For Availability
21
MAY 279457 MAY 279457 Contact Us For Availability
22
Clamp, Motor (With Shield) MAY 3404162 Contact Us For Availability
22
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
23
Clip, Felt Pad MAY 685203 Contact Us For Availability
23
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
24
DOOR CATCH ASSEMBLY MAY 3389441 Contact Us For Availability
24
THERMOSTAT MAY 3387137 Contact Us For Availability
25
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
25
WASHER, TRI RING MAY 690997 Contact Us For Availability
26
MOTOR ASSEMBLY 50 HZ. MAY W10289660 Contact Us For Availability
26
MAY W10359270 MAY W10359270 Contact Us For Availability
27
Screw, Set MAY 690046 Contact Us For Availability
27
MAY W10359269 MAY W10359269 Contact Us For Availability
28
HINGE, PIN ASSEMBLY MAY W10362431 Contact Us For Availability
28
MAY 3397590 MAY 3397590 Contact Us For Availability
29
PULLEY ASSEMBLY MAY 685011 Contact Us For Availability
29
WASHER MAY 348197 Contact Us For Availability
30
BOLT MAY 3400500 Contact Us For Availability
30
MAY W10298789 MAY W10298789 Contact Us For Availability
31
MAY 348780 MAY 348780 Contact Us For Availability
31
MAY 3403491 MAY 3403491 Contact Us For Availability
32
MAY W10131364 MAY W10131364 Contact Us For Availability
32
Bearing, Ring MAY 692526 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
MAY W10219342 MAY W10219342 Contact Us For Availability
34
IDLER ASSEMBLY MAY 691366 Contact Us For Availability
34
MAY W10352407 MAY W10352407 Contact Us For Availability
35
INNER DOOR ASSEMBLY MAY 3402341 Contact Us For Availability
35
DRUM ASSEMBLY COMPLETE MAY 695587 Contact Us For Availability
36
DOOR, OUTER (WHITE) MAY 3402335 Contact Us For Availability
37
HANDLE, DOOR (WHITE) MAY 8559779 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
39
MAY 279393 MAY 279393 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY 689790 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
× ![]()
