Model LG 49TA3E-B – Common Parts & Diagrams

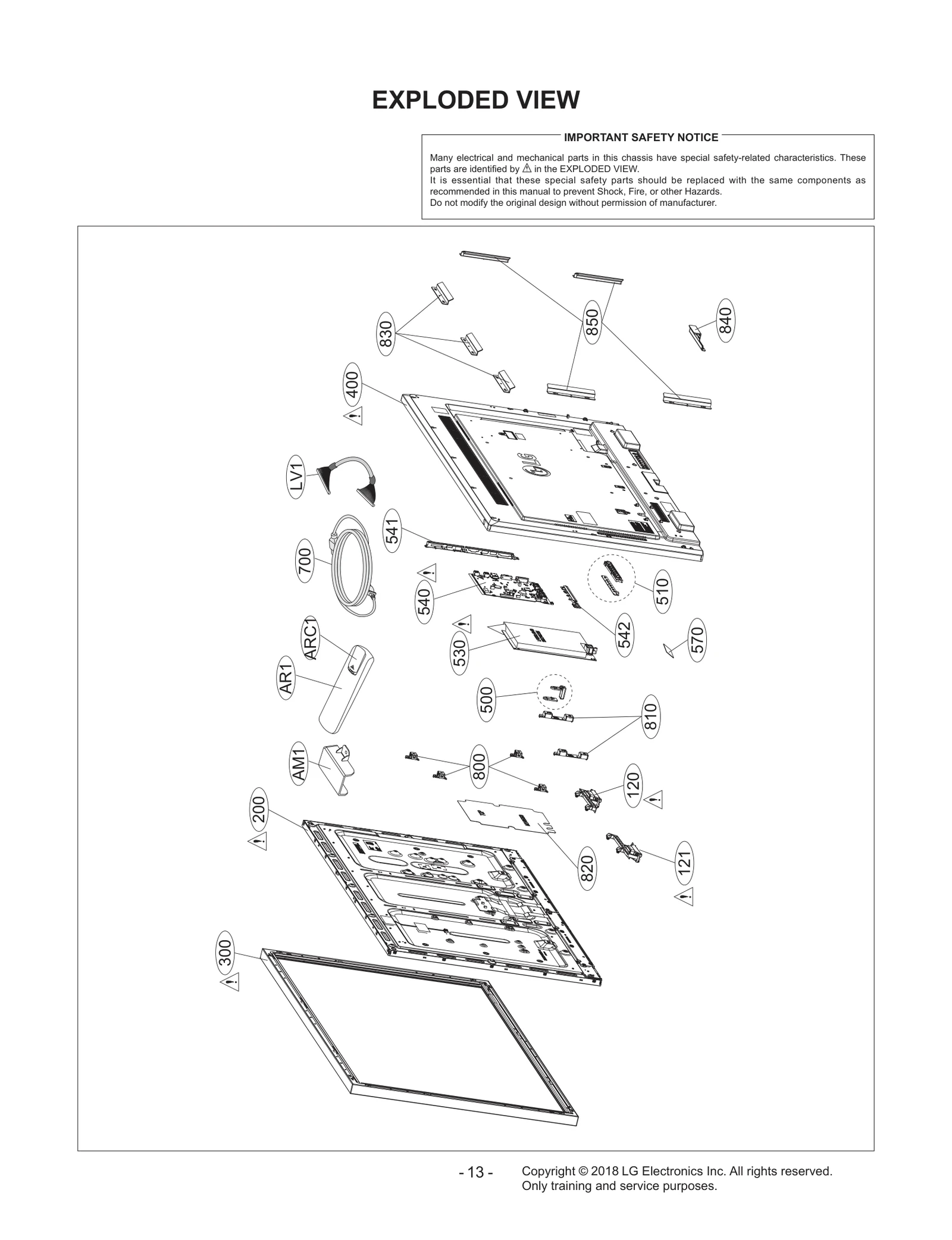

Diagram 0
Diagram 1
Common parts from model LG 49TA3E-B
120
Speaker,Full Range LGE EAB63928403 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63308901 Contact Us For Availability
300
Touch Panel LGE EBD63645314 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87891091 Contact Us For Availability
500
Chassis Assembly LGE EBT65201501 Contact Us For Availability
510
DMS Chassis Assembly LGE EBT64589001 Contact Us For Availability
530
Power Supply Assembly LGE EAY63689107 Contact Us For Availability
540
Chassis Assembly LGE EBT65243031 Contact Us For Availability
541
Cover LGE MCK68550905 Contact Us For Availability
570
Module,Wifi Bluetooth Module LGE EAT62093304 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Supporter LGE MJH63794101 Contact Us For Availability
820
Insulator LGE MEV65151002 Contact Us For Availability
830
Supporter Assembly LGE AJJ75838301 Contact Us For Availability
840
Supporter Assembly LGE AJJ75838401 Contact Us For Availability
A4
Cable,Assembly LGE EAD62707902 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A6
Screw,Taptite LGE FAB30013219 Contact Us For Availability
AR1
Remote Controller Assembly LGE AKB75095363 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
LV1
Cable,FFC LGE EAD63265807 Contact Us For Availability
S1
Cable,Assembly LGE EAD63406602 Contact Us For Availability
S2
Harness,Multi LGE EAD62847614 Contact Us For Availability
S3
Harness,Single LGE EAD63245303 Contact Us For Availability
S4
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
S5
Harness,Multi LGE EAD64168702 Contact Us For Availability
× ![]()
