Model LG 47LG60-UA – Common Parts & Diagrams

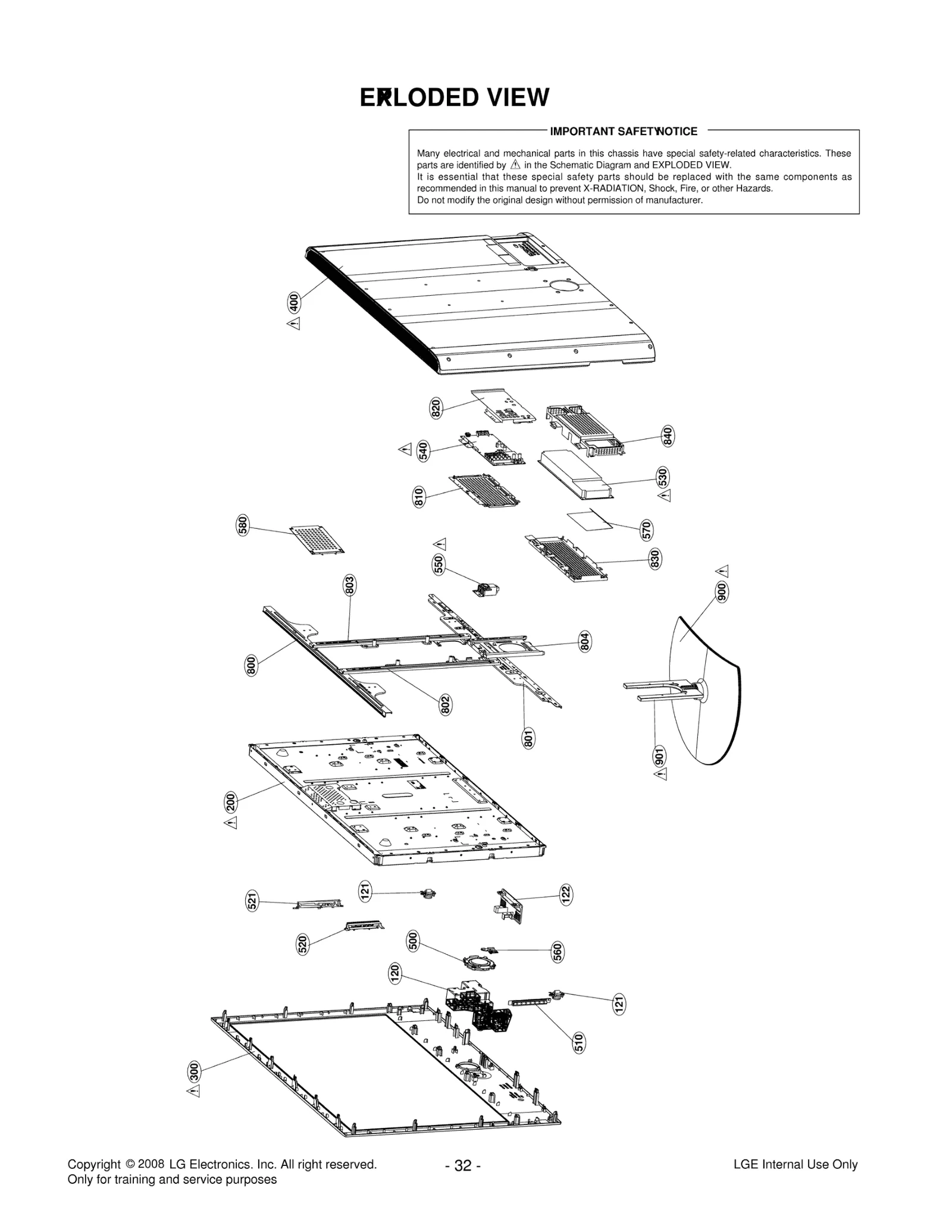

Diagram 0
Diagram 1
Common parts from model LG 47LG60-UA
120
Speaker Assembly LGE EAB44081001 Contact Us For Availability
121
Speaker,Tweeter LGE EAB41284404 Contact Us For Availability
122
Bracket LGE MAZ41397402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ41866701 Contact Us For Availability
200T
Time Control LGE EAT56804701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ35997909 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ35998109 Contact Us For Availability
500
PCB Assembly,Front LGE EBR42599907 Contact Us For Availability
510
PCB Assembly LGE EBR50555501 Contact Us For Availability
520
Plate,Shield LGE MGJ41038904 Contact Us For Availability
521
Bracket Assembly LGE ABA36376418 Contact Us For Availability
530
SMPS,AC/DC LGE EAY41972601 Contact Us For Availability
540
PCB Assembly,Main LGE EBR50556801 Contact Us For Availability
550
PCB Assembly,Sub LGE EBR50576901 Contact Us For Availability
560
PCB Assembly,Front LGE EBR42598101 Contact Us For Availability
570
Plate Assembly LGE AGU36973502 Contact Us For Availability
580
PCB Assembly,Sub LGE EBR50556301 Contact Us For Availability
800
Plate,Metal LGE MGJ41187302 Contact Us For Availability
801
Plate,Metal LGE MGJ41187502 Contact Us For Availability
802
Plate,Metal LGE MGJ41187902 Contact Us For Availability
804
Plate,Metal LGE MGJ41189202 Contact Us For Availability
810
Plate,Shield LGE MGJ41039107 Contact Us For Availability
820
Plate,Shield LGE MGJ41039204 Contact Us For Availability
830
Plate,Shield LGE MGJ41188702 Contact Us For Availability
840
Plate,Shield LGE MGJ41189003 Contact Us For Availability
900
Base Assembly LGE AAN35998202 Contact Us For Availability
901
Supporter LGE MJH41397602 Contact Us For Availability
A1
Manual,Owners LGE MFL34797048 Contact Us For Availability
A6
Screw Assembly LGE FAB30016425 Contact Us For Availability
LV1
Harness,Single LGE EAD42557902 Contact Us For Availability
× ![]()
