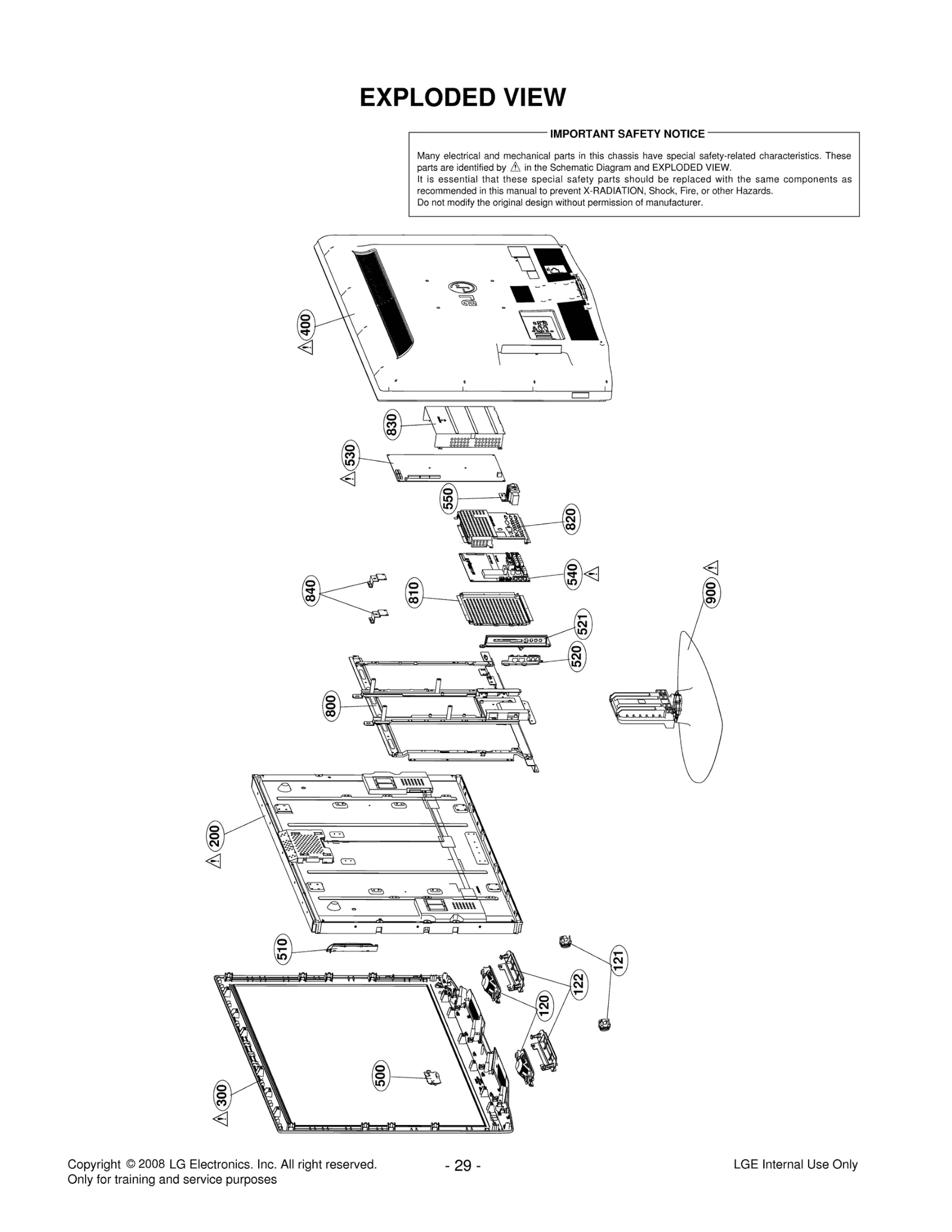

Model LG 47LG50DC-UG – Common Parts & Diagrams

120
Speaker,Full Range
Speaker,Full Range LGE EAB41280401 Contact Us For Availability
View on Model
121
Speaker,Tweeter
Speaker,Tweeter LGE EAB41284402 Contact Us For Availability
View on Model
122
Bracket Assembly
Bracket Assembly LGE ABA35890405 Contact Us For Availability
View on Model
200
LCD,Module-TFT
LCD,Module-TFT LGE EAJ58531101 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ35804008 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ35803608 Contact Us For Availability
View on Model
500
PCB Assembly,Front
PCB Assembly,Front LGE EBR42597903 Contact Us For Availability
View on Model
510
Package Assembly
Package Assembly LGE AGF67018301 Contact Us For Availability
View on Model
520
Bracket Assembly
Bracket Assembly LGE ABA35569919 Contact Us For Availability
View on Model
521
Bracket
Bracket LGE MAZ40315702 Contact Us For Availability
View on Model
530
SMPS,AC/DC
SMPS,AC/DC LGE EAY40505303 Contact Us For Availability
View on Model
540
PCB Assembly
PCB Assembly LGE EBR60903701 Contact Us For Availability
View on Model
550
Filter,AC Line
Filter,AC Line LGE EAM36140901 Contact Us For Availability
View on Model
801
Plate,Metal
Plate,Metal LGE MGJ40603103 Contact Us For Availability
View on Model
802
Plate,Metal
Plate,Metal LGE MGJ40600002 Contact Us For Availability
View on Model
803
Plate,Metal
Plate,Metal LGE MGJ40601203 Contact Us For Availability
View on Model
804
Plate,Metal
Plate,Metal LGE MGJ40602603 Contact Us For Availability
View on Model
820
Plate,Metal
Plate,Metal LGE MGJ40652303 Contact Us For Availability
View on Model
830
Plate,Metal
Plate,Metal LGE MGJ40603902 Contact Us For Availability
View on Model
900
Base Assembly
Base Assembly LGE AAN35804115 Contact Us For Availability
View on Model
A1
Manual,Owners
Manual,Owners LGE MFL34797082 Contact Us For Availability
View on Model
A1
Manual,Owners
Manual,Owners LGE MFL34797089 Contact Us For Availability
View on Model
A10
Screw,Taptite
Screw,Taptite LGE FAB30018306 Contact Us For Availability
View on Model
LV1
Harness,Single
Harness,Single LGE EAD42557902 Contact Us For Availability
View on Model
LV2
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631T20041B Contact Us For Availability
View on Model
R102
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
View on Model
R105
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
View on Model
R107
RESISTOR,METAL GLAZE
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
View on Model
R108
Resistor,Chip
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
View on Model
SW103
Switch,Tact
Switch,Tact LGE EBF55334201 Contact Us For Availability
View on Model
ZD101
Diode,TVS
Diode,TVS LGE EAH33945901 Contact Us For Availability
View on Model
