Model Whirlpool 465.13329600 Dishwasher – Common Parts & Diagrams

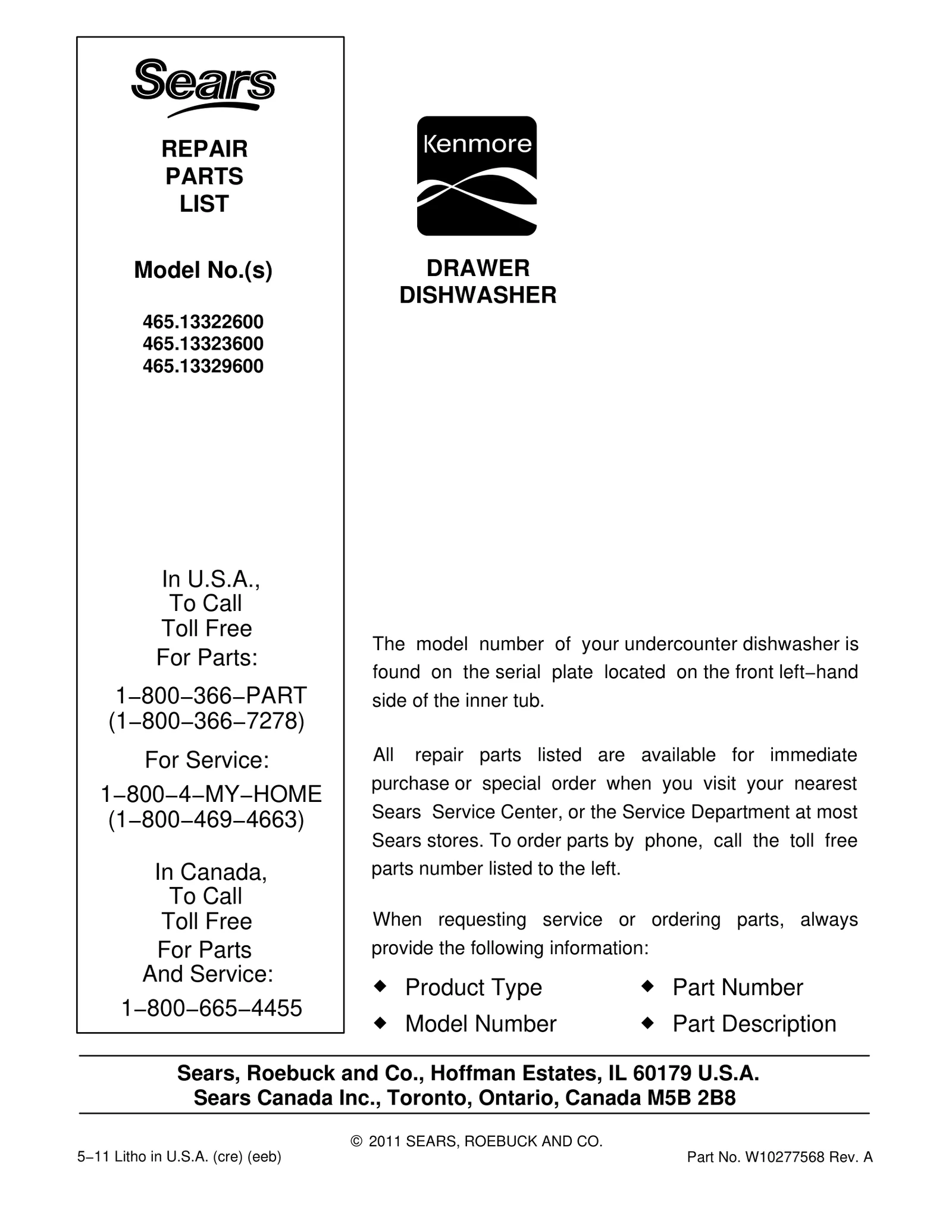

COVER

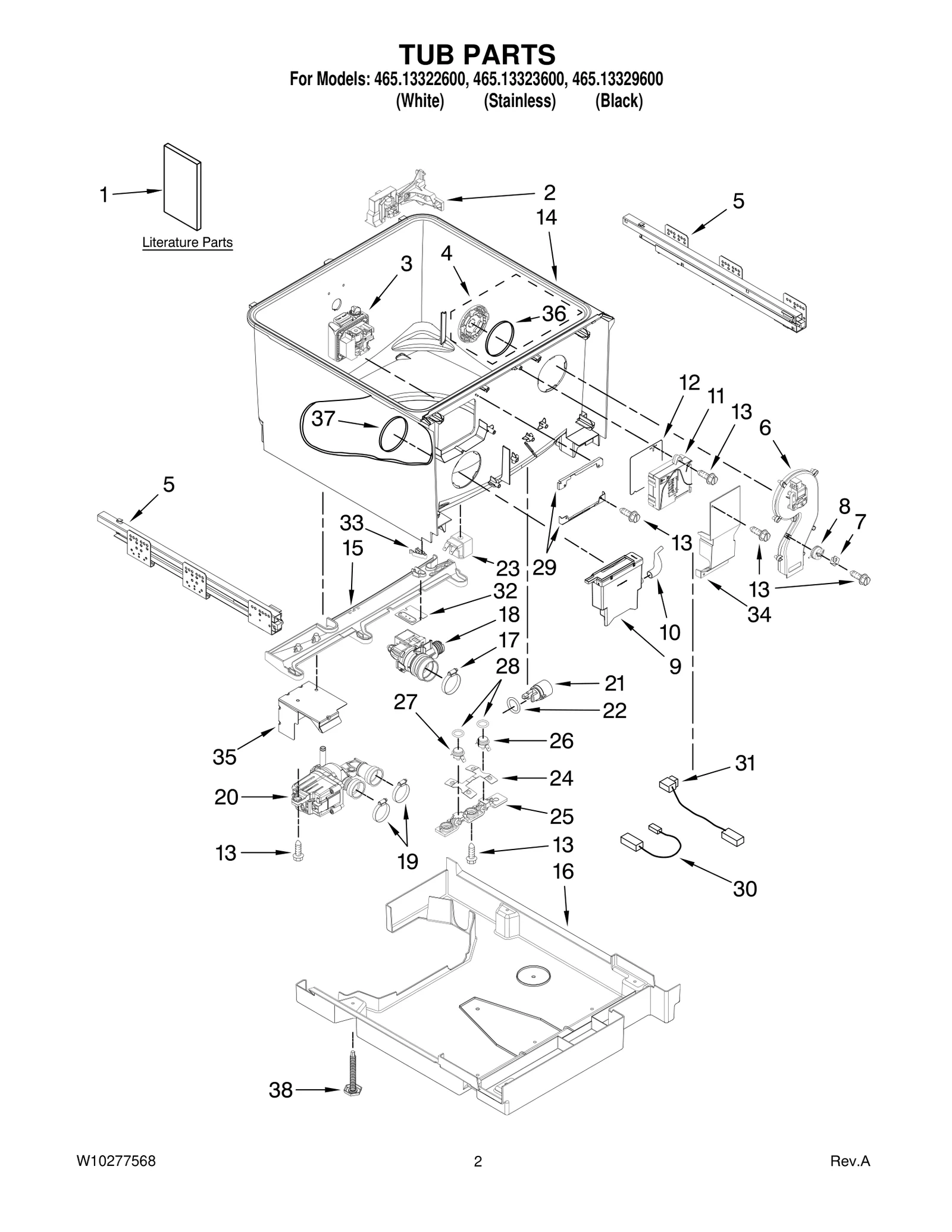

TUB PARTS

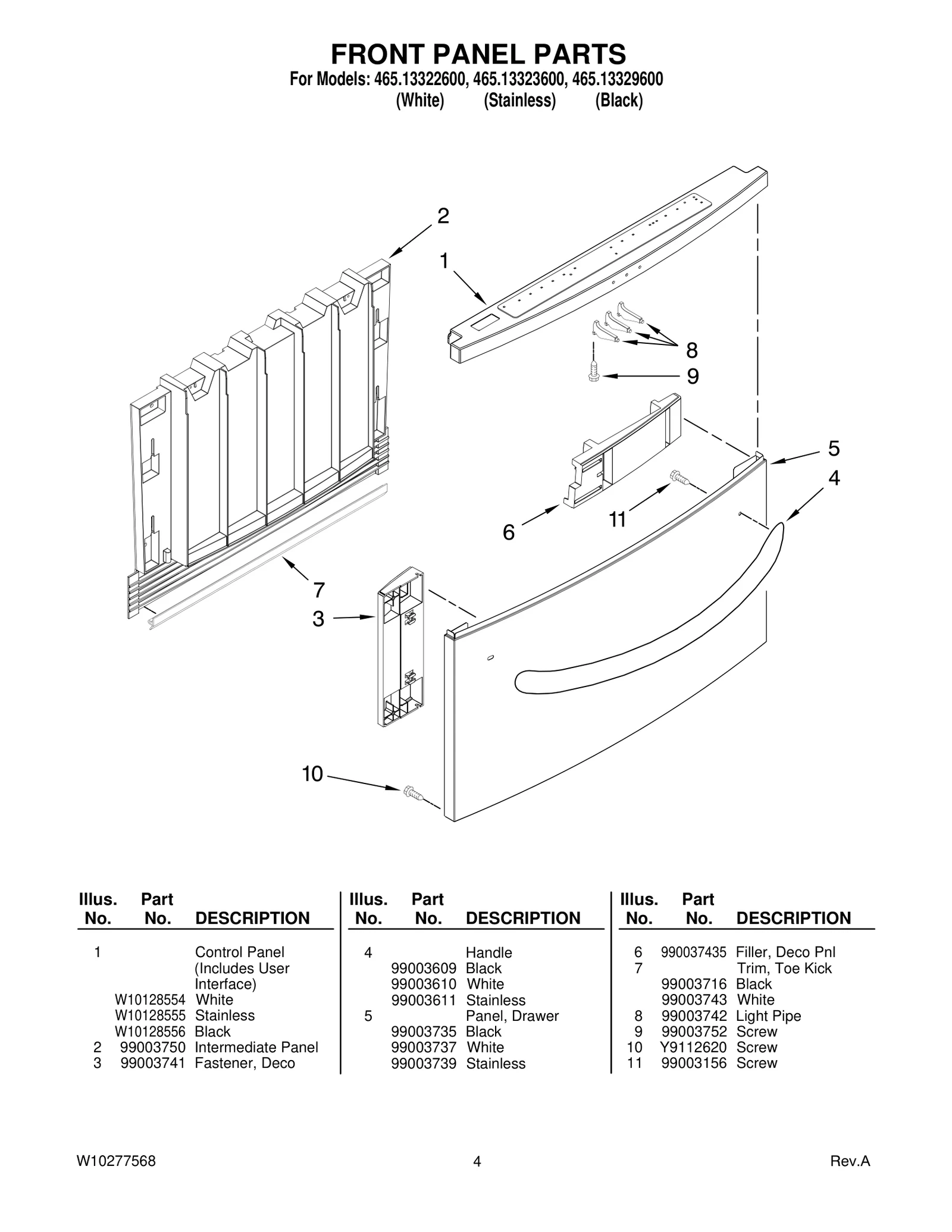

FRONT PANEL PARTS

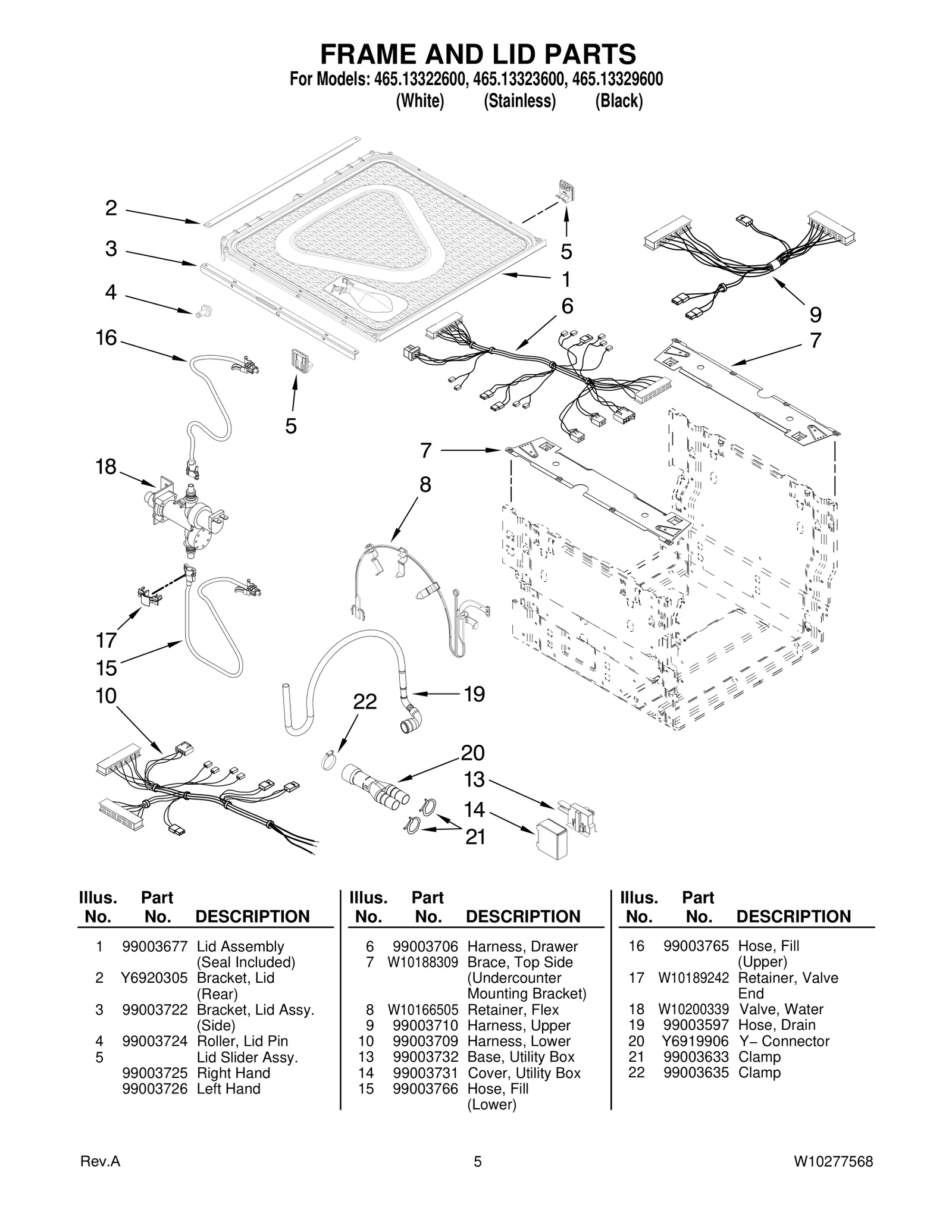

FRAME AND LID PARTS

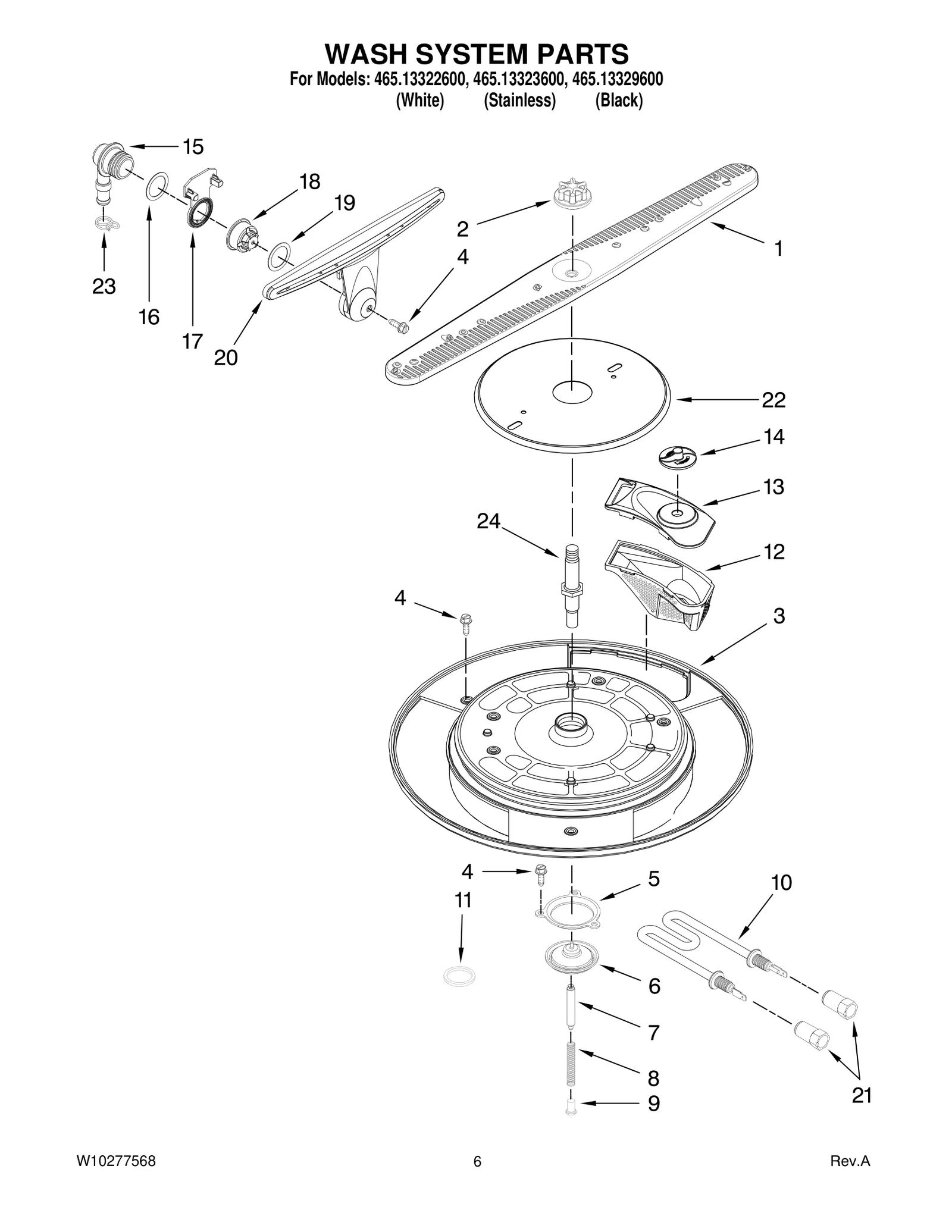

WASH SYSTEM PARTS

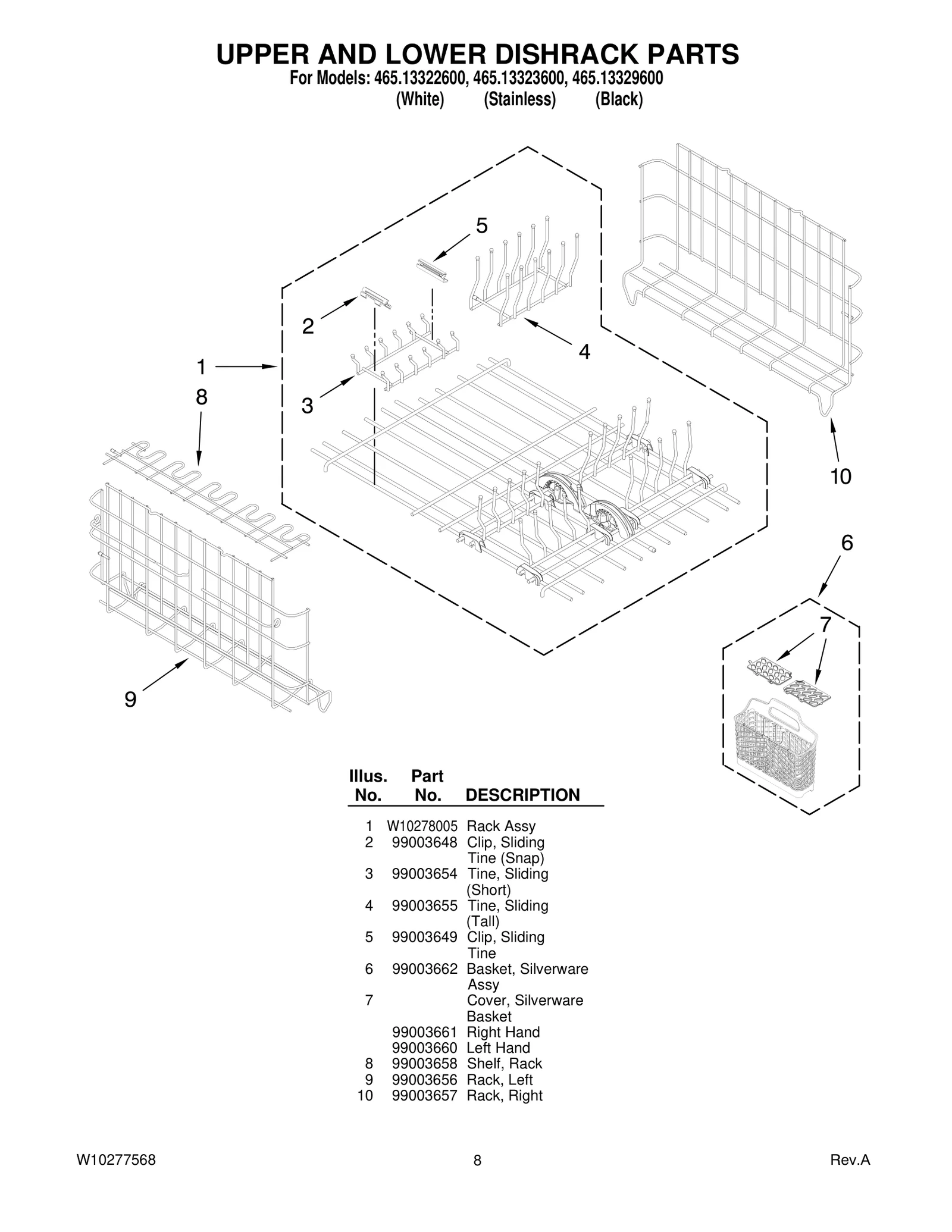

UPPER AND LOWER DISHRACK PARTS

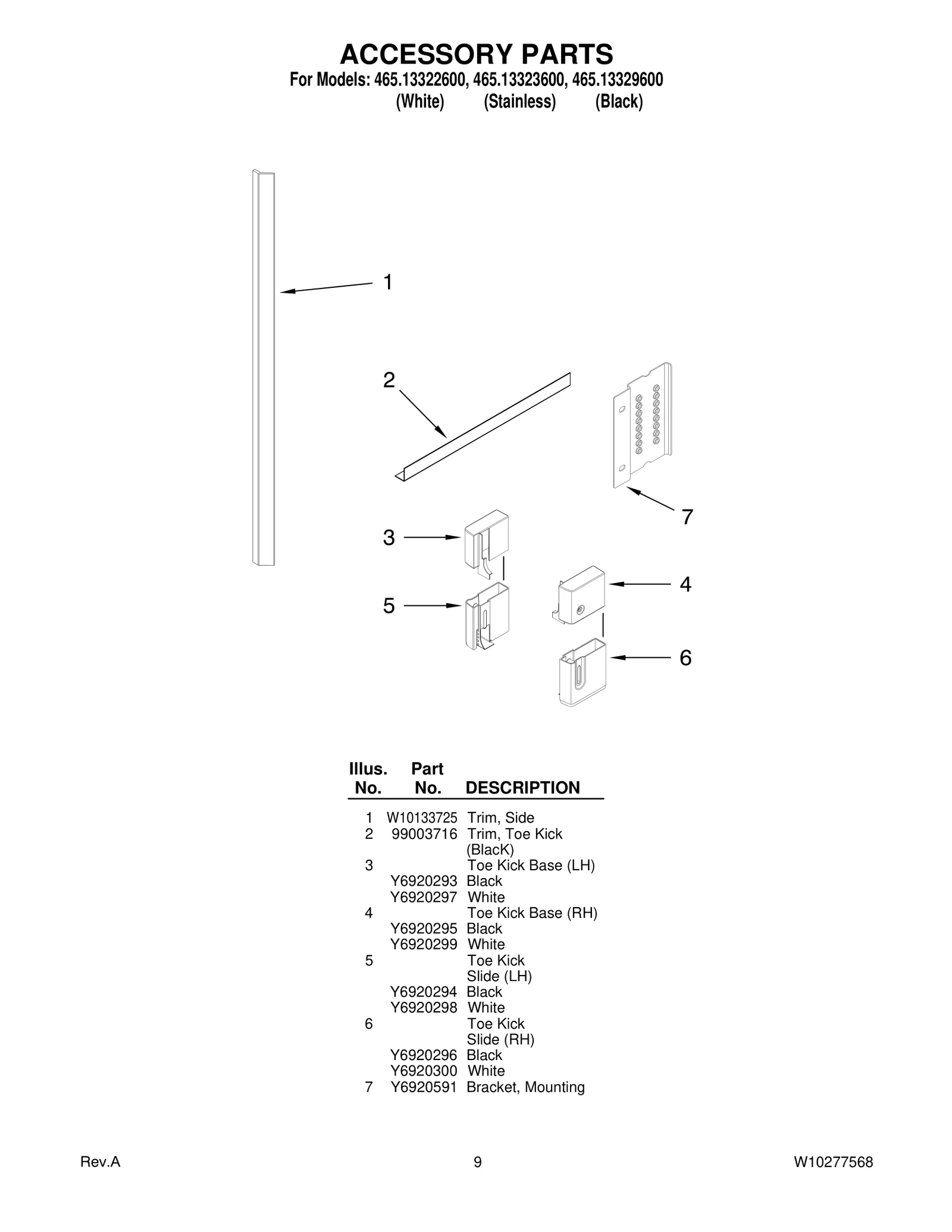

ACCESSORY PARTS
Common parts from model Whirlpool 465.13329600 Dishwasher
1
Trim, Side WPL W10133725 Contact Us For Availability
1
Rack Assy WPL W10278005 Contact Us For Availability
2
Bracket, Lid WPL Y6920305 Contact Us For Availability
2
Clip, Sliding Tine (Snap) WPL 99003648 Contact Us For Availability
2
Trim, Toe Kick WPL 99003716 Contact Us For Availability
3
Dispenser WPL W10250852 Contact Us For Availability
3
Tine, Sliding WPL 99003654 Contact Us For Availability
3
Toe Kick Base (LH) — Black WPL Y6920293 Contact Us For Availability
3
Toe Kick Base (LH) — White WPL Y6920297 Contact Us For Availability
3
Filter Flowplate Assembly WPL W10190556 Contact Us For Availability
4
Toe Kick Base (RH) — Black WPL Y6920295 Contact Us For Availability
4
Screw WPL Y6918536 Contact Us For Availability
4
Tine, Sliding WPL 99003655 Contact Us For Availability
4
Toe Kick Base (RH) — White WPL Y6920299 Contact Us For Availability
5
Slide — Left Hand WPL 99003759 Contact Us For Availability
5
Lid Slider Assy. — Right Hand WPL 99003725 Contact Us For Availability
5
Toe Kick Slide (LH) — Black WPL Y6920294 Contact Us For Availability
5
Compression Ring, Fine Drain WPL 99003720 Contact Us For Availability
5
Toe Kick Slide (LH) — White WPL Y6920298 Contact Us For Availability
6
Harness, Drawer WPL 99003706 Contact Us For Availability
6
Toe Kick Slide (RH) — Black WPL Y6920296 Contact Us For Availability
6
Seal, Fine Drain WPL 99003692 Contact Us For Availability
6
Basket, Silverware Assy WPL 99003662 Contact Us For Availability
6
Toe Kick Slide (RH) — White WPL Y6920300 Contact Us For Availability
7
Armature, Fine Drain WPL 99003772 Contact Us For Availability
7
Cover, Silverware Basket — Right Hand WPL 99003661 Contact Us For Availability
7
Cover, Silverware Basket — Left Hand WPL 99003660 Contact Us For Availability
7
Bracket, Mounting WPL Y6920591 Contact Us For Availability
8
Spring, Fine Drain WPL 99003774 Contact Us For Availability
8
Shelf, Rack WPL 99003658 Contact Us For Availability
9
Rack, Left WPL 99003656 Contact Us For Availability
10
Heater WPL 99003625 Contact Us For Availability
10
Harness, Lower WPL 99003709 Contact Us For Availability
11
Control Module WPL 99003733 Contact Us For Availability
11
O−Ring (EPDM) WPL Y6920320 Contact Us For Availability
12
Coarse Cup, Lower WPL 99003777 Contact Us For Availability
13
Base, Utility Box WPL 99003732 Contact Us For Availability
14
Coarse Cup Cap WPL 99003778 Contact Us For Availability
14
Cover, Utility Box WPL 99003731 Contact Us For Availability
15
Hose, Fill WPL 99003766 Contact Us For Availability
16
Cover, Bottom WPL 99003714 Contact Us For Availability
16
Washer WPL 910069 Contact Us For Availability
17
Retainer, Valve End WPL W10189242 Contact Us For Availability
17
Bracket, Upper Manifold Mtg WPL Y6920354 Contact Us For Availability
18
Cap, Manifold Inlet WPL Y6920171 Contact Us For Availability
19
Hose, Drain WPL 99003597 Contact Us For Availability
19
O−Ring WPL 99002857 Contact Us For Availability
20
Y− Connector WPL Y6919906 Contact Us For Availability
20
Wash Pump WPL 99003730 Contact Us For Availability
22
Shield, Fine Filter WPL 99003704 Contact Us For Availability
24
Pivot, Wash Arm WPL 99003697 Contact Us For Availability
33
Catch, Drawer Release WPL W10190274 Contact Us For Availability
36
Filter WPL 99003715 Contact Us For Availability
× ![]()
