Model Whirlpool 45EN-2W ELECTRIC RANGE – Common Parts & Diagrams
02 - CONTROL PANEL

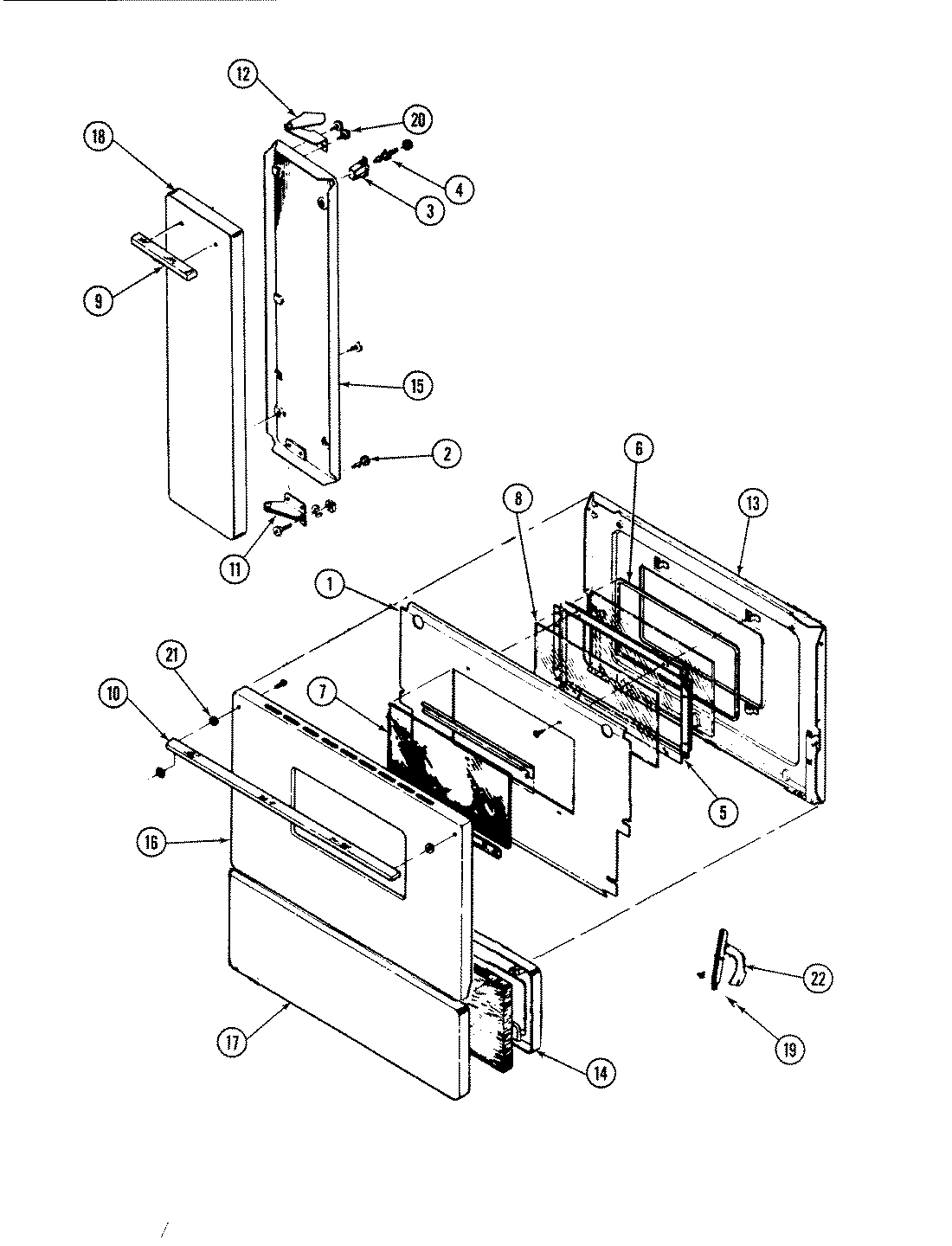

03 - DOOR

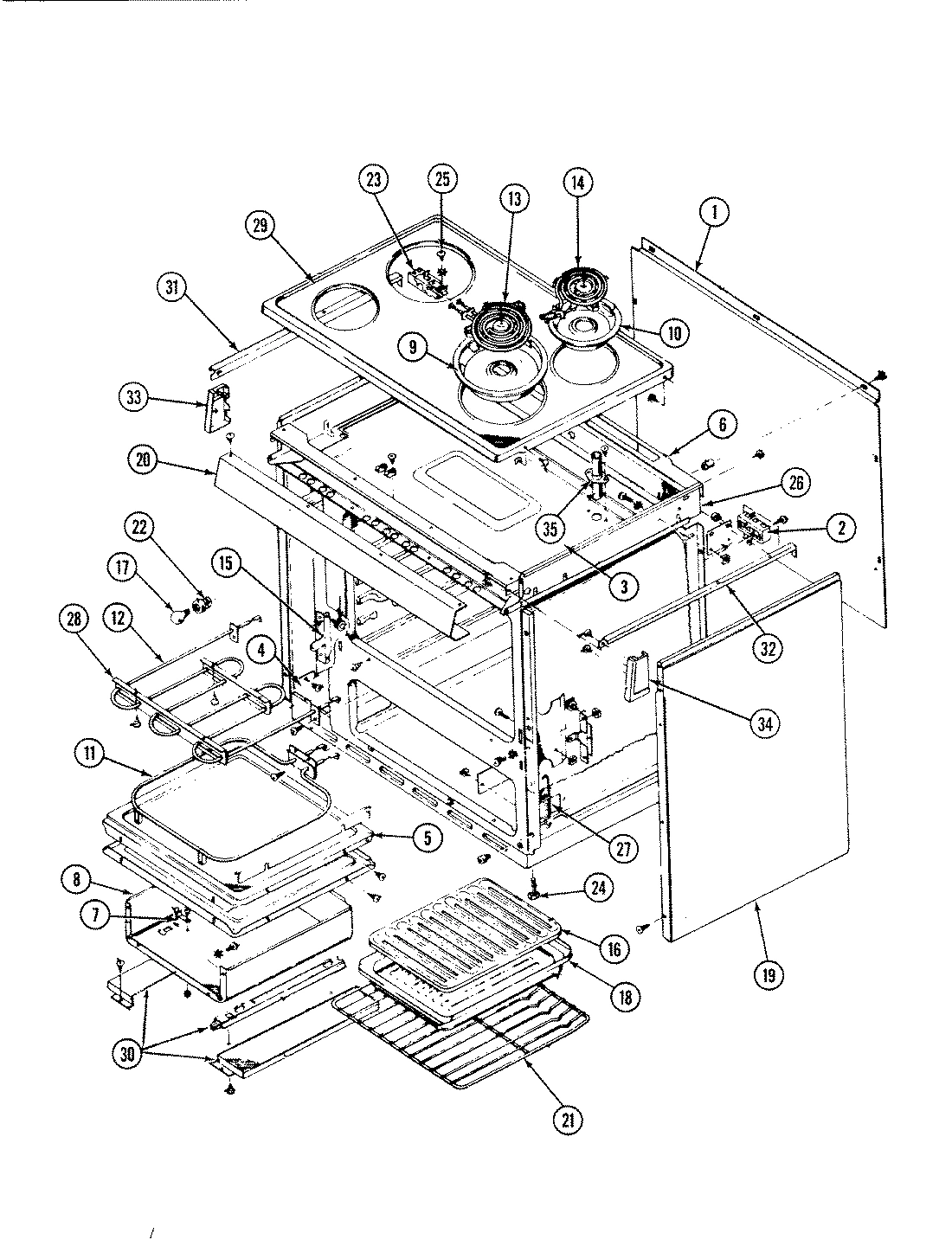

01 - BODY
Common parts from model Whirlpool 45EN-2W ELECTRIC RANGE
1
BRACE WPL 3802F01480 Contact Us For Availability
1
SHIELD WPL 4005F03620 Contact Us For Availability
1
CLOCK WPL 7601P18460 Contact Us For Availability
1
CLOCK----NA WPL 7602P06460 Contact Us For Availability
1
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
1
BACK, MAIN WPL 4002F04920 Contact Us For Availability
2
KNOB, SWITCH WPL 1359263 Contact Us For Availability
2
KNOB, CLOCK WPL 1437241 Contact Us For Availability
2
BUMPER WPL 8003P00360 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
3
KNOB, THERMOSTAT WPL 7735P01460 Contact Us For Availability
3
CATCH, FEMALE WPL 8002P01360 Contact Us For Availability
3
BOX, BURNER WPL 4011F01780 Contact Us For Availability
4
KNOB, INFINITE WPL 7711P34660 Contact Us For Availability
4
CATCH WPL 8024P00260 Contact Us For Availability
4
BOTTOM, COMPARTMENT WPL 4011F13180 Contact Us For Availability
5
LIGHT, SIGNAL WPL 7407P01460 Contact Us For Availability
5
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F00624 Contact Us For Availability
5
BRACE, COMPARTMENT TOP WPL 3802F07220 Contact Us For Availability
6
NUT WPL 1555246 Contact Us For Availability
6
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
6
BRACKET WPL 3801F05334 Contact Us For Availability
6
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
6
BRACE WPL 3802F03823 Contact Us For Availability
7
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
7
GLASS WPL 7902P05160 Contact Us For Availability
7
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
7
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
7
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
7
CATCH WPL 8002P00160 Contact Us For Availability
8
COVER WPL 1201229 Contact Us For Availability
8
PANEL, BACKGUARD WHITE WPL 2601W25481 Contact Us For Availability
8
BACKGUARD WPL 2601W34781 Contact Us For Availability
8
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
8
DRAWER ASSY. WPL 3405F00420 Contact Us For Availability
9
SCREW, SPECIAL WPL 1986257 Contact Us For Availability
9
SPACER, MAIN TOP WPL 7105P00160 Contact Us For Availability
9
HANDLE, COMPARTMENT DOOR WPL 7701P00960 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P00160 Contact Us For Availability
9
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
10
SWITCH, INF. CONTROL WPL 7403P07260 Contact Us For Availability
10
SWITCH, INF. CONTROL WPL 7403P11160 Contact Us For Availability
10
SWITCH, INFINITE (1400W) WPL 7403P26460 Contact Us For Availability
10
SWITCH, INFINITE (2600W) WPL 7403P26560 Contact Us For Availability
10
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
10
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
10
BOWL, DRIP (6``) WPL 7725P00260 Contact Us For Availability
10
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
11
SWITCH WPL 7403P02060 Contact Us For Availability
11
SWITCH, LIGHT WPL 7403P24260 Contact Us For Availability
11
HINGE WPL 7106P00360 Contact Us For Availability
11
ELEMENT WPL 7406P01160 Contact Us For Availability
12
THERMOSTAT, OVEN WPL 7404P01460 Contact Us For Availability
12
HINGE WPL 7106P00760 Contact Us For Availability
12
ELEMENT BROIL (LARGE) WPL 7406P00560 Contact Us For Availability
13
TRIM WPL 7726P00360 Contact Us For Availability
13
TRIM WPL 7726P01460 Contact Us For Availability
13
LINING, OVEN DOOR WPL 2402W11923 Contact Us For Availability
13
ELEMENT, GIANT SURFACE WPL 7406P01460 Contact Us For Availability
13
ELEMENT, STD. SURFACE WPL 7406P01760 Contact Us For Availability
14
TRIM, BACKGUARD WPL 7703P17560 Contact Us For Availability
14
LINING, BROILER WPL 2404F02023 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
14
ELEMENT (6``) WPL 7406P01860 Contact Us For Availability
15
LINING, COMPARTMENT DOOR WPL 2408F00580 Contact Us For Availability
15
HINGE, OVEN DOOR WPL 3418F03134 Contact Us For Availability
16
PANEL, DOOR (WHT) WPL 2401F04271 Contact Us For Availability
16
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
16
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
17
PANEL, DRAWER (WHT) WPL 2403F02671 Contact Us For Availability
17
BULB, OVEN WPL 7407P02660 Contact Us For Availability
18
PANEL, COMPARTMENT WHITE WPL 2409F00771 Contact Us For Availability
18
PAN, BROIL WPL 3401F00419 Contact Us For Availability
18
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
19
PANEL, SIDE WHITE WPL 2618F01371 Contact Us For Availability
20
PIN, HINGE WPL 7113P00260 Contact Us For Availability
20
SCREW, SPECIAL WPL 1986258 Contact Us For Availability
20
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
20
SEAL, OVEN DOOR WPL 7212P02560 Contact Us For Availability
20
PANEL, UPPER FRONT WPL 2614F00181 Contact Us For Availability
21
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
21
RACK, OVEN WPL 7801P01360 Contact Us For Availability
22
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
22
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
23
RETAINER, LIGHT GUARD WPL 3804F05020 Contact Us For Availability
23
REFLECTOR - OVEN LIGHT WPL 3602F00251 Contact Us For Availability
23
RETAINER, INSULATION WPL 3804F04780 Contact Us For Availability
23
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
24
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
25
COVER WPL 3604F03744 Contact Us For Availability
26
SIDE, BURNER BOX RIGHT WPL 4016F00280 Contact Us For Availability
26
SIDE, BURNER BOX LEFT WPL 4016F00680 Contact Us For Availability
27
SPRING WPL 7803P00360 Contact Us For Availability
28
SUPPORT WPL 3807F17613 Contact Us For Availability
28
TERMINAL, RECEPTACLE WPL 7405P02460 Contact Us For Availability
29
TOP ASSY, MAIN WPL 2002W01301 Contact Us For Availability
29
BRACE, TOP WPL 3802F03180 Contact Us For Availability
30
TRACK, BROILER DOOR WPL 3807A00380 Contact Us For Availability
31
TRIM WPL 7720P05660 Contact Us For Availability
32
TRIM WPL 7720P05960 Contact Us For Availability
33
TRIM, LEFT WPL 7720P05560 Contact Us For Availability
34
TRIM, RIGHT WPL 7720P05860 Contact Us For Availability
35
TUBE WPL 8026P00260 Contact Us For Availability
× ![]()
