Model LG 43UM670H0UA – Common Parts & Diagrams
Diagram 0

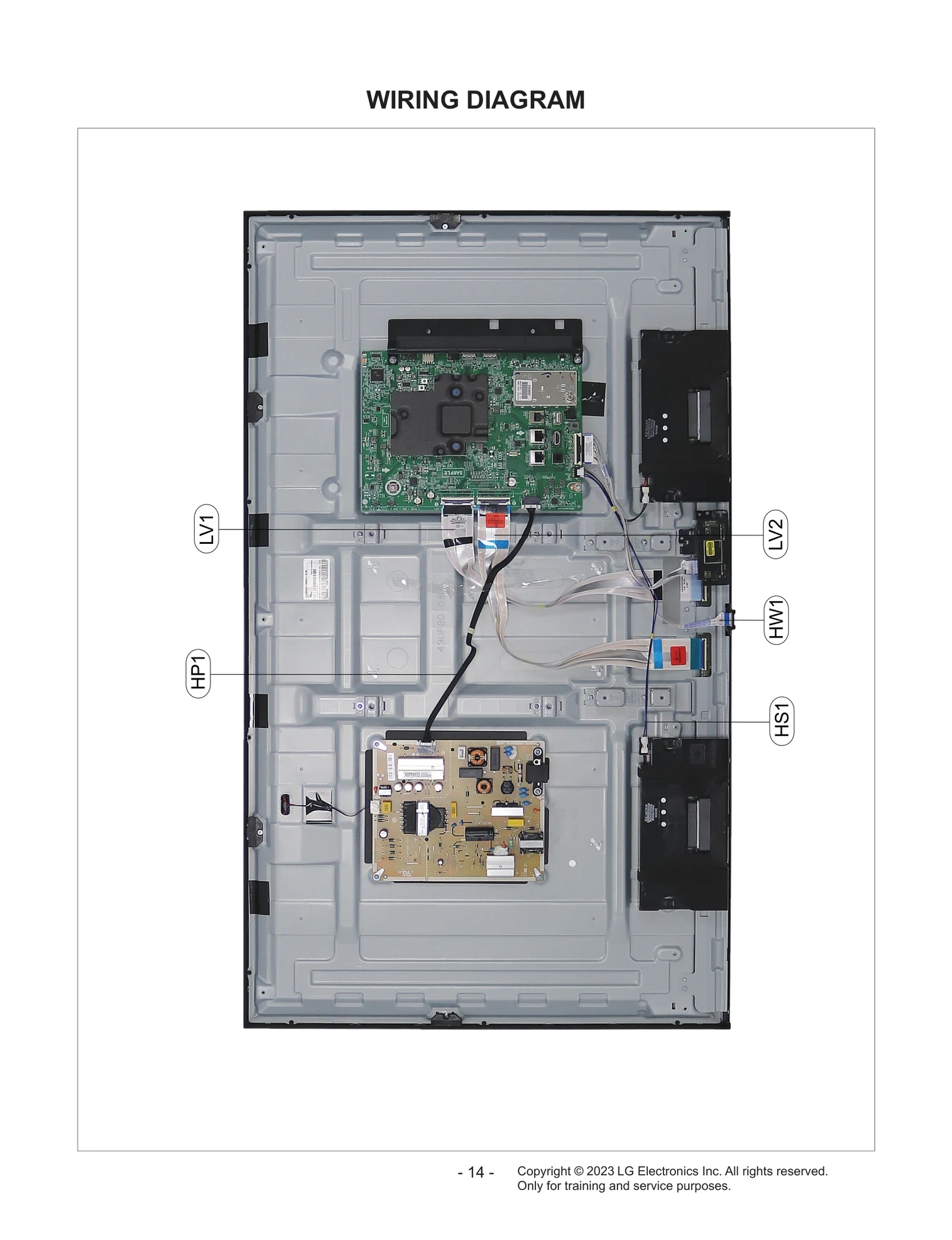

Diagram 1
Common parts from model LG 43UM670H0UA
200
LCD,Module-TFT LGE EAJ65842608 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65842601 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF30092308 Contact Us For Availability
200PA
LCD Panel Kit LGE EAJ65753707 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ30475647 Contact Us For Availability
521
Bracket LGE MAZ67455487 Contact Us For Availability
540
Mainboard,BPR Total Assembly,SVC LGE EBU68014501 Contact Us For Availability
571
Bracket LGE MAZ67455505 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Bracket LGE MAZ67462702 Contact Us For Availability
820
Insulator LGE MEV67701501 Contact Us For Availability
900
Base Assembly LGE AAN75850004 Contact Us For Availability
910
Bracket,Stand LGE MAZ67725302 Contact Us For Availability
AB4
Bracket LGE MAZ66544701 Contact Us For Availability
ARC1
Cover,Rear LGE MCK62976101 Contact Us For Availability
AW1
Screw,Machine LGE FAB31843211 Contact Us For Availability
AW3
Screw,Taptite LGE FAB31639801 Contact Us For Availability
HP1
Harness,Single LGE EAD64586011 Contact Us For Availability
× ![]()
