Model LG 43UH5F-B – Common Parts & Diagrams

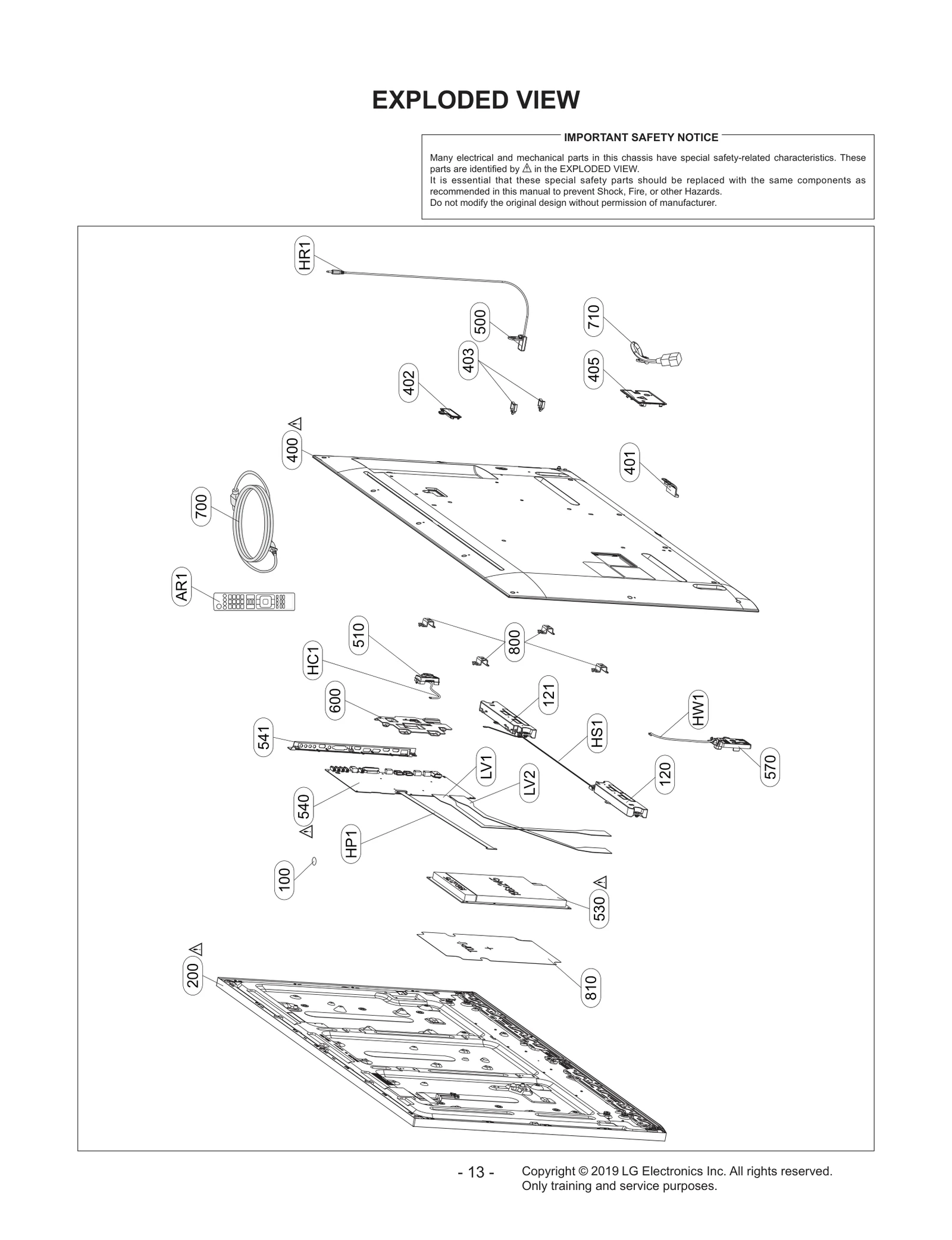

Diagram 0
Common parts from model LG 43UH5F-B
100
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
100
Primary Cell Battery,Lithium LGE EAC63418701 Contact Us For Availability
120
Speaker Assembly LGE EAB63628203 Contact Us For Availability
121
Speaker Assembly LGE EAB63628204 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ65452101 Contact Us For Availability
400
Cover,Rear LGE MCK71066901 Contact Us For Availability
401
Bracket LGE MAZ67107401 Contact Us For Availability
402
Cover LGE MCK71069901 Contact Us For Availability
403
Holder LGE 4930V00218C Contact Us For Availability
405
Cover LGE MCK71090401 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR89093001 Contact Us For Availability
530
Power Supply Assembly LGE EAY65728601 Contact Us For Availability
541
Bracket LGE MAZ67087601 Contact Us For Availability
570
Bracket Assembly LGE ABA77549501 Contact Us For Availability
600
Heat Sink LGE MED64870901 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Insulator LGE MEV67433201 Contact Us For Availability
HC1
Harness,Single LGE EAD64145102 Contact Us For Availability
HP1
Harness,Single LGE EAD64586104 Contact Us For Availability
HR1
Cable,Assembly LGE EAD63406601 Contact Us For Availability
HW1
Harness,Single LGE EAD64126110 Contact Us For Availability
LV1
Cable,FFC LGE EAD64666209 Contact Us For Availability
LV2
Cable,FFC LGE EAD64666210 Contact Us For Availability
× ![]()
