Model LG 43SM5KD-B – Common Parts & Diagrams

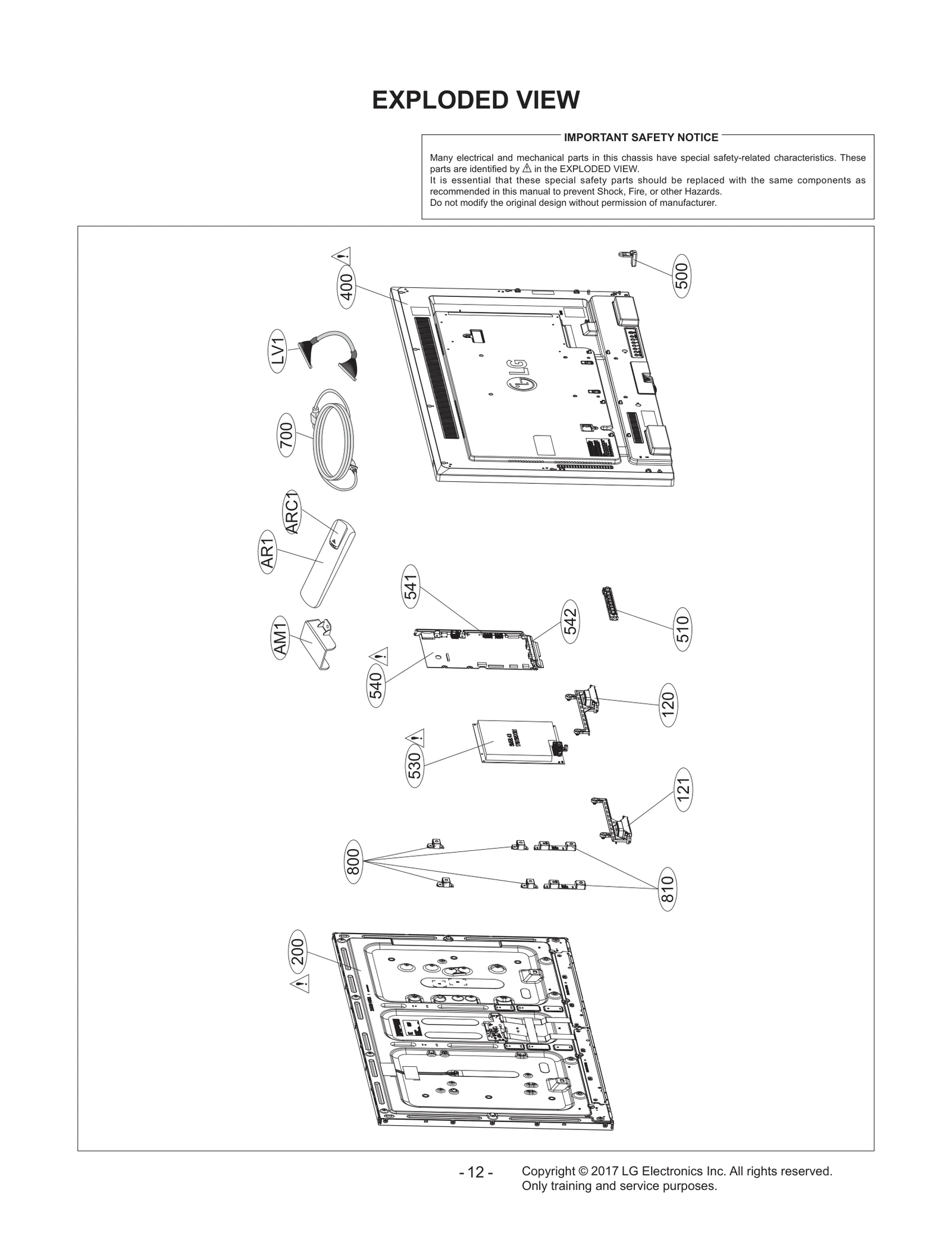

Diagram 0
Diagram 1
Common parts from model LG 43SM5KD-B
120
Speaker,Full Range LGE EAB63928403 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87879685 Contact Us For Availability
500
Chassis Assembly LGE EBT63756608 Contact Us For Availability
510
DMS Chassis Assembly LGE EBT64589002 Contact Us For Availability
530
Power Supply Assembly LGE EAY63630707 Contact Us For Availability
540
BPR Total Assembly LGE EBU64321906 Contact Us For Availability
542
Cover LGE MCK68591034 Contact Us For Availability
800
Supporter,VESA LGE MJH64334001 Contact Us For Availability
810
Supporter LGE MJH63794102 Contact Us For Availability
AM1
Bracket LGE MAZ64684702 Contact Us For Availability
ARC1
Cover LGE MCK67552801 Contact Us For Availability
C735
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C3203
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C3216
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C6002
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C6009
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
D2016
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
L1004
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD63265801 Contact Us For Availability
P3301
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
Q1001
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q1003
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R8841
Resistor,Chip LGE 0RH2204C622 Contact Us For Availability
SW3201
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
× ![]()
