Model LG 43LV570H – Common Parts & Diagrams

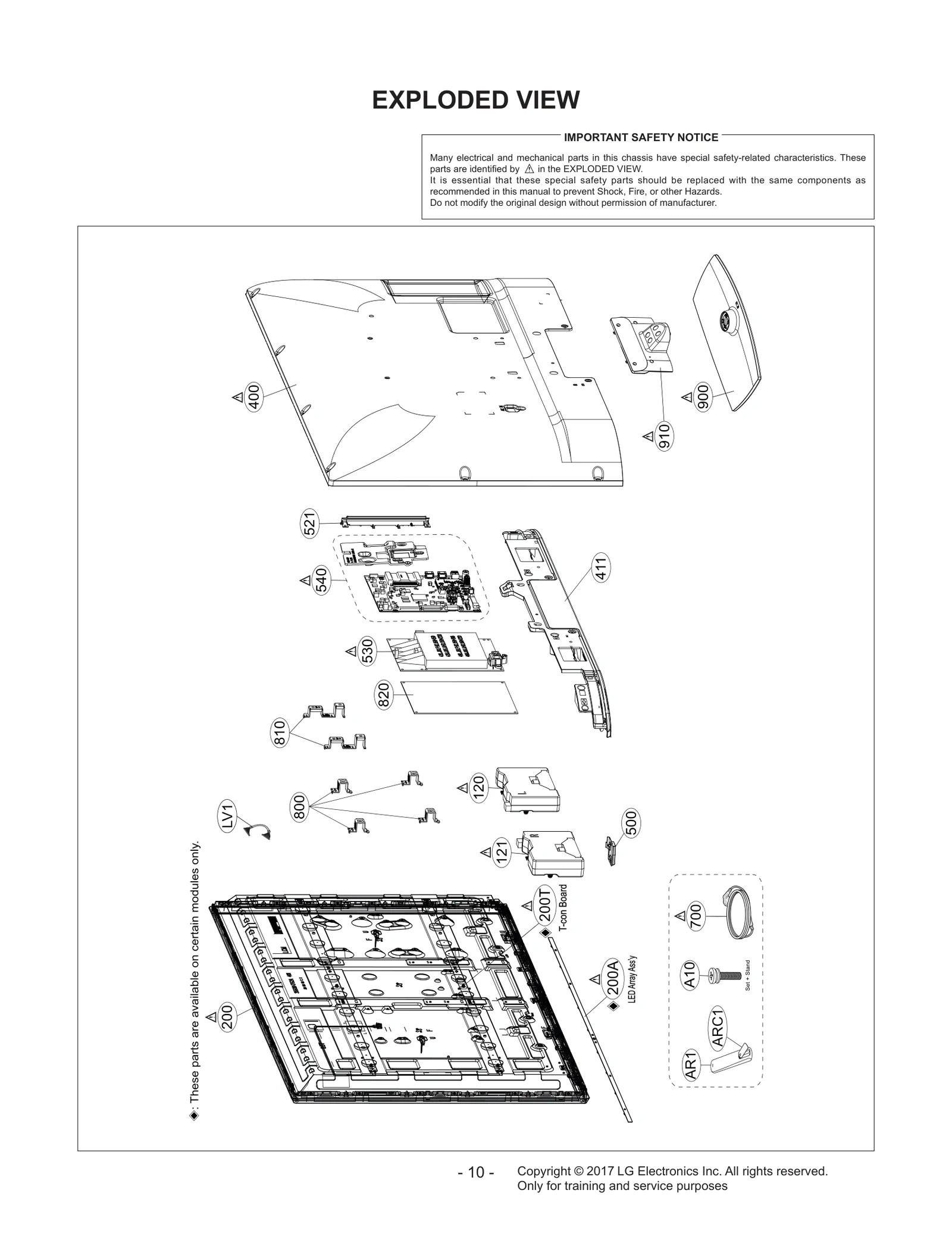

Diagram 0
Diagram 1
Common parts from model LG 43LV570H
200
LCD,Module-TFT LGE EAJ63929701 Contact Us For Availability
200A
Package Assembly,LED Array LGE AGF78666701 Contact Us For Availability
200A
LED Array,Parts Assembly,SVC LGE AGM76409701 Contact Us For Availability
200P
LCD,Panel-TFT LGE EAJ64667601 Contact Us For Availability
200PC
COF,Local Sourcing Parts LGE CLS31242501 Contact Us For Availability
200PPF
Polarizer,Local Sourcing Parts LGE CLS31261901 Contact Us For Availability
200PPR
Polarizer,Local Sourcing Parts LGE CLS31262001 Contact Us For Availability
200SL1
Source PCB,Local Sourcing Parts LGE CLS31203501 Contact Us For Availability
200SR1
Source PCB,Local Sourcing Parts LGE CLS31203502 Contact Us For Availability
200T
Time Control LGE EAT63633501 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89180863 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ89180862 Contact Us For Availability
411
Cover Assembly LGE ACQ89142504 Contact Us For Availability
411
Cover Assembly LGE ACQ89142511 Contact Us For Availability
500
PCB Assembly,IR Key LGE EBR83592303 Contact Us For Availability
521
Bracket LGE MAZ65396426 Contact Us For Availability
521
Bracket LGE MAZ65396411 Contact Us For Availability
530
Power Supply Assembly LGE EAY64529801 Contact Us For Availability
540
PCB Assembly LGE EBR84449401 Contact Us For Availability
800
Supporter,VESA LGE MJH64333101 Contact Us For Availability
810
Supporter LGE MJH64433202 Contact Us For Availability
900
Base Assembly LGE AAN75850003 Contact Us For Availability
900
Base Assembly LGE AAN75850002 Contact Us For Availability
910
Bracket LGE MAZ65563402 Contact Us For Availability
AR1
Remocon kit,Package Assembly LGE AGF76692631 Contact Us For Availability
LV1
Cable,FFC LGE EAD63990507 Contact Us For Availability
× ![]()
