Model LG 42WS10-BAA – Common Parts & Diagrams
Diagram 0

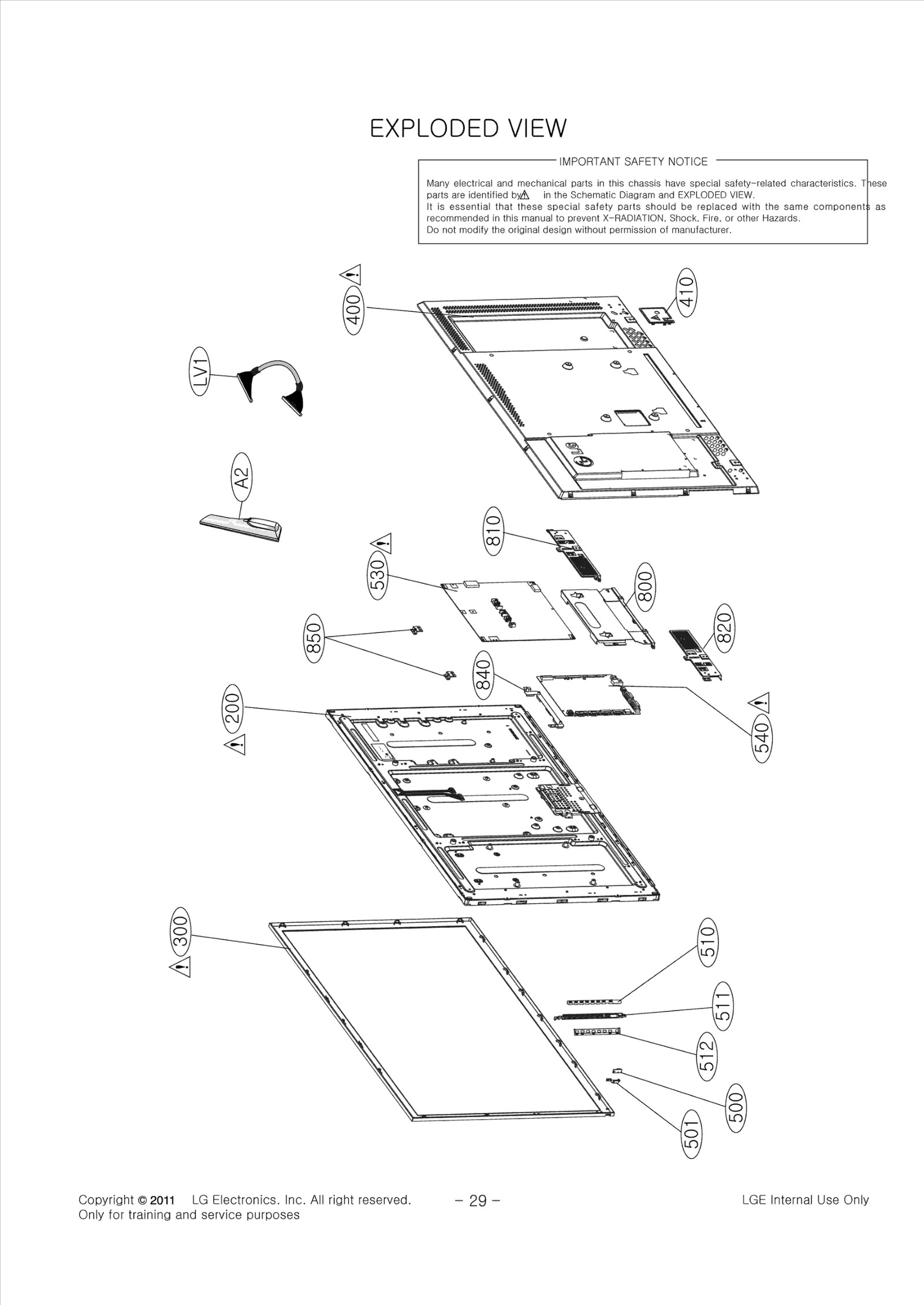

Diagram 1
Common parts from model LG 42WS10-BAA
2
Screw,Machine LGE FAB31339402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61930601 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73589502 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85551303 Contact Us For Availability
410
Cover LGE MCK66775502 Contact Us For Availability
500
Package Assembly LGE AGF76425501 Contact Us For Availability
501
Lens LGE MFB62592902 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169602 Contact Us For Availability
540
Package Assembly LGE AGF76405301 Contact Us For Availability
800
Plate,Shield LGE MGJ63062402 Contact Us For Availability
810
Plate,Shield LGE MGJ63062302 Contact Us For Availability
820
Plate,Shield LGE MGJ63062202 Contact Us For Availability
830
Plate LGE MGJ63062002 Contact Us For Availability
850
Plate,Shield LGE MGJ63062102 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915294 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR101
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR428
Resistor,Array LGE EBC32260404 Contact Us For Availability
C103
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C119
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C122
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C123
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C129
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C131
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C133
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C134
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C137
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C150
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C161
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C163
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C225
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C253
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C679
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C686
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C726
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C814
Capacitor,AL,Chip LGE EAE60659101 Contact Us For Availability
C840
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C862
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C873
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C878
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C895
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C911
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C915
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C921
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D100
LED,Chip LGE EAV34876201 Contact Us For Availability
D102
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D822
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D834
Diode,TVS LGE EAH39491701 Contact Us For Availability
D843
Diode,TVS LGE EAH42720601 Contact Us For Availability
D847
Diode,TVS LGE EAH61332601 Contact Us For Availability
IC100
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC101
Receiver Module LGE EAV61832001 Contact Us For Availability
IC101
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC102
Sensor,Ambient Light LGE EBD60658101 Contact Us For Availability
IC103
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC105
IC,DC,DC Converter LGE EAN61548102 Contact Us For Availability
IC107
IC,LDO Voltage Regulator LGE EAN60923001 Contact Us For Availability
IC108
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC110
IC,Reset LGE EAN60670101 Contact Us For Availability
IC112
Display SOC,Digital TV LGE EAN61856001 Contact Us For Availability
IC114
IC,DC,DC Converter LGE EAN61013901 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN61667501 Contact Us For Availability
IC402
IC,DDR3 SDRAM LGE EAN61829001 Contact Us For Availability
IC602
IC,Timer LGE EAN54696201 Contact Us For Availability
IC603
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC605
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC606
IC,Audio Amplifier LGE EAN61850901 Contact Us For Availability
IC607
IC,Tx/Rx LGE EAN62193401 Contact Us For Availability
IC610
IC,LAN LGE EAN61956501 Contact Us For Availability
IC612
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC801
IC LGE 0IPH741400E Contact Us For Availability
IC802
IC,EEPROM LGE EAN60997601 Contact Us For Availability
IC805
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC811
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC815
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
JK800
Connector,DSUB LGE EAG63030202 Contact Us For Availability
JK802
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK804
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK806
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK807
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
JK809
Connector,USB LGE EAG62571101 Contact Us For Availability
JK811
Jack,Modular LGE EAG62012405 Contact Us For Availability
L106
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L121
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L147
Filter,Bead LGE EAM54407902 Contact Us For Availability
L807
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L822
Filter,Bead LGE EAM32500903 Contact Us For Availability
LV1
Cable,FFC LGE EAD61668698 Contact Us For Availability
LV2
Cable,FFC LGE EAD61652527 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P102
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P401
Connector,Wafer LGE 6630V93270K Contact Us For Availability
P402
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P601
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P606
Connector,Wafer LGE 6630V091104 Contact Us For Availability
Q100
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q105
FET LGE EBK60752601 Contact Us For Availability
Q108
FET LGE EBK42767801 Contact Us For Availability
Q602
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q603
FET LGE EBK60752501 Contact Us For Availability
Q606
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q808
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q813
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R101
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R124
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R131
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R152
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R153
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R157
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R191
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R220
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R221
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R236
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R249
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R314
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R340
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R389
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R418
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R460
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R464
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R473
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R633
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R669
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R695
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R743
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R749
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R759
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R841
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R857
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R866
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R897
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R909
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R916
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R922
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R943
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R968
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R999
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R1013
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R1020
Resistor,Chip LGE 0RJ0492D477 Contact Us For Availability
R1059
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1062
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R1070
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1088
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
SW105
Switch,Tact LGE EBF55334201 Contact Us For Availability
VR803
VARISTOR LGE 6102W5V016A Contact Us For Availability
X601
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
X602
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD809
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
Login and Registration Form
