Model LG 42WL10MS-B – Common Parts & Diagrams

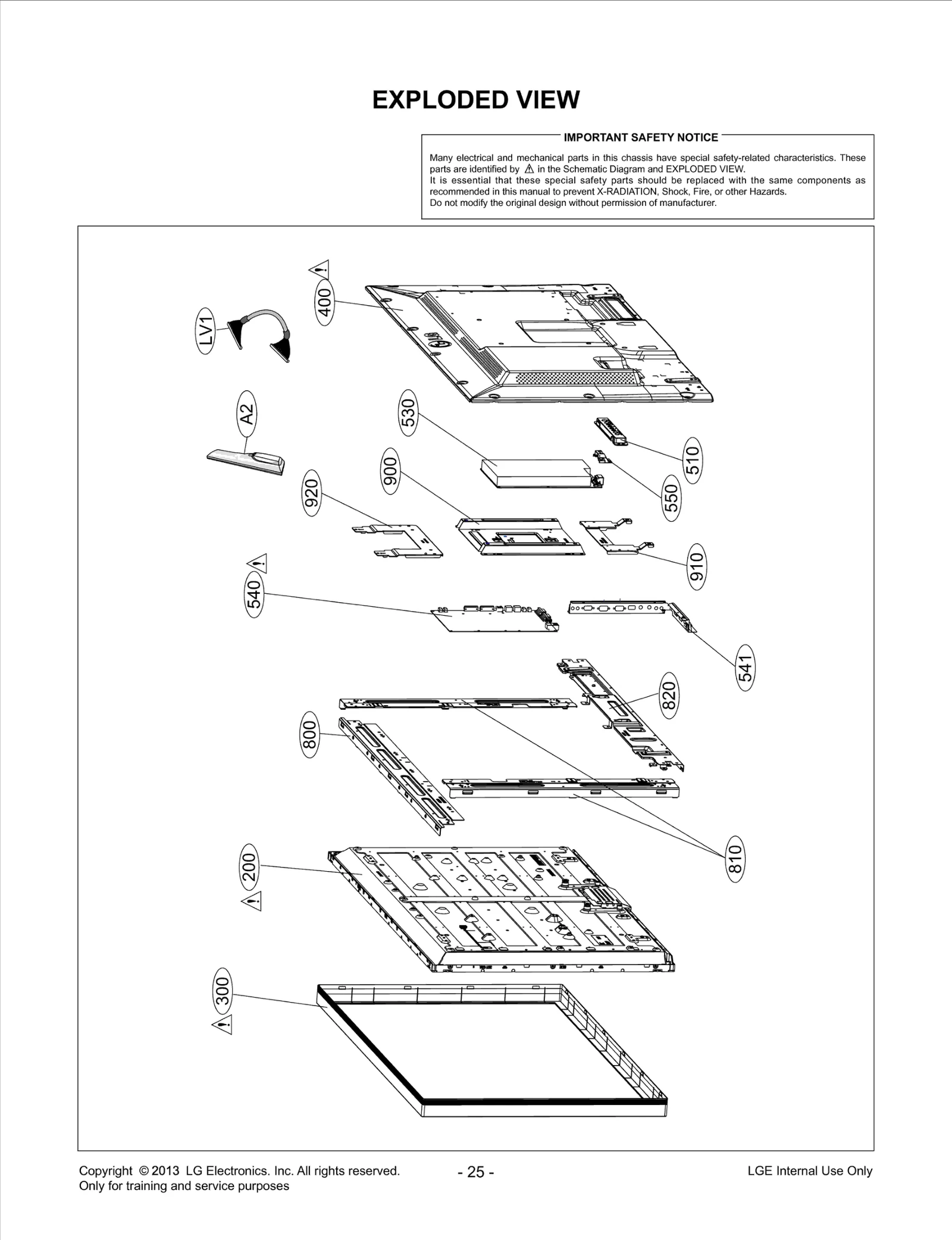

Diagram 0
Diagram 1
Common parts from model LG 42WL10MS-B
300
Cabinet Assembly LGE ABJ73929101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86412301 Contact Us For Availability
510
DMS Chassis Assembly LGE EBT62440602 Contact Us For Availability
530
Power Supply Assembly LGE EAY62889901 Contact Us For Availability
540
BPR Total Assembly LGE EBU62036202 Contact Us For Availability
541
Plate,Shield LGE MGJ63509101 Contact Us For Availability
550
Bracket LGE MAZ63702301 Contact Us For Availability
800
Plate,Metal LGE MGJ63572801 Contact Us For Availability
810
Plate,Metal LGE MGJ63572901 Contact Us For Availability
820
Plate,Metal LGE MGJ63573001 Contact Us For Availability
900
Frame LGE MDQ63460001 Contact Us For Availability
910
Plate,Metal LGE MGJ63509301 Contact Us For Availability
920
Plate,Metal LGE MGJ63509201 Contact Us For Availability
A1
Title LGE SAC33111340 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915219 Contact Us For Availability
A5
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR402
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR419
Resistor,Array LGE EBC32260404 Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CH2682K516 Contact Us For Availability
C317
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
C339
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C340
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C388
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C402
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C436
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C451
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C547
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C552
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C574
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C585
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CK332CK56A Contact Us For Availability
C598
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C609
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C610
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C613
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C635
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C638
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C649
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C650
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C654
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C669
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C670
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C674
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C689
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C701
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C768
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C908
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C1404
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
D403
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D407
Varistor LGE EAF61530201 Contact Us For Availability
D412
Diode,TVS LGE EAH61515101 Contact Us For Availability
D432
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D439
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D443
Varistor LGE EAF61530301 Contact Us For Availability
D807
Diode,TVS LGE EAH61232601 Contact Us For Availability
IC402
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC404
S/W,Firmware LGE SAA36392507 Contact Us For Availability
IC405
Display SOC,Digital TV LGE EAN61856201 Contact Us For Availability
IC406
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC407
S/W,Firmware LGE SAA36413903 Contact Us For Availability
IC409
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC414
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC415
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC418
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC419
IC,OP Amplifier LGE EAN61829701 Contact Us For Availability
IC420
IC,Timer LGE EAN54696201 Contact Us For Availability
IC422
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC426
IC,LDO Voltage Regulator LGE EAN56746801 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227502 Contact Us For Availability
IC427
IC,Analog Switch LGE EAN62227501 Contact Us For Availability
IC428
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC441
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC442
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC1402
IC,Ethernet LGE EAN62219202 Contact Us For Availability
IC1403
IC,Reset LGE EAN60670101 Contact Us For Availability
JK402
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK404
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK407
Jack,Modular LGE EAG62012402 Contact Us For Availability
JK408
Connector,DSUB LGE EAG63030202 Contact Us For Availability
JK410
Connector,DSUB LGE EAG62012203 Contact Us For Availability
JK411
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK412
Connector,USB LGE EAG62571101 Contact Us For Availability
L417
Filter,Bead LGE EAM32500903 Contact Us For Availability
L424
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L435
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L436
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L438
Filter,Bead LGE EAM62091201 Contact Us For Availability
L470
FILTER(CIRC),EMC LGE 6200J00012A Contact Us For Availability
L488
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61858742 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P401
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P402
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P408
Connector,DSUB LGE 6630TGA005S Contact Us For Availability
P411
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q405
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q411
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q414
TR,Bipolar LGE 0TRKE80038A Contact Us For Availability
Q443
FET LGE EBK60752501 Contact Us For Availability
R55
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R222
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R229
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R238
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R239
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R253
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R254
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R255
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R503
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R542
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R584
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R588
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R644
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R690
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R702
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R703
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R707
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ2402D477 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R718
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R719
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R724
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R730
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R732
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R733
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R763
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R765
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R796
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R830
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ0152C678 Contact Us For Availability
R840
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R844
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R847
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R866
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R872
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R932
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R933
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R935
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R969
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R988
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R992
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R1056
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1080
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1082
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R1091
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1411
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R1419
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
S1
Knob LGE MEY53379901 Contact Us For Availability
S2
Cover LGE MCK67189601 Contact Us For Availability
S3
PCB Assembly,Sub LGE EBR75626601 Contact Us For Availability
S4
Harness,Single LGE EAD52821205 Contact Us For Availability
S5
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S6
Harness,Single LGE EAD60958306 Contact Us For Availability
SW103
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW103
Switch,Tact LGE EBF55334201 Contact Us For Availability
X1401
Crystal LGE 6212AB2872B Contact Us For Availability
× ![]()
Login and Registration Form
