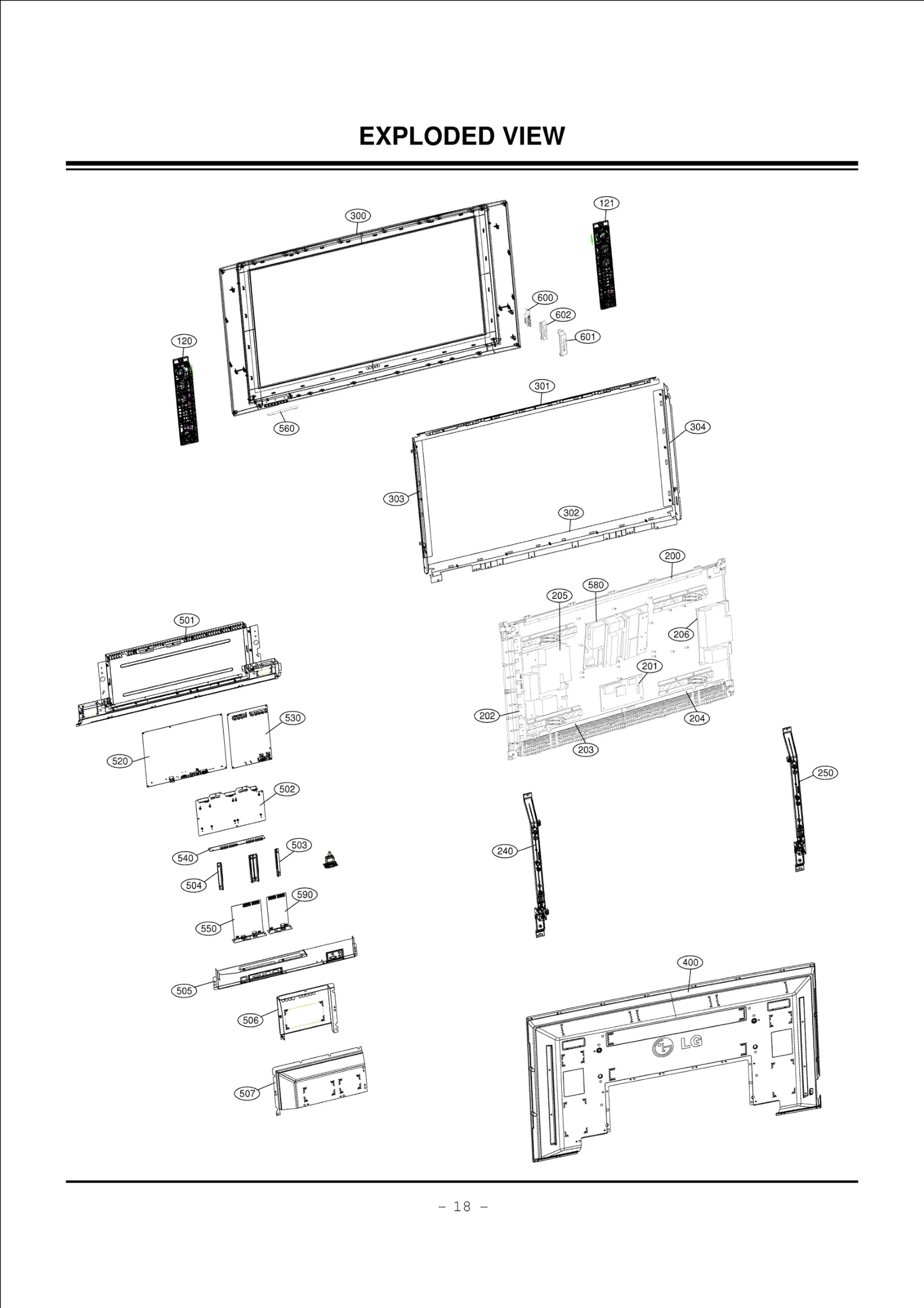

Model LG 42PX7DC-UA – Common Parts & Diagrams

000
Heat Sink Assembly
Heat Sink Assembly LGE 4921QP1041C Contact Us For Availability
View on Model
000
Heat Sink Assembly
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
View on Model
121
SPEAKER ASSEMBLY
SPEAKER ASSEMBLY LGE 6401VD0033A Contact Us For Availability
View on Model
200
PDP,Module-XGA FILTER INCLUDED
PDP,Module-XGA FILTER INCLUDED LGE EAJ33574301 Contact Us For Availability
View on Model
202
PWB(PCB) ASSEMBLY,DI
PWB(PCB) ASSEMBLY,DI LGE 6871QDH117A Contact Us For Availability
View on Model
203
PWB(PCB) ASSEMBLY,DI
PWB(PCB) ASSEMBLY,DI LGE 6871QLH059A Contact Us For Availability
View on Model
205
PWB(PCB) ASSEMBLY,DI
PWB(PCB) ASSEMBLY,DI LGE 6871QYH053B Contact Us For Availability
View on Model
206
PWB(PCB) ASSEMBLY,DI
PWB(PCB) ASSEMBLY,DI LGE 6871QZH056B Contact Us For Availability
View on Model
240
Supporter
Supporter LGE 4980900221B Contact Us For Availability
View on Model
250
Supporter
Supporter LGE 4980900222B Contact Us For Availability
View on Model
300
Cover Assembly
Cover Assembly LGE 30919E0033C Contact Us For Availability
View on Model
301
Case
Case LGE 3110900022C Contact Us For Availability
View on Model
302
Case
Case LGE 3110900023C Contact Us For Availability
View on Model
303
Case
Case LGE 3110900024C Contact Us For Availability
View on Model
304
Case
Case LGE 3110900025C Contact Us For Availability
View on Model
400
Cover Assembly
Cover Assembly LGE 3809900147B Contact Us For Availability
View on Model
501
Plate Assembly
Plate Assembly LGE 3301900110B Contact Us For Availability
View on Model
502
Plate
Plate LGE 3300V00597B Contact Us For Availability
View on Model
503
Supporter
Supporter LGE 4980V00E70B Contact Us For Availability
View on Model
504
Supporter
Supporter LGE 4980V00E70A Contact Us For Availability
View on Model
505
Supporter
Supporter LGE 4980900218B Contact Us For Availability
View on Model
506
Plate Assembly
Plate Assembly LGE 3301900101B Contact Us For Availability
View on Model
507
Plate Assembly
Plate Assembly LGE 3301900104C Contact Us For Availability
View on Model
520
PCB Assembly,Main
PCB Assembly,Main LGE 68719MMV62A Contact Us For Availability
View on Model
530
PCB Assembly,Sub
PCB Assembly,Sub LGE 68719SMK93A Contact Us For Availability
View on Model
540
PCB Assembly,Sub
PCB Assembly,Sub LGE 68719SMK29A Contact Us For Availability
View on Model
550
Chassis Assembly
Chassis Assembly LGE 31419SNK52A Contact Us For Availability
View on Model
560
Chassis Assembly
Chassis Assembly LGE EBT30536101 Contact Us For Availability
View on Model
580
PCB Assembly,Power
PCB Assembly,Power LGE 68719PT299A Contact Us For Availability
View on Model
590
Chassis Assembly
Chassis Assembly LGE EBT36173601 Contact Us For Availability
View on Model
590
PCB Assembly,Sub
PCB Assembly,Sub LGE 68719SMM53A Contact Us For Availability
View on Model
600
Chassis Assembly
Chassis Assembly LGE EBT30535701 Contact Us For Availability
View on Model
601
Bracket Assembly
Bracket Assembly LGE 4811900048A Contact Us For Availability
View on Model
602
Plate
Plate LGE 48149K0036A Contact Us For Availability
View on Model
A1
Manual
Manual LGE 38289U0558B Contact Us For Availability
View on Model
A2
Remote Controller
Remote Controller LGE 6710900004D Contact Us For Availability
View on Model
C2
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631V39013N Contact Us For Availability
View on Model
LV1
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631T39004D Contact Us For Availability
View on Model
