Model LG 42PC3D-UD – Common Parts & Diagrams

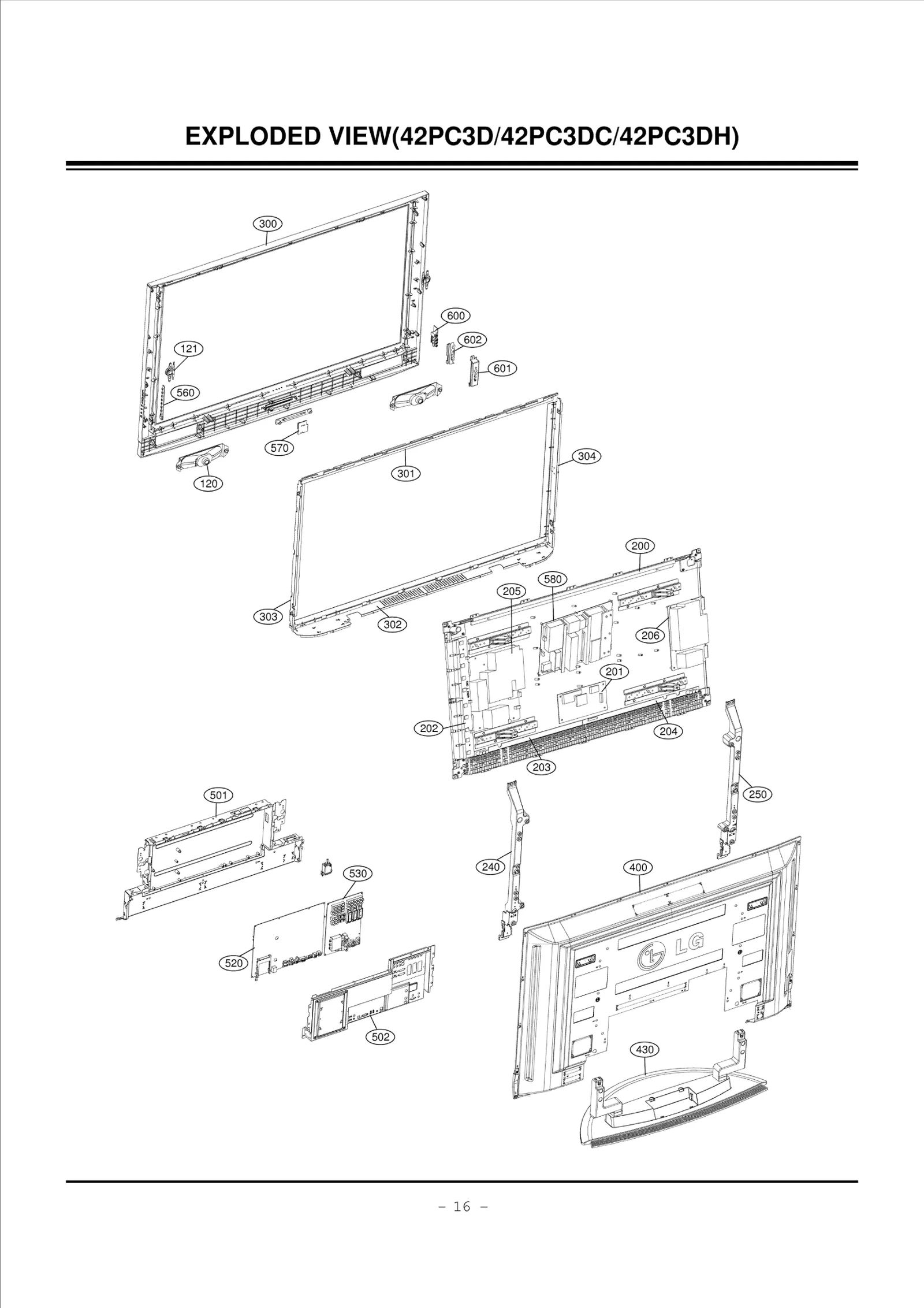

Diagram 0
Diagram 1
Common parts from model LG 42PC3D-UD
000
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1041C Contact Us For Availability
121
Speaker,Tweeter LGE EAB30826001 Contact Us For Availability
202
PWB(PCB) ASSEMBLY,DI LGE 6871QDH117A Contact Us For Availability
203
PWB(PCB) ASSEMBLY,DI LGE 6871QLH059A Contact Us For Availability
205
PWB(PCB) ASSEMBLY,DI LGE 6871QYH053B Contact Us For Availability
206
PWB(PCB) ASSEMBLY,DI LGE 6871QZH056B Contact Us For Availability
240
Supporter LGE 4980900110A Contact Us For Availability
250
SUPPORTER LGE 4980900110B Contact Us For Availability
300
Cover Assembly LGE ACQ30249901 Contact Us For Availability
301
SUPPORTER LGE 4980900113B Contact Us For Availability
302
SUPPORTER LGE 4980900114B Contact Us For Availability
303
SUPPORTER LGE 4980900115B Contact Us For Availability
304
SUPPORTER LGE 4980900116B Contact Us For Availability
400
Cover Assembly LGE ACQ30342105 Contact Us For Availability
430
Base Assembly LGE 3501900014H Contact Us For Availability
501
PLATE ASSEMBLY LGE 3301900095H Contact Us For Availability
502
PLATE ASSEMBLY LGE 3301900092D Contact Us For Availability
520
PWB(PCB) ASSEMBLY,MA LGE 68719MMU20C Contact Us For Availability
520
CHASSIS ASSEMBLY LGE 31419MF993A Contact Us For Availability
530
PWB(PCB) ASSEMBLY,SU LGE 68719SMJ26C Contact Us For Availability
560
CHASSIS ASSEMBLY LGE 31419SF275A Contact Us For Availability
570
CHASSIS ASSEMBLY LGE 31419SF276A Contact Us For Availability
580
POWER SUPPLY ASSEMBL LGE 6709900023A Contact Us For Availability
600
CHASSIS ASSEMBLY LGE 31419SF274B Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811900021E Contact Us For Availability
602
SHIELD LGE 48149V0003A Contact Us For Availability
A
CHASSIS ASSEMBLY LGE 31419SF283A Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631900104C Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631T25019T Contact Us For Availability
A1
MANUAL LGE 38289U0527B Contact Us For Availability
A2
Remote Controller LGE MKJ39927809 Contact Us For Availability
C103
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C105
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C138
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C142
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C201
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C231
CAPACITOR,FIXED ELEC LGE 0CE227SF6DC Contact Us For Availability
C370
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C371
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C392
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C622
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C704
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C711
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C716
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C921
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1015
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C1035
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C1050
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C1051
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C1070
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C1074
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1082
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C1084
Capacitor,Film,DIP LGE 0CF4741L438 Contact Us For Availability
C1315
CAPACITOR,FIXED CERA LGE 0CK823CF56A Contact Us For Availability
CC117
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
CC128
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
D101
LGE 0DD181009AB LGE 0DD181009AB Contact Us For Availability
D109
DIODE,ZENERS LGE 0DZRM00218A Contact Us For Availability
D200
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D203
LED LGE 0DL233309AC Contact Us For Availability
IC100
IC,Microprocessors LGE 0IMCRSS016A Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRSO025A Contact Us For Availability
IC101
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC103
IC LGE 0IPH741400E Contact Us For Availability
IC103
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTL00024A Contact Us For Availability
IC107
IC,MEMORIES LGE 0IMMRHY001L Contact Us For Availability
IC109
IC,CUSTOMIZED LGE 0ICTMMI057A Contact Us For Availability
IC111
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC200
IC,Tx/Rx LGE EAN39038801 Contact Us For Availability
IC202
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC203
IC,FPGA LGE 0IMCRXL004A Contact Us For Availability
IC300
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGSG018C Contact Us For Availability
IC304
IC,PERIPHERALS LGE 0IPRPFA016A Contact Us For Availability
IC306
IC,PERIPHERALS LGE 0IPRPM3002D Contact Us For Availability
IC400
IC,CUSTOMIZED LGE 0ICTMLG009C Contact Us For Availability
IC504
IC,MICRO CONTROLLER LGE 0IMCRCY001A Contact Us For Availability
IC505
IC,CUSTOMIZED LGE 0ICTMLG013A Contact Us For Availability
IC507
IC,PERIPHERALS LGE 0IPRP00668A Contact Us For Availability
IC600
IC,PERIPHERALS LGE 0IPRPS5005A Contact Us For Availability
IC602
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC700
IC,MICRO CONTROLLER LGE 0IMCRFA013A Contact Us For Availability
IC701
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC703
IC,POWER MANAGEMENT LGE 0IPMGKE032A Contact Us For Availability
IC704
IC,CRYSTAL SEMICONDU LGE 0ICB841500B Contact Us For Availability
IC802
IC,POWER MANAGEMENT LGE 0IMCRSJ001B Contact Us For Availability
IC900
IC,MICRO CONTROLLER LGE 0IMCRSJ001A Contact Us For Availability
IC902
IC,CUSTOMIZED LGE 0ICTMLG018B Contact Us For Availability
IC903
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC1002
IC,LINEAR LGE 0ILNR00015A Contact Us For Availability
IC1003
IC,MICRO CONTROLLER LGE 0IMCRTI028C Contact Us For Availability
IC1004
IC,MICRO CONTROLLER LGE 0IMCRMN028C Contact Us For Availability
IC1008
IC,MICRO CONTROLLER LGE 0IMCRFA010A Contact Us For Availability
IC1101
IC,PERIPHERALS LGE 0IPRP00538A Contact Us For Availability
J1
PWB(PCB) ASSEMBLY,SU LGE 6871VSMFA8A Contact Us For Availability
JK105
JACK,PHONE LGE 6612F00099A Contact Us For Availability
L101
Filter,Bead LGE 6210VC0005A Contact Us For Availability
L101
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1028
COIL,CHOKE LGE 6140VB0032A Contact Us For Availability
LV1
CONNECTOR ASSEMBLY LGE 6631900012D Contact Us For Availability
P102
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P800
WAFER LGE 6602T25008M Contact Us For Availability
P801
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
P1001
WAFER LGE 6602T25008J Contact Us For Availability
P1103
Connector,Wafer LGE 6602T25008B Contact Us For Availability
Q300
TRANSISTOR LGE 0TR102009AG Contact Us For Availability
Q305
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q600
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1006
TRANSISTOR LGE 0TR102008AA Contact Us For Availability
R103
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
SW200
ADAPTER,RF LGE 6634D00010D Contact Us For Availability
TU1100
TUNER LGE 6700AN0002C Contact Us For Availability
VX500
OSCILLATOR LGE 6204B60001B Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6212AB3004D Contact Us For Availability
X101
Crystal LGE 6212AB2015A Contact Us For Availability
X300
RESONATOR,CRYSTAL LGE 6212AB2806A Contact Us For Availability
X600
RESONATOR,CRYSTAL LGE 6212AB2845A Contact Us For Availability
X1000
Crystal LGE 6202VDT002H Contact Us For Availability
ZD1000
DIODE,ZENERS LGE 0DZRM00248A Contact Us For Availability
× ![]()
