Model LG 42LV5500 – Common Parts & Diagrams

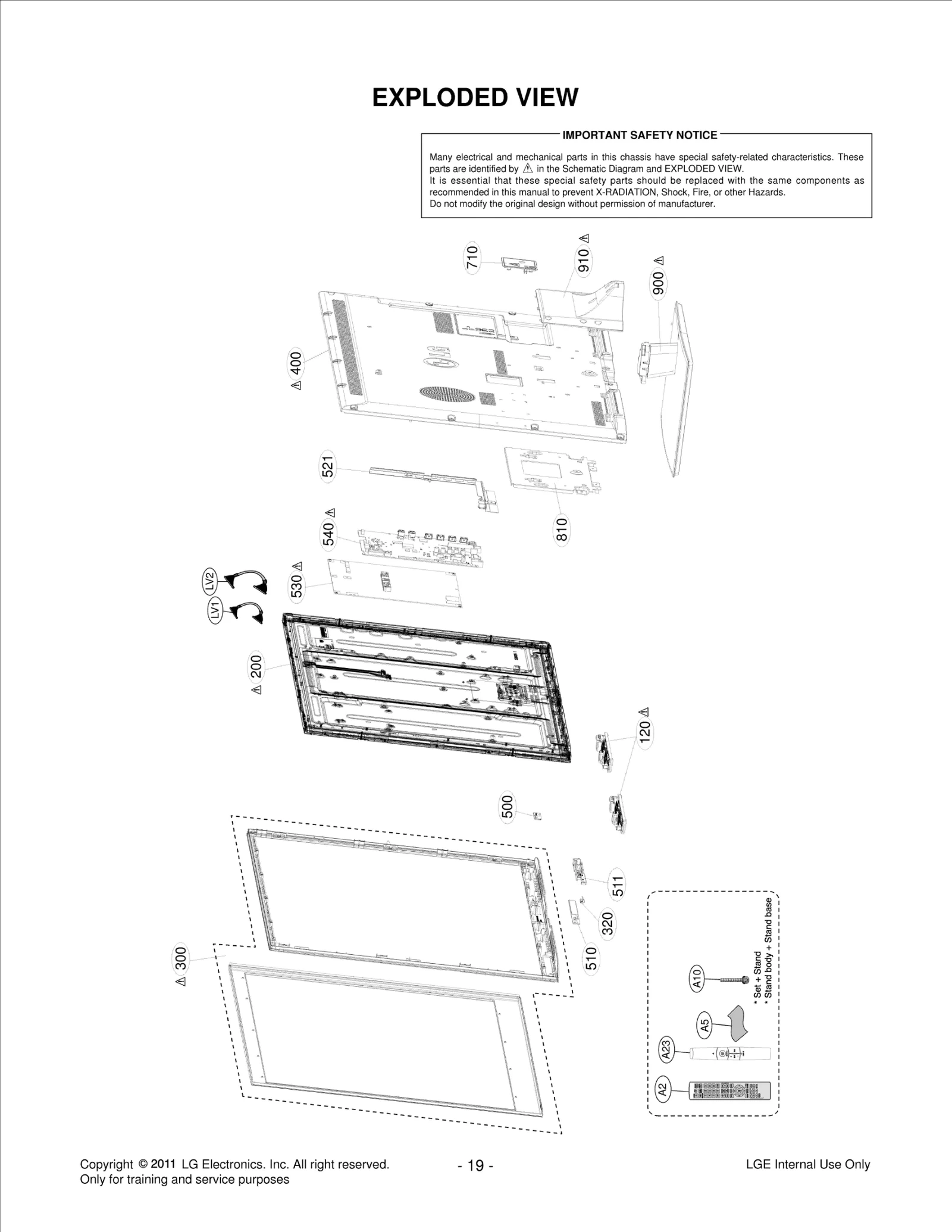

Diagram 0
Diagram 1
Common parts from model LG 42LV5500
120
Speaker,Full Range LGE EAB62088401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61749101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73288707 Contact Us For Availability
320
Indicator LGE MES62378302 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83852512 Contact Us For Availability
500
PCB Assembly,RF LGE EBR72499601 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671001 Contact Us For Availability
511
Bracket LGE MAZ62829502 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169801 Contact Us For Availability
710
Bracket LGE MAZ62827604 Contact Us For Availability
810
Supporter LGE MJH62198002 Contact Us For Availability
900
Base Assembly LGE AAN73430406 Contact Us For Availability
A1
Manual,Owners LGE MFL62882756 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72914042 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A7
AN-WF100---Wi-Fi dongle LGE EAT60713302 Contact Us For Availability
A7
Module,WLAN LGE EAT60713304 Contact Us For Availability
A7
Module,WLAN LGE EAT60713301 Contact Us For Availability
A22
Cover LGE MCK66265801 Contact Us For Availability
A23
Remote Controller Assembly LGE AKB73295502 Contact Us For Availability
AR405
Resistor,Array LGE EBC39283301 Contact Us For Availability
C105
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C106
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C110
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C113
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C261
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C296
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C417
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C433
Filter,LCR LGE EAM62070601 Contact Us For Availability
C439
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C507
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C515
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C530
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C539
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C545
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C555
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C594
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C602
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C702
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C730
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C810
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C818
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C823
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE EAE30383301 Contact Us For Availability
C832
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1107
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C1230
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1504
Capacitor,Ceramic,Chip LGE 0CC225EKFBA Contact Us For Availability
C1728
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1734
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1744
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C1764
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C1785
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C2107
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C2154
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C2178
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C2179
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
CA1
Harness,Single LGE EAD57675124 Contact Us For Availability
CA2
Harness,Single LGE EAD60958416 Contact Us For Availability
CA3
Harness,Single LGE EAD61646205 Contact Us For Availability
CA11
Harness,Single LGE EAD61653801 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61273102 Contact Us For Availability
D711
Diode,Schottky LGE EAH61113201 Contact Us For Availability
D713
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D801
Diode,TVS LGE EAH39491701 Contact Us For Availability
D1406
Diode,TVS LGE EAH42720601 Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN61573001 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000102 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN61000101 Contact Us For Availability
IC103
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN61848801 Contact Us For Availability
IC501
IC,DC,DC Converter LGE EAN61849201 Contact Us For Availability
IC502
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC504
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC505
IC,DC,DC Converter LGE EAN60660601 Contact Us For Availability
IC506
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC508
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC602
IC,Microcontrollers LGE EAN61367101 Contact Us For Availability
IC701
IC,Analog Switch LGE EAN61859001 Contact Us For Availability
IC802
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC804
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC1203
IC,Analog Switch LGE EAN61849601 Contact Us For Availability
IC1702
IC,Audio Amplifier LGE EAN61850701 Contact Us For Availability
IC2103
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
JK703
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK802
Jack,Fiber Optic LGE EAG37842004 Contact Us For Availability
JK803
Jack,Phone LGE EAG61030001 Contact Us For Availability
JK804
Connector,DSUB LGE EAG62012201 Contact Us For Availability
JK805
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1001
Connector,I/O LGE EAG61008301 Contact Us For Availability
JK1101
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1202
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1401
Jack,Modular LGE EAG62012402 Contact Us For Availability
L505
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L515
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L805
Filter,Bead LGE EAM38769501 Contact Us For Availability
L806
Filter,Bead LGE EAM54407902 Contact Us For Availability
L1703
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L2106
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV2
Cable,FFC LGE EAD61652505 Contact Us For Availability
M7
Gasket LGE MDS62110209 Contact Us For Availability
M23
Gasket LGE MDS62110213 Contact Us For Availability
P101
Connector,Wafer LGE 6630V90209C Contact Us For Availability
P102
Connector,Wafer LGE 6602T12004J Contact Us For Availability
P601
Connector,Wafer LGE 6602T12004L Contact Us For Availability
P901
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1302
Connector,Wafer LGE 6630V90141H Contact Us For Availability
P1501
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P1502
Connector,Wafer LGE 6630V93270C Contact Us For Availability
P1601
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P1702
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q102
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q503
FET LGE EBK61492001 Contact Us For Availability
Q507
FET LGE EBK60752501 Contact Us For Availability
Q508
FET LGE EBK61491901 Contact Us For Availability
Q902
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q2105
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R104
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R106
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R128
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R135
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R140
Resistor,Chip LGE 0RJ5600C478 Contact Us For Availability
R210
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R211
Resistor,Chip LGE EBC43209201 Contact Us For Availability
R213
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R234
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R312
Resistor,Chip LGE EBC60972201 Contact Us For Availability
R419
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R421
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ4991C478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R511
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R512
Resistor,Chip LGE 0RJ2701D477 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R516
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R525
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R526
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R545
Resistor,Chip LGE EBC32920101 Contact Us For Availability
R548
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R549
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R570
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R571
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R578
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R592
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R595
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R705
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R754
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R775
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R776
Resistor,Chip LGE EBC61495701 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R865
Wire Pad LGE EBC40167001 Contact Us For Availability
R928
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1007
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1110
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1118
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1125
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1127
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1139
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1142
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1325
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1402
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1719
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R1735
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R2135
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R2143
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU2101
Tuner,Analog/Digital LGE EBL60860104 Contact Us For Availability
TY
Tape,Non Woven LGE RAB33013802 Contact Us For Availability
X101
Crystal LGE EAW58812611 Contact Us For Availability
X602
Crystal LGE EAW58239602 Contact Us For Availability
ZD1115
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
Login and Registration Form
