Model Whirlpool 41EN-31W GAS RANGE – Common Parts & Diagrams

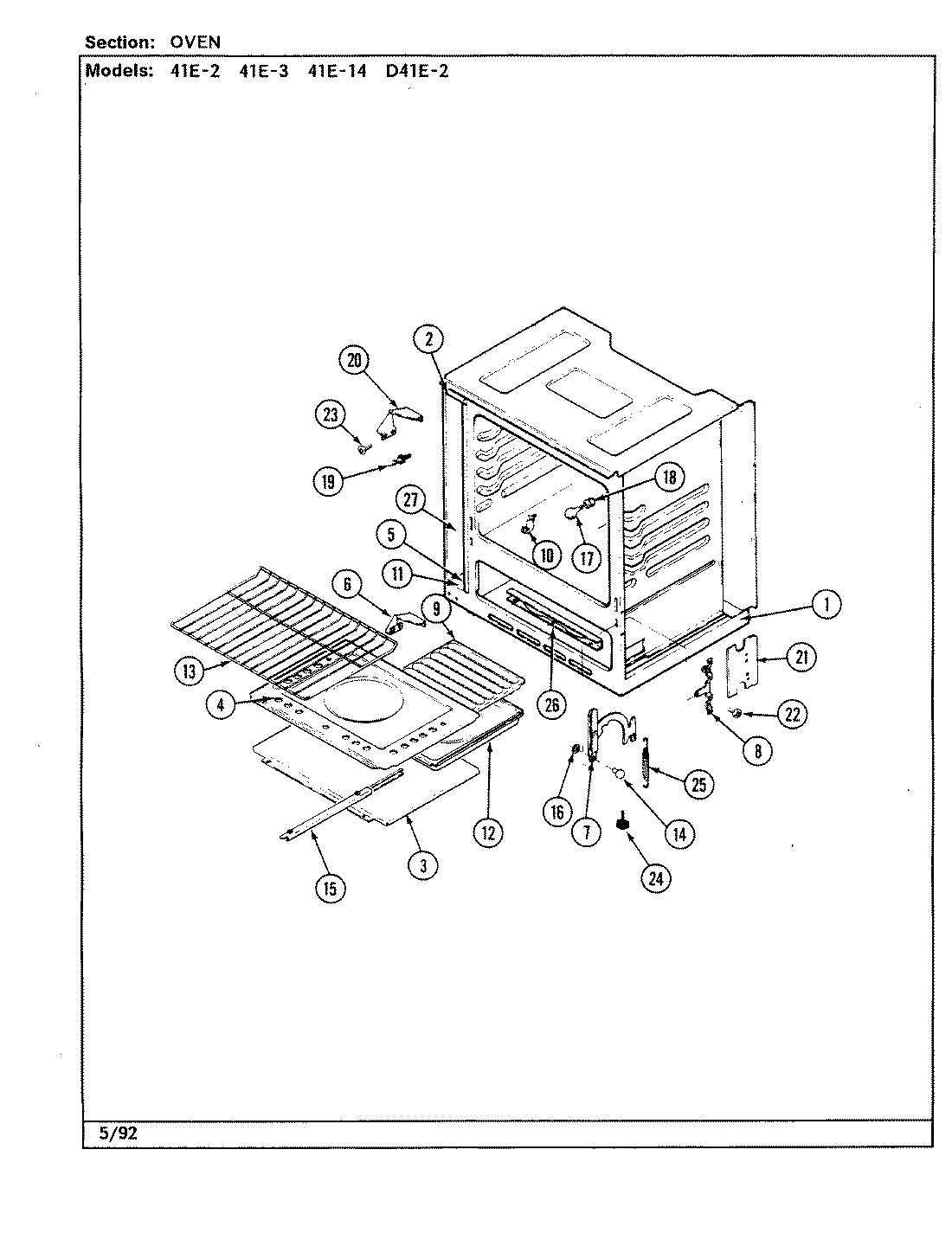

05 - OVEN

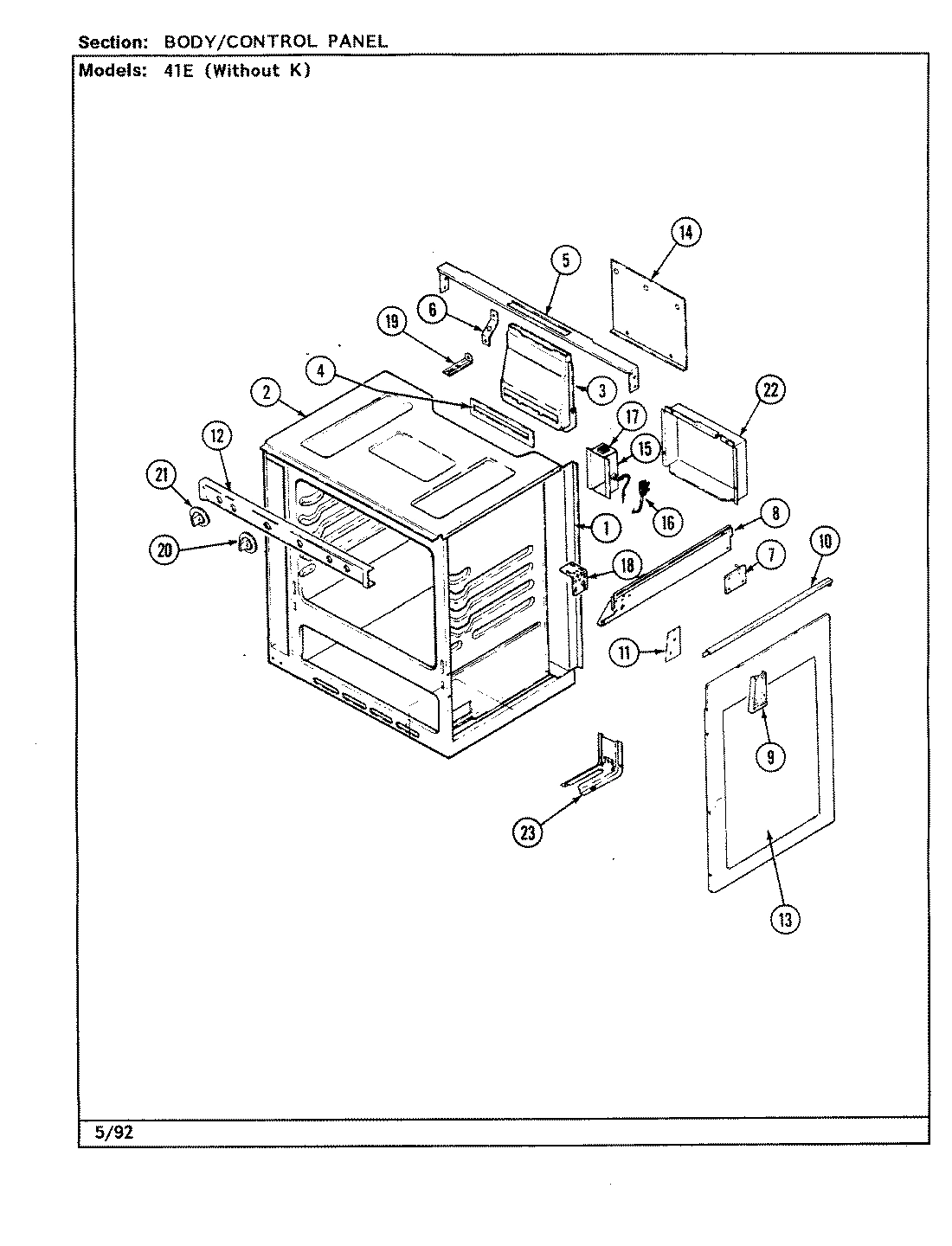

02 - BODY/CONTROL PANEL

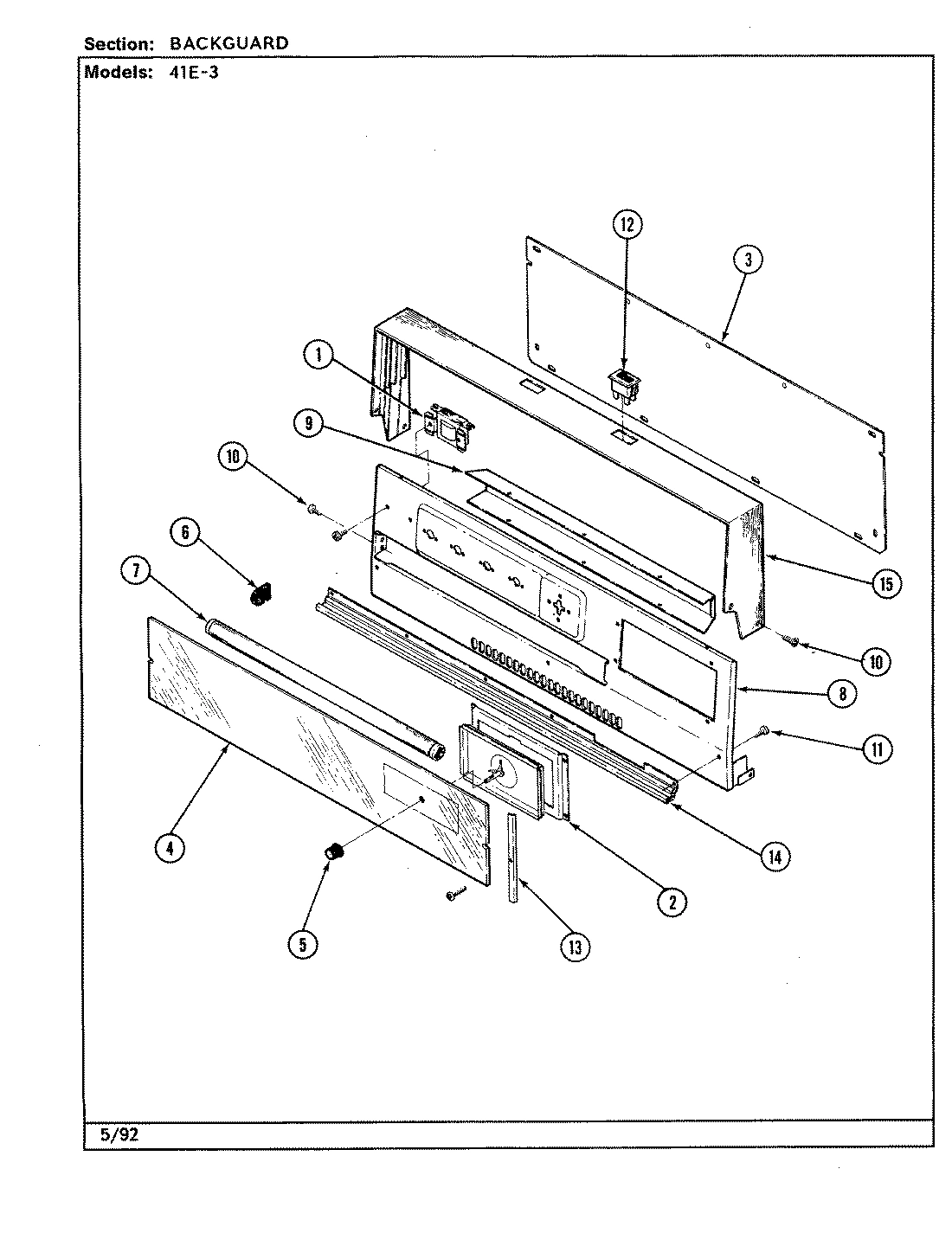

01 - BACKGUARD

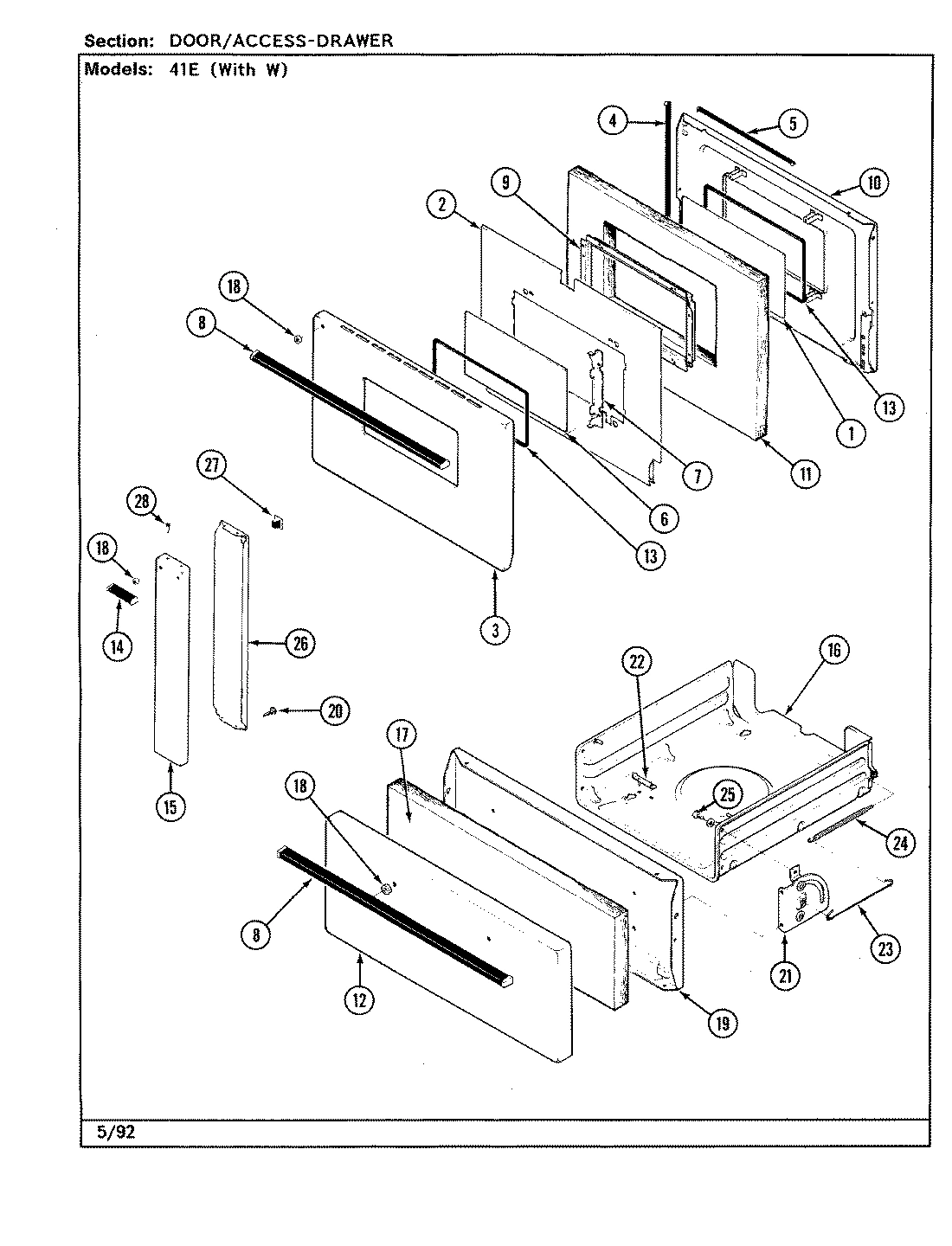

03 - DOOR/ACCESS DRAWER

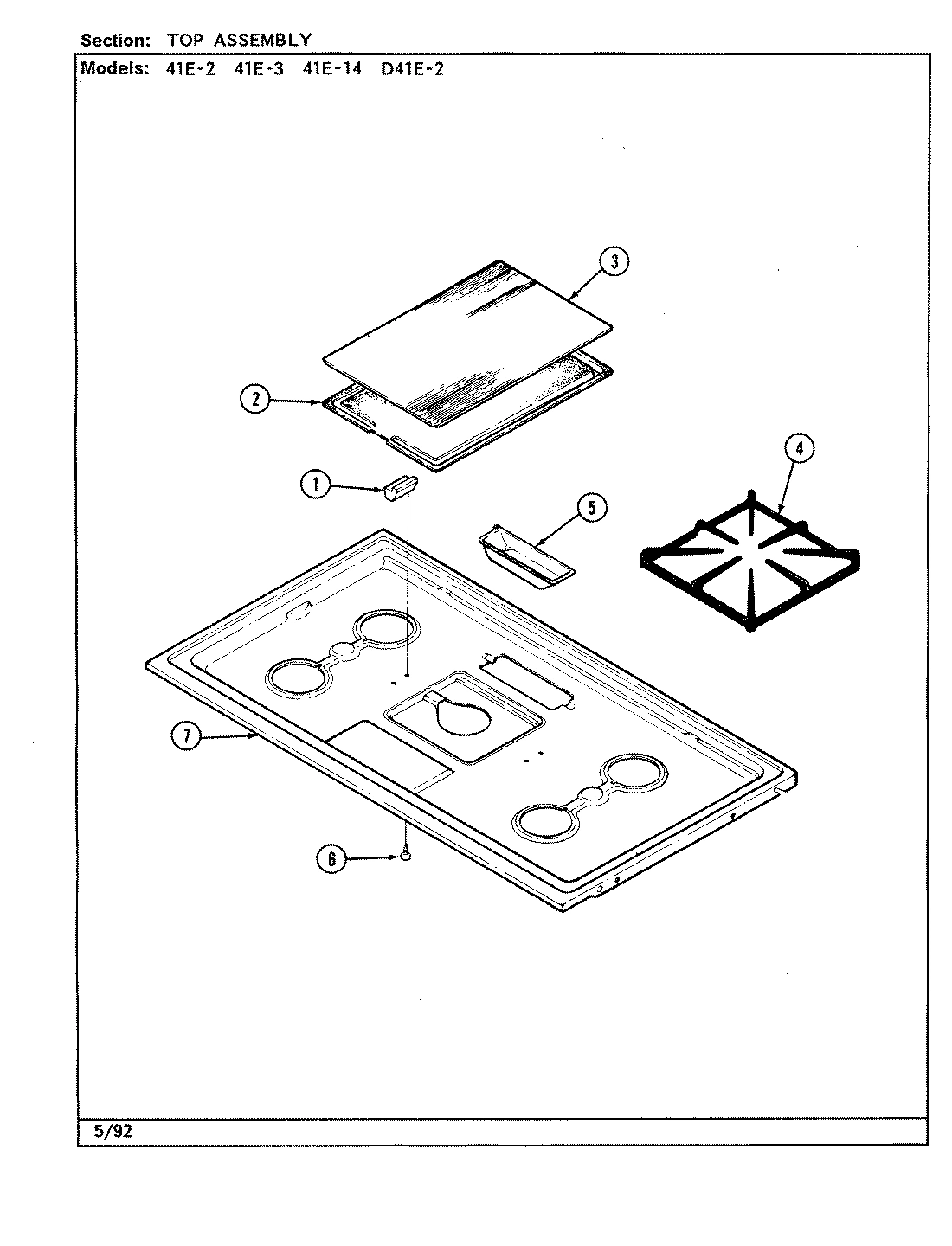

06 - TOP ASSEMBLY

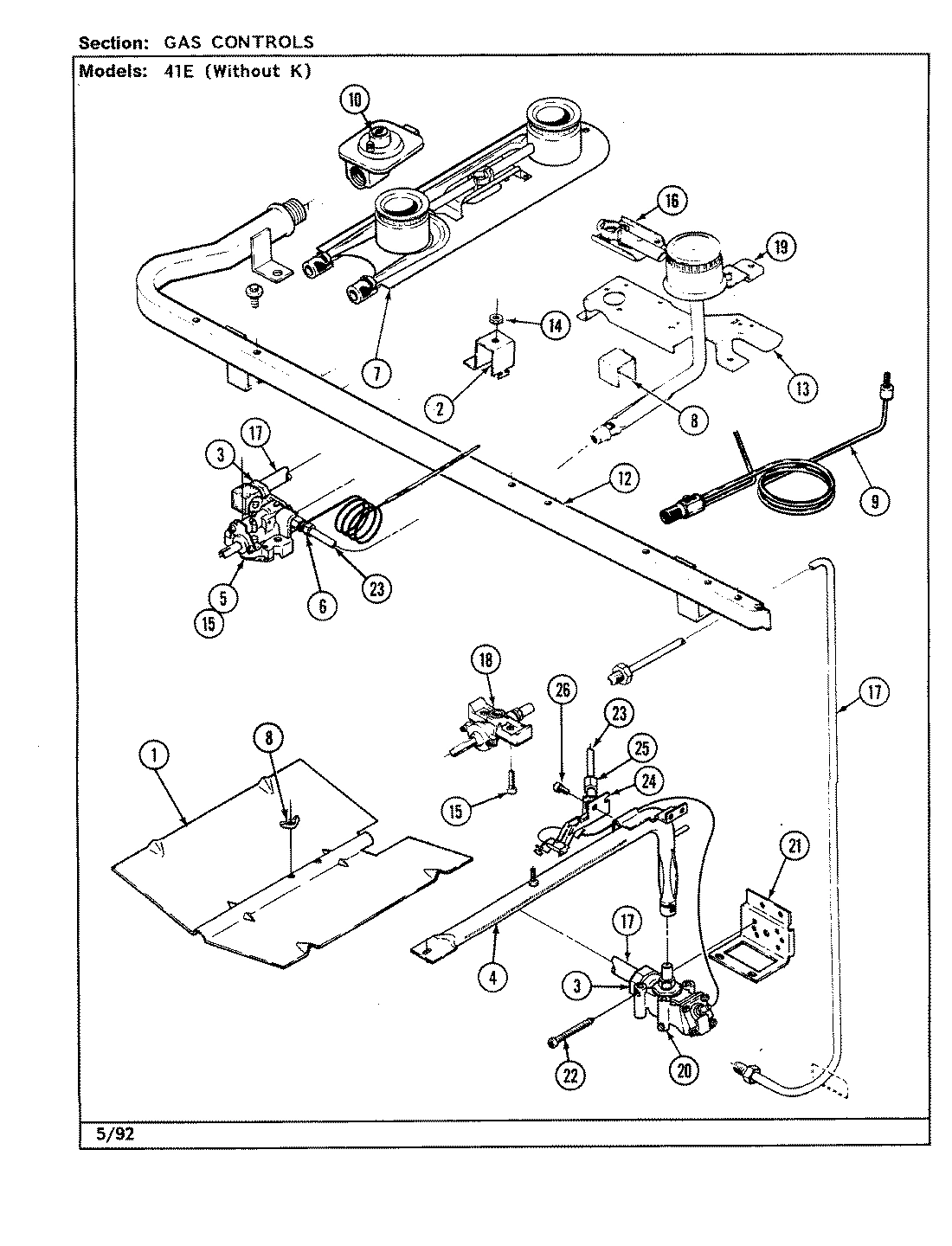

04 - GAS CONTROLS
Common parts from model Whirlpool 41EN-31W GAS RANGE
1
BRACE, BASE WPL 3802F01280 Contact Us For Availability
1
BASE ASSY. RANGE WPL 4003W00220 Contact Us For Availability
1
SCREW WPL 7101P00460 Contact Us For Availability
1
NUT, BASE MTG. WPL 7103P00460 Contact Us For Availability
1
BACK, MAIN WPL 4002F06320 Contact Us For Availability
1
BACK, MAIN WPL 4002F16880 Contact Us For Availability
1
BRACE WPL 3802F01480 Contact Us For Availability
1
BALLAST WPL 7412P00560 Contact Us For Availability
1
GLASS, DOOR INNER WPL 7902P03560 Contact Us For Availability
1
BAFFLE, BROIL WPL 3601F09945 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F10145 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F21545 Contact Us For Availability
2
BRACE COMPT. TOP WPL 3802F07280 Contact Us For Availability
2
BOX, BURNER WPL 4011F13580 Contact Us For Availability
2
CLOCK, INT. TIME WPL 7602P06760 Contact Us For Availability
2
BAFFLE, OVEN DOOR WPL 3601F09451 Contact Us For Availability
2
SUPPORT, TOP PILOT WPL 3807F20434 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F10051 Contact Us For Availability
3
FLUE ASSY. WPL 4006W01720 Contact Us For Availability
3
COVER, CONSOLE WIRE WPL 4005F17120 Contact Us For Availability
3
PANEL, DOOR (WHT) WPL 2401F04271 Contact Us For Availability
3
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
3
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00916 Contact Us For Availability
4
BOTTOM, OVEN WPL 2205F00923 Contact Us For Availability
4
BAFFLE WPL 3601F01823 Contact Us For Availability
4
INSULATION, BAFFLE WPL 7002P00960 Contact Us For Availability
4
GASKET WPL 7201P00660 Contact Us For Availability
4
GLASS, BACKGUARD WPL 7910P00160 Contact Us For Availability
4
SEAL, OVEN DOOR WPL 7212P00360 Contact Us For Availability
4
GRATE WPL 2003W00100 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02600 Contact Us For Availability
4
BURNER ASSY., OVEN WPL 3403D03045 Contact Us For Availability
4
BURNER, OVEN WPL 7505P06560 Contact Us For Availability
5
SIDE, OVEN COMPARTMENT WPL 4016F01480 Contact Us For Availability
5
BRACE WPL 3802F03823 Contact Us For Availability
5
KNOB, SWITCH WPL 1359263 Contact Us For Availability
5
KNOB, CLOCK WPL 1437241 Contact Us For Availability
5
CLIP, SEAL WPL 7112P06460 Contact Us For Availability
5
SEAL, OVEN DOOR WPL 7212P02560 Contact Us For Availability
5
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
5
THERMOSTAT WPL 7515P01860 Contact Us For Availability
5
THERMOSTAT WPL 7515P02660 Contact Us For Availability
5
THERMOSTAT WPL 7515P03260 Contact Us For Availability
6
HINGE WPL 7106P00360 Contact Us For Availability
6
BRACE WPL 3802F03734 Contact Us For Availability
6
RECEPTACLE, LAMP WPL 7408P00560 Contact Us For Availability
6
GLASS WPL 7902P05160 Contact Us For Availability
6
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
7
STOP, OVEN DOOR WPL 3420A03534 Contact Us For Availability
7
HINGE, MAIN TOP R.H. WPL 5720A00234 Contact Us For Availability
7
HINGE, MAIN TOP L.H. WPL 5720A00934 Contact Us For Availability
7
LAMP, FLUORESCENT WPL 7407P00360 Contact Us For Availability
7
RETAINER WPL 3804F05080 Contact Us For Availability
7
TOP, MAIN WPL 2001F00701 Contact Us For Availability
7
BURNER, TOP WPL 3412A00419 Contact Us For Availability
8
HINGE, OVEN DOOR (RT) WPL 3418A06934 Contact Us For Availability
8
HINGE, OVEN DOOR (LT) WPL 3418A07034 Contact Us For Availability
8
SCREW WPL 7101P03460 Contact Us For Availability
8
SCREW WPL 7101P07160 Contact Us For Availability
8
SIDE, BURNER BOX RIGHT WPL 4016F00280 Contact Us For Availability
8
SIDE, BURNER BOX LEFT WPL 4016F00680 Contact Us For Availability
8
CONSOLE ASSY, BLACK WPL 2601W25100 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
8
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
8
HANDLE, DOOR (CHR) WPL 7701P03060 Contact Us For Availability
9
INSERT WPL 3413F00211 Contact Us For Availability
9
INSERT, BROIL PAN WPL 3413F00219 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
TRIM, LEFT WPL 7720P05560 Contact Us For Availability
9
TRIM, RIGHT WPL 7720P05860 Contact Us For Availability
9
REFLECTOR - OVEN LIGHT WPL 3602F00251 Contact Us For Availability
9
FRAME, WINDOW----NA WPL 3603F01380 Contact Us For Availability
9
BURNER, PILOT WPL 7505P07860 Contact Us For Availability
9
BURNER, PILOT WPL 7505P07960 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
SCREW WPL 7101P06160 Contact Us For Availability
10
TRIM WPL 7720P05660 Contact Us For Availability
10
TRIM WPL 7720P05960 Contact Us For Availability
10
SCREW WPL 7101P00860 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W11923 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W16519 Contact Us For Availability
10
LINING, OVEN DOOR WPL 2402W16523 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
11
BOTTOM, COMPARTMENT WPL 4011F13180 Contact Us For Availability
11
TRIM WPL 2610F00132 Contact Us For Availability
11
TRIM WPL 2610F00232 Contact Us For Availability
11
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
11
INSULATION, DOOR WPL 7002P01260 Contact Us For Availability
11
NUT, WING WPL 7103P03060 Contact Us For Availability
12
PAN, BROIL WPL 3401F00411 Contact Us For Availability
12
PAN, BROIL WPL 3401F00419 Contact Us For Availability
12
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
12
PANEL, MANIFOLD WHITE WPL 2616F05281 Contact Us For Availability
12
SCREW WPL 7118P00460 Contact Us For Availability
12
SWITCH WPL 7403P01160 Contact Us For Availability
12
SWITCH WPL 7403P02060 Contact Us For Availability
12
SWITCH, LIGHT WPL 7403P24160 Contact Us For Availability
12
SWITCH, LIGHT WPL 7403P24260 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2403F01171 Contact Us For Availability
12
PIPE, MANIFOLD (W/GRIDDLE) WPL 7513P05160 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P11560 Contact Us For Availability
12
PIPE MANIFOLD WPL 7513P13660 Contact Us For Availability
13
RACK, OVEN WPL 7801P01360 Contact Us For Availability
13
PANEL, SIDE WHITE WPL 2618F01371 Contact Us For Availability
13
SCREW, TRIM WPL 7101P25060 Contact Us For Availability
13
TRIM, GLASS RETAINER WPL 7720P10760 Contact Us For Availability
13
GASKET, WINDOW WPL 7201P01760 Contact Us For Availability
14
PIN, HINGE WPL 7113P00260 Contact Us For Availability
14
BAFFLE WPL 3601F06051 Contact Us For Availability
14
EXTRUSION, TRIM WPL 7706P01660 Contact Us For Availability
14
HANDLE, COMPARTMENT DOOR WPL 7701P00960 Contact Us For Availability
14
NUT, TOP PILOT WPL 7103P07060 Contact Us For Availability
15
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
15
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
15
SCREW 6-32X.625 TY23PH WPL 7101P01560 Contact Us For Availability
15
EXTRUSION WPL 3608F03059 Contact Us For Availability
15
EXTRUSION, TOP & SIDE WPL 7706P18360 Contact Us For Availability
15
PANEL, COMPARTMENT WHITE WPL 2409F00771 Contact Us For Availability
15
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
15
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
15
SCREW WPL 7101P29660 Contact Us For Availability
16
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
16
DRAWER ASSY. WPL 3407W00411 Contact Us For Availability
17
BULB, OVEN WPL 7407P02660 Contact Us For Availability
17
INSULATION WPL 7002P00260 Contact Us For Availability
18
RECEPT, OVEN LIGHT WPL 7408P00160 Contact Us For Availability
18
BRACKET WPL 3801F05334 Contact Us For Availability
18
SPACER, HANDLE WPL 8010P00260 Contact Us For Availability
18
VALVE, BURNER WPL 7502P04760 Contact Us For Availability
18
VALVE BURNER WPL 7502P13860 Contact Us For Availability
18
VALVE, BURNER WPL 7502P18560 Contact Us For Availability
18
VALVE WPL 7502P22660 Contact Us For Availability
19
CATCH WPL 8024P00260 Contact Us For Availability
19
SCREW WPL 7101P05860 Contact Us For Availability
19
NOT REQUIRED PART OR SEE NOTE BURNER, GRIDDLE WPL W10124350 Contact Us For Availability
19
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
19
LINING, BROILER WPL 2404F02023 Contact Us For Availability
20
HINGE WPL 7106P00760 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7731P00160 Contact Us For Availability
20
KNOB, THERMOSTAT WPL 7731P05460 Contact Us For Availability
20
BUMPER WPL 8003P00360 Contact Us For Availability
20
VALVE WPL 7501P02660 Contact Us For Availability
20
VALVE, BAKE WPL 7501P02760 Contact Us For Availability
20
VALVE, OVEN WPL 7501P11060 Contact Us For Availability
21
GUARD, HINGE WPL 3609F00361 Contact Us For Availability
21
SCREW, COUNTERWEIGHT WPL 7101P12760 Contact Us For Availability
21
NUT WPL 7103P06460 Contact Us For Availability
21
KNOB, VALVE WPL 7733P00260 Contact Us For Availability
21
HINGE, BROILER (LT) WPL 3418A02734 Contact Us For Availability
21
HINGE, BROILER (RT) WPL 3418A02834 Contact Us For Availability
21
SUPPORT WPL 3807F14334 Contact Us For Availability
21
SUPPORT, OVEN VALVE WPL 3807F41834 Contact Us For Availability
22
SCREW WPL 7101P11260 Contact Us For Availability
22
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
22
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
22
CATCH WPL 8002P00160 Contact Us For Availability
22
SCREW WPL 7101P02560 Contact Us For Availability
23
LINK, BROILER WPL 7807P00160 Contact Us For Availability
23
TUBING (3/16 X 50``) WPL 3414F06144 Contact Us For Availability
24
SCREW, SPECIAL WPL 7101P02960 Contact Us For Availability
24
SPRING WPL 7803P01460 Contact Us For Availability
24
PILOT ASSY. WPL 1566267 Contact Us For Availability
24
LIGHTER PILOT WPL 7432P06860 Contact Us For Availability
25
SPRING WPL 7803P00360 Contact Us For Availability
25
SCREW WPL 7101P11460 Contact Us For Availability
25
LOCK NUT, CATCH WPL 7103P06760 Contact Us For Availability
25
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
26
SUPPORT, OVEN BOTTOM WPL 5720A00211 Contact Us For Availability
26
LINING, COMPARTMENT DOOR WPL 2408F00580 Contact Us For Availability
26
SCREW WPL 7101P06760 Contact Us For Availability
27
UPRIGHT, FRONT CORNER WPL 3822F00180 Contact Us For Availability
27
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
27
CLIP, OVEN FRONT WPL 7112P02060 Contact Us For Availability
27
CATCH, FEMALE WPL 8002P01360 Contact Us For Availability
28
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
× ![]()
Login and Registration Form
